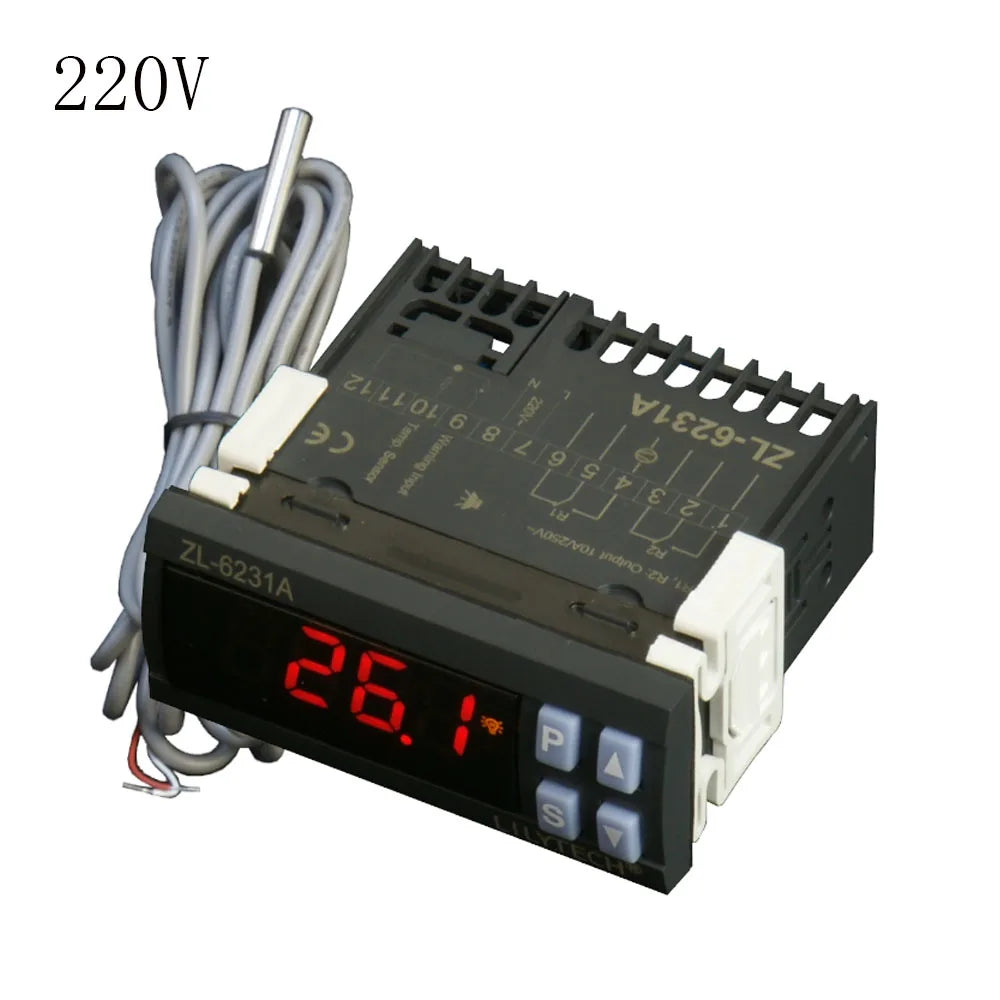

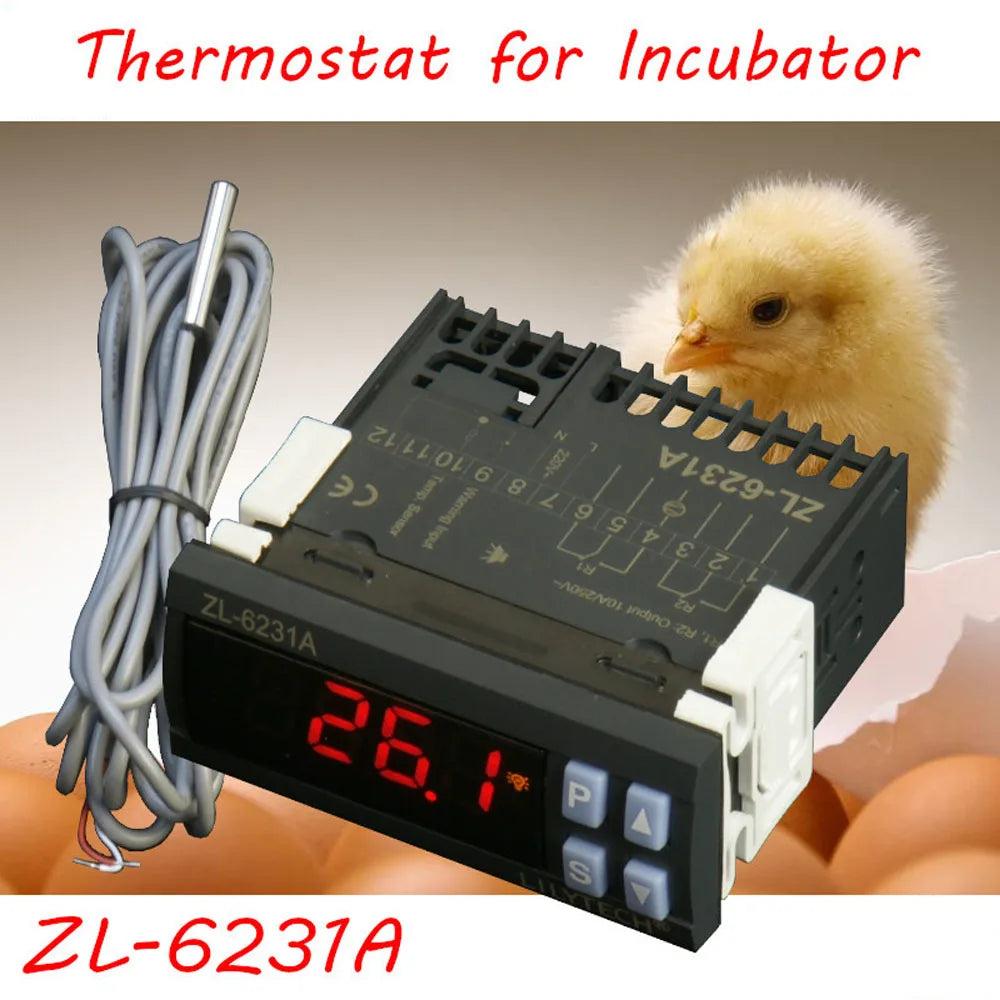

ZL-6231A Intelligent Temperature Control Regulator for Incubators
Take precise control of your incubator environment with the ZL-6231A Intelligent Thermostat Controller. Designed for egg incubation setups, this versatile unit combines accurate temperature regulation with a built-in multifunctional timer — perfect for managing air exhaustion cycles, egg tray turning schedules, and other automated incubation tasks. Compatible with 12V DC, 110V AC, and 220V AC power supplies, it fits a wide range of global setups right out of the box.
Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Works with 12VDC, 110VAC, and 220VAC (50/60Hz) — adaptable to virtually any electrical system worldwide.
- Multifunctional Timer: Built-in timer supports incubator air exhaustion, egg tray turning, and other automated functions for hands-free operation.
- Broad Temperature Setting Range: Set from -40°C to 120°C with a display range of -40°C to 130°C for maximum flexibility.
- NTC Sensor: Includes a 2-meter NTC sensor wire for accurate, real-time temperature readings.
- High-Power Output: Rated 10A at 250VAC resistive load — handles demanding incubator heating elements with ease.
- IP65 Front Protection: Dust-tight and water-resistant front panel keeps the controller operating reliably even in humid incubator environments.
- Durable Fire-Proof Casing: PC+ABS fire-proof materials ensure long-lasting, safe performance.
- Compact Panel-Mount Design: Slim 78×34.5×71mm body with a 71×29mm installation cutout for easy integration into any incubator panel.
Technical Specifications
| Power Supply | 12VDC / 110VAC / 220VAC, 50/60Hz |
| Output Rating | 10A, 250VAC (resistive) |
| Sensor Type | NTC, 2-meter wire |
| Setting Range | -40°C to 120°C |
| Display Range | -40°C to 130°C |
| Operating Conditions | -10°C to 45°C; 5–90% RH (no condensation) |
| Dimensions | W78 × H34.5 × D71 mm |
| Panel Cutout | W71 × H29 mm |
| Case Material | PC + ABS fire-proof |
| Protection Level | IP65 (front panel) |
| Power Consumption | 72W |
| Country of Origin | Mainland China |
What's in the Box
- 1× ZL-6231A Temperature Controller
Important Notes
- Due to screen and lighting differences, the actual product color may vary slightly from images.
- Please allow ±1–3cm tolerance due to manual measurement.
- Battery not included.
For more information on safe electrical product usage and standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltages does the ZL-6231A thermostat controller support?
A: The ZL-6231A supports 12VDC, 110VAC, and 220VAC at 50/60Hz, making it compatible with both North American and international electrical systems without an external converter.
Q: Can the ZL-6231A timer be used for egg tray turning and air ventilation control?
A: Yes — the built-in multifunctional timer is specifically designed for incubator applications including automated egg tray turning cycles and air exhaustion scheduling, as well as other custom timed outputs.
Q: Is the ZL-6231A waterproof or suitable for humid incubator environments?
A: The front panel of the ZL-6231A is rated IP65, meaning it is dust-tight and protected against water jets, making it well-suited for the humid conditions inside egg incubators. The unit operates reliably in environments from 5% to 90% relative humidity (non-condensing).
Q: What type of temperature sensor does the ZL-6231A use?
A: It uses an NTC (Negative Temperature Coefficient) sensor with a 2-meter wire, providing accurate and responsive temperature readings across its full -40°C to 130°C display range.
Q: How is the ZL-6231A installed in an incubator panel?
A: The controller requires a panel cutout of 71mm (width) × 29mm (height). Its compact 78×34.5×71mm body fits neatly into most incubator control panels for a clean, professional installation.
