ZKTeco Access Controller Panel Board – TCP/IP Wiegand Multi-Door System
Take full control of your facility's entry points with this professional-grade ZKTeco Access Controller Panel Board. Compatible with ZKAccess 3.5 and E-ZKeco Pro software, this LAN-based controller supports single, double, or four-door configurations — making it ideal for offices, warehouses, schools, and multi-gate commercial environments.
Made in Mainland China.
Key Features

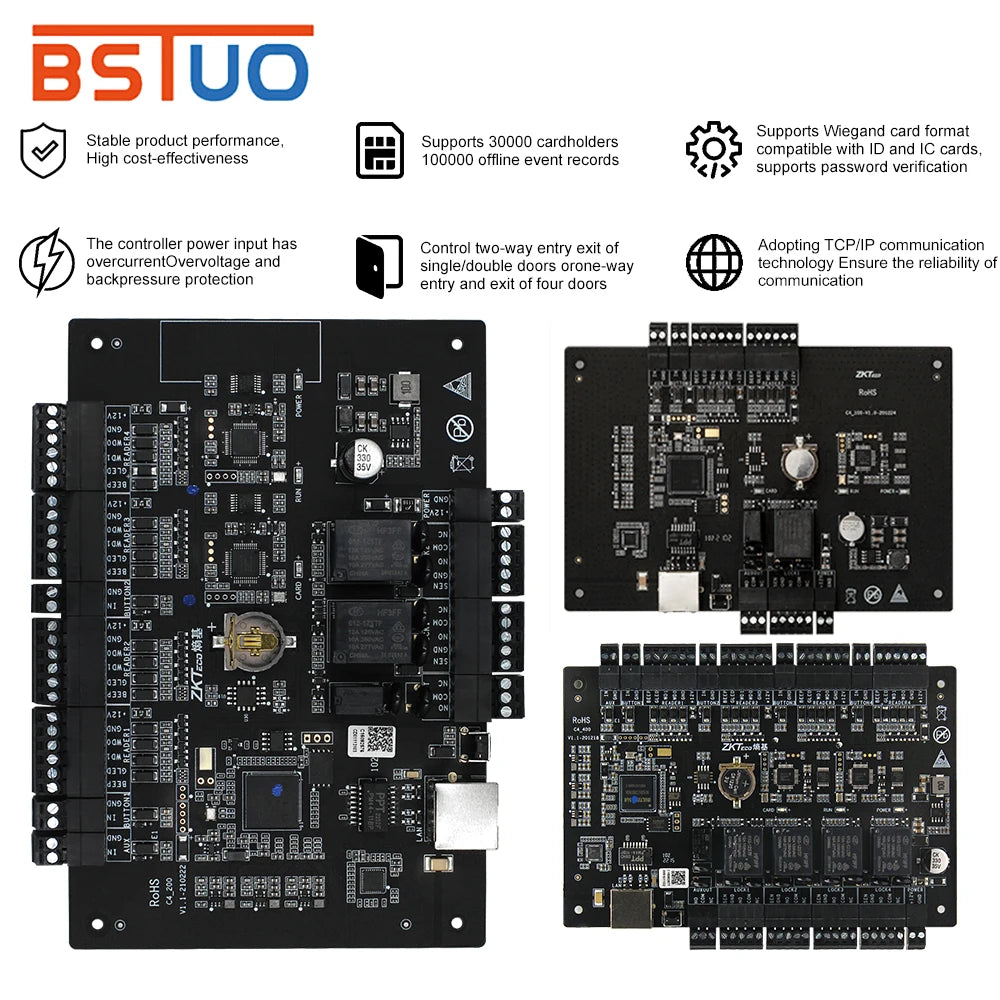

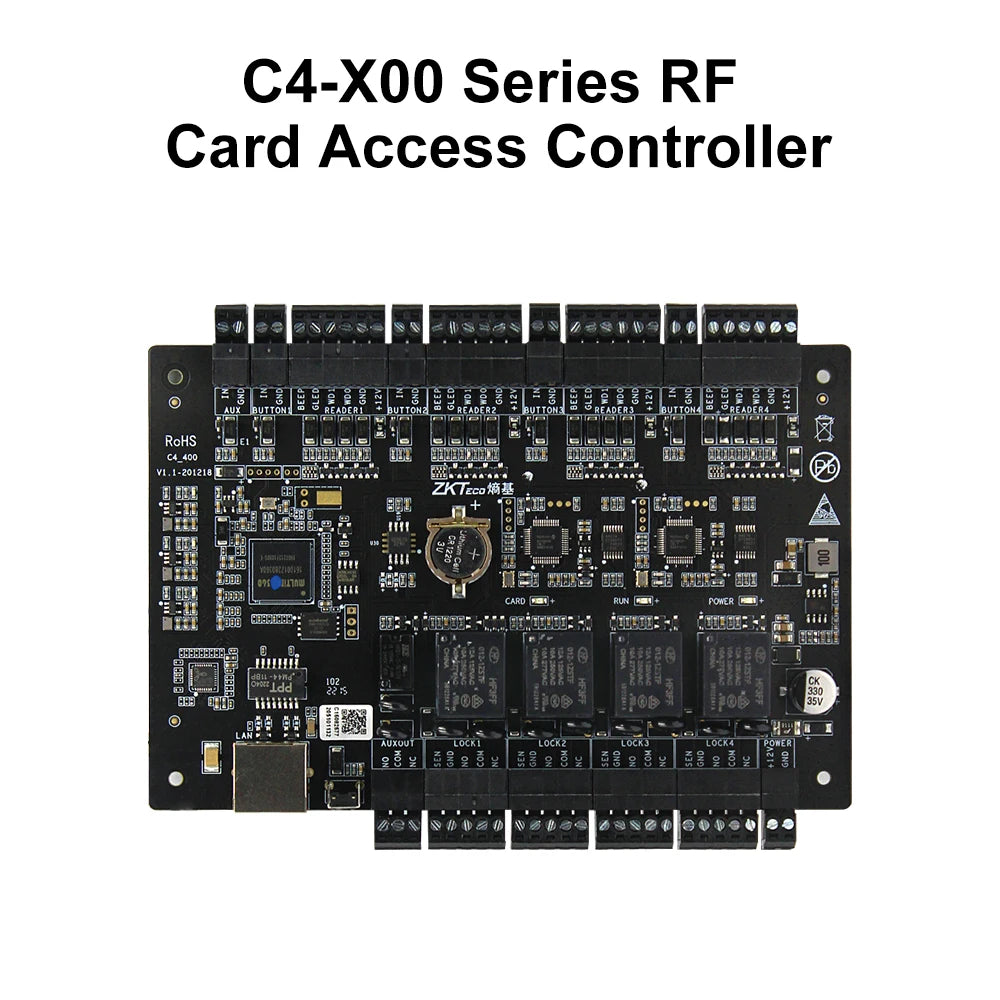

- Flexible Door Configurations: Choose from single-door (C4-100), double-door (C4-200), or four-door (C4-400) models to match your facility's layout.
- High Card Capacity: Stores up to 30,000 user cards and logs up to 100,000 access records — perfect for medium-to-large installations.
- TCP/IP LAN Connectivity: Seamlessly integrates into your existing network for centralized, real-time access management across multiple entry points.
- Wiegand Input/Output Support: Compatible with standard Wiegand readers, offering wide compatibility with existing card reader hardware.
- Multiple Identification Methods: Supports ID cards, IC cards, and PIN/password entry for versatile and layered access control.
- Embedded Linux OS: Reliable, stable operating system with 256 MB Flash storage ensures continuous operation without Windows dependency.
- Software Compatible: Works with ZKAccess 3.5 and E-ZKeco Pro (LAN) management software for comprehensive access scheduling, reporting, and monitoring.
- Compact Form Factor: Slim panel board measuring just 160 × 106 mm — easy to mount in any control cabinet or enclosure.
Specifications
| Brand | Asia-Teco (ZKTeco Compatible) |
| Model Numbers | C4-100 / C4-200 / C4-400 |
| Card Capacity | 30,000 |
| Record Capacity | 100,000 |
| Communication | TCP/IP (LAN) |
| Reader Interface | Wiegand Input/Output |
| Identification | ID Card, IC Card, Password |
| Door Support | Single / Double / Four Door |
| Exit Buttons | 1, 2, or 4 |
| Operating System | Embedded Linux |
| Storage | 256 MB Flash |
| Dimensions | 160 × 106 mm |
| Compatible Software | ZKAccess 3.5, E-ZKeco Pro (LAN) |
| Origin | Mainland China |
Who Is This For?
This access controller is designed for security professionals, IT administrators, and facility managers who need a scalable, network-connected access control solution. Whether you're managing a single office door or a multi-gate industrial complex, the ZKTeco-compatible panel provides the reliability and capacity to handle it all.
For best-practice guidance on physical security and access control systems, refer to the National Institute of Standards and Technology (NIST) Cybersecurity Resources.
Frequently Asked Questions
Q: How many doors can this ZKTeco access controller support?
A: Depending on the model you select, this controller supports single-door (C4-100), double-door (C4-200), or four-door (C4-400) configurations, making it highly adaptable to your specific access control needs.
Q: What software is compatible with this access controller panel?
A: This controller is compatible with ZKAccess 3.5 and E-ZKeco Pro (LAN) software, both of which enable centralized management of users, schedules, and access logs over your local area network.
Q: Does this controller work with existing Wiegand card readers?
A: Yes. The panel features standard Wiegand input/output interfaces, ensuring broad compatibility with most existing Wiegand-protocol card readers already installed at your facility.
Q: What identification methods are supported?
A: The system supports ID cards, IC cards, and password/PIN entry, allowing you to implement single-factor or multi-factor access control based on your security requirements.
Q: Is any special server or PC required to run this system?
A: No dedicated server is required for the controller itself — it runs on an embedded Linux operating system with onboard Flash storage. However, the ZKAccess 3.5 or E-ZKeco Pro management software should be installed on a networked PC for full administration capabilities.
