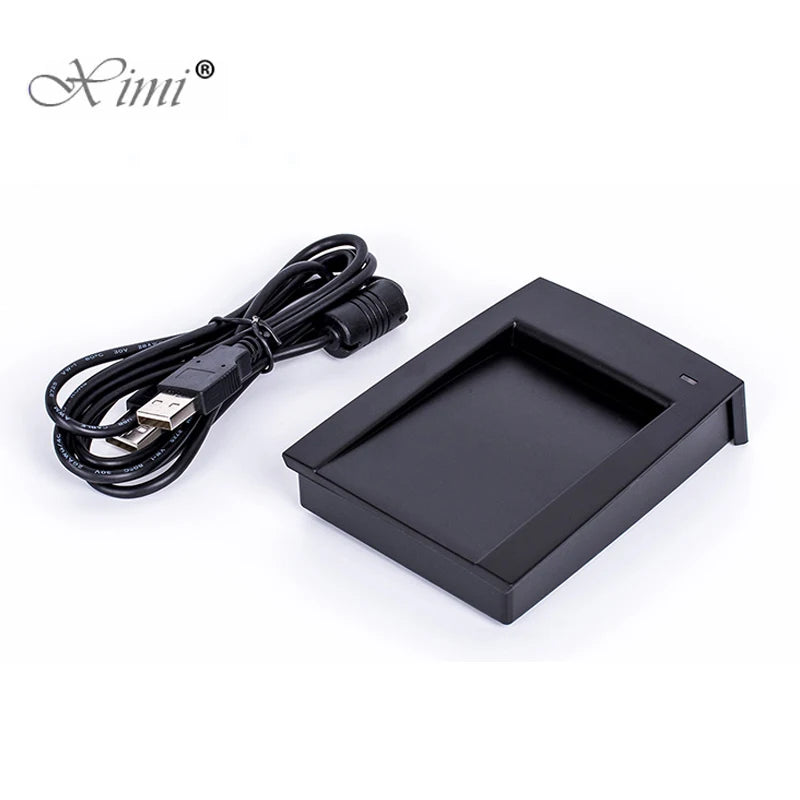

ZK CR10M USB Proximity Card Reader – 13.56MHz & 125KHz RFID Smart Card Reader
The ZK CR10M USB RFID Smart Card Reader is a versatile, plug-and-play card enrollment device designed for seamless integration with door access control systems and time attendance solutions. Supporting both 13.56MHz MF IC cards and 125KHz EM ID cards, this reader delivers fast, reliable card serial number reads in under 120 milliseconds — making it ideal for offices, warehouses, schools, and secure facilities.
With a compact RoHS-compliant plastic housing (140 × 100 × 30 mm) and a simple USB interface, the CR10M connects instantly to any Windows PC without additional drivers, streamlining your card enrollment and management workflow. Made in Mainland China.
Key Features
- Dual Frequency Support: Reads both 13.56MHz (MF IC) and 125KHz (EM ID) cards — maximum compatibility with your existing credentials
- Ultra-Fast Read Speed: Card serial number captured in under 120 ms for efficient, high-throughput enrollment

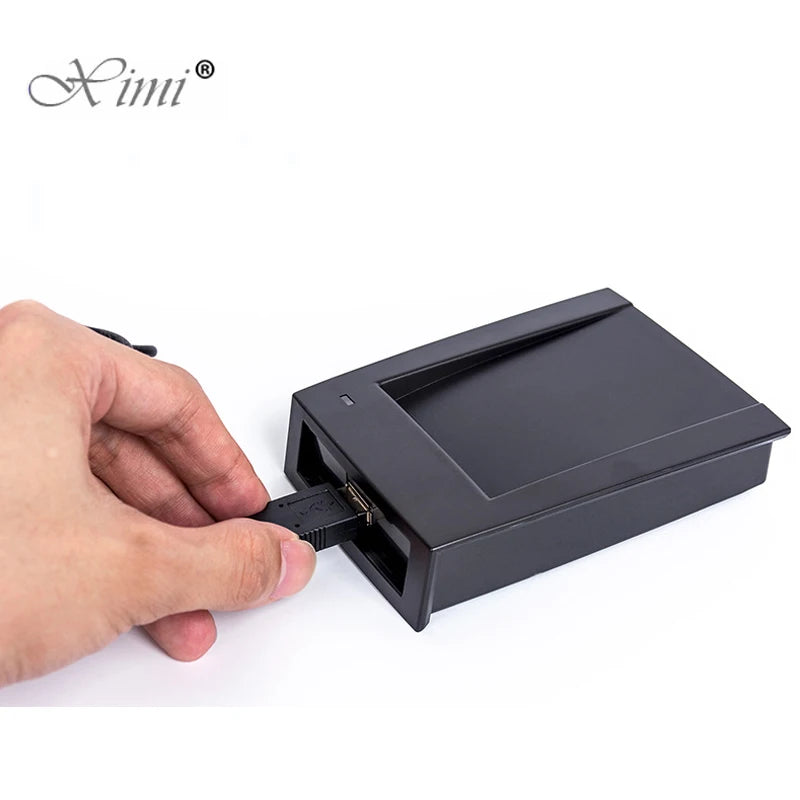

- USB Plug-and-Play: No complex installation required — connects directly to your PC via standard USB interface
- Read Distance: Up to 15 cm for convenient, contactless operation
- Low Power Consumption: Operates at DC 12V / max 60mA, drawing less than 1W — energy efficient and cost-effective
- Wide Operating Temperature Range: 0°C to 60°C operating; -20°C to 80°C storage for versatile deployment
- RoHS-Compliant Materials: Built with environmentally responsible plastic housing
- Compact & Lightweight: 140 × 100 × 30 mm form factor weighing just 130g — easy to place on any desk or enrollment station
Technical Specifications
| Model | CR10M / CR10E |
| Frequency | 13.56MHz / 125KHz |
| Interface | USB |
| Supported Cards | MF IC Cards (13.56MHz), EM ID Cards (125KHz) |
| Read Time | < 120 ms |
| Read Distance | 0 – 15 cm |
| Working Voltage / Current | DC 12V / Max 60mA |
| Power Consumption | < 1W |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -20°C – 80°C |
| Material | Plastic (RoHS Compliant) |
| Dimensions | 140 × 100 × 30 mm |
| Weight | 130 g |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Door access control card enrollment & programming
- Time attendance system card management
- Employee ID card issuance for offices and enterprise environments
- School, hospital, and facility credential management
- Card serial number reading and database registration
A Note on RFID Security Standards
For guidance on best practices for electronic access control and physical security systems, visit the National Institute of Standards and Technology (NIST) for published guidelines on electronic security infrastructure.
Frequently Asked Questions
Q: What card types are compatible with the ZK CR10M USB RFID Card Reader?
A: The ZK CR10M supports both 13.56MHz MF IC smart cards and 125KHz EM ID proximity cards, making it compatible with the vast majority of access control and time attendance card credentials used in modern security systems.
Q: Does the ZK CR10M require special drivers or software to install?
A: The CR10M is designed as a plug-and-play USB device. It connects directly to a standard USB port on your PC and is typically recognized without the need for additional drivers, simplifying card enrollment and management setup.
Q: Can the ZK CR10M be used with third-party access control software?
A: Yes. The CR10M reads and outputs the card serial number via USB, making it compatible with a wide range of access control and time attendance software platforms that support USB card reader input for card enrollment and credential registration.
Q: What is the maximum read distance for the CR10M card reader?
A: The CR10M can read compatible RFID cards at a distance of up to 15 cm (approximately 6 inches), enabling fast and convenient contactless card enrollment without requiring physical contact with the reader surface.
