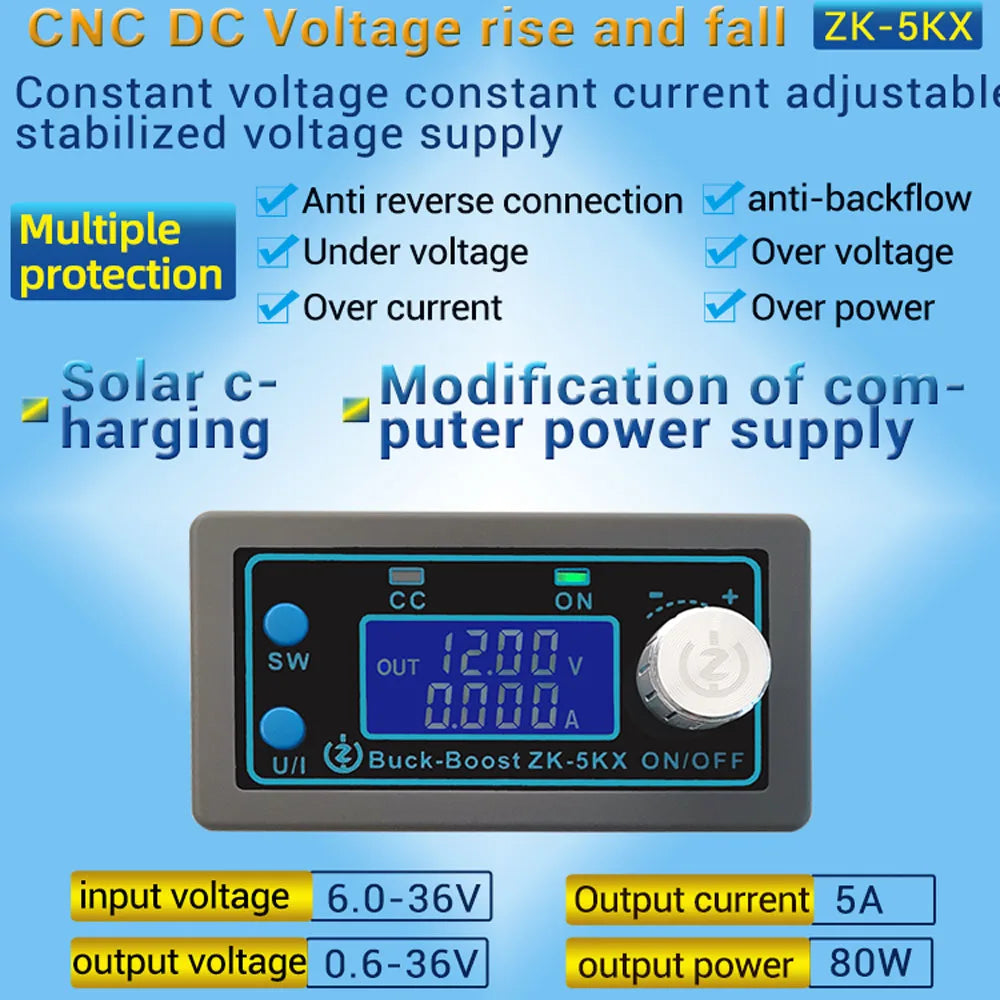

ZK-5KX DC-DC Buck-Boost Converter — Precise Voltage & Current Control with LCD Display
The ZK-5KX Buck-Boost Converter is a versatile, high-efficiency power module designed for electronics enthusiasts, engineers, and DIY builders. Supporting both step-up (boost) and step-down (buck) conversion in a single compact unit, it delivers adjustable output from 0.6V to 36V at up to 5A / 80W — all with crystal-clear LCD readouts for voltage and current monitoring in real time. Made in Mainland China.
Key Features
- Buck-Boost Operation: Seamlessly steps voltage up or down — input 6–36V, output 0.6–36V.
- CC & CV Modes: Independent constant-current (CC) and constant-voltage (CV) control for charging, testing, and regulated power supply applications.
- High Efficiency: ~88% conversion efficiency at 120 kHz operating frequency minimizes heat and energy waste.
- LCD Display: Real-time readings with 0.01V voltage resolution and 0.001A current resolution for precise monitoring.
- Soft Start: Built-in soft-start function reduces inrush current stress on connected loads.
-
Comprehensive Protection Suite:
- Input anti-reverse connection
- Output anti-reverse current protection
- Input undervoltage protection (5.8–36V adjustable, default 5.8V)
- Output overvoltage protection (0.6–36V adjustable, default 36V)
- Output overcurrent protection (0–5A adjustable, default 5A)
- Overpower protection (0–80W adjustable, default 80W)
- Overtemperature protection (80–110°C adjustable, default 110°C)
- Timeout protection (0–100h adjustable, off by default)
- Super-capacity protection (0–60Ah adjustable, off by default)
Full Specifications
| Input Voltage | 6.0 – 36V DC |
| Output Voltage | 0.6 – 36V DC (adjustable) |
| Max Output Current | 5A |
| Max Output Power | 80W |
| Voltage Display Resolution | 0.01V |
| Current Display Resolution | 0.001A |
| Conversion Efficiency | ~88% |
| Operating Frequency | 120 kHz |
| Soft Start | Yes |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× ZK-5KX Buck-Boost Power Supply Module
Notes
- Colors may appear slightly different due to screen settings and lighting conditions.

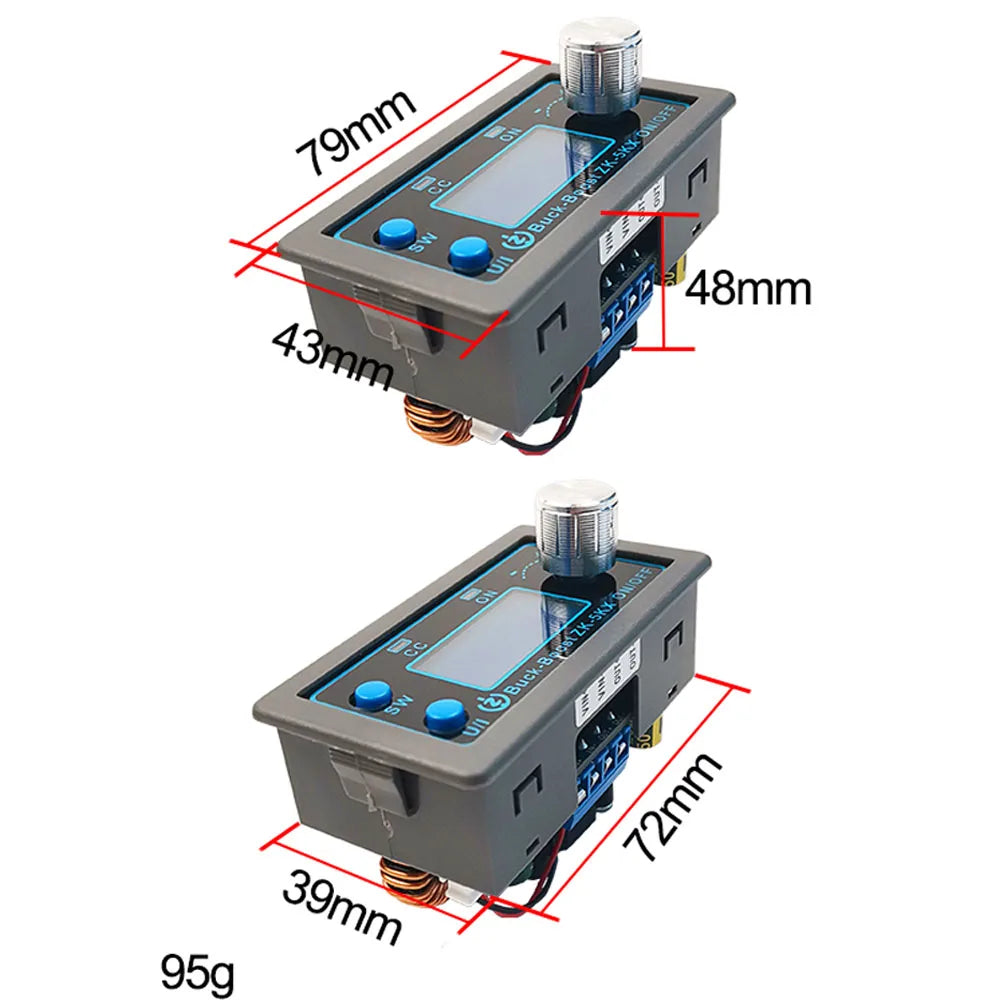

- Please allow ±1–3 cm measurement variation due to manual measuring methods.
- With high-power or high-load modules, soft-start may occasionally fail on initial startup.
For general guidance on electrical safety when working with DC power modules, visit OSHA Electrical Safety.
Frequently Asked Questions
Q: What is the difference between a buck converter and a boost converter, and does the ZK-5KX do both?
A: A buck converter steps voltage down, while a boost converter steps voltage up. The ZK-5KX is a buck-boost converter, meaning it can do both automatically — making it ideal for applications where the input voltage may be higher or lower than the desired output voltage.
Q: Can I use the ZK-5KX to charge lithium batteries?
A: Yes. The module's adjustable constant-current (CC) and constant-voltage (CV) modes make it well-suited for charging lithium-ion, LiFePO4, and lead-acid batteries. Set the desired charge voltage and current limit using the onboard controls, and monitor the process live via the LCD display.
Q: How do I set the output voltage and current on this module?
A: The ZK-5KX features dedicated adjustment controls for both voltage and current output. Simply use the onboard buttons or potentiometers to dial in your target values. The high-resolution LCD display shows voltage (0.01V) and current (0.001A) readings in real time so you can fine-tune with confidence.
Q: What protection features does the ZK-5KX include?
A: This module includes a comprehensive set of adjustable protections: input undervoltage, output overvoltage, output overcurrent, overpower, overtemperature, timeout, and super-capacity protection — plus input and output anti-reverse connection safeguards. All thresholds are user-configurable within specified ranges.
