Asia-Teco Z53D3 Zinc Alloy Push Exit Button Switch – Access Control Door Release

Upgrade your access control system with the Asia-Teco Z53D3 Zinc Alloy Exit Button Switch. Built from durable zinc alloy in a sleek silver finish, this push-to-exit door release button delivers reliable NO/NC/COM output — making it a versatile choice for a wide range of door access control installations, from office buildings and warehouses to residential entry points.

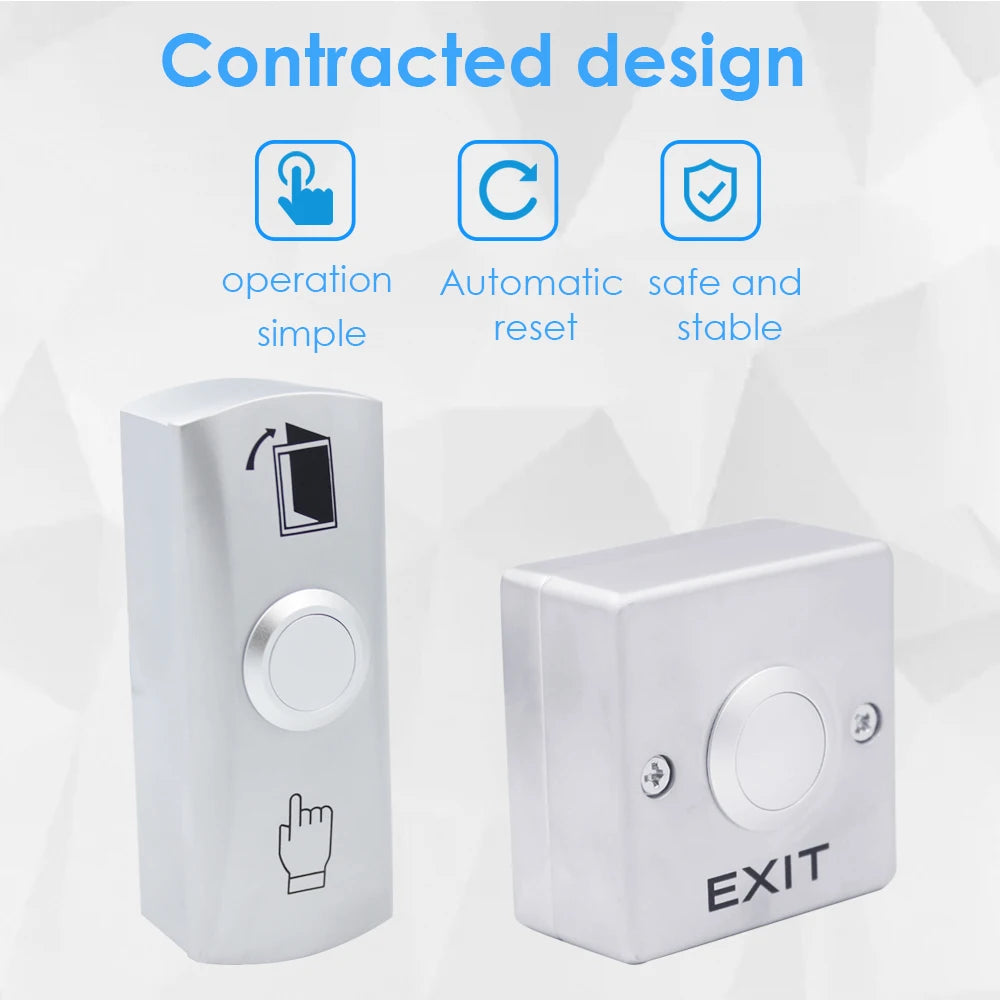

Available in two convenient form factors — a compact square design or a slim rectangle profile — so you can choose the best fit for your door frame or wall panel. Please leave a message at checkout indicating your preferred version; if no preference is noted, one will be selected at random.

Key Features

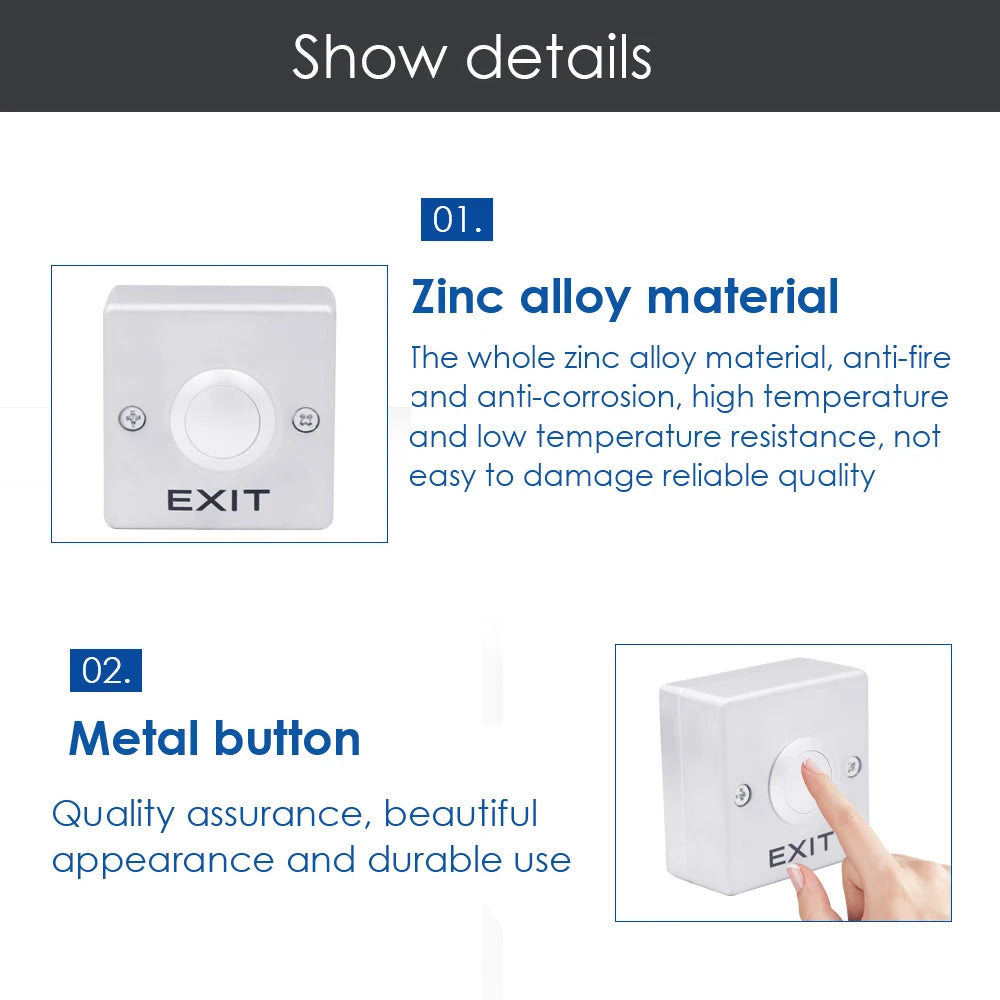

  • Durable Zinc Alloy Construction: Heavy-duty build for long-lasting, high-traffic performance
  • Dual Output Modes: NO (Normally Open), NC (Normally Closed), and COM (Common) terminals for flexible wiring configurations
  • Long Mechanical Life: Rated for up to 500,000 actuations — built to last
  • Wide Operating Temperature Range: Functions reliably from -20°C to +55°C (14°F to 131°F)
  • Wide Humidity Tolerance: Operates in 0–95% relative humidity environments
  • Universal Door Compatibility: Suitable for all types of doors including electric locks, magnetic locks, and strike locks
  • Low Voltage Input: Runs on DC 12V for safe, simple integration

Technical Specifications

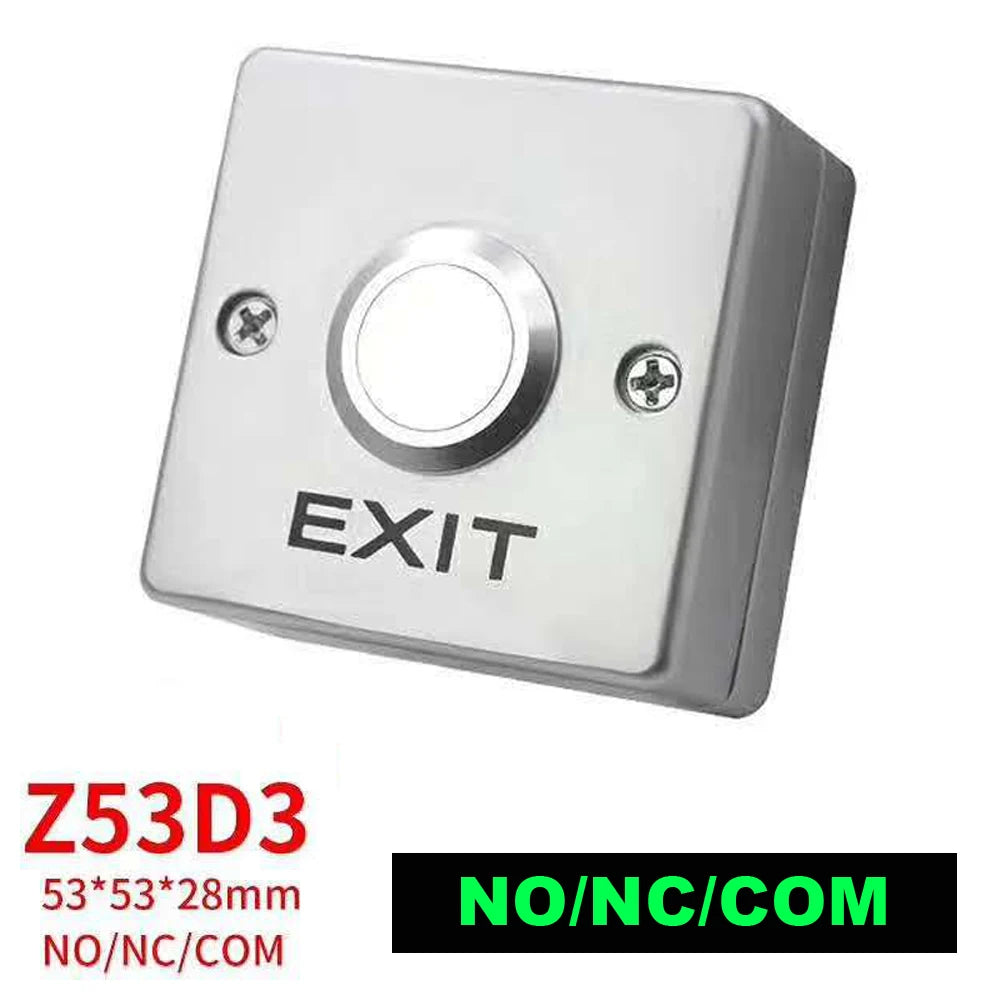

  • Model: Z53D3
  • Brand: Asia-Teco
  • Material: Zinc Alloy
  • Color: Silver
  • Input Voltage: DC 12V
  • Contact Rating: 3A, 36VDC Max
  • Output Contact: NO / NC / COM
  • Mechanical Life: 500,000 tests
  • Operating Temperature: -20°C to +55°C (14°F to 131°F)
  • Operating Humidity: 0–95% (relative humidity)

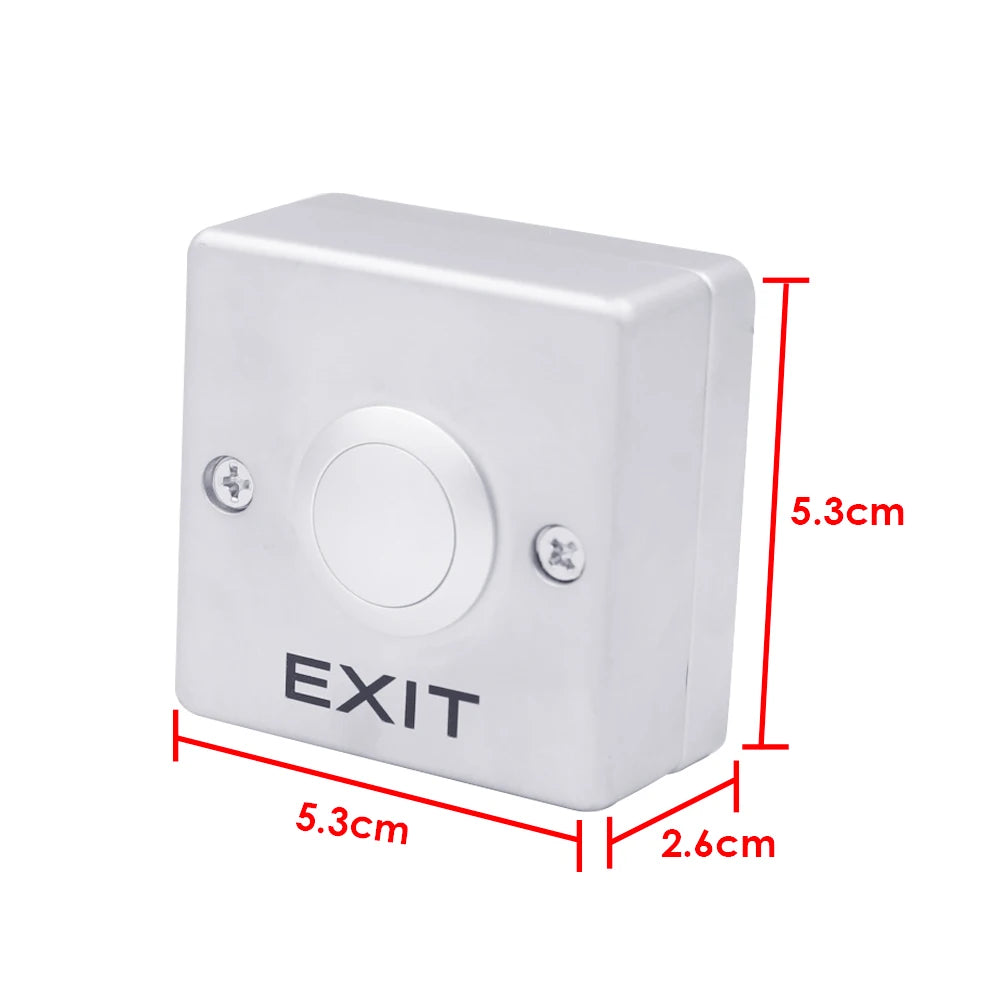

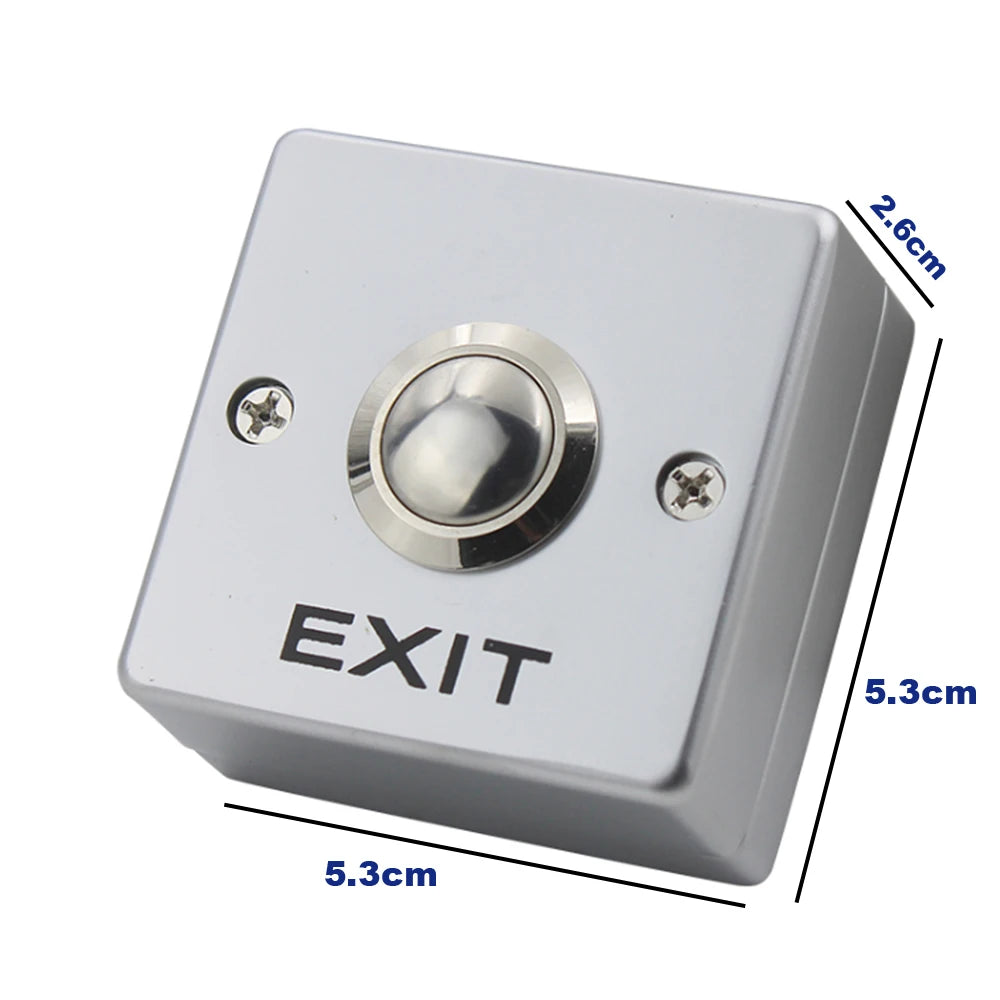

  • Square Version Dimensions: 5.3 × 2.6 × 5.3 cm
  • Rectangle Version Dimensions: 3 × 2.3 × 8 cm
  • Country of Origin: Made in China

What's in the Box?

  • 1 × Z53D3 Zinc Alloy Push Exit Button Switch (Square or Rectangle version per your request)

Ideal For

  • Commercial office door access control systems
  • Residential security entry points
  • Warehouse and industrial access panels
  • Electric lock, magnetic lock, and electric strike installations

For guidance on access control standards and building security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the difference between the NO and NC output on this exit button switch?

A: NO (Normally Open) means the circuit is open at rest and closes when the button is pressed. NC (Normally Closed) means the circuit is closed at rest and opens when pressed. The COM terminal is the common shared connection. The Z53D3 supports all three, giving you full flexibility to match your access control wiring requirements.

Q: Can I choose between the square and rectangle version of the Z53D3?

A: Yes! Simply leave a message at checkout specifying your preferred version — the square type (5.3 × 2.6 × 5.3 cm) or the rectangle type (3 × 2.3 × 8 cm). If no preference is noted, one version will be shipped at random.

Q: Is this exit button compatible with magnetic locks and electric strikes?

A: Absolutely. The Asia-Teco Z53D3 push exit button is compatible with all common door lock types, including magnetic locks, electric strikes, and electric bolt locks, making it a universal solution for most access control systems.

Q: What voltage does the Z53D3 exit button switch require?

A: The Z53D3 operates on a DC 12V input with a contact rating of 3A at 36VDC maximum, making it suitable for standard low-voltage access control systems.
