Zinc Alloy Exit Button Switch NO/NC/COM Access Control Backlit
Zinc Alloy Exit Button Switch NO/NC/COM Access Control Backlit
Zinc Alloy Push-to-Exit Button Switch for Door Access Control Systems
Upgrade your door access control setup with this durable Zinc Alloy Exit Button Switch by Asia-Teco. Available in two convenient form factors — a compact Square type (5.3 × 2.6 × 5.3 cm) and a sleek Rectangle type (3 × 2.3 × 8 cm) — this push-to-exit release button integrates seamlessly with virtually all door systems. The built-in backlight provides clear visibility in low-light environments, and the robust zinc alloy construction ensures long-lasting performance in demanding installations.
Please note: Two versions are available (Square and Rectangle). Leave a message at checkout specifying your preferred version. If no preference is stated, a version will be sent at random.
Made in Mainland China.
Key Features
- Durable Zinc Alloy Construction — Built to withstand high-traffic commercial and residential environments
- NO/NC/COM Output Contacts — Versatile wiring options for Normally Open, Normally Closed, or Common configurations
- Backlit Button — Illuminated for easy identification in dim corridors, stairwells, and entryways

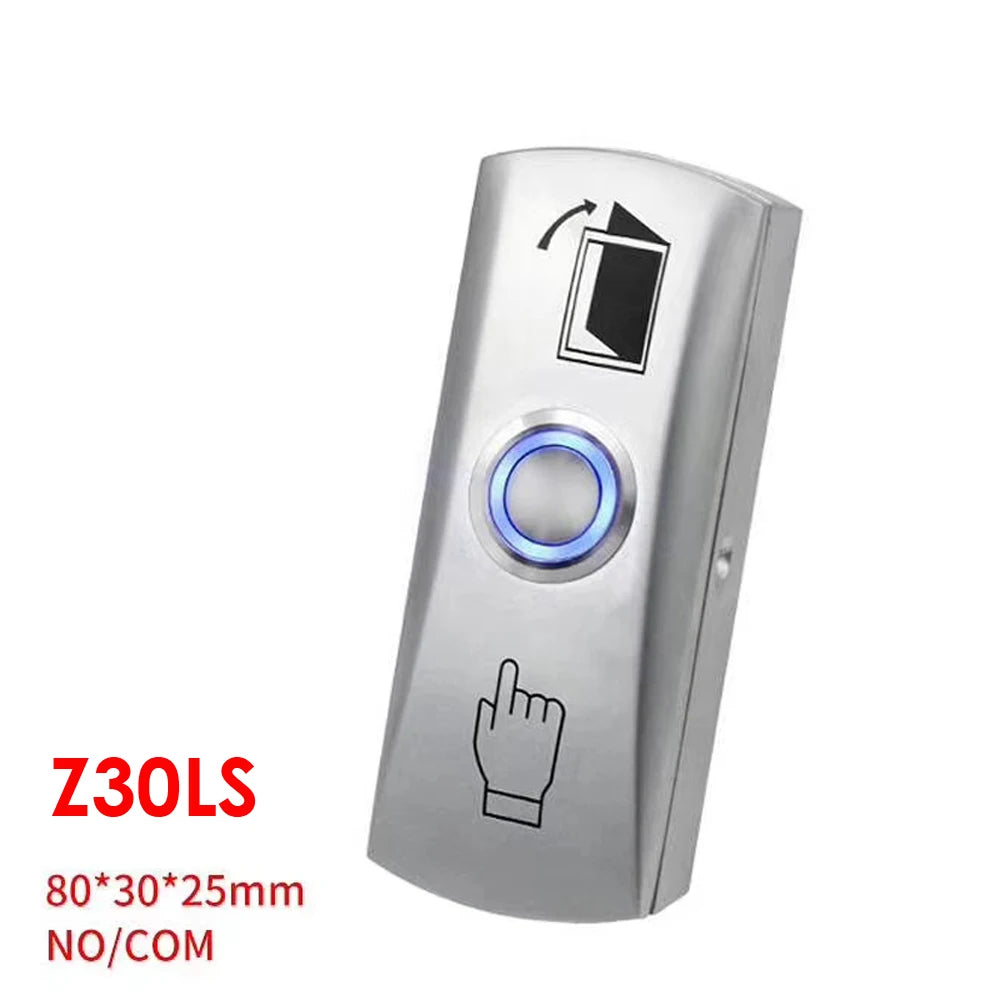

- Two Form Factors — Square (Z30LS) and Rectangle (Z53LS) to suit your installation needs
- Wide Operating Range — Functions reliably from -20°C to +55°C (14°F to 131°F)
- 500,000-Cycle Mechanical Life — Engineered for years of dependable operation
- Universal Door Compatibility — Suitable for all kinds of doors including wooden, glass, metal, and fire-rated doors
Technical Specifications
| Brand | Asia-Teco |
| Model Numbers | Z30LS (Square) / Z53LS (Rectangle) |
| Material | Zinc Alloy |
| Input Voltage | DC 12V |
| Contact Rating | 3A, 36V DC Max |
| Output Contact | NO / NC / COM |
| Mechanical Life | 500,000 actuations |
| Operating Temperature | -20°C to +55°C (14°F to 131°F) |
| Suitable Humidity | 0–95% Relative Humidity |

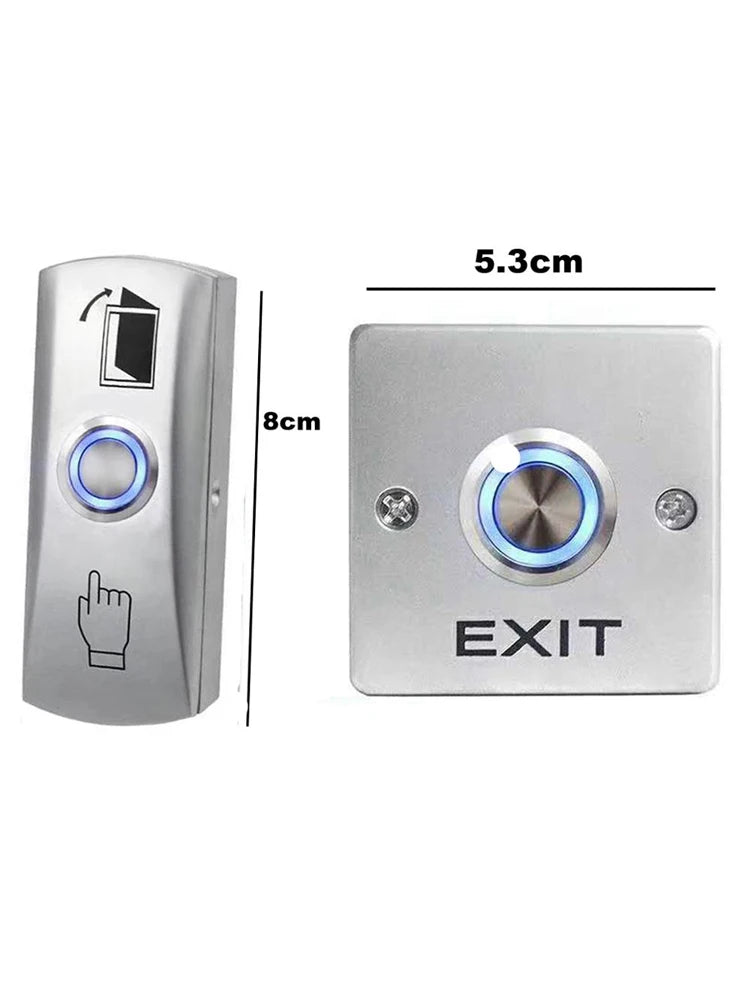

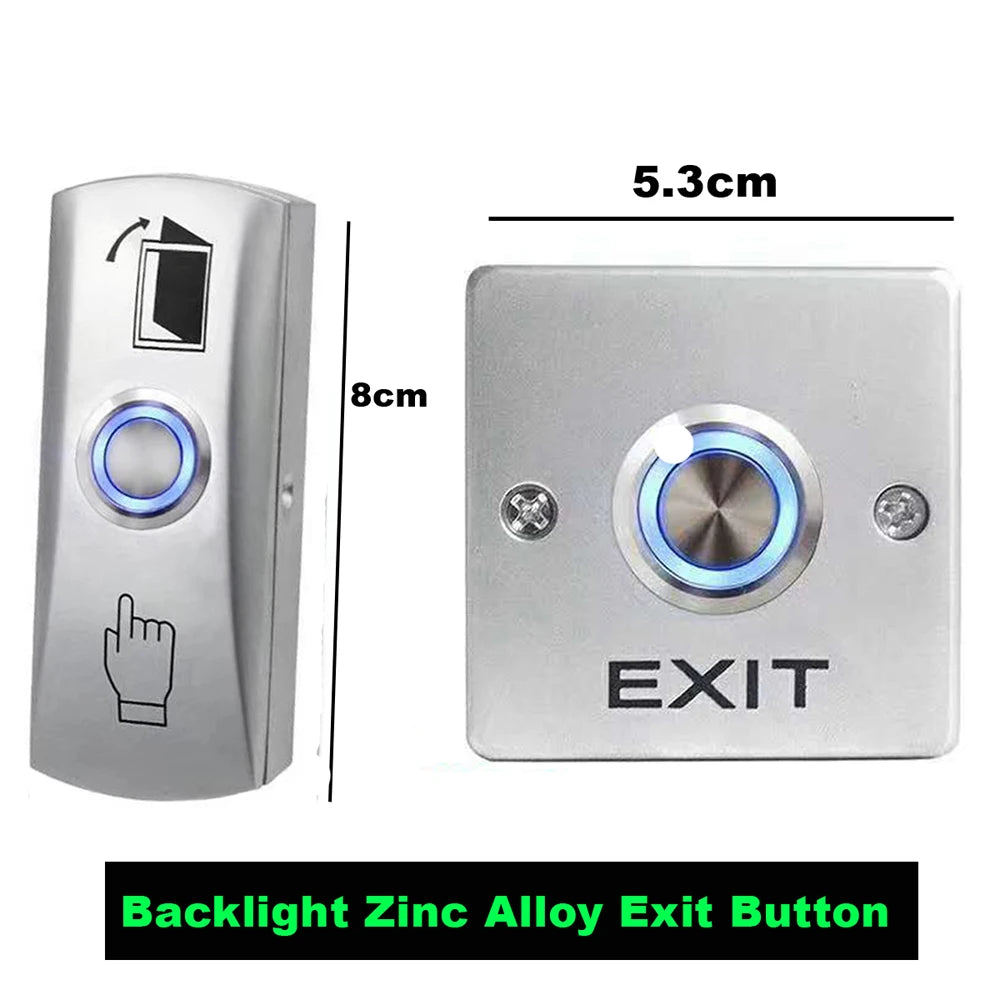

| Square Size | 5.3 × 2.6 × 5.3 cm |
| Rectangle Size | 3 × 2.3 × 8 cm |
| Door Compatibility | All kinds of doors |
| Origin | Mainland China |
What's in the Box?
- 1 × Zinc Alloy Exit Button Switch (Square or Rectangle — specify at checkout)
Safety & Standards Reference
For guidance on best practices for door access control and building security hardware installation, consult the U.S. Consumer Product Safety Commission (CPSC) for relevant safety standards.
Frequently Asked Questions
Q: What is the difference between the Square (Z30LS) and Rectangle (Z53LS) exit button versions?
A: Both versions function identically as push-to-exit release buttons with NO/NC/COM contacts and a DC 12V input. The main difference is physical form factor: the Square version measures 5.3 × 2.6 × 5.3 cm, while the Rectangle version measures 3 × 2.3 × 8 cm. Choose based on your wall plate, gang box, or aesthetic preference. Be sure to specify your choice in the order notes.
Q: Is this exit button compatible with my existing access control system?
A: Yes — this switch supports NO (Normally Open), NC (Normally Closed), and COM (Common) output contacts, making it compatible with the vast majority of access control panels and electric lock systems on the market. It operates at DC 12V with a contact rating of 3A at 36V DC max, which covers most standard door controller configurations.
Q: Can this exit button be installed outdoors?
A: This button is rated for operating temperatures of -20°C to +55°C and up to 95% relative humidity, giving it reasonable tolerance for covered outdoor or semi-outdoor installations such as covered entryways or building lobbies. For fully exposed outdoor installations with direct rain exposure, additional weatherproofing housing is recommended.
Q: Does the backlight require a separate power connection?
A: The backlight is powered through the same DC 12V input used by the button switch itself, so no separate wiring is needed. The illuminated button makes it easy to locate in low-light conditions without additional electrical work.
