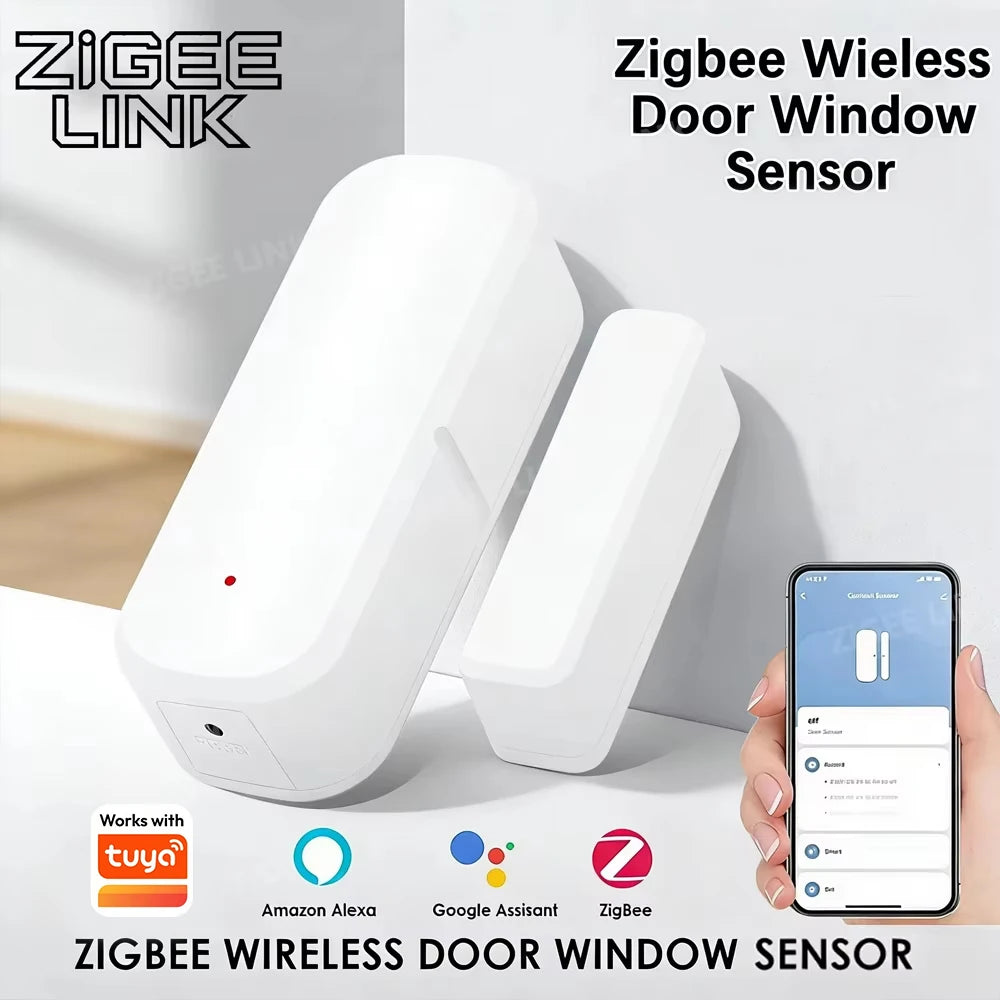

ZigBee Door & Window Sensor – Tuya, Alexa, Google Home
ZigBee Door & Window Sensor – Tuya, Alexa, Google Home
Stay informed and in control of your home's entry points with this ZigBee Magnetic Door & Window Sensor. Instantly notified the moment a door or window opens or closes, this compact smart sensor integrates seamlessly with Tuya, Amazon Alexa, and Google Home — keeping your household connected and aware 24/7.
⚠️ Important: A ZigBee Gateway Hub is required (not included) to use this sensor. It is also compatible with the eWeLink ZigBee Gateway Hub.
Key Features
- Real-Time Instant Alerts: Get push notifications to your smartphone the moment a door or window is opened or closed — whether you're home or away.
- Ready to Go: Simple, tool-free setup using included double-sided tape or screws. No complex configuration required.
- Voice Assistant Compatible: Works with Amazon Alexa and Google Assistant for seamless smart home integration via Tuya / Smart Life app.
- Activity History Logging: Review a full open/close event log and monitor battery status directly from the Smart Life app.
- Family Sharing: Share sensor access with family members through the app so everyone can monitor entry points in real time.
- Low Battery Alert: The sensor automatically notifies you when batteries are running low so you're never caught off guard.
- Dual Control Channels: Manage your sensor conveniently from your smartphone or tablet with two control channel options.
- Wide Operating Range: Functions reliably from -10°C to 50°C with up to 95% relative humidity tolerance.
Technical Specifications
- Wireless Protocol: ZigBee
- Compatible Platforms: Tuya, Amazon Alexa, Google Assistant
- Power: 2× AAA 1.5V batteries (not included)
- Input Voltage: DC 3V LR03
- Quiescent Current: ≤10 µA
- Alarm Current: ≤160 mA
- Low Voltage Threshold: ≤2.7V
- Magnetic Control Distance: ≥15 mm
- Operating Temperature: -10°C to 50°C
- Operating Humidity: Up to 95% RH
- Certification: CE
- ZigBee Gateway Hub: Required (not included)
What's in the Box
- 1× ZigBee Door/Window Sensor (batteries not included)
- 1× User Manual
- 1× Double-Sided Adhesive Tape
How to Set Up
- Connect your ZigBee Gateway Hub to your Wi-Fi network.
- Download the Smart Life app from the Google Play Store or Apple App Store.
- Add the sensor through the app — it pairs quickly and automatically.
- Mount the sensor on your door or window frame using the included tape or screws.
- Optionally link with Alexa or Google Home for voice-integrated control.
Made in Mainland China.
For guidance on best practices for home security systems, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety information.
Frequently Asked Questions
Q: Does this ZigBee door sensor require a hub or gateway?
A: Yes, a ZigBee Gateway Hub is required for this sensor to function. It is compatible with Tuya-based ZigBee gateways as well as the eWeLink ZigBee Gateway Hub. The gateway must be connected to your Wi-Fi before pairing the sensor.
Q: Which smart home platforms does this door sensor work with?
A: This sensor is compatible with the Tuya / Smart Life app, Amazon Alexa, and Google Assistant. Once connected via your ZigBee hub, you can monitor door and window status by voice or through the app.
Q: How is this smart door sensor installed?
A: Installation is straightforward and requires no special tools. Simply use the included double-sided tape or screws to mount the two sensor pieces on your door and door frame. The magnetic contact gap should be no more than 15 mm for reliable detection.
Q: Are batteries included with the ZigBee door sensor?
A: No, batteries are not included. The sensor requires 2× AAA 1.5V batteries. The app will alert you when battery levels are getting low, so you'll always know when to replace them.
Q: Can I share this sensor's access with my family members?
A: Yes! Through the Smart Life app's "Home Management" feature, you can share the sensor with multiple family members so everyone receives notifications and can monitor door and window activity in real time.
