ZigBee Door & Window Sensor – Tuya, Alexa & Google Home
ZigBee Door & Window Sensor – Tuya, Alexa & Google Home

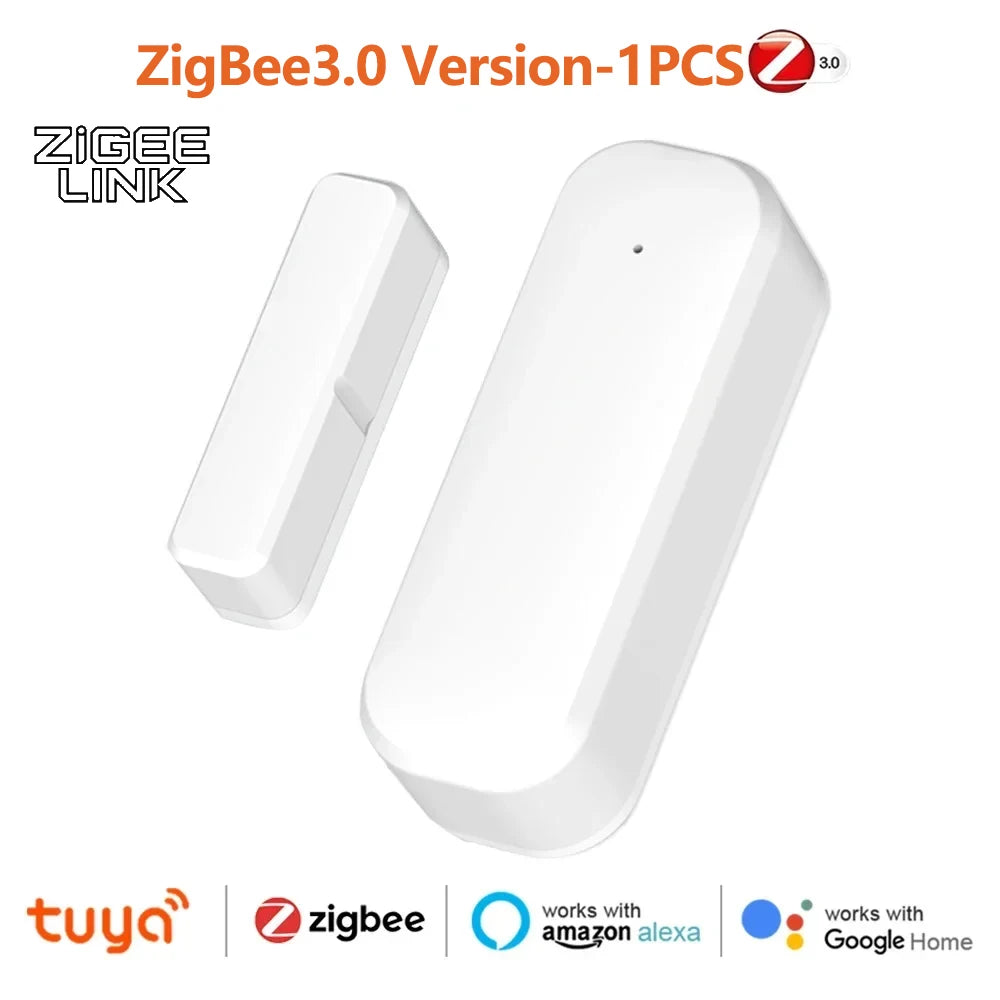

ZigBee Smart Door & Window Sensor with Magnetic Alarm Detection
Keep your home smarter and more secure with this ZigBee Wireless Door & Window Sensor. Using reliable magnetic detection technology, it instantly notifies you via the Smart Life app the moment any door or window opens or closes — whether you're home or away. Compatible with Tuya, Amazon Alexa, and Google Home, it slots seamlessly into your existing smart home ecosystem.
Made in Mainland China.

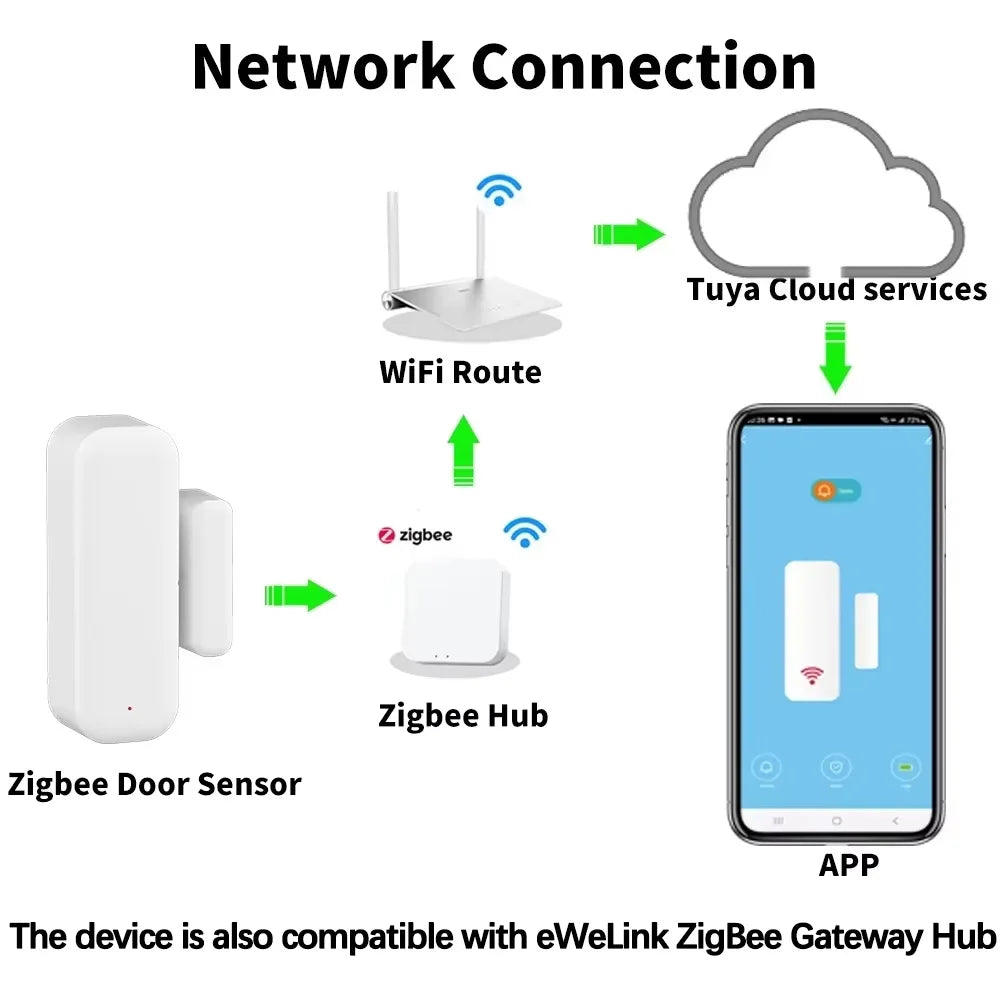

⚠️ Important Setup Note: This device requires a ZigBee Gateway Hub (not included) to operate. Connect your gateway to Wi-Fi first, then pair this sensor through the Smart Life app. It is also compatible with the eWeLink ZigBee Gateway Hub.
Key Features
- Instant Alarm Alerts: Receive real-time push notifications on your smartphone or tablet whenever a door or window is opened or closed.
- Easy, Tool-Free Installation: Mount using the included double-sided adhesive tape or screws — no drilling expertise needed. Setup takes just minutes.
- Activity History Logging: Review a full log of open/close events and monitor battery status directly in the Smart Life app.
- Family Sharing: Share sensor access with household members via the "Home Management" feature so everyone stays informed.
- Low Battery Reminder: Automatic low-voltage alert notifies you when it's time to replace the 2× AAA batteries, so your sensor is always ready.
- Voice Assistant Compatible: Works with Amazon Alexa and Google Assistant for hands-free smart home integration.
- Ultra-Low Standby Power: Quiescent current of just ≤10µA means long battery life between changes.
- CE Certified: Meets European safety and electromagnetic standards.
Technical Specifications
| Wireless Protocol | ZigBee |
| App | Smart Life (Tuya) |
| Compatible Platforms | Tuya, Amazon Alexa, Google Home, eWeLink |
| Power Supply | 2× AAA 1.5V batteries (not included) |
| Input Voltage | DC 3V LR03 |
| Quiescent Current | ≤10µA |
| Alarm Current | ≤160mA |
| Low Voltage Threshold | ≤2.7V |
| Magnetic Control Distance | ≥15mm |
| Working Temperature | -10°C to 50°C (14°F to 122°F) |
| Working Humidity | Up to 95% RH (non-condensing) |
| Gateway Required | Yes – ZigBee Gateway Hub |
| Certification | CE |
| Origin | Mainland China |
What's in the Box
- 1× ZigBee Door/Window Sensor (batteries not included)
- 1× Double-sided adhesive tape
- 1× User Manual
Learn More About Smart Home Security
For guidance on building a comprehensive home security setup, visit the U.S. Consumer Product Safety Commission (CPSC) Home Security resources for tips on keeping your home and family safe.
Frequently Asked Questions
Q: Does this ZigBee door sensor work without a hub or gateway?
A: No — this sensor requires a ZigBee Gateway Hub to function. It cannot connect directly to Wi-Fi. You must first set up a compatible ZigBee gateway (such as a Tuya ZigBee hub or the eWeLink ZigBee Gateway Hub), connect it to your Wi-Fi network, and then pair the sensor through the Smart Life app.
Q: Is this door and window sensor compatible with Amazon Alexa and Google Home?
A: Yes! Once paired via a ZigBee gateway and the Smart Life (Tuya) app, this sensor works with both Amazon Alexa and Google Assistant. You can monitor door/window status and receive alerts through your smart speaker ecosystem.
Q: How do I install the ZigBee magnetic door sensor?
A: Installation is simple and requires no special tools. Attach the sensor body to the door or window frame and the magnetic piece to the moving part (door/window) using the included double-sided adhesive tape, or use screws for a more permanent mount. Then add it to the Smart Life app to start monitoring in minutes.
Q: What batteries does this smart door sensor use, and are they included?
A: The sensor runs on 2× AAA 1.5V batteries (DC 3V total). Batteries are not included in the package. The app will notify you when the battery level is running low so you're never caught off guard.
Q: Can I share this door sensor with other family members?
A: Absolutely. In the Smart Life app, go to "Me" → "Home Management" to share the sensor with family members. Each person added will be able to monitor door/window open and close status and receive notifications in real time.
