Zigbee 3.0 Magnetic Door & Window Sensor | Smart App Alerts
Zigbee 3.0 Magnetic Door & Window Sensor | Smart App Alerts

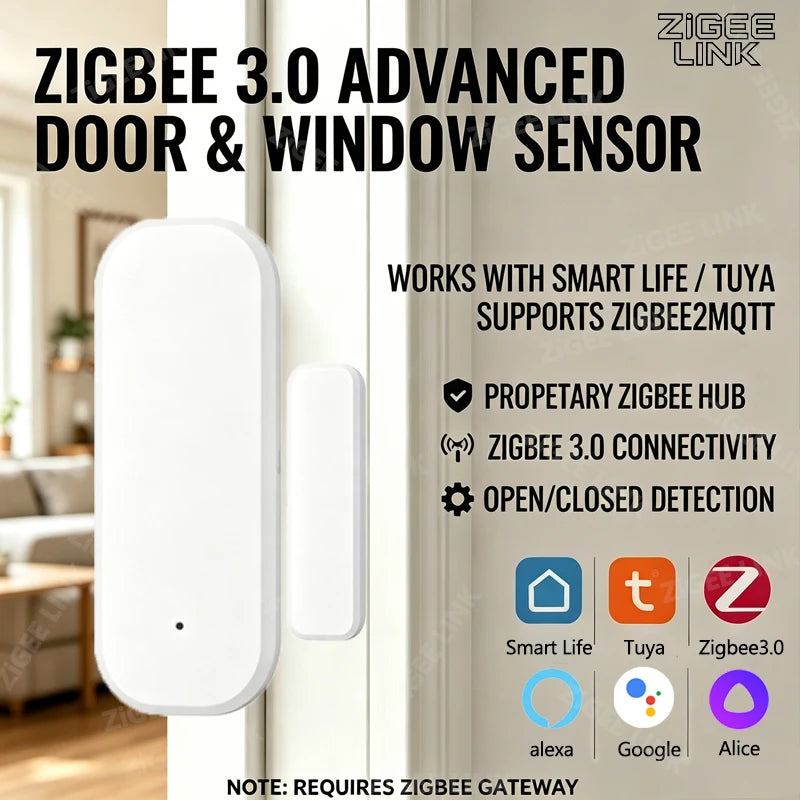

Zigbee 3.0 Smart Magnetic Door & Window Sensor
Stay connected to every entry point in your home with this Zigbee 3.0 Magnetic Door & Window Sensor. Instantly receive push notifications on your smartphone whenever a door or window opens or closes — giving you real-time awareness and peace of mind whether you're at home or away. Compatible with Alexa, Google Assistant, and the Tuya/Smart Life ecosystem, this sensor integrates seamlessly into your existing smart home setup.
Made in Mainland China.
⚠️ Important Notice: This sensor requires a Zigbee Gateway Hub to operate (not included). Connect your Zigbee gateway to your Wi-Fi network before setting up this sensor. It is also compatible with the eWeLink ZigBee Gateway Hub.
Key Features
- Instant App Push Alerts: Get notified the moment any monitored door or window opens or closes — no delays, no surprises.
- Ready-to-Go Setup: No complex tools or configuration required. Mount with the included double-sided tape or screws in minutes.
- Activity History Log: Review open/close records and battery status directly in the Smart Life app — always stay informed.
- Family Sharing: Share sensor access with household members via the "Home Management" feature so everyone stays in the loop.
- Low Battery Reminder: Automatic low-voltage alert notifies you when it's time to replace the AAA batteries — no guesswork needed.
- Voice Control Ready: Works seamlessly with Amazon Alexa and Google Assistant for hands-free convenience.
- Wide Compatibility: Integrates with Tuya, Smart Life, and eWeLink Zigbee Gateway Hubs for flexible smart home automation.
- Durable & Reliable: Operates in temperatures from -10°C to 50°C and up to 95% relative humidity — built for real-world conditions.
Technical Specifications
| Wireless Protocol | Zigbee 3.0 |
| App | Smart Life (iOS & Android) |
| Compatible Platforms | Alexa, Google Assistant, Tuya, eWeLink |
| Battery | 2 × AAA 1.5V (not included) |
| Input Voltage | DC 3V LR03 |
| Quiescent Current | ≤10 µA |
| Alarm Current | ≤160 mA |
| Low Battery Threshold | ≤2.7V |
| Magnetic Sensing Distance | ≥15 mm |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | Up to 95% RH |
| Certification | CE |
| Gateway Required | Yes (Zigbee Gateway Hub) |
What's in the Box
- 1 × Door/Window Sensor (batteries not included)
- 1 × Double-Sided Adhesive Tape
- 1 × User Manual
Learn More About Smart Home Security
For guidance on home security best practices and connected device safety, visit the U.S. Cybersecurity & Infrastructure Security Agency or explore consumer smart home tips at the FTC Consumer Information Center.
Frequently Asked Questions
Q: Does the Zigbee 3.0 Door Window Sensor require a hub or gateway?
A: Yes. This Zigbee 3.0 magnetic door and window sensor requires a Zigbee Gateway Hub to function. It is compatible with Tuya/Smart Life Zigbee gateways as well as the eWeLink ZigBee Gateway Hub. Simply connect your gateway to Wi-Fi first, then add the sensor through the Smart Life app.
Q: What app do I use to control this smart door sensor?
A: This sensor works with the Smart Life app, available for free on both Google Play and the Apple App Store. Through the app you can view real-time open/close status, browse activity history, check battery levels, and share access with family members.
Q: Can I use this door window sensor with Amazon Alexa or Google Assistant?
A: Absolutely. Once set up through the Smart Life app and paired with a compatible Zigbee gateway, the sensor integrates with both Amazon Alexa and Google Assistant, enabling voice-based status queries and smart home automation routines.
Q: How is the Zigbee magnetic sensor installed?
A: Installation is tool-free and straightforward. Attach the two sensor pieces — one to the door/window frame and one to the door/window itself — using the included double-sided adhesive tape. Screw mounting is also supported. The two parts should be aligned within 15 mm of each other for reliable detection.
Q: What batteries does this sensor use, and will it notify me when they're low?
A: The sensor uses 2 × AAA 1.5V batteries (not included in the package). When the battery voltage drops to 2.7V or below, the device automatically sends a low-battery notification through the Smart Life app so you always know when to recharge or replace them.
