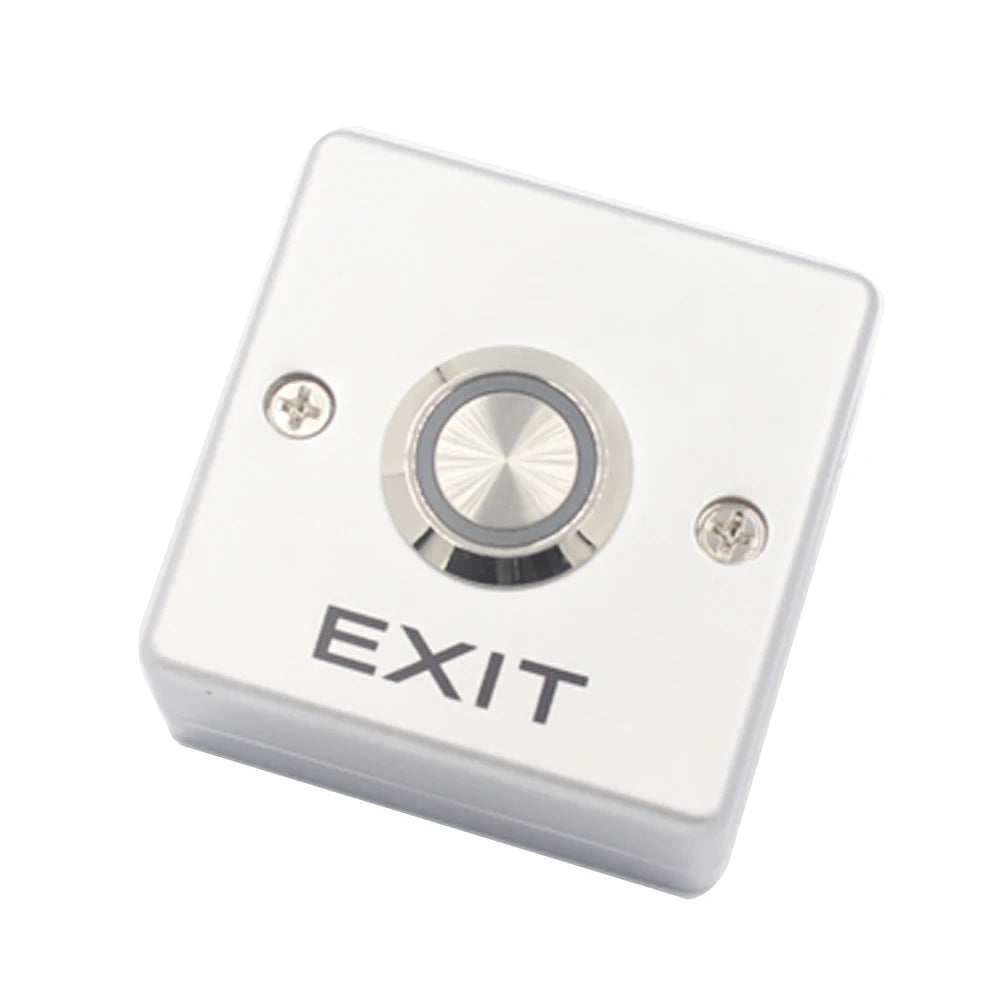

Z53LS Waterproof Backlit Aluminium Alloy Door Exit Push Button Switch for Access Control Systems
Take control of your entry and exit points with the Z53LS Door Exit Push Button Switch — a robust, backlit aluminium alloy release switch engineered for professional-grade access control systems. Whether you're securing a commercial office, warehouse, apartment lobby, or retail space, this switch delivers reliable, one-touch door release with a sleek, durable finish.
Key Features
- Waterproof Construction: Designed to withstand moisture and humidity (0–95% relative humidity), making it suitable for both indoor and outdoor installations.
- Backlit Illumination: Built-in backlight ensures easy visibility in low-light environments, improving usability around the clock.
- Aluminium Alloy Housing: Premium metal body provides excellent durability and a professional aesthetic that complements modern door hardware.
- Universal Compatibility: Works seamlessly with all kinds of electric door locks, magnetic locks, and access control kits.
- Long Mechanical Life: Rated for up to 500,000 actuations — built to last in high-traffic environments.
- Wide Operating Temperature Range: Performs reliably from -20°C to +55°C (14°F–131°F), ideal for varying climates.

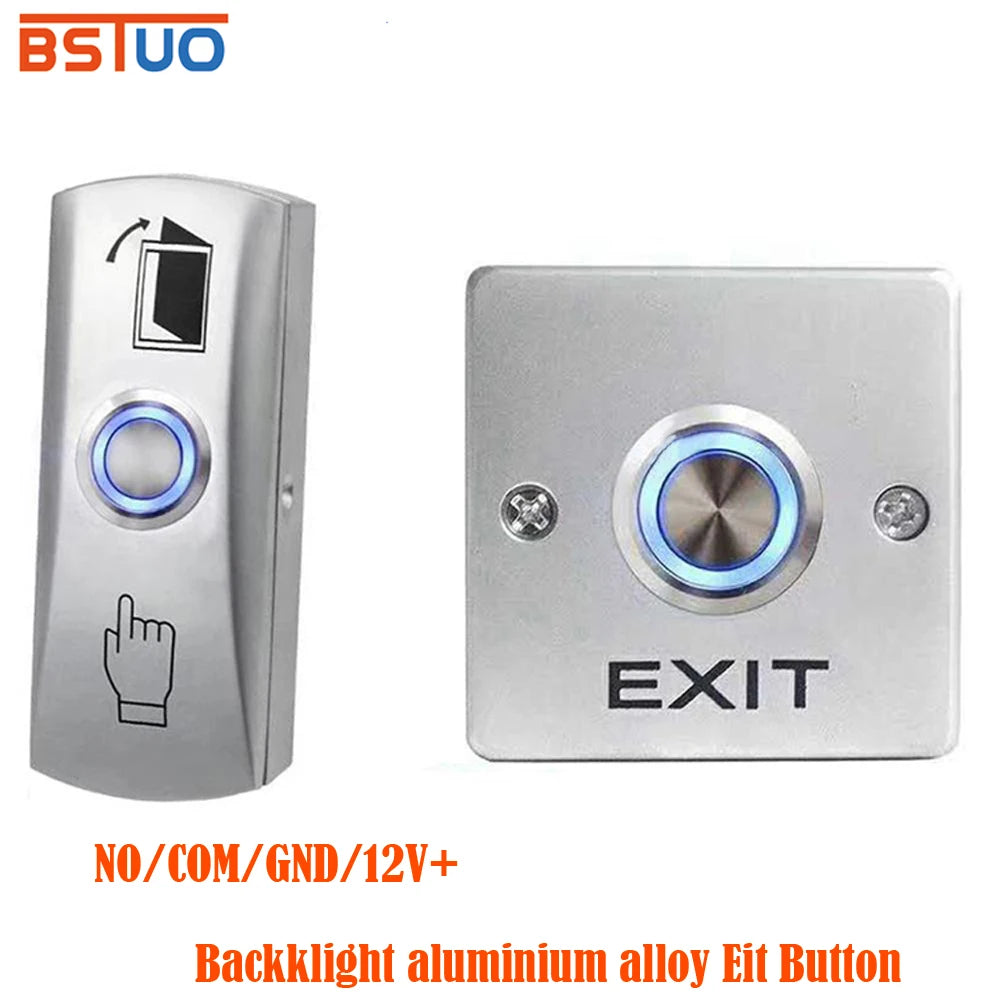

- 4-Port Output: NO / COM / 12V+ / GND outputs offer flexible wiring configurations for integration into existing systems.
Technical Specifications
| Model | Z53LS |
| Input Voltage | DC 12V |
| Contact Rating | 12V DC Max |
| Output Ports | NO / COM / 12V+ / GND (4 ports) |
| Mechanical Life | 500,000 tests |
| Operating Temperature | -20°C to +55°C (14°F–131°F) |
| Suitable Humidity | 0–95% (relative humidity) |
| Housing Material | Aluminium Alloy |
| Application | All kinds of doors |
What's in the Box
- 1 × Z53LS Door Exit Push Button Switch
Made in Mainland China.
For guidance on physical access control best practices and building security standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What type of doors is the Z53LS door exit push button compatible with?
A: The Z53LS is compatible with all kinds of doors, including wooden, metal, glass, and fire-rated doors. It integrates with electric strikes, magnetic locks, and most standard access control systems using a 12V DC input.
Q: Is the Z53LS push button switch suitable for outdoor installation?
A: Yes. The waterproof construction and wide humidity tolerance (0–95% relative humidity) make the Z53LS suitable for both indoor and outdoor use. Its aluminium alloy housing also resists corrosion, ensuring long-term durability in various weather conditions.
Q: How do I wire the Z53LS to my access control system?
A: The Z53LS features four output ports — NO (Normally Open), COM (Common), 12V+, and GND — providing flexible wiring options. Connect according to your electric lock or access control panel's wiring diagram. The NO/COM terminals trigger the lock release when the button is pressed.
Q: Does the backlight require a separate power source?
A: No. The backlight is powered through the same DC 12V input used for the switch's operation, so no additional wiring or power supply is needed for the illumination feature.
