YRHAND X5 Zigbee Biometric Fingerprint Smart Door Lock | Tuya
YRHAND X5 Zigbee Biometric Fingerprint Smart Door Lock | Tuya
YRHAND X5 Zigbee Smart Door Lock – Biometric Fingerprint, Keypad & App Control
Upgrade your home security with the YRHAND X5 Zigbee Smart Door Lock — a premium, waterproof (IP66-rated) digital door lock that combines biometric fingerprint recognition, keypad entry, RFID card access, wristband access, mechanical key backup, and full Tuya Smart Life app control. Whether you're locking up on the way out or letting a trusted guest in from across town, the X5 puts complete access management right in your pocket.
Made in Mainland China.

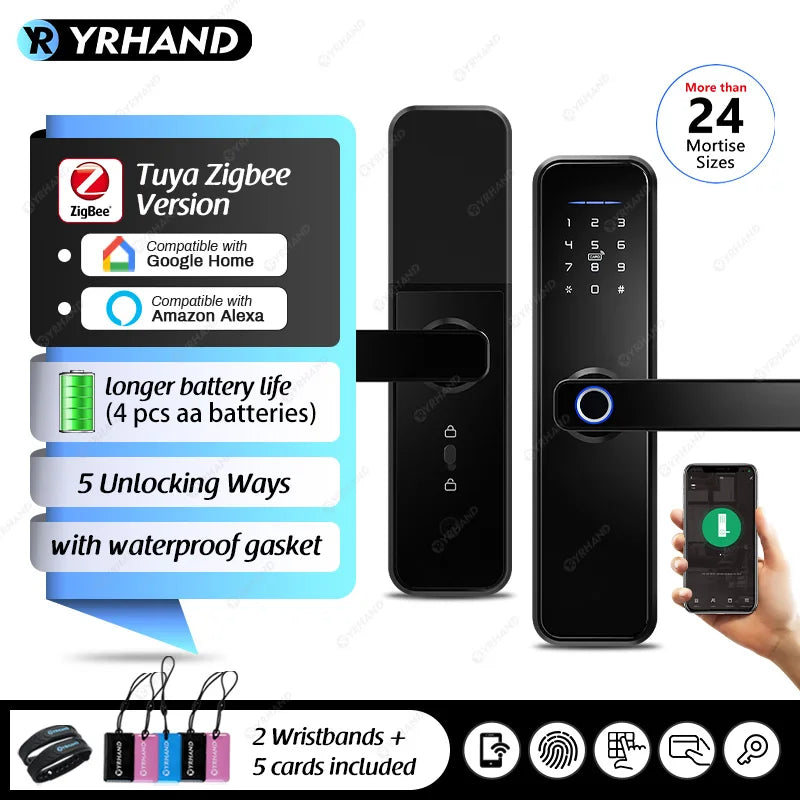

6 Flexible Ways to Unlock

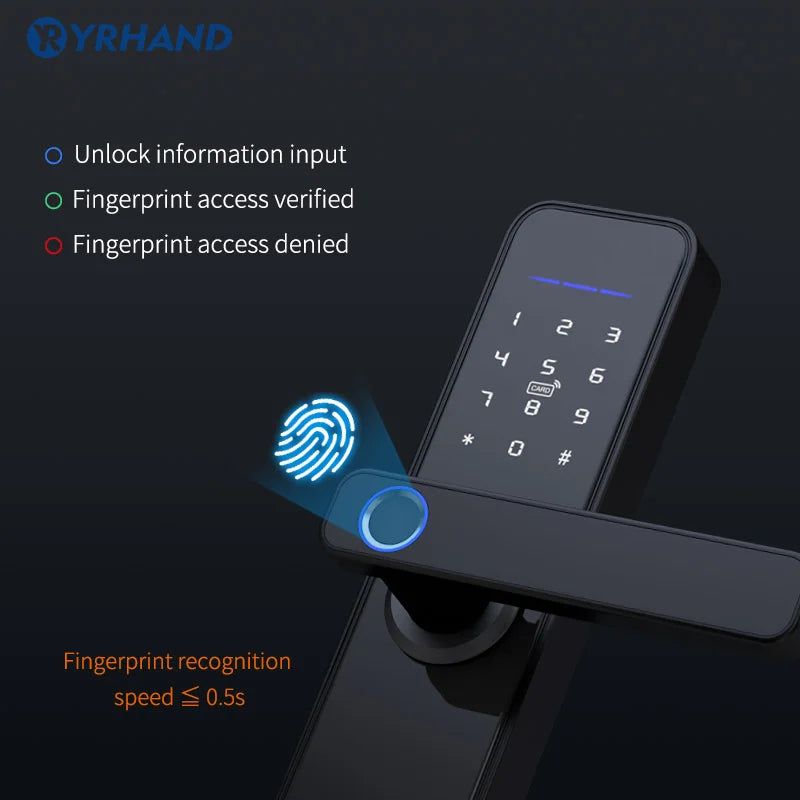

- Biometric Fingerprint – One-touch unlock in under 1 second; sensor wakes automatically when your finger approaches
- Tuya Smart Life App – Remote access via Wi-Fi or Zigbee; compatible with iOS 7.0+ and Android 4.4+
- M1 RFID Card – Tap-to-enter convenience for family members and regular visitors
- M1 Wristband – Hands-free entry; great for kids and active households
- Keypad Passcode – Virtual password feature lets you type decoy digits around your real code for added security
- Mechanical Key Backup – Two physical keys included so you're never locked out
Key Features

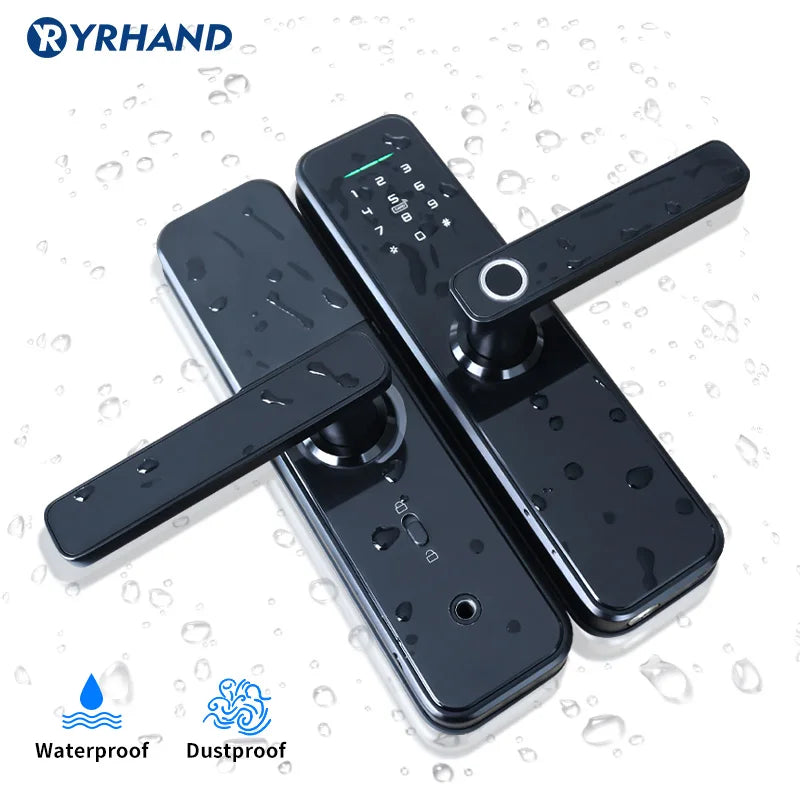

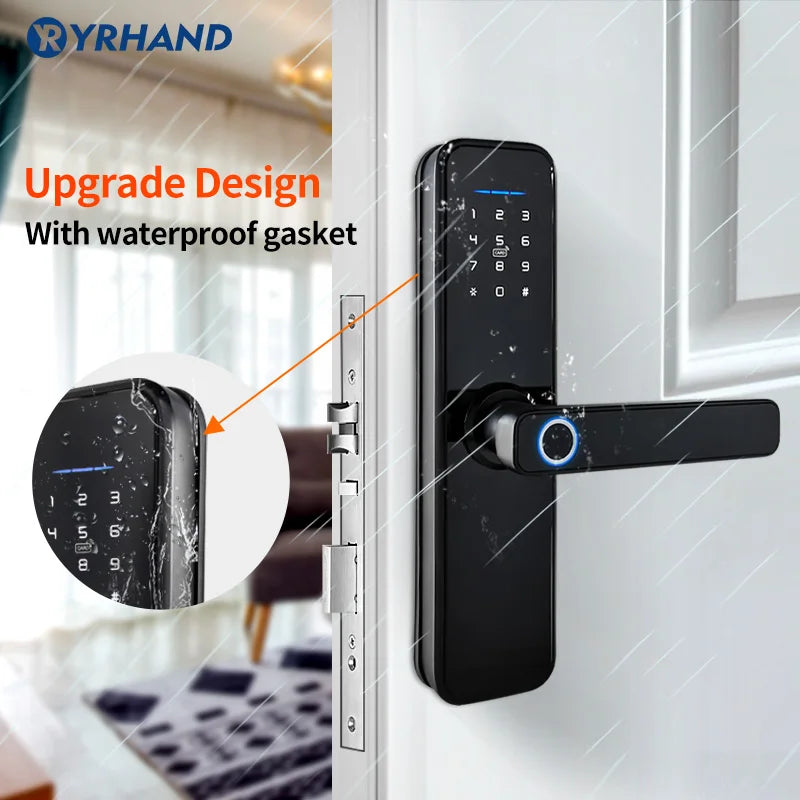

- IP66 Waterproof – Waterproof rubber seal protects internal components; ideal for exterior and exposed doors
- AES 256-Bit Encryption – Industry-grade data encryption keeps your access credentials secure
- Reversible Handle Direction – Freely adjustable to fit left- or right-handed door configurations without extra parts
- Wide Door Compatibility – Fits wooden, steel, glass, brass, and stainless-steel doors; door thickness 38–50 mm; compatible with 99% of standard mortise sizes
- Durable Zinc/Aluminum Alloy Panel – Anti-corrosion, robust construction; panel size 255 × 65 mm
- Long Battery Life – Runs on 4 × AA alkaline batteries (DC 6V); up to 10,000 unlock cycles (~12 months); USB emergency external power port included
- Auto-Relock – Door automatically re-locks after entry so your home stays secure without a second thought
- Parental Controls & Access Logs – Monitor entry history and manage family access all from the Tuya Smart Life app
- Zigbee + Bluetooth + Wi-Fi Connectivity – Broad smart home platform support via Tuya/Smart Life
Product Specifications
| Model | X5-Zigbee |
| Material | Zinc Alloy / Aluminum Alloy |
| Colors | Black, Silver (Satin Nickel) |
| Panel Size | 255 mm × 65 mm |
| Door Thickness | 38–50 mm |
| Connectivity | Zigbee, Bluetooth, Wi-Fi |
| Power | 4 × AA Alkaline Batteries (DC 6V) |
| Battery Life | ~10,000 unlocks / 12 months |
| Waterproof Rating | IP66 |
| Encryption | AES 256-bit |
| App | Tuya Smart Life (iOS 7.0+ / Android 4.4+) |

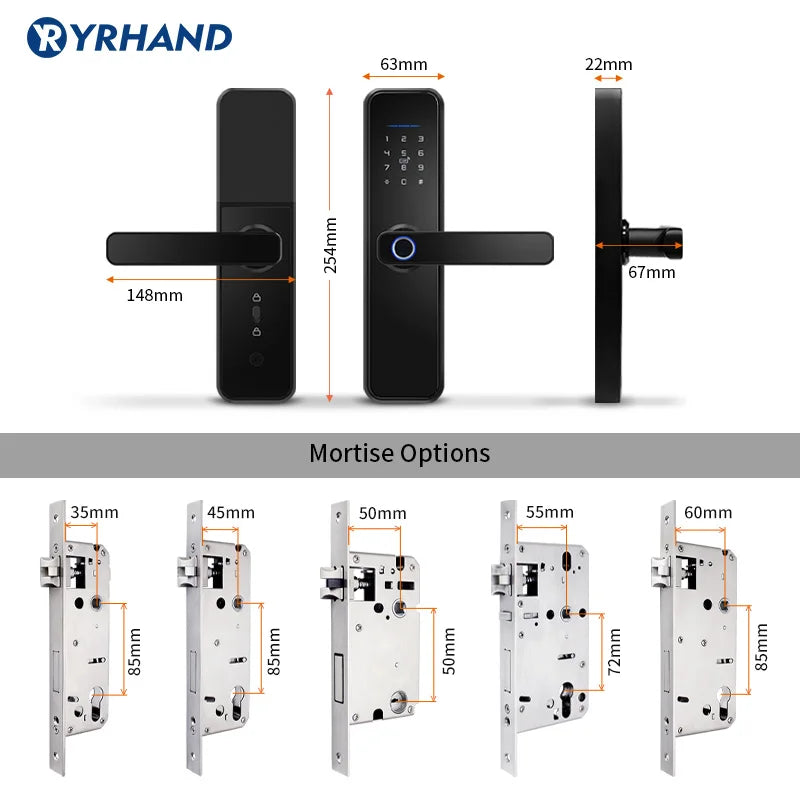

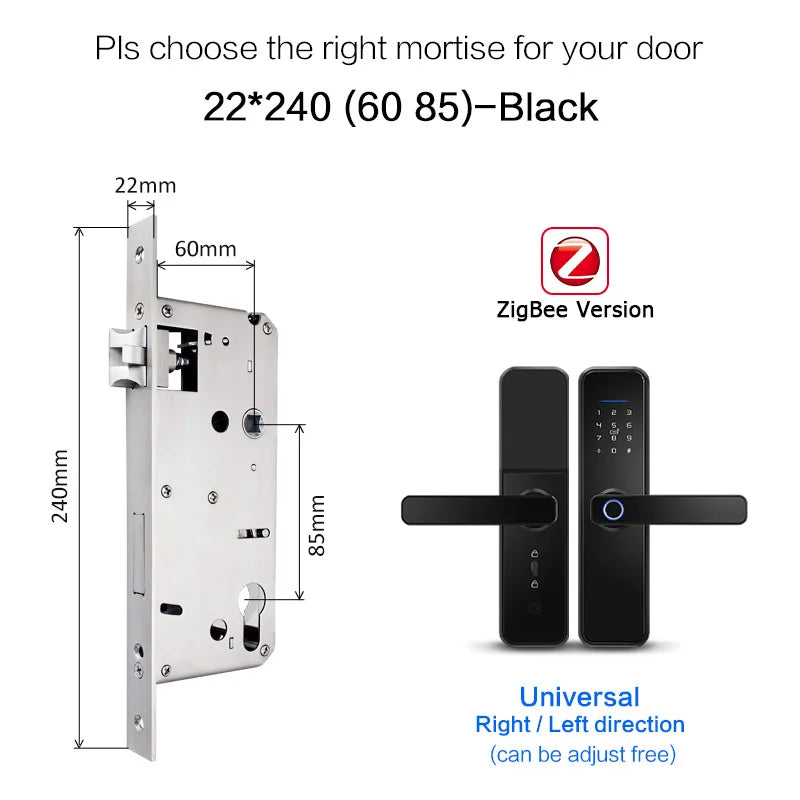

| Supported Mortise | Single latch 60/70; European 5050/6050/3585/4585/6085/6072/5572 |
| Country of Origin | Mainland China |
What's in the Box
- Front Panel × 1
- Rear Panel × 1
- Mortise Lock × 1
- Smart RFID Card × 5
- M1 Wristband × 2
- Mechanical Key × 2
- Screw Kit × 1
Before ordering: Please measure your existing mortise dimensions (width, height, backset, and centre distance) and confirm compatibility. If you're unsure, contact our customer support team with your measurements and we'll help you choose the right configuration.
For guidance on home security best practices, visit the U.S. Consumer Product Safety Commission (CPSC) — an authoritative resource on residential safety standards and product compliance.
Frequently Asked Questions
Q: Does the YRHAND X5 Zigbee smart lock work with Alexa or Google Home?
A: The X5 connects via the Tuya Smart Life platform, which supports integration with Amazon Alexa and Google Home through the Tuya/Smart Life skill or action. This allows voice-command control when paired with a compatible Zigbee hub.
Q: How waterproof is the X5 smart door lock?
A: The X5 carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and dust ingress. The built-in waterproof rubber seal makes it well-suited for exterior doors exposed to rain and the elements.
Q: What happens if the batteries run out — am I locked out?

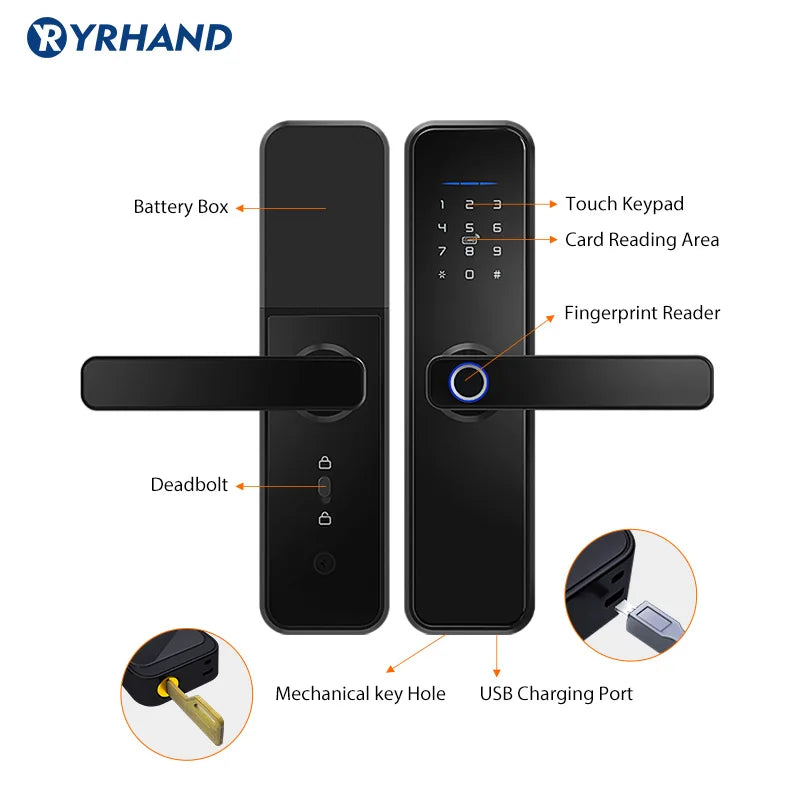

A: No. The X5 includes a USB emergency external power port on the front panel. Simply connect a portable power bank to temporarily power the lock and unlock your door. Two mechanical backup keys are also included for additional peace of mind.
Q: Can I share access with guests or temporary visitors?
A: Yes. Through the Tuya Smart Life app, you can create and share temporary or time-limited access codes, RFID card permissions, and app-based e-keys with guests, service workers, or family members — all managed remotely from your smartphone.
Q: Is the handle direction reversible after installation?
A: Yes. The X5 features a free-direction reversible handle that can be adjusted to suit left- or right-hand door configurations, making it compatible with virtually any standard door layout without needing additional hardware.
