YRHAND TTLock Wireless Bluetooth Door Status Sensor (DS2)
Keep your smart home or business access control system fully informed with the YRHAND DS2 Wireless Door Sensor. Designed exclusively for compatibility with the TTLock ecosystem, this compact Bluetooth sensor delivers real-time door status updates straight to your TTLock app — so you always know whether your door is open or closed, from anywhere.
Made in China.
Key Features
- Real-Time Door Status Monitoring: Instantly know if your door is open or closed through the TTLock app without needing to check manually.
- Unlock Record Tracking: Maintain a detailed log of door activity and access events for enhanced visibility and accountability.
- Auto-Lock Support: When paired with a TTLock-compatible smart lock that has an auto-lock function, the sensor can trigger automatic locking once the door is confirmed closed.
- Ultra-Low Power Consumption: Standby current under 5µA means your CR2032 coin battery lasts a long time between replacements.

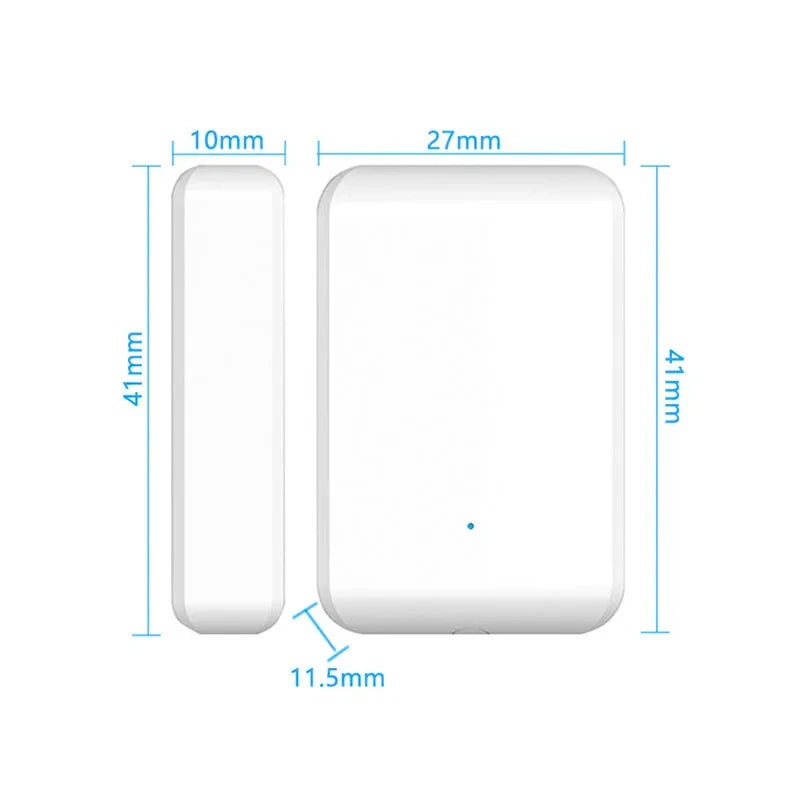

- Wireless & Easy to Install: No wiring needed — the compact plastic housing (41 × 27 × 11.5 mm) mounts discreetly on virtually any door frame.
- Wide TTLock Compatibility: Works with all TTLock smart devices that support adding a door sensor via the settings menu.
- Certified Safe & Reliable: CE, FCC, and RoHS certified for your peace of mind.
Technical Specifications
| Brand | YRHAND |
| Model | DS2 |
| Power Supply | CR2032 coin battery (3V) — battery not included due to shipping restrictions |
| Working Voltage | 3V |
| Standby Current | <5µA |
| Detection Distance | <22mm |
| Dimensions | 41 × 27 × 11.5 mm |
| Shell Material | Plastic |
| Connectivity | Bluetooth (TTLock protocol) |
| Certifications | CE, FCC, RoHS |
| Compatible Devices | All TTLock smart devices with door sensor support in settings |
| Country of Origin | Made in China |
What's in the Box
- 1 × YRHAND DS2 Bluetooth Door Status Sensor
- Note: CR2032 battery is not included (removed for shipping compliance — easily available at any hardware or electronics store)
How to Set Up
- Insert a CR2032 coin battery into the sensor.
- Open the TTLock app on your smartphone.
- Navigate to your compatible smart lock's settings and select "Add Door Sensor."
- Follow the on-screen prompts to pair the DS2 sensor.
- Mount the sensor body and magnet on your door frame and door respectively, ensuring they align within 22mm when the door is closed.
For more information on smart home security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is the YRHAND DS2 door sensor compatible with all TTLock smart locks?
A: The YRHAND DS2 Bluetooth door sensor is compatible with all TTLock smart devices that include a "door sensor" option within their in-app settings menu. We recommend checking your specific TTLock lock model's app settings to confirm this feature is supported before purchasing.
Q: Does the door sensor come with a battery?
A: No — the CR2032 coin cell battery is not included due to shipping regulations. You will need to purchase a standard CR2032 3V battery separately, which is widely available at hardware stores, pharmacies, and electronics retailers.
Q: How does the auto-lock feature work with this door sensor?
A: When paired with a TTLock-compatible smart lock that supports an auto-lock function, the DS2 sensor communicates the door's closed status to the lock, which can then trigger automatic locking. This feature is only available on TTLock locks that natively support auto-lock — please verify your lock's specifications.
Q: What is the maximum detection gap distance for the door sensor?
A: The YRHAND DS2 door sensor has a detection distance of less than 22mm, meaning the sensor body and the magnet piece must be within 22mm of each other when the door is closed for reliable open/closed detection.
Q: How long does the battery last in the DS2 sensor?
A: Thanks to its ultra-low standby current of under 5µA, the CR2032 battery in the DS2 sensor is designed to last for an extended period under normal usage conditions. Actual battery life will vary depending on how frequently the door is opened and closed.
