XY6020L 20A 1200W Adjustable DC Buck Voltage Regulator Module

XY6020L 20A 1200W CNC Adjustable DC Step-Down Power Supply Module

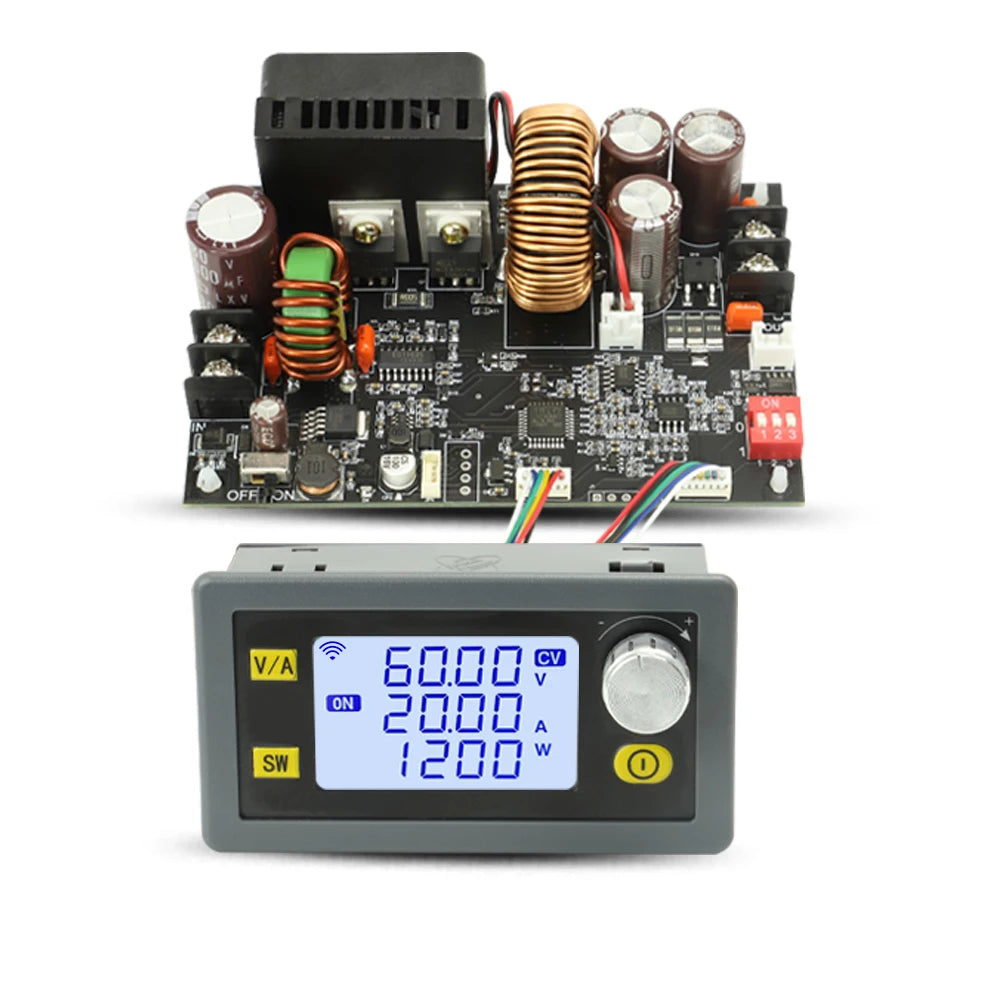

The XY6020L Buck Converter Module is a high-performance, CNC-adjustable DC-to-DC step-down power supply designed for makers, engineers, and electronics enthusiasts. Featuring a wide input range of 6V–70V and an adjustable output of 0–60V at up to 20A and 1200W, this module delivers precise, stable power for battery charging, lab testing, LED driving, motor control, and more. The large dedicated LCD screen makes monitoring and adjustment effortless, while built-in MODBUS protocol support enables seamless serial communication integration. Made in Mainland China.

Key Features

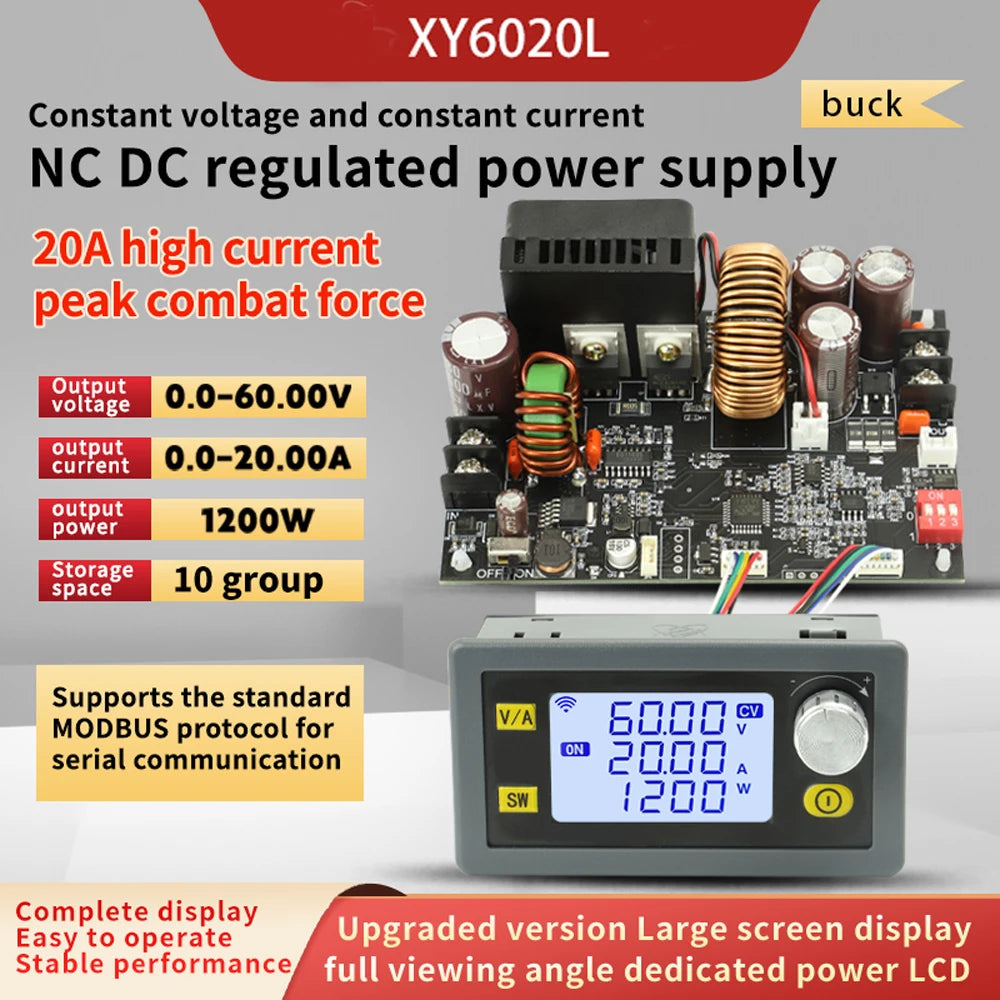

• Wide Voltage Range: Input 6V–70V; output adjustable 0–60V, up to 20A / 1200W

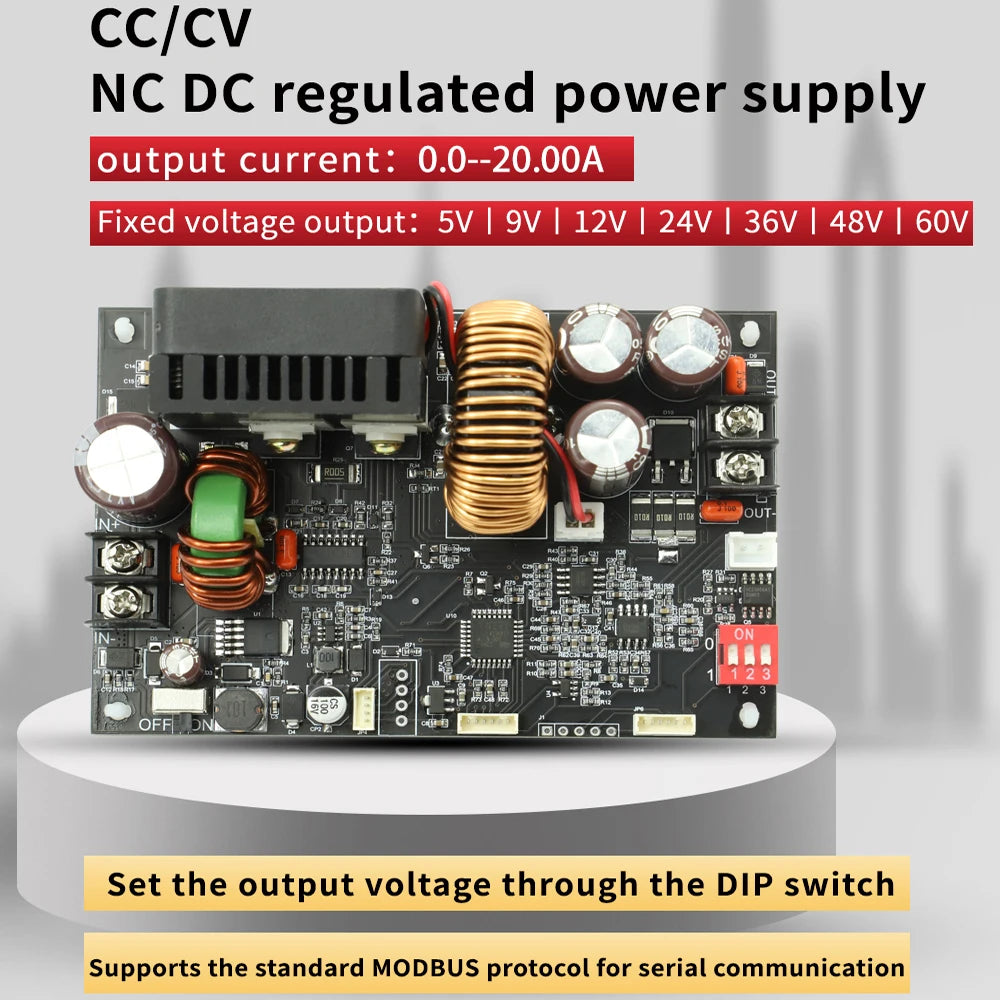

• Constant Voltage & Constant Current (CV/CC): Precise CNC control for both voltage and current output
• Large LCD Display: Full-view dedicated power LCD for easy real-time monitoring
• MODBUS Protocol Support: Standard serial communication for automation and remote control
• Smart Cooling Fan: Auto-activates when current >2A, power >50W, or temperature >50°C; shuts off when conditions drop
• High-Quality Construction: Premium materials for durability and long service life
• Simple Operation: Intuitive interface with stable, consistent performance

Technical Specifications

Protection Mechanisms

• Input Overvoltage Protection: 71V (default)
• Input Undervoltage Protection: 4.8V–71V adjustable (default 4.8V)
• Output Overvoltage Protection: 0–65V (default 65V)
• Output Overcurrent Protection: 0–16A (default 16A)
• Output Overpower Protection: 0–950W (default 950W)
• Over-Temperature Protection: 60°C–110°C (default 95°C)
• External Temperature Protection: 0–110°C (default off)
• Timeout Protection: 0–100H adjustable (default off)
• Overcapacity Protection: 0–9999Ah adjustable (default off)
• Over-Energy Protection: 0–9999Wh adjustable (default off)

Package Contents

• 1× XY6020L Power Supply Module

Notes

• Due to lighting and screen differences, the item's color may vary slightly from the pictures.
• Please allow 1–3 cm differences due to manual measurement.

For guidance on electrical safety standards and best practices when working with DC power supplies and electronic modules, refer to the U.S. Consumer Product Safety Commission – Electrical Safety.

Frequently Asked Questions

Q: What is the XY6020L buck module used for?

A: The XY6020L is a CNC-adjustable DC step-down (buck) power supply module used for a wide range of applications including battery charging, laboratory power testing, LED driver circuits, motor speed control, and DIY electronics projects. It supports both constant voltage (CV) and constant current (CC) modes for versatile use.

Q: Does the XY6020L support remote or automated control?

A: Yes. The XY6020L supports standard MODBUS serial communication protocol, allowing it to be integrated into automated systems, microcontroller setups, or PC-based control environments for remote voltage and current adjustment.

Q: How does the cooling fan work on the XY6020L?

A: The built-in cooling fan activates automatically when the output current exceeds 2A, output power exceeds 50W, or the internal temperature rises above 50°C. It shuts off once current drops below 1.5A, power drops below 45W, and temperature falls below 45°C — ensuring efficient, quiet operation under light loads.

Q: What protections are built into the XY6020L?

A: The module features a comprehensive suite of protections including input/output overvoltage, input undervoltage, overcurrent, overpower, over-temperature, timeout, overcapacity, and over-energy protection — all adjustable to suit your specific application requirements.
