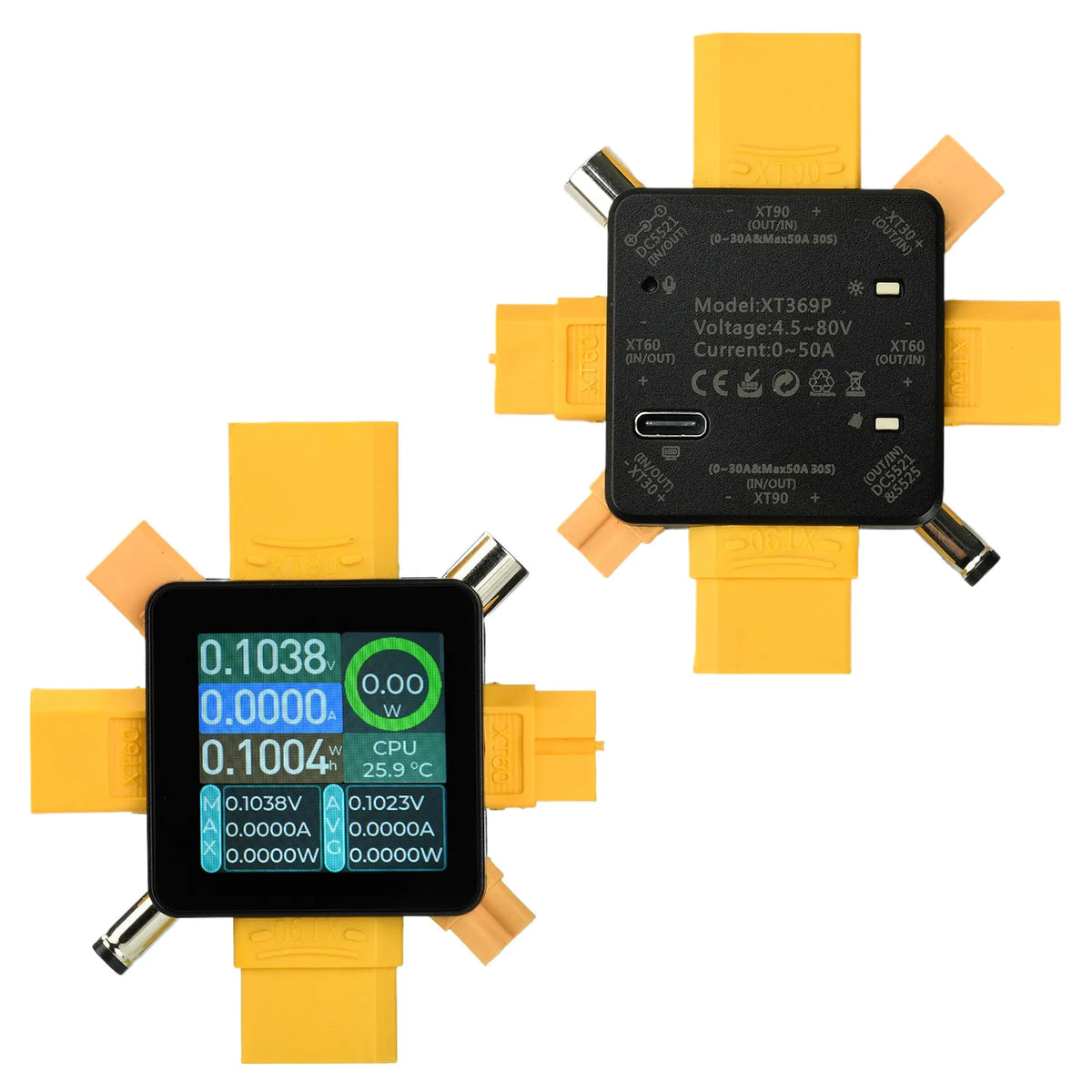

XT369P RC Power Analyzer XT30 XT60 XT90 DC 4.5-80V Watt Meter
XT369P RC Power Analyzer XT30 XT60 XT90 DC 4.5-80V Watt Meter
The XT369P RC Power Analyzer is the ultimate all-in-one digital measurement tool for RC hobbyists, drone pilots, and electronics enthusiasts. Compatible with XT30, XT60, XT90, DC5521, and DC5523 connectors, this compact analyzer delivers real-time readings of voltage, current, wattage, battery capacity, and energy consumption — all in one device operating across a wide DC 4.5–80V range.
Made in Mainland China.
Key Features
- Multi-Port Compatibility: Integrated XT30 / XT60 / XT90 / DC5521 / DC5523 interfaces — single input, multiple output for maximum versatility.
- Vivid HD Display with Auto-Rotation: Gravity-sensing screen automatically rotates in all four directions for effortless viewing from any angle.
- Comprehensive Real-Time Monitoring: Simultaneously measures voltage, current, power, capacity, energy, and run-time sustainability in one pass.
- Power Ripple Measurement & Curve Drawing: Advanced waveform analysis with peak/average value recording keeps your power data sharp and actionable.
- Battery Capacity Calculator: Tracks capacity from 0 to 999,999 Ah — ideal for assessing LiPo and other RC battery packs.
- Bluetooth & USB HID Data Transmission: Log and transfer your measurement data wirelessly to a computer for deeper analysis.

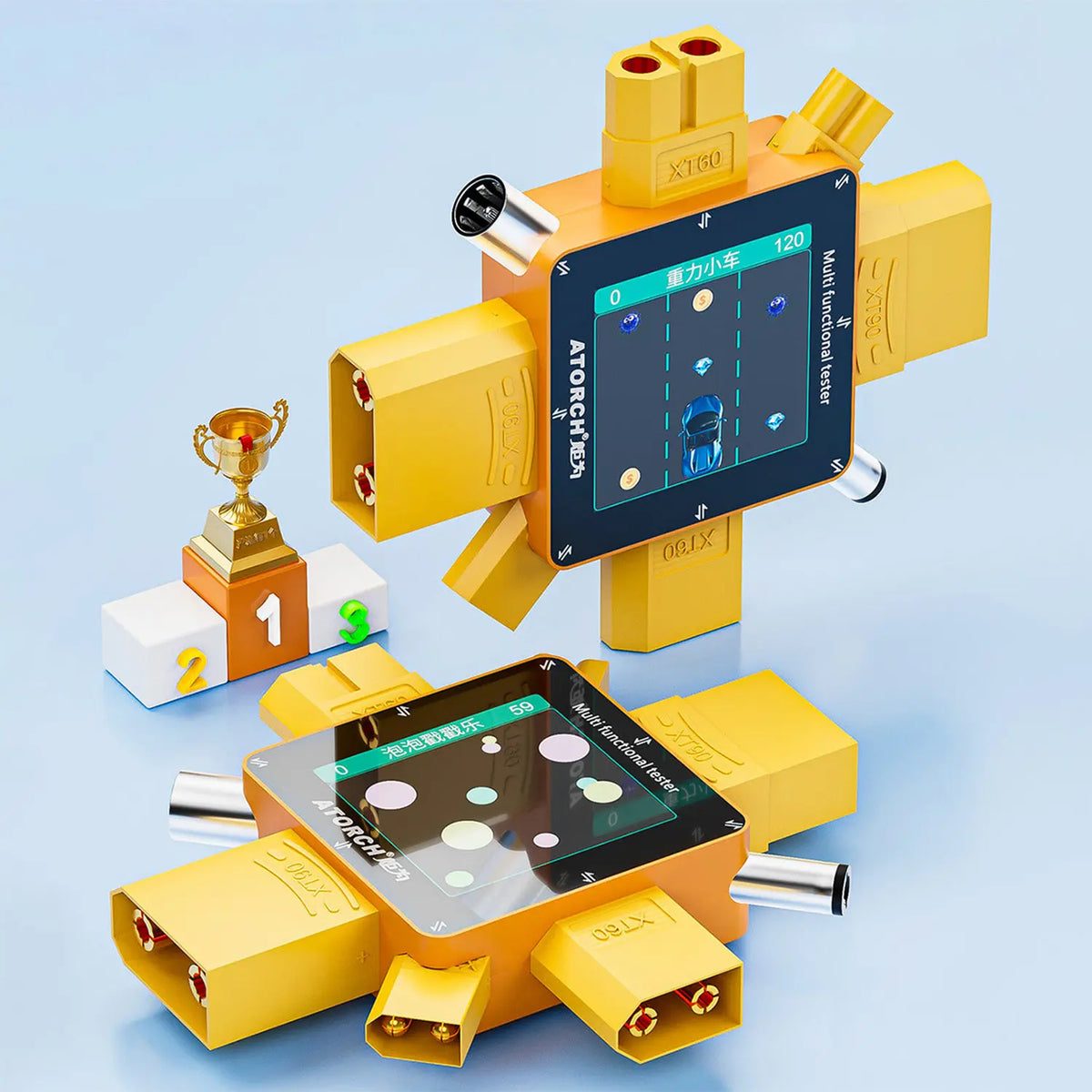

- Extra Built-In Utilities: Music spectrum analyzer, decibel meter, level gauge, barometer, altimeter, and interactive games make this more than just a meter.
- Anti-Burn-In Protection: Smart display management extends screen life during long measurement sessions.
- Essential for RC & UAV Builds: Perfect debugging and testing companion for drones, fixed-wing aircraft, multi-rotor platforms, and UAV projects.
Specifications
| Operating Voltage | DC 4.5 – 80V |
| Max Power Display | 0 – 4000W |
| Max Current | 30A |
| Capacity Display | 0 – 999,999 Ah |
| Energy Display | 0 – 999,999 kWh |
| Sampling Resistance | 0.0015 Ω |
| Power Consumption | < 0.15W |
| Operating Temperature | 0 – 45°C / 32 – 113°F |
| Connector Types | XT30, XT60, XT90, DC5521, DC5523 |
| Dimensions | 80 × 72 × 17 mm |
| Battery Included | No |
What's in the Box
- 1× XT369P Voltage / Current / Watt Meter (Power Analyzer)
Notes
- Color may appear slightly different due to monitor/screen calibration differences.
- Please allow ±1 mm measurement variance due to manual sizing.
For guidance on safe DC electrical measurement practices, visit the OSHA Electrical Safety resource.
Frequently Asked Questions
Q: What connector types does the XT369P RC Power Analyzer support?
A: The XT369P supports five connector types: XT30, XT60, XT90, DC5521, and DC5523. The multi-port integrated design allows a single input with multiple output options, making it highly versatile for various RC and drone applications.
Q: Can I use the XT369P Power Analyzer to check my LiPo battery capacity?
A: Yes! The XT369P features a built-in battery capacity calculator that tracks capacity in the range of 0 to 999,999 Ah, making it an excellent tool for monitoring and evaluating LiPo, Li-ion, and other RC battery packs used in drones, UAVs, and multi-rotor aircraft.
Q: Does the XT369P support data logging or wireless data transfer?
A: Absolutely. The XT369P includes both Bluetooth and USB HID data transmission capabilities, allowing you to send measurement data wirelessly to a computer for in-depth logging, analysis, and curve drawing — ideal for serious RC builders and electronics hobbyists.
Q: What is the maximum voltage and power the XT369P can handle?
A: The XT369P operates across a DC voltage range of 4.5V to 80V and can display power readings up to 4000W at a maximum current of 30A, covering the vast majority of RC, drone, and DIY electronics testing scenarios.
