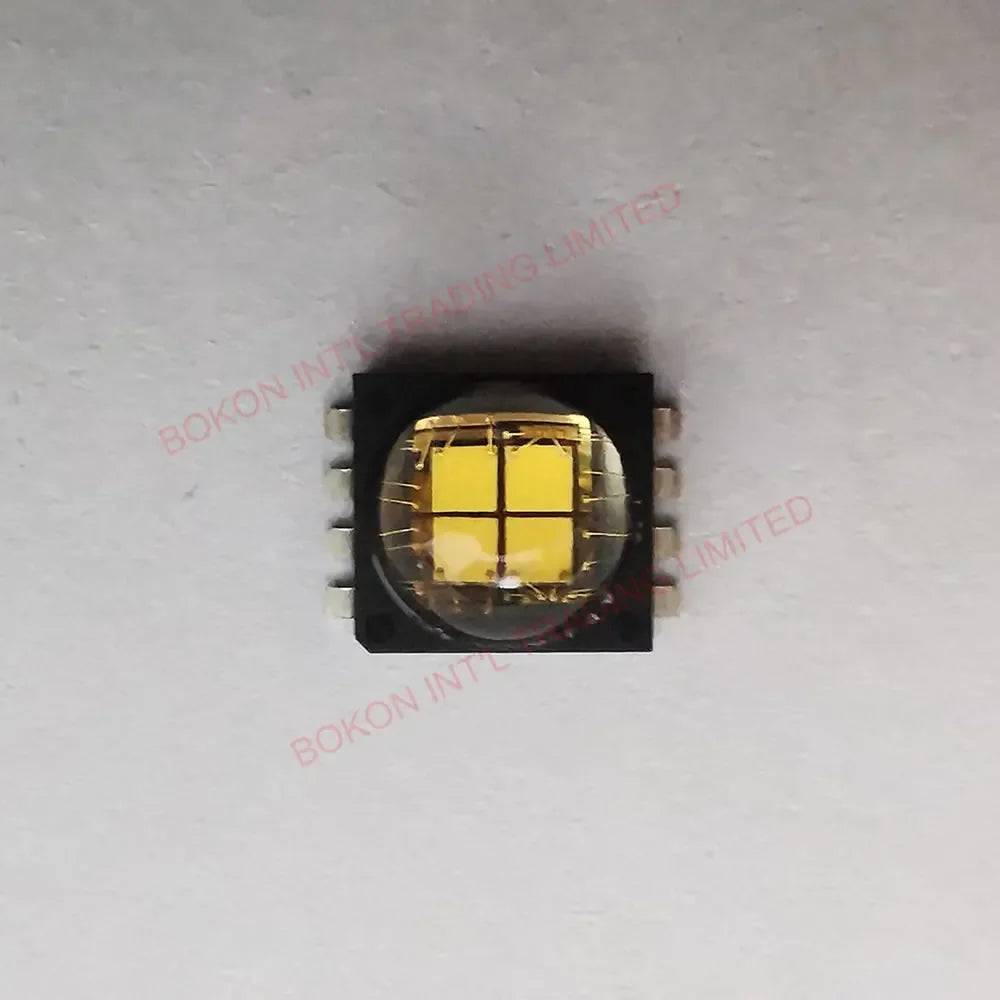

XLamp MC-E LED MCE4WT-A2 Warm/Neutral White – 5/10/20 Pack
XLamp MC-E LED MCE4WT-A2 Warm/Neutral White – 5/10/20 Pack
XLamp MC-E Series High-Power LEDs – MCE4WT-A2 (Warm & Neutral White)
Upgrade your lighting projects with the XLamp MC-E Series LEDs (MCE4WT-A2). Available in convenient multi-packs of 5, 10, or 20, these high-efficacy LEDs deliver consistent warm and neutral white output, making them ideal for professional lighting designs, DIY electronics builds, and replacement applications. With robust construction and industry-standard footprints, these components integrate seamlessly into a wide range of luminaire designs.
Key Features

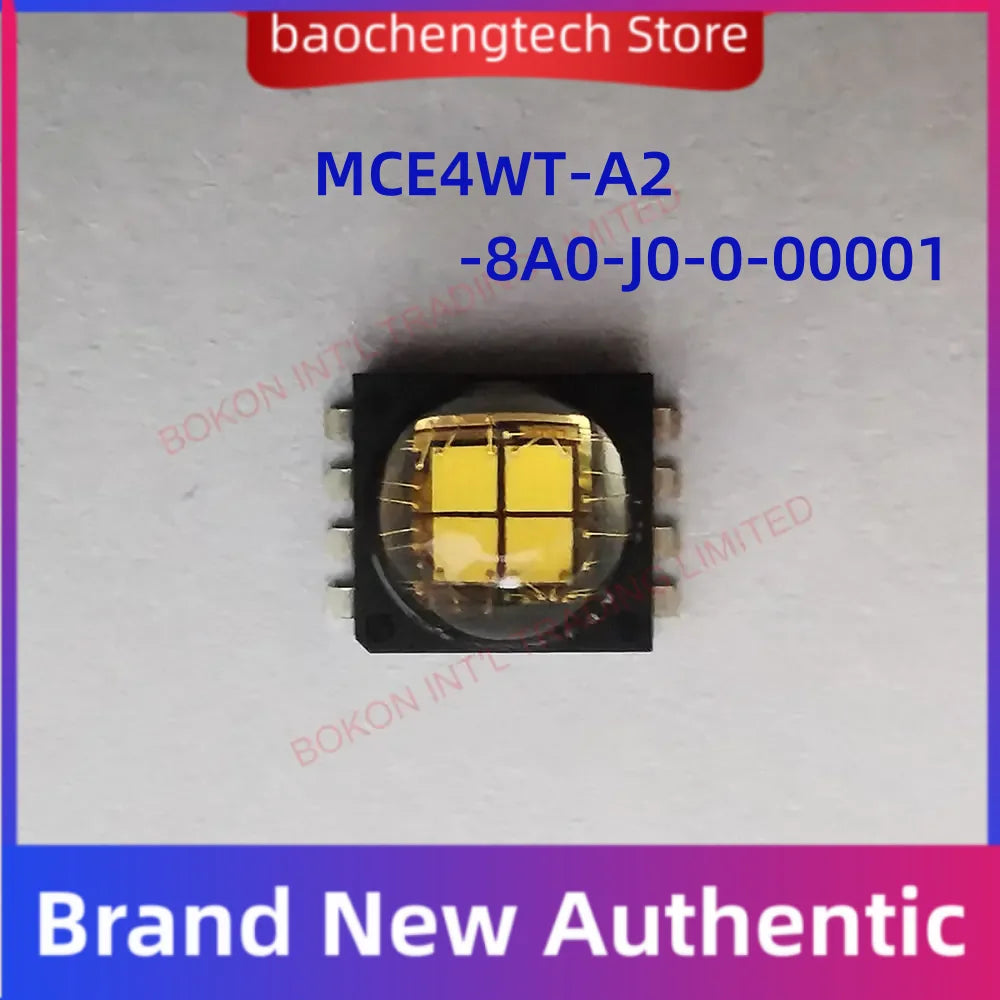

- Model: MCE4WT-A2-8A0-J0-0-00001 — XLamp MC-E Series
- Color Options: Warm White & Neutral White in one versatile package
- Multi-Pack Quantities: Choose from 5, 10, or 20 pieces to match your project scope
- High Luminous Efficacy: Engineered for strong light output with efficient energy consumption
- Compact, Surface-Mount Design: Easy integration into custom PCB layouts and lighting fixtures
- Consistent Binning: Tight color and flux bins ensure uniform performance across your build
- Broad Application Range: Suitable for architectural lighting, accent lighting, task lighting, retail displays, and DIY hobbyist projects
- Made in Mainland China
Specifications

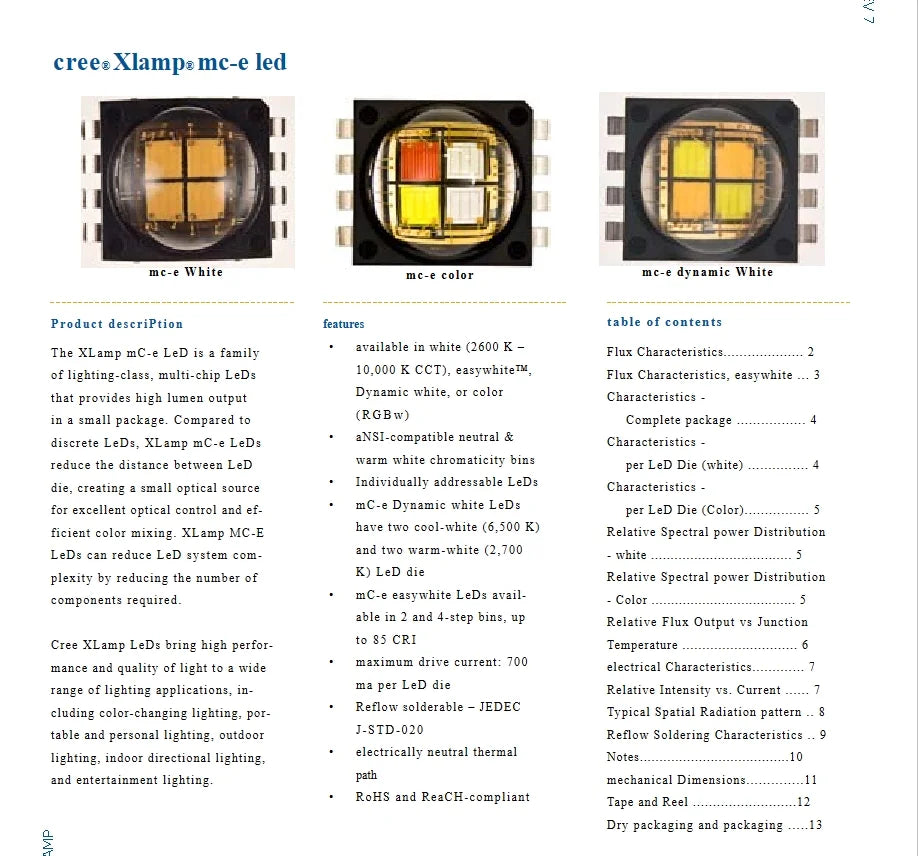

- Series: XLamp MC-E

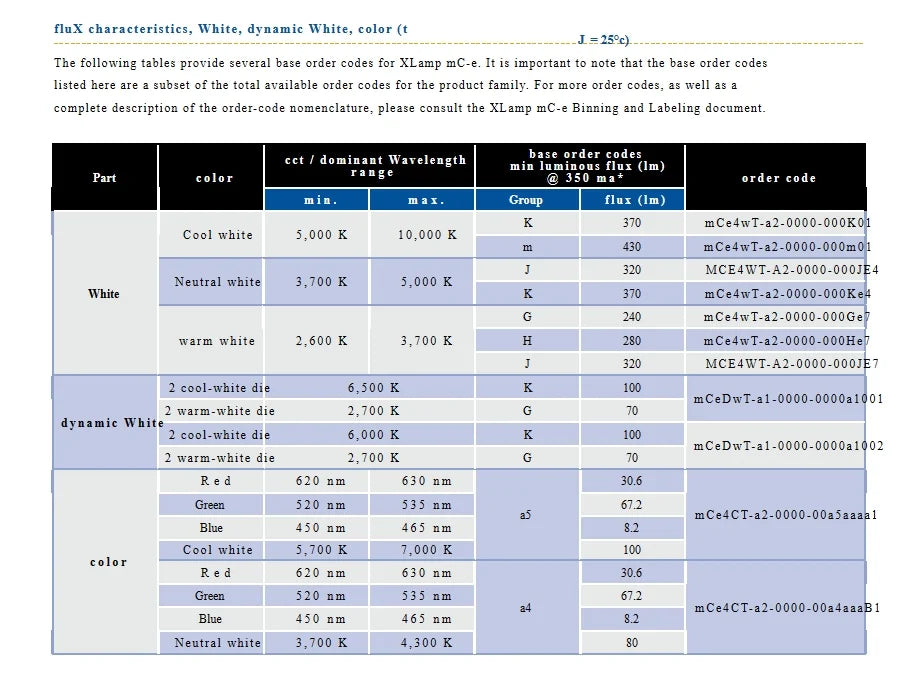

- Part Number: MCE4WT-A2 / MCE4WT-A2-8A0-J0-0-00001
- Color Temperature: Warm White & Neutral White
- Package Type: Surface Mount (SMD)
- Pack Sizes: 5 PCS / 10 PCS / 20 PCS
- High-Concern Chemicals: None
Why Choose XLamp MC-E Series LEDs?
The MC-E Series is a well-established platform trusted by lighting designers and electronics engineers worldwide. Its multi-die configuration delivers high lumen output from a compact footprint, making it a go-to solution for projects where performance and space efficiency matter. Buying in multi-pack quantities ensures you have the components you need on hand for prototyping, production runs, or repairs.
For general guidance on energy-efficient lighting technologies, visit the U.S. Department of Energy – LED Lighting Resource.
Frequently Asked Questions
Q: What is the MCE4WT-A2 XLamp MC-E Series LED used for?
A: The MCE4WT-A2 is a high-power surface-mount LED used in a wide range of applications including architectural lighting, retail display lighting, task lighting, DIY electronics projects, and luminaire replacement. Its warm and neutral white color options make it versatile for both functional and decorative builds.
Q: What pack sizes are available for the XLamp MC-E LED?
A: These XLamp MC-E Series LEDs (MCE4WT-A2) are available in packs of 5, 10, or 20 pieces, so you can order exactly the quantity needed for your project — whether you're prototyping a single unit or building a larger production run.
Q: How do I select between warm white and neutral white for my project?
A: Warm white typically has a color temperature in the 2700K–3000K range, producing a cozy, inviting glow suited to residential and hospitality environments. Neutral white (around 4000K) offers a clean, balanced tone ideal for task lighting, retail, and office applications. Refer to your specific fixture's design requirements when choosing.
Q: Are these LEDs compatible with standard PCB footprints?
A: Yes. The XLamp MC-E Series uses a standard surface-mount footprint widely supported across lighting PCB platforms. Always verify pad dimensions and thermal requirements against your specific PCB design and datasheet specifications before assembly.
