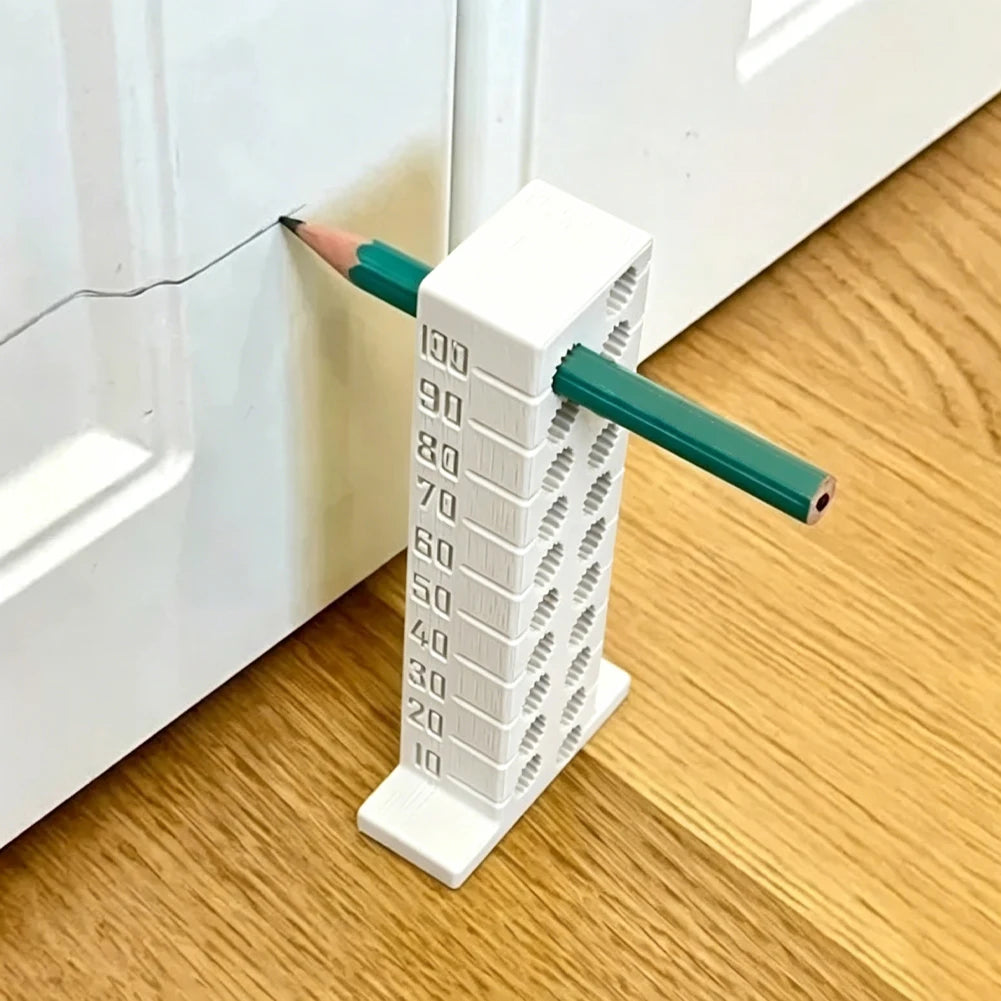

Woodworking Height Marking Gauge – Precision Scribe & Line Drawing Tool
Take your woodworking and DIY projects to the next level with this versatile Height Marking Gauge Ruler. Engineered for both hobbyists and professional woodworkers, this compact scribing tool delivers repeatable, accurate layout lines every time — helping you cut, join, and finish with confidence.
Key Features
- Wide Measuring Range: Covers 5 to 105 mm (¼ to 4¼ inches), making it suitable for a broad range of marking and layout tasks on timber, boards, and panels.

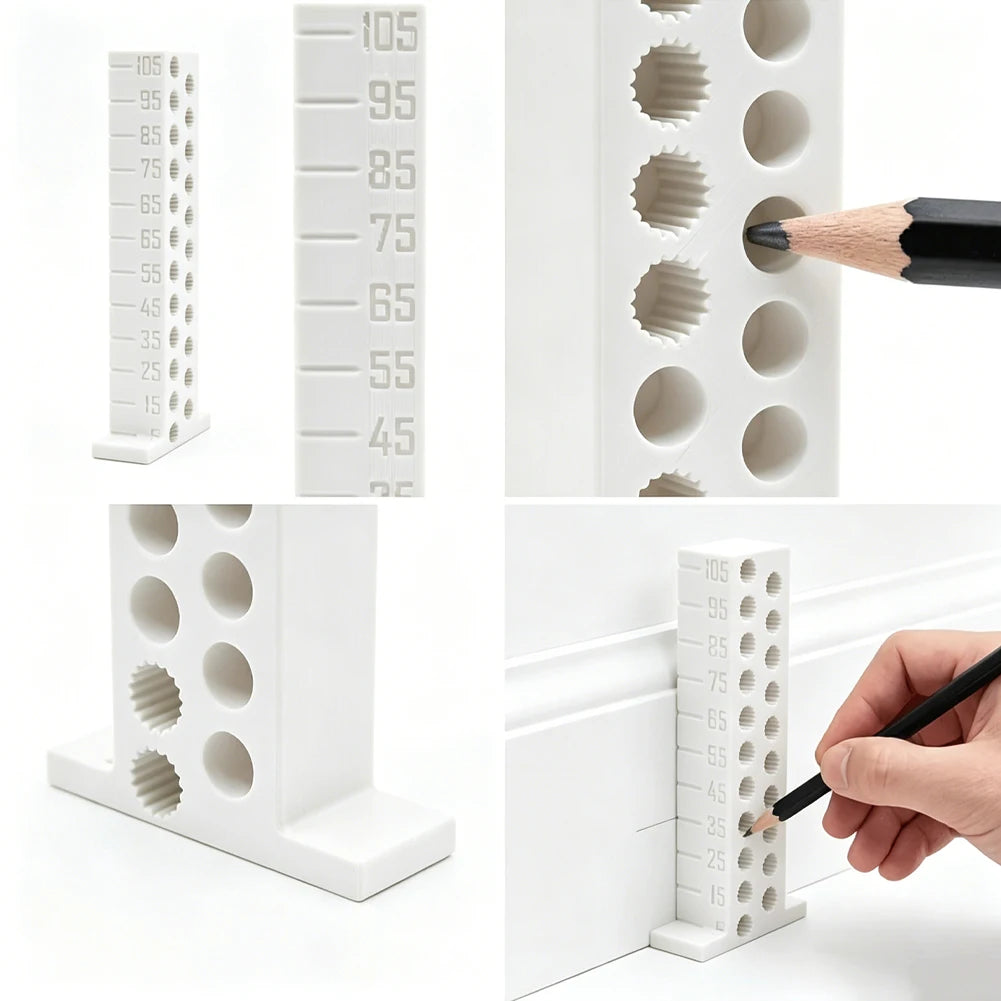

- Universal Pencil Compatibility: Works with both standard round and hexagonal pencils — no special accessories needed to scribe clean, consistent lines.
- Durable PLA or Resin Construction: Made from high-quality PLA or resin material that withstands the demands of a busy workshop, offering lasting reliability session after session.
- 3D-Printed Artisanal Quality: Each gauge is produced using 3D printing technology. Subtle layer lines are a natural characteristic of the manufacturing process, giving every tool a handcrafted character.

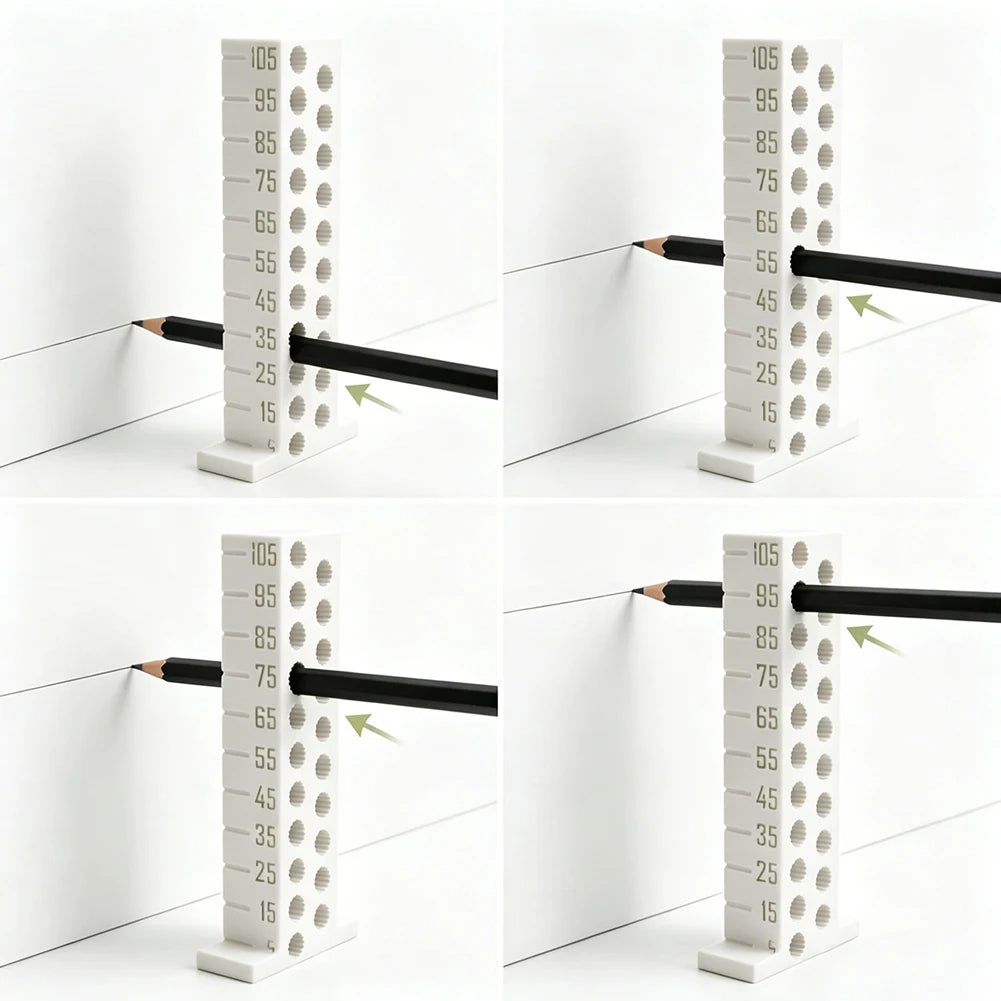

- Quick Height Adjustment: Intuitive sliding mechanism allows fast, tool-free height setting — ideal for repetitive marking operations where efficiency matters.
- Beginner & Pro Friendly: Simple enough for first-time woodworkers yet precise enough for seasoned craftspeople tackling fine joinery or cabinetmaking.
Specifications
| Measuring Range | 5–105 mm (¼–4¼ in) |
| Material | PLA or Resin |
| Pencil Type | Round & Hexagonal |
| Available Colors | Red, Orange, White, Yellow |
| Country of Origin | Made in China |
Package Contents
- 1 × Woodworking Height Marking Gauge Ruler
Important Notes
- Actual color may vary slightly from images due to monitor brightness and lighting conditions.
- Please allow a slight manual measurement tolerance.
Helpful Resource
For guidance on safe tool use and workshop best practices, visit OSHA's Woodworking Safety Guidelines.
Frequently Asked Questions
Q: What pencil types are compatible with this woodworking height marking gauge?
A: The gauge is designed to work with both round and hexagonal pencils — the most common types found in any woodworking toolkit. Simply insert your pencil into the guide slot, set your desired height between 5 and 105 mm, and you're ready to scribe consistent, accurate layout lines.
Q: Is the height marking gauge suitable for beginners?
A: Absolutely. The tool features an intuitive sliding design that makes height adjustments quick and easy, even for those new to woodworking. No special training is required — just set your measurement and mark your line.
Q: What do the visible layer lines on the gauge mean?
A: The gauge is produced using 3D printing technology. Subtle layer lines are a natural and expected characteristic of this manufacturing method and do not affect the tool's accuracy or functionality. They are a hallmark of its artisanal, workshop-grade production.
Q: Can this marking gauge be used for materials other than wood?
A: While primarily designed for woodworking layout tasks, the height marking gauge can also be used on other flat materials such as MDF, plywood, and laminates — anywhere you need a precise, repeatable scribed line.
