Wireless RFID Keypad Card Reader 433MHz Wiegand + Receiver

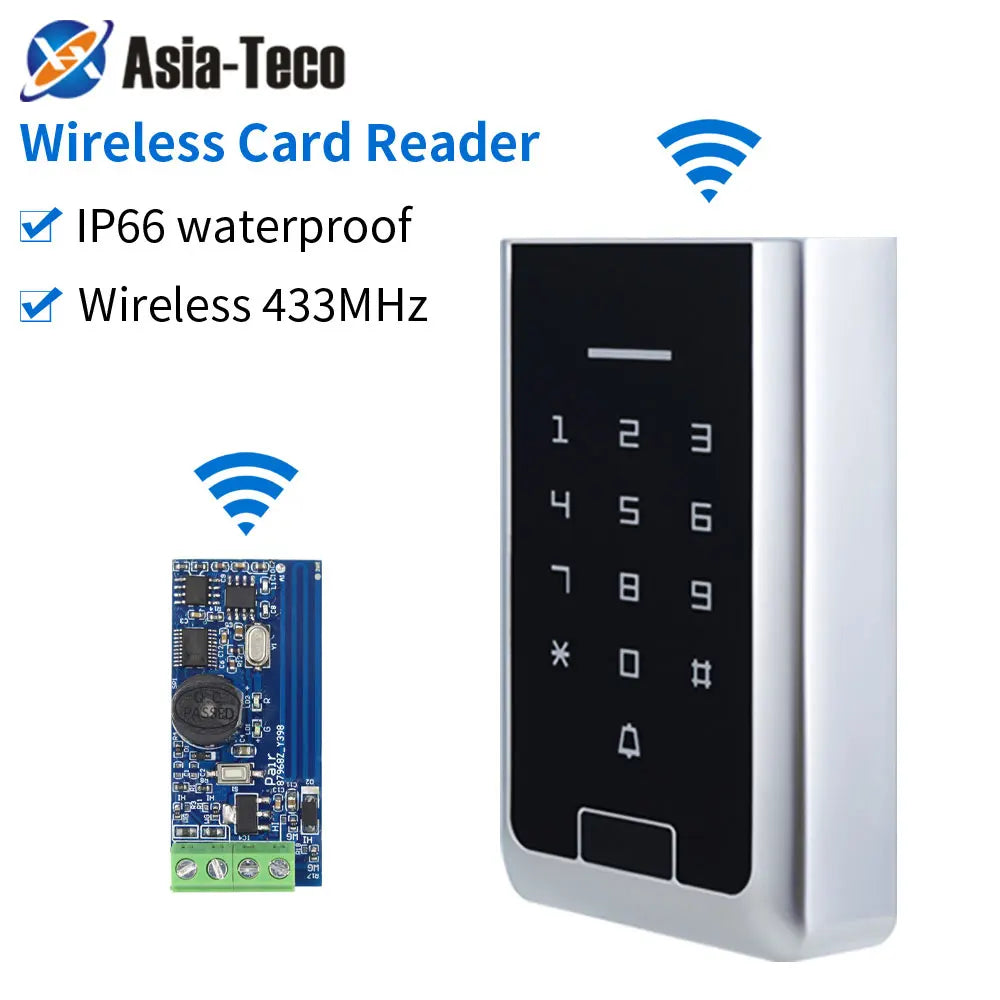

Waterproof Wireless RFID Keypad & Card Reader — 433MHz with Receiver Module

Upgrade your access control system with the Asia-Teco WR10-R-EM Wireless Wiegand Slave Card Reader — a wire-free, weatherproof solution that eliminates the hassle of running cables between your card reader and access controller. Operating at 433MHz, this system wirelessly transmits user credentials to a networked controller with ease and reliability.

Whether you're securing a gate, door, or building entry point, this outdoor-ready reader combines an RFID card reader, PIN keypad, built-in doorbell, and 433MHz receiver module into one streamlined package. Made in Mainland China.

Key Features & Benefits

• Truly Wire-Free Installation: No wiring required between the outdoor card reader and the controller — the 433MHz wireless link handles all data transmission up to 100 meters (ABS plastic case).
• IP66 Waterproof Rated: Fully weatherproof keypad and card reader — built to withstand rain, dust, and outdoor elements without compromising performance.
• TEA+ Rolling Code Encryption: Advanced rolling code algorithm ensures every transmission is secure and protected against replay attacks.
• Flexible Wiegand Output: Supports Wiegand 26 and Wiegand 34 formats for broad compatibility with existing access control systems.

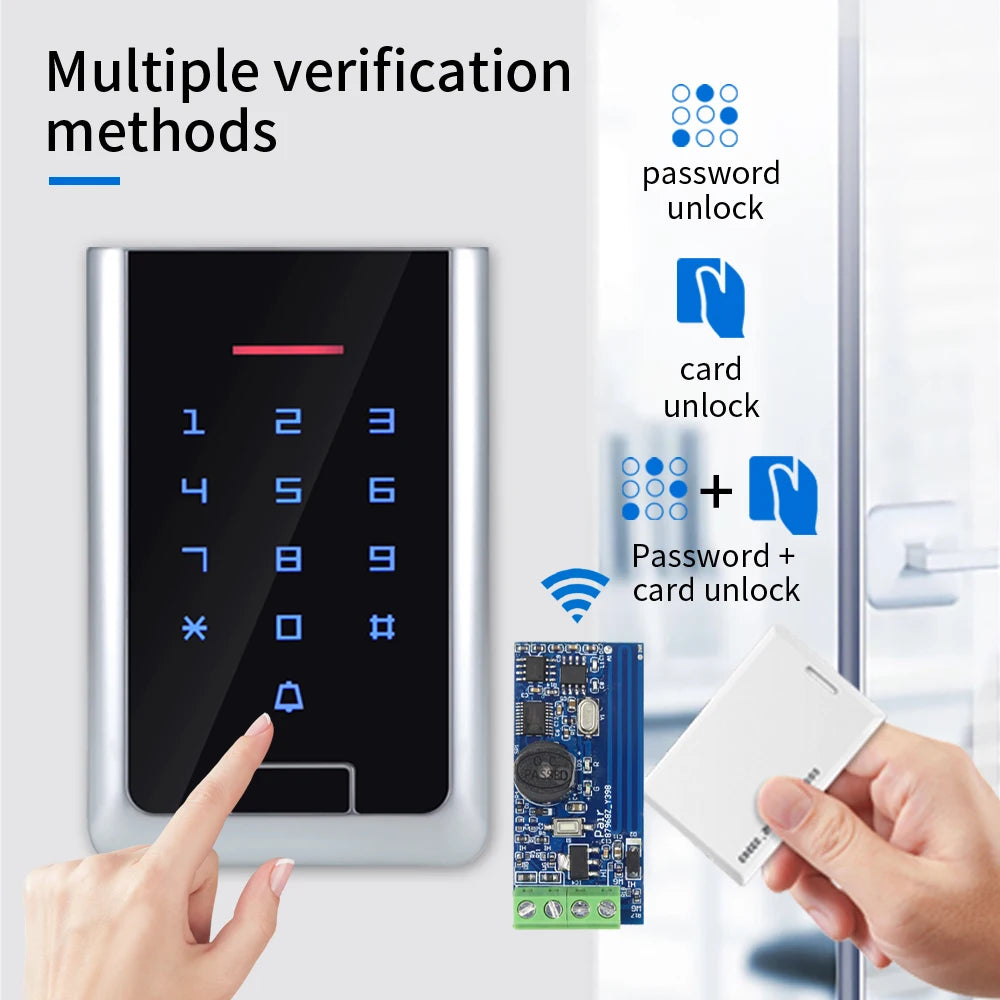

• Multiple Password Formats: Accepts 4-bit and 8-bit PIN codes, plus password simulation card number output for versatile authentication options.
• Built-In Doorbell Function: Includes an integrated doorbell sound; an optional external doorbell can also be connected.
• Multi-Reader Support: One receiver module can pair with up to 5 wireless outdoor card readers — ideal for larger installations.
• Battery Powered Reader: Operates on 2× AAAA or 3× AAA batteries, making installation in any location simple and flexible.

Technical Specifications

What's in the Box

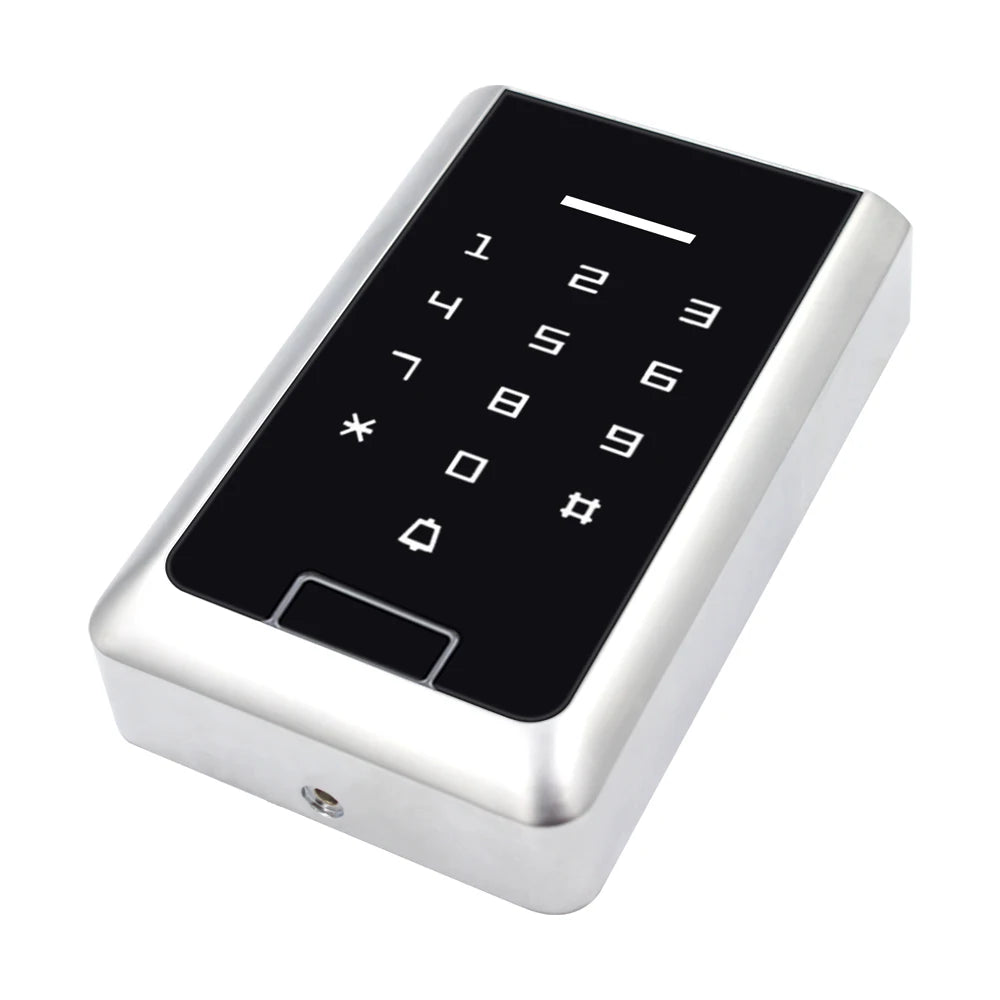

• 1× Outdoor Wireless RFID Keypad Card Reader (with built-in battery compartment)
• 1× 433MHz Receiver / Decoder Module

Who Is This For?

This wireless access reader is perfect for property managers, homeowners, installers, and businesses who need a flexible, no-drill-wiring access control solution for gates, doors, garages, or office entrances. Its IP66 waterproof construction makes it suitable for exposed outdoor locations year-round.

For further guidance on electronic security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC) for relevant safety standards and consumer information.

Frequently Asked Questions

Q: What is the maximum wireless range of this RFID card reader?

A: The wireless communication range is up to 100 meters when used with the ABS plastic case version in open environments. Obstacles such as walls or metal structures may reduce this range.

Q: How many card readers can I connect to one receiver module?

A: One 433MHz receiver/decoder module can be paired with up to 5 wireless outdoor card readers, making it scalable for multi-entry installations.

Q: What Wiegand formats does this reader support?

A: This reader supports both Wiegand 26 and Wiegand 34 output formats, ensuring compatibility with the vast majority of access control panels and controllers on the market.

Q: Is this card reader waterproof enough for outdoor use?

A: Yes — the outdoor keypad and card reader carry an IP66 waterproof rating, meaning it is protected against powerful water jets and heavy rain, making it fully suitable for permanent outdoor installation.

Q: What type of batteries does the outdoor reader use?

A: The outdoor wireless card reader is powered by either 2× AAAA batteries or 3× AAA batteries. Its ultra-low idle current (≤15µA) ensures long battery life between replacements.

Q: Does this reader have a doorbell function?

A: Yes — the reader includes a built-in doorbell sound. You can also connect an optional external doorbell for additional notification flexibility.
