Wireless RFID Access Control Kit – No-Wire Installation, Maximum Security
Take full control of who enters your property with the Asia-Teco AW1-EM Wireless RFID Access Control Kit. This all-in-one system combines a waterproof 125KHz RFID wireless keypad, a wireless exit button, and a smart controller — all communicating over a secure 433MHz frequency with TEA+ rolling code encryption. No complicated wiring runs required; the wireless design makes installation fast and straightforward for homes, offices, and commercial spaces alike.
Why Choose This Access Control System?
- Truly Wireless Operation: The keypad and exit button communicate wirelessly up to 30 meters from the controller — no data cables needed between outdoor and indoor units.
- TEA+ Rolling Code Encryption: Advanced rolling code technology means each signal is unique, dramatically reducing the risk of signal cloning or unauthorized replay attacks.
- Large User Capacity: Store up to 500 standard users + 100 visitor/guest users (600 total), making this ideal for multi-tenant buildings, offices, and busy residential gates.
- 125KHz EM Card RFID: Compatible with standard 125KHz EM proximity cards and key fobs for fast, contactless entry.
- Waterproof Keypad: The outdoor keypad is built to withstand the elements, operating in temperatures from -30°C to +60°C (-22°F to 140°F) and humidity up to 99%.
- Fail-Secure Mode: Defaults to locked in the event of power loss — keeping your entry point protected at all times.
- Expandable System: One controller supports up to 5 wireless keypads, so you can cover multiple entry points with a single hub.
- Built-In & External Doorbell Support: The indoor controller includes a built-in doorbell function and can also connect to an external doorbell.
- Relay Switch Integration: Connect external door sensors, alarms, or doorbells via the relay contact (rated up to 2A).
- Battery-Powered Accessories: The keypad runs on 3× AAA batteries (≤10µA idle current); the exit button uses a CR2032 lithium cell — both ultra low-power for long battery life.
What's in the Box

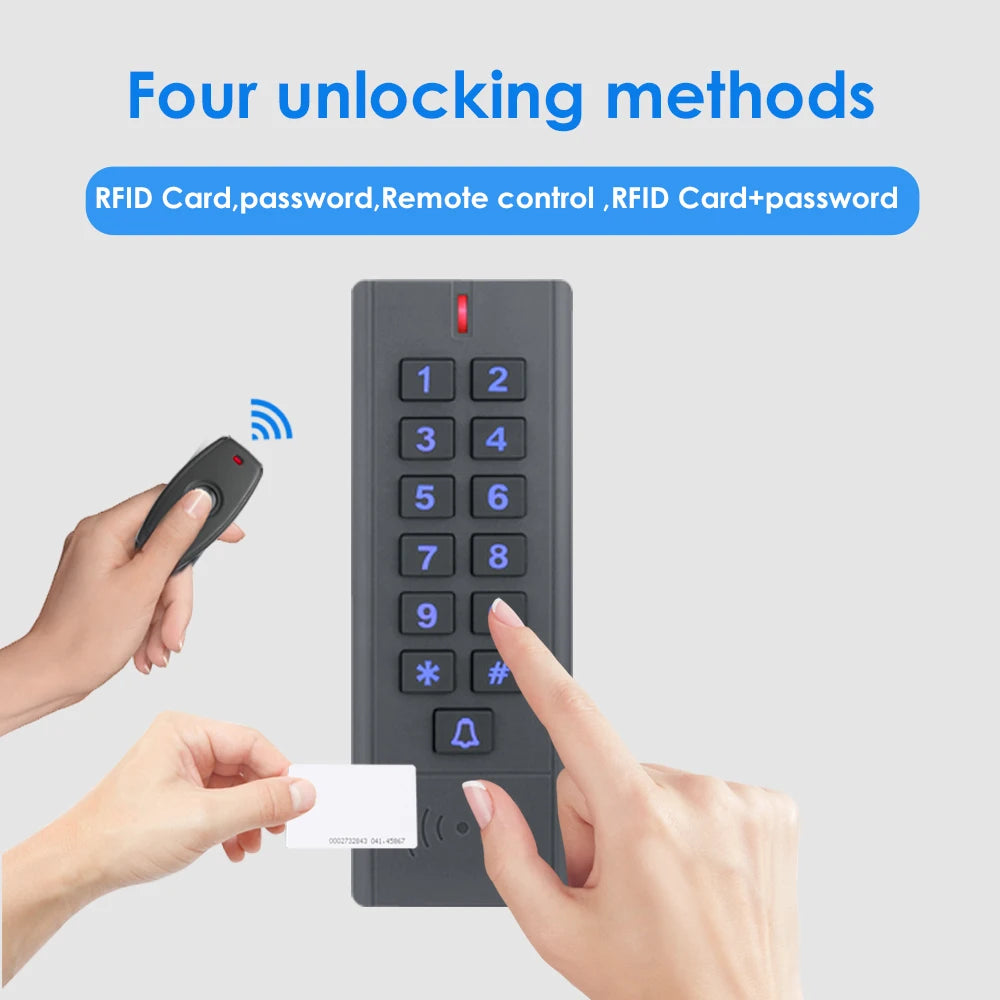

- 1× Wireless RFID Keypad (125KHz, 433MHz)
- 1× Wireless Exit Button
- 1× Access Controller (12V DC ±20%)
Full Technical Specifications
| Model | AW1-EM Kit |
| Card Frequency | 125KHz (EM Card) |
| Communication Frequency | 433MHz |
| Max Communication Distance | 30 meters |
| Controller Voltage | 12V DC ±20% |
| Keypad Power | 3× AAA Batteries |
| Exit Button Power | CR2032 Lithium (3V) |
| User Capacity | 500 Standard + 100 Visitor (600 Total) |
| Security Mode | Fail Secure |
| Relay Contact Load | 2A Maximum |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| Keypad Dimensions | 134 × 48 × 25 mm |
| Exit Button Dimensions | 80 × 38 × 15 mm |
| Controller Dimensions | 85 × 50 × 25 mm |
| Keypad Idle / Working Current | ≤10µA / ≤100mA |
| Controller Idle / Working Current | ≤20mA / ≤50mA |
| Country of Origin | Made in China |
External Resources
For guidelines on physical access control security standards, refer to the U.S. Consumer Product Safety Commission (CPSC) for general product safety information.
Frequently Asked Questions
Q: Does this wireless RFID access control kit require any wiring between the keypad and the controller?
A: No. The keypad and the wireless exit button communicate with the controller entirely over the 433MHz wireless frequency — no data cables are needed between the outdoor keypad and the indoor controller. The controller itself does require a 12V DC power supply connection.
Q: How many users can this access control system store?
A: The AW1-EM Kit supports a total of 600 users: 500 standard registered users and 100 temporary visitor/guest users. This makes it suitable for apartment buildings, small offices, and gated communities.
Q: Is the wireless keypad waterproof and suitable for outdoor use?
A: Yes. The keypad is designed for outdoor installation and is rated to operate in temperatures from -30°C to +60°C (-22°F to 140°F) and humidity levels up to 99%, making it well-suited for exterior doors, gates, and entry points exposed to weather.
Q: Can I expand the system with additional keypads?
A: Absolutely. A single controller can be paired with up to 5 wireless keypads, allowing you to manage multiple entry points — such as a front gate, back door, and garage — all from one controller unit.
Q: What type of RFID cards does this system use?
A: The default configuration uses 125KHz EM proximity cards and key fobs, which are widely available and affordable. These cards are used for fast, contactless access at the keypad reader.
