Wireless RFID Access Control Kit – Smart Lock & Gate Opener

Asia-Teco WS1 Wireless Access Control Kit – Complete Smart Security Solution

Take control of your home or office entry points with the Asia-Teco WS1 Wireless Access Control Kit. This all-in-one system delivers keypad, RFID card, keyfob, and remote-transmitter access — all without running a single wire. Whether you're securing a gate, garage door, or office entrance, the WS1 makes installation straightforward and daily use effortless.

Note: The default frequency of this kit is 125kHz ID EM. If you require the 13.56MHz IC Mifare version, please contact our customer service — customization is available for an additional $5.

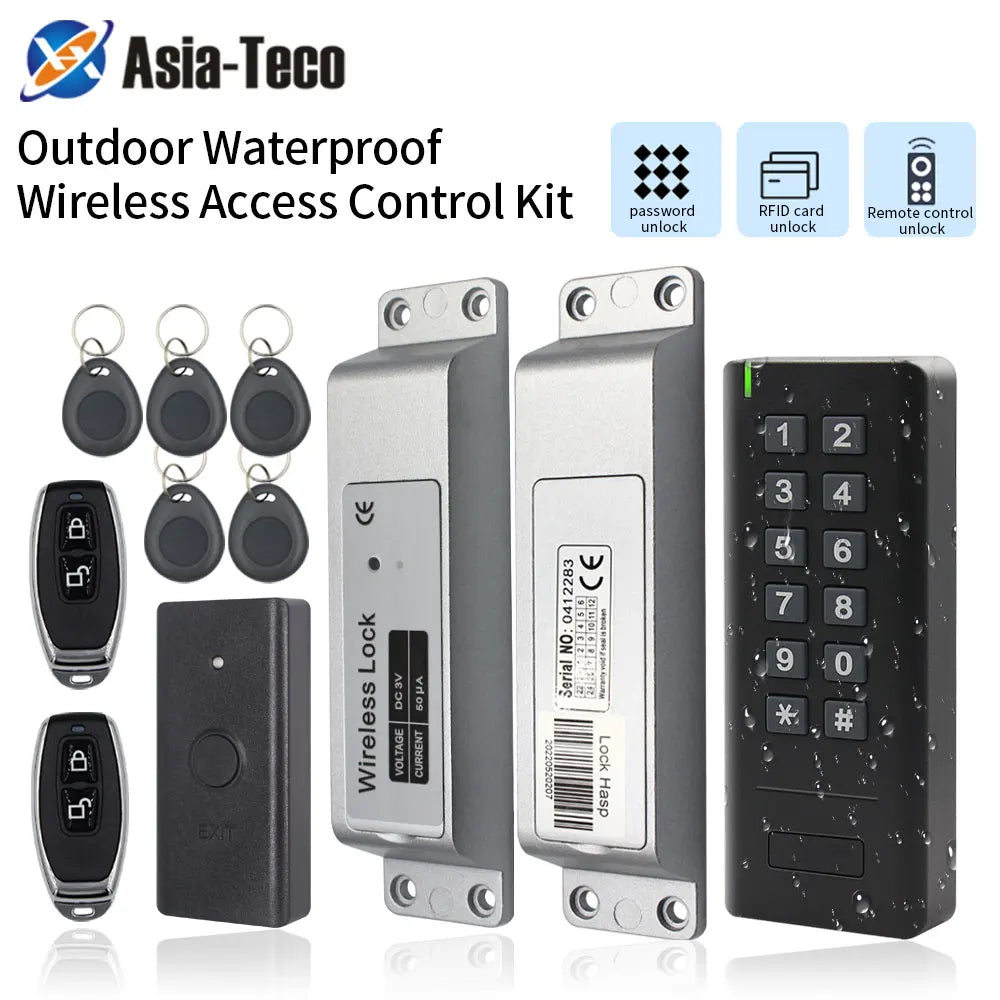

What's Included in the Kit

• ✅ 1× Wireless Keypad

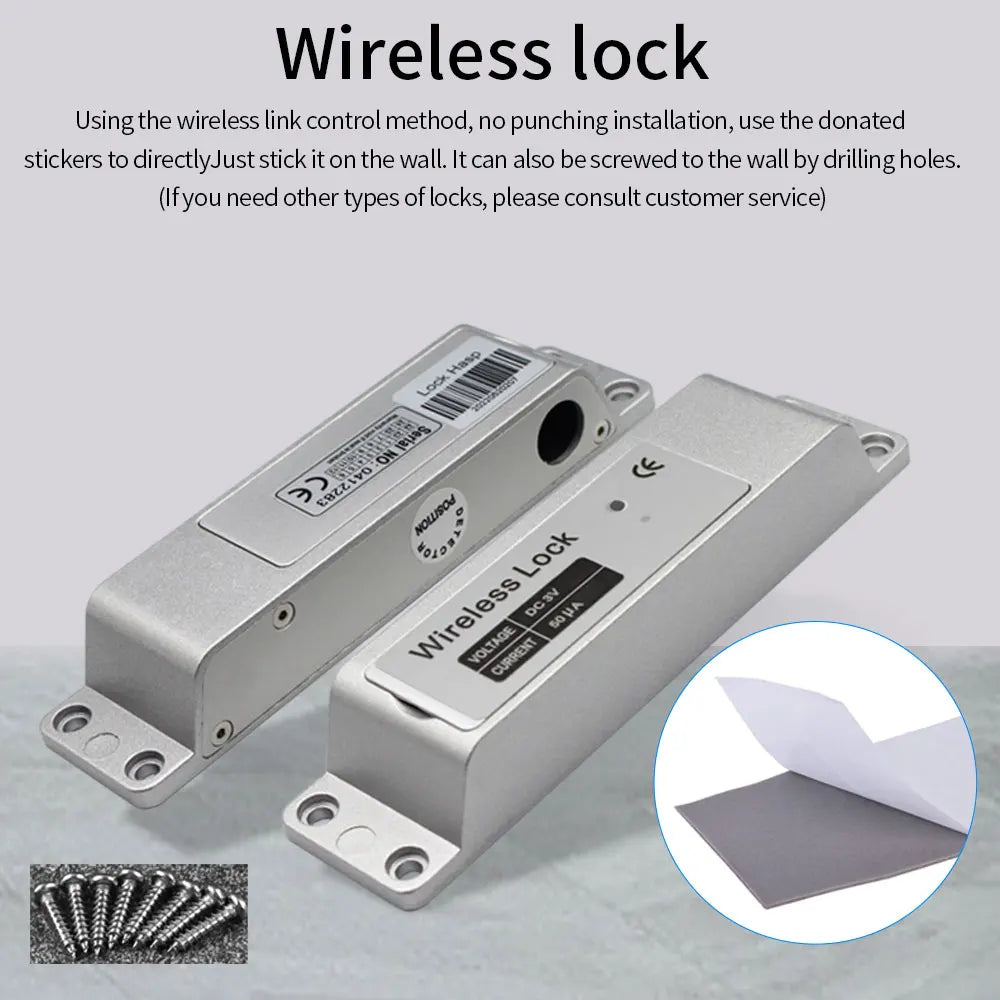

• ✅ 1× Wireless Bolt Lock
• ✅ 1× Wireless Exit Button
• ✅ 2× Remote Transmitters
• ✅ 5× RFID Keyfobs

Key Features

• Fully Wireless Design: No wiring required — clean installation in minutes for gates, garages, and doors.
• 433MHz Rolling Code Encryption: Advanced rolling code algorithm and split architecture deliver robust security against code grabbing and replay attacks.
• Dual RFID Frequency Options: Standard 125kHz EM or optional 13.56MHz Mifare — choose the card technology that suits your setup.
• Multiple Access Methods: Unlock via 4–6 digit PIN, RFID card/keyfob, wireless exit button, or remote transmitter.
• Supports 100 Users: Store up to 100 unique PIN codes or RFID cards/keyfobs for multi-user environments.
• Long Battery Life: Ultra-low power consumption delivers 12+ months of battery life on a single charge/set of batteries.

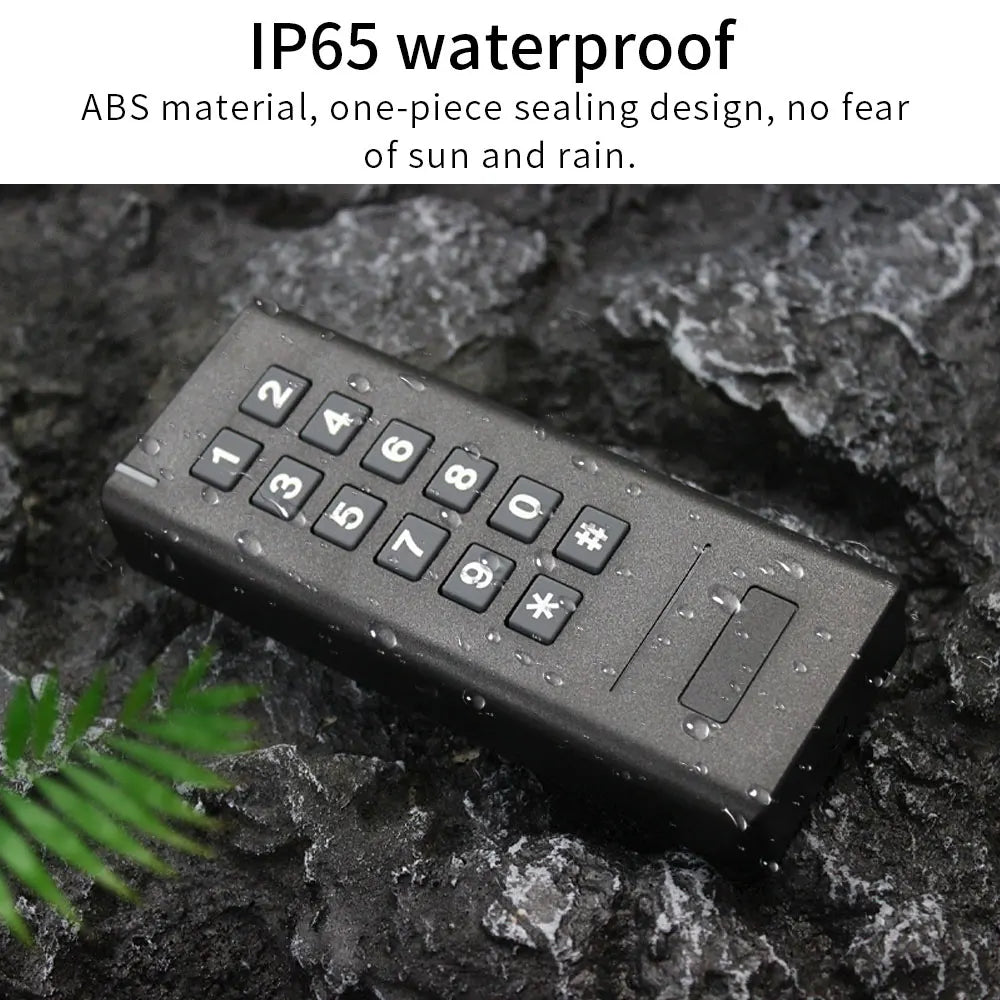

• High Durability: Waterproof construction and fail-secure security mode make it reliable in all weather conditions.
• Impressive Cycle Life: Lock rated for 16,000 open cycles; keypad rated for 10,000 cycles.
• Extended Wireless Range: Communication distance up to 15–20 meters between components.

Specifications

Ideal For

• Residential gates, garage doors, and front doors
• Small offices, workshops, and storage facilities
• Rental properties requiring keyless multi-user access
• Any application where running access control wiring is impractical

For more information on electronic access control security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does the Asia-Teco WS1 wireless access control kit require any wiring during installation?

A: No — the WS1 is a fully wireless kit. The keypad, bolt lock, exit button, and remote transmitters all communicate wirelessly at 433MHz, so there is no need to run cables between components. This makes installation significantly easier, especially for gates and garage doors where routing wires can be difficult.

Q: How many users can be stored on this RFID access control system?

A: The WS1 supports up to 100 unique users, each assigned either a PIN code (4–6 digits) or an RFID card/keyfob. This makes it suitable for both single-family homes and small commercial or office environments with multiple authorized personnel.

Q: What is the difference between the 125kHz EM and 13.56MHz Mifare versions?

A: The default version uses 125kHz EM (ID) cards and keyfobs, which are widely compatible and cost-effective. The optional 13.56MHz Mifare (IC) version offers a higher level of card encryption and is preferred in environments requiring enhanced credential security. To order the Mifare version, please contact customer service — an additional $5 customization fee applies.

Q: How long does the battery last in the wireless keypad and bolt lock?

A: Thanks to its ultra-low power consumption design, the WS1 system delivers more than 12 months of battery life under normal usage conditions, reducing maintenance requirements significantly.

Q: Is the keypad waterproof for outdoor gate or garage use?

A: Yes. The WS1 kit features a waterproof construction, making it suitable for outdoor installations such as garden gates, driveways, and garage doors exposed to rain and varying weather conditions.
