Wireless RFID Access Control Kit – Smart Gate & Lock System
Wireless RFID Access Control Kit – Smart Gate & Lock System
Asia-Teco WS1 Wireless Access Control Kit – Complete Smart Lock System
Take full control of your home, office, or garage with the Asia-Teco WS1 Wireless Access Control Kit. This all-in-one system delivers keypad PIN entry, RFID card access, remote transmitters, and a wireless bolt lock — all with zero wiring required. Made in Mainland China.
What's Included in the Kit?
- ✅ 1× Wireless Keypad – 4–6 digit PIN entry, supports up to 100 users

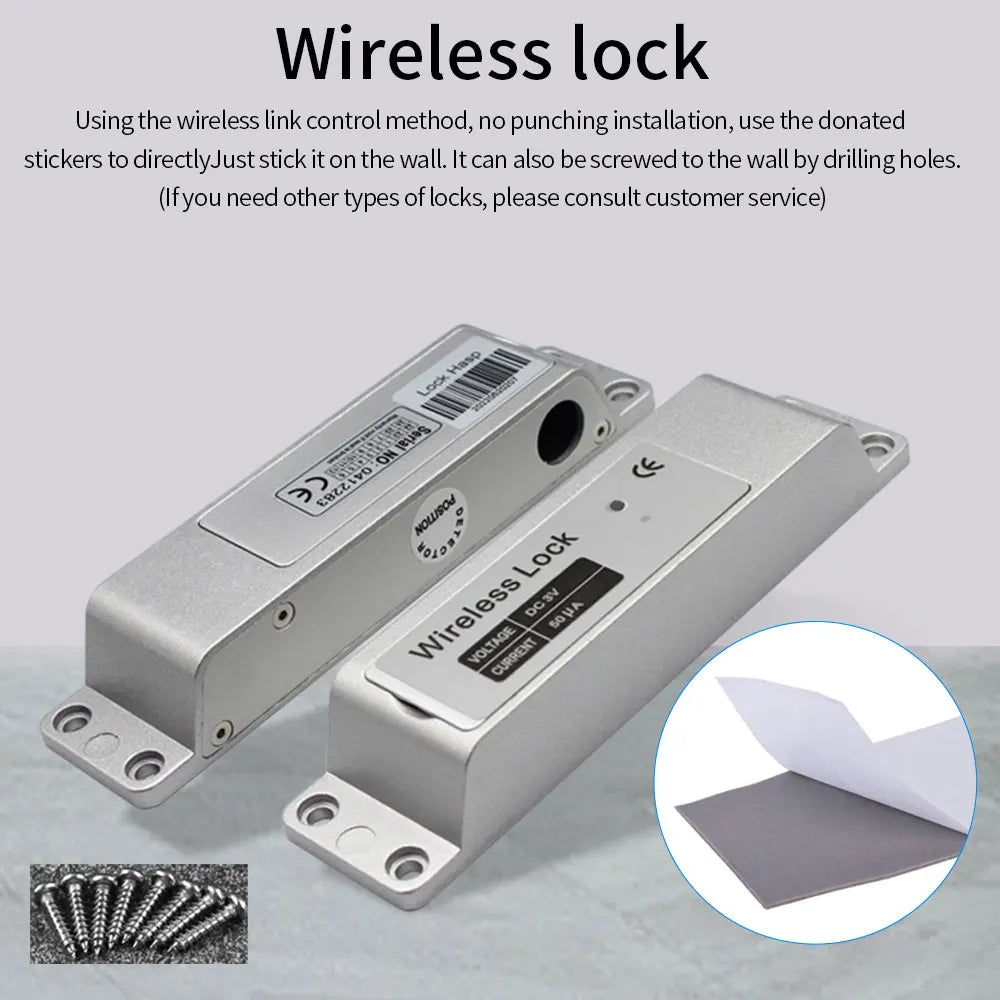

- ✅ 1× Wireless Bolt Lock – Durable zinc-alloy construction, up to 16,000 open cycles
- ✅ 1× Wireless Exit Button – Convenient interior release
- ✅ 2× Remote Transmitters – 433MHz rolling-code encryption, up to 30m range
- ✅ 5× RFID Keyfobs – 125KHz EM (default) or 13.56MHz Mifare (upgrade available)
Note: The default frequency is 125KHz ID EM. If you require the 13.56MHz IC Mifare version, an additional $5 upgrade applies — please contact customer service before ordering.
Key Features

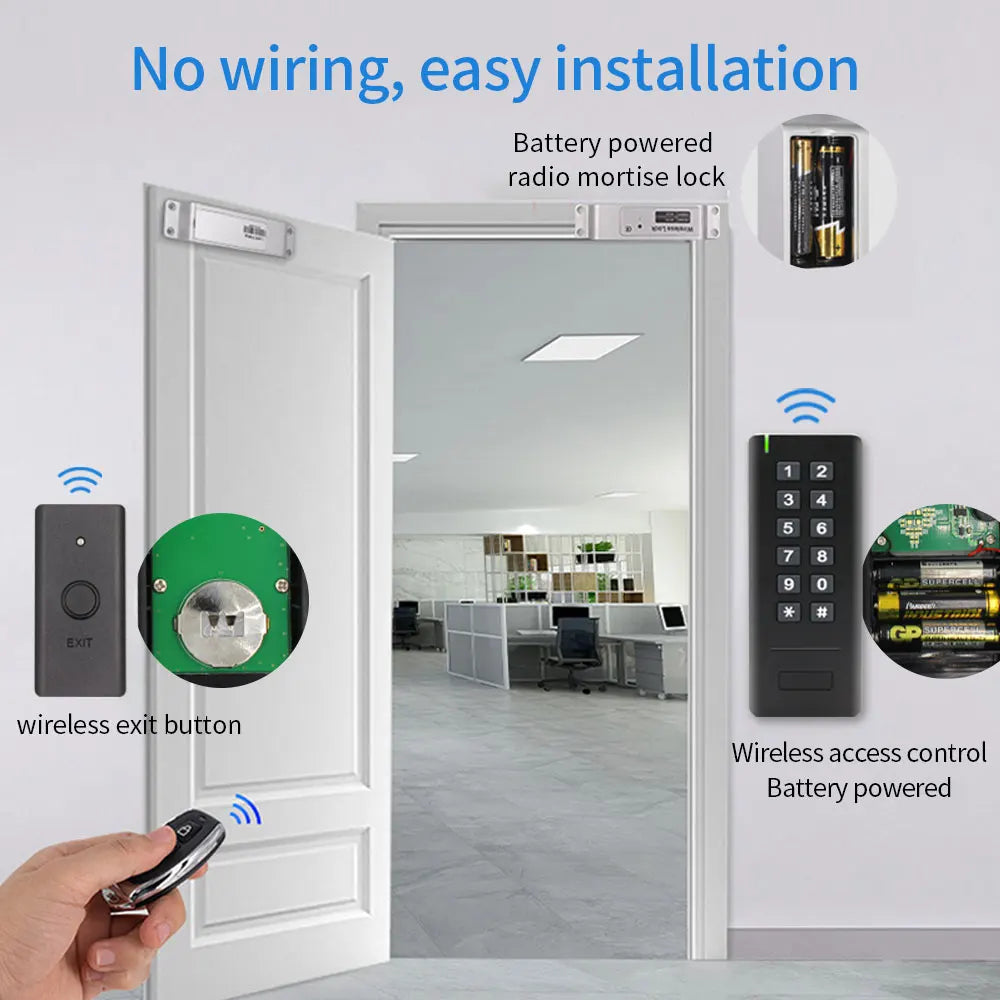

- Completely Wireless: No cables, no drilling for wiring — installs in minutes
- 433MHz Rolling Code Encryption: Dynamic code technology makes each transmission unique, significantly reducing unauthorized access attempts
- Multi-Access Modes: Open via PIN keypad, RFID card/keyfob, wireless exit button, or remote transmitter
- Up to 100 Users: Manage PIN codes and RFID cards for households, teams, or small offices
- Ultra-Low Power Consumption: Battery life exceeds 12 months; idle current under 10µA for all components
- Waterproof & Weather-Resistant: Operating temperature -20°C to +60°C (-4°F to +140°F); humidity 0–86% RH — built for outdoor gates and garage doors
- Durable Build: ABS shell keypad, zinc-alloy bolt lock, rugged construction throughout
- Wide Communication Range: Up to 30m maximum wireless distance
Technical Specifications
| Brand | Asia-Teco |
| Model | WS1-A9-EM |
| Communication Frequency | 433MHz |
| Card Frequency | 125KHz EM (default) / 13.56MHz Mifare (optional) |
| Max Communication Distance | 30m |
| User Capacity | 100 PIN/Card |
| PIN Length | 4–6 Digits |
| Lock Open Cycles | 16,000 (lock) / 10,000 (keypad) |
| Operating Temperature | -20°C ~ +60°C (-4°F ~ +140°F) |
| Operating Humidity | 0% ~ 86% RH |
| Keypad Power | 2× AA batteries |
| Remote Transmitter Power | 1× CR2032 lithium battery |
| Exit Button Power | 1× CR2032 lithium battery |
| Controller Power | 3× AAA batteries |
| Idle Current | <10µA (all components) |
| Lock Material | Zinc-Alloy |
| Keypad Shell | ABS |
| Country of Origin | Mainland China |
Ideal For
- Home front doors, side gates, and garden entrances
- Garage and driveway gate access
- Small offices and co-working spaces
- Rental properties requiring flexible user management
- Anywhere a cable-free, easy-to-install smart lock is needed
For more information on electronic access control standards and consumer security best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does the Asia-Teco WS1 wireless access control kit require any wiring during installation?
A: No. The WS1 is a fully wireless access control system — no wiring is needed. All components communicate via 433MHz rolling-code radio frequency, so installation is straightforward and cable-free, making it ideal for gates, garage doors, and entryways where running cables would be difficult.
Q: How many users can be registered on the WS1 RFID smart lock kit?
A: The system supports up to 100 individual users, each identified by a unique PIN code (4–6 digits) or RFID card/keyfob. This makes it suitable for households, small offices, and rental properties that need to manage multiple access credentials.
Q: What is the difference between the 125KHz and 13.56MHz card options?
A: The default version ships with 125KHz EM RFID technology, which is compatible with standard EM-format keyfobs and cards. The 13.56MHz Mifare (IC) version offers higher data security and is compatible with Mifare-standard smart cards. Upgrading to the 13.56MHz version requires an additional $5 — please contact customer service when placing your order.
Q: How long do the batteries last in this wireless access control system?
A: Thanks to ultra-low power consumption design (idle current under 10µA), the batteries in the keypad, lock, remote transmitters, and exit button are rated for over 12 months of typical use. The lock supports up to 16,000 open cycles and the keypad up to 10,000 cycles before battery replacement.
Q: Is this RFID gate lock kit waterproof and suitable for outdoor use?
A: Yes. The WS1 kit is designed for outdoor environments, operating in temperatures from -20°C to +60°C (-4°F to +140°F) and humidity levels up to 86% RH. The keypad features a weather-resistant ABS shell and the bolt lock is constructed from durable zinc-alloy, making it suitable for gates, garage doors, and external entrances.
