Complete Wireless RFID Access Control System Kit
Take full control of your entry points with this all-in-one Wireless RFID Access Control Kit by Asia-Teco. Designed for homes, offices, gates, and commercial properties, this system combines a fingerprint-enabled metal keypad, an electric drop bolt lock, a wireless exit button, and two remote control transmitters — all communicating wirelessly so there's no need to run extra wiring through walls or doors.
Made in Mainland China.

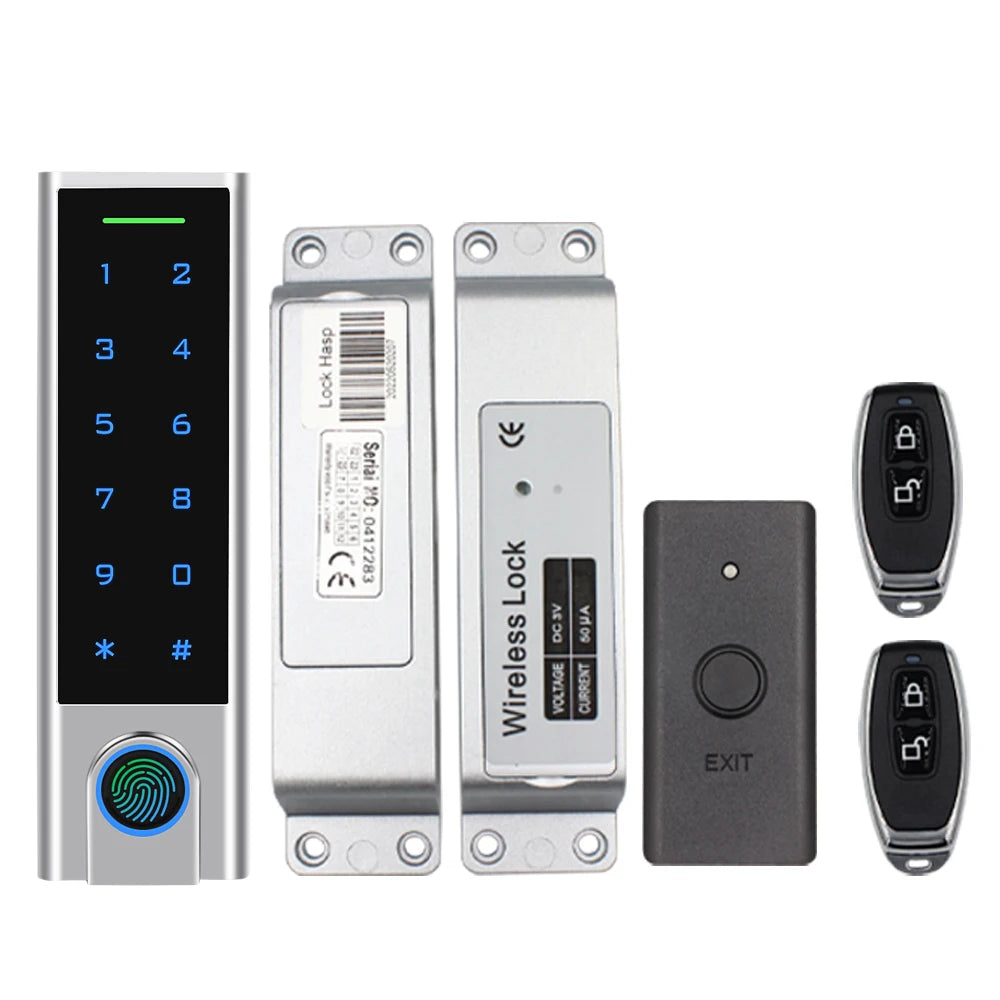

What's Included
- IP65 Waterproof Metal Fingerprint Keypad – Touch backlit keypad with 125 kHz EM card reader and fingerprint scanner

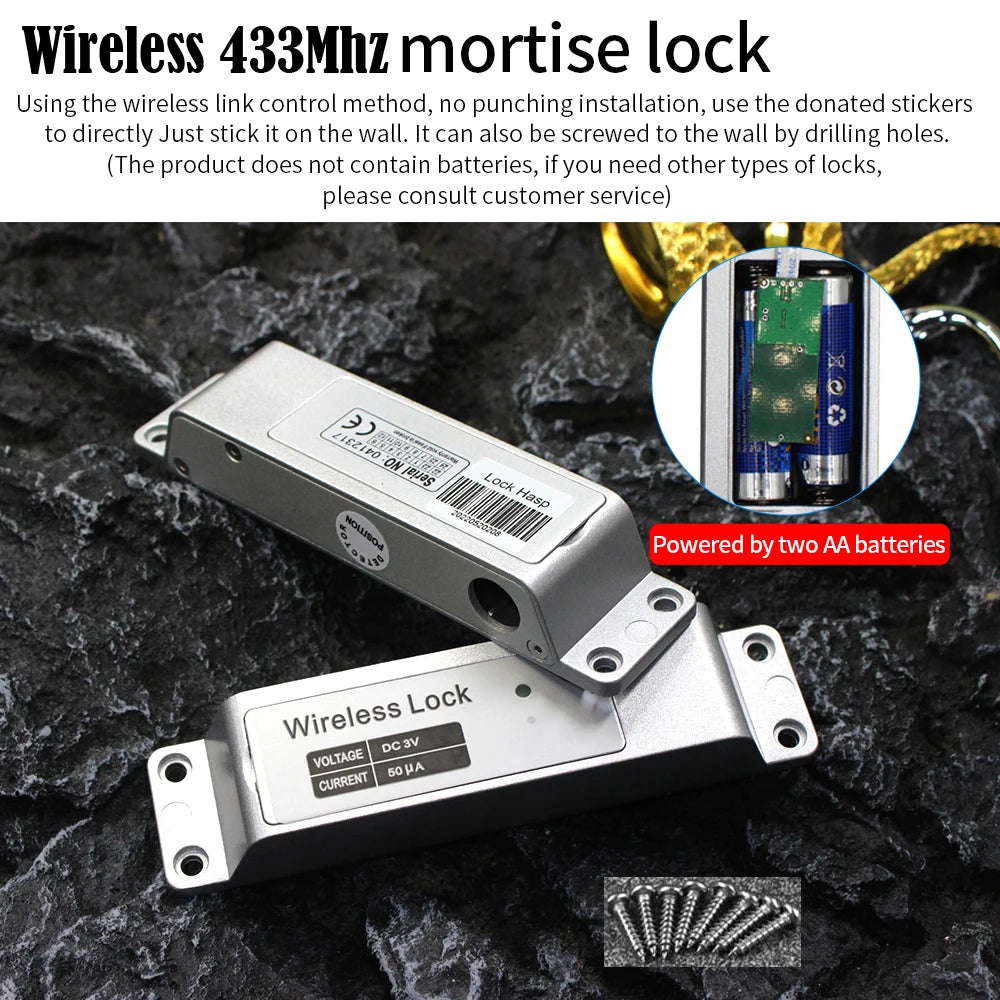

- Wireless Electric Drop Bolt Lock – Fail-safe with signal; rated for 16,000 open cycles
- Wireless Exit Button – Convenient egress control, no wiring required
- 2× Wireless Remote Control Transmitters – 433 MHz rolling-code technology for secure, interference-resistant operation
Key Features

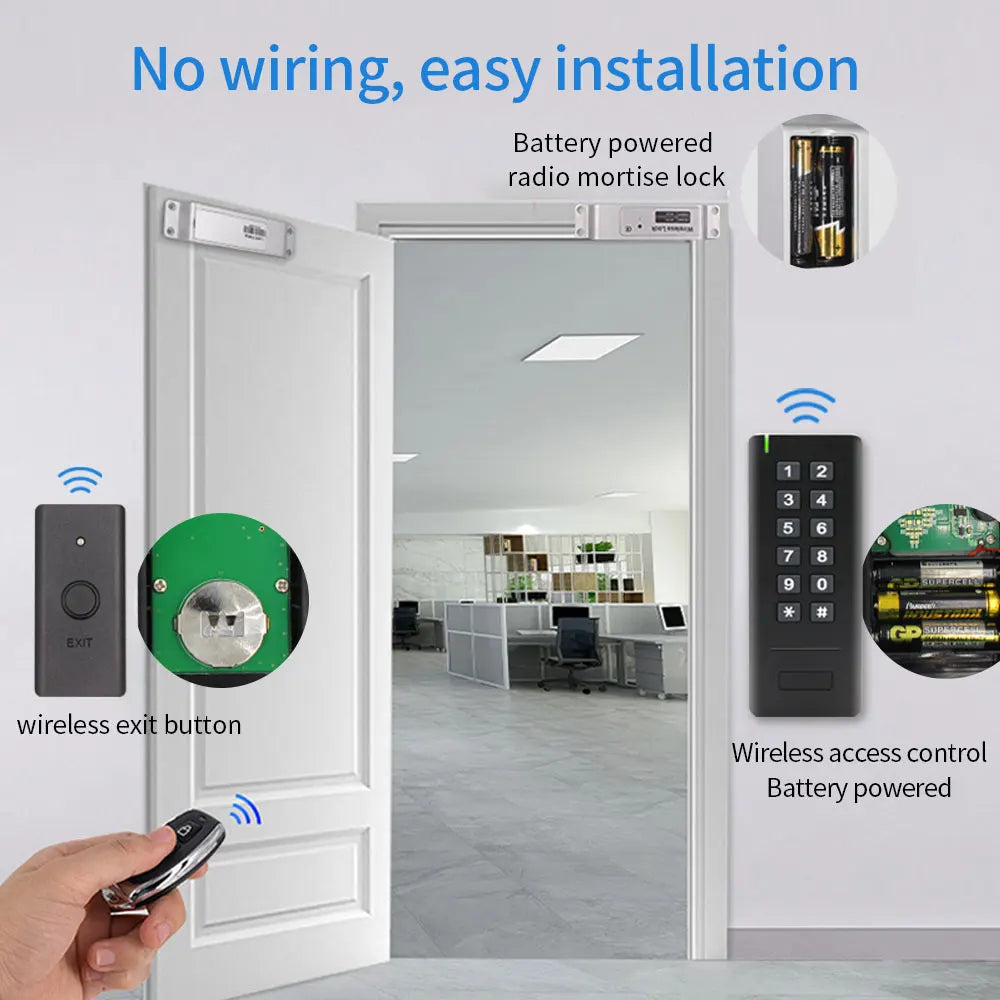

- Fully Wireless Design – All components communicate wirelessly up to 20 metres; no extra cable runs needed
- IP65 Weather Resistance – Keypad is dust-tight and water-resistant for outdoor or exposed installations
- 1,000 User Capacity – Supports up to 100 fingerprint users + 900 PIN/card users

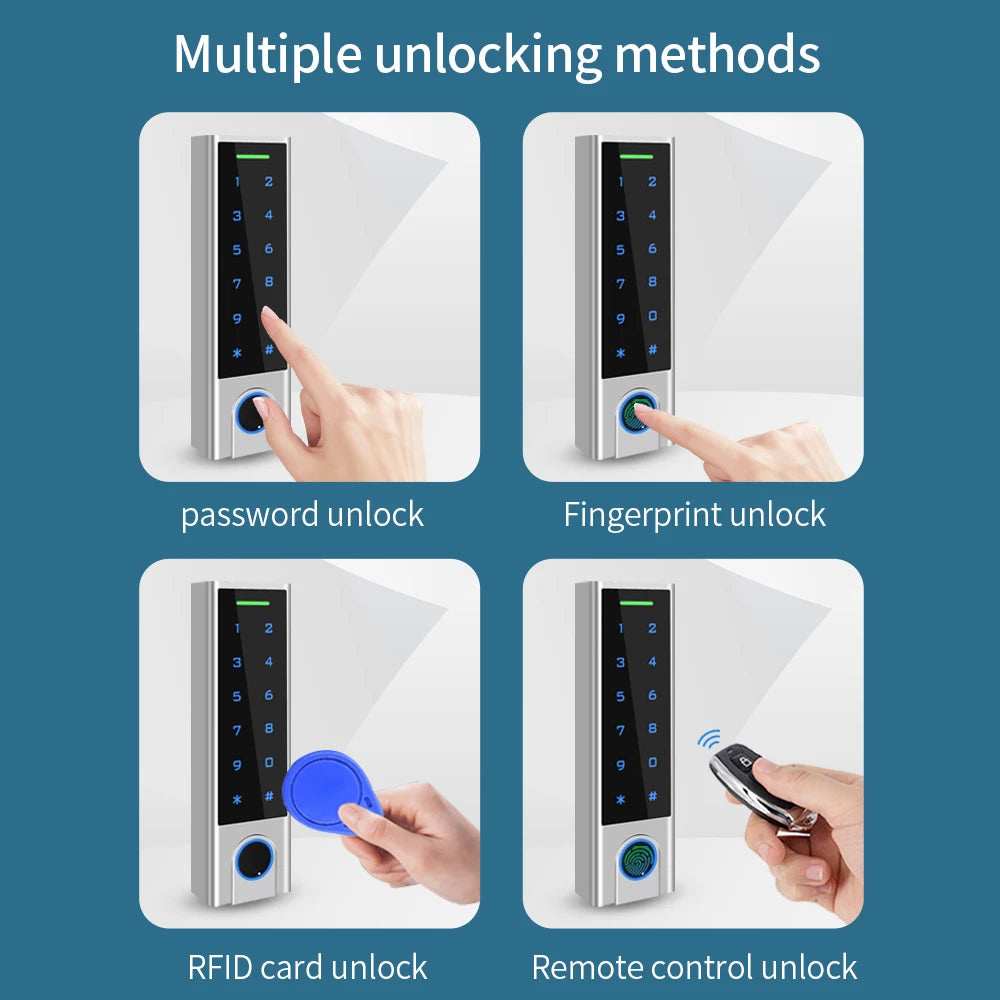

- Flexible Entry Methods – Open with fingerprint, 4–6 digit PIN, 125 kHz EM proximity card, wireless exit button, or remote transmitter
- 433 MHz Rolling Code Security – Prevents code grabbing and replay attacks for enhanced entry security
- Ultra-Low Power Consumption – Battery life exceeds 12 months on a single set; working current under 100 mA at DC 12 V
- Backlit Touch Keypad – Easy to use in low-light or nighttime conditions
- Bluetooth V4.1 Compatible – Optional app-based management
- NO / NC / COM Output Ports – Integrates easily with alarm systems or building automation
- Easy DIY Installation – Straightforward setup, suitable for homeowners and installers alike
Technical Specifications
| Brand | Asia-Teco |
| Model | WS2 |
| RFID Frequency | 125 kHz (EM card) |
| Wireless Frequency | 433 MHz Rolling Code |
| Reading Distance | 0–10 cm (card/fob) |
| Communication Range | Up to 20 metres |
| User Capacity | 1,000 (100 fingerprint + 900 PIN/card) |
| PIN Length | 4–6 digits |
| Lock Cycle Rating | 16,000 (lock) / 10,000 (keypad) |
| Working Voltage | DC 12 V |
| Working Current | < 100 mA |
| Battery Life | 12+ months |
| Waterproof Rating | IP65 |
| Security Mode | Fail Safe with Signal |
| Bluetooth | V4.1 |
| Ports | NO / NC / COM |
| Origin | Mainland China |
Who Is This For?
This kit is ideal for residential gates, garage entries, office doors, storage units, and any access point where a clean wireless installation is preferred. The combination of fingerprint, card, PIN, and remote access means you can tailor entry privileges precisely for family members, employees, or visitors — all without duplicating physical keys.
For guidance on best practices for electronic access control and physical security, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this wireless RFID access control kit require professional installation?
A: No. The kit is designed as a DIY-friendly system. Because all components communicate wirelessly, there's no need to run control wires between the keypad, lock, exit button, or remotes. Basic tools and the included instructions are all you need to get up and running.
Q: How many users can be programmed into the system?
A: The system supports up to 1,000 users in total — 100 fingerprint users and 900 PIN or 125 kHz EM proximity card users. This makes it suitable for small businesses, apartment entrances, or multi-tenant properties.
Q: Is the keypad suitable for outdoor use?
A: Yes. The metal keypad carries an IP65 weatherproof rating, meaning it is fully protected against dust ingress and resistant to water jets from any direction — making it suitable for exposed outdoor installations such as gate pillars, building facades, or covered entryways.
Q: What happens if the battery runs out on the wireless components?
A: The system is engineered for ultra-low power consumption, with a battery life exceeding 12 months under normal use. Most components will also provide a low-battery alert before the battery is fully depleted, giving you time to replace batteries without interruption to your access control.
Q: Can this system be integrated with an existing alarm or building automation system?
A: Yes. The electric drop bolt lock provides NO (Normally Open), NC (Normally Closed), and COM output ports, which are standard connections used to integrate with alarm panels, intercoms, or building automation controllers.
