IP65 Waterproof Wireless RFID Access Control Kit — 433MHz, DC 12V
Secure your home or business entrance with the Asia-Teco AW10EM-K-S Wireless Access Control Kit. This complete, easy-to-install system combines a rugged zinc-alloy RFID keypad, a wireless controller, and a wireless exit button — all communicating via 433MHz radio frequency with TEA+ rolling code encryption for robust, interference-resistant security. Made in Mainland China.
⚠️ Frequency Note: The default card frequency is 125kHz ID EM. If you require 13.56MHz IC Mifare, please contact customer service — a $5 customization fee applies.
Key Features

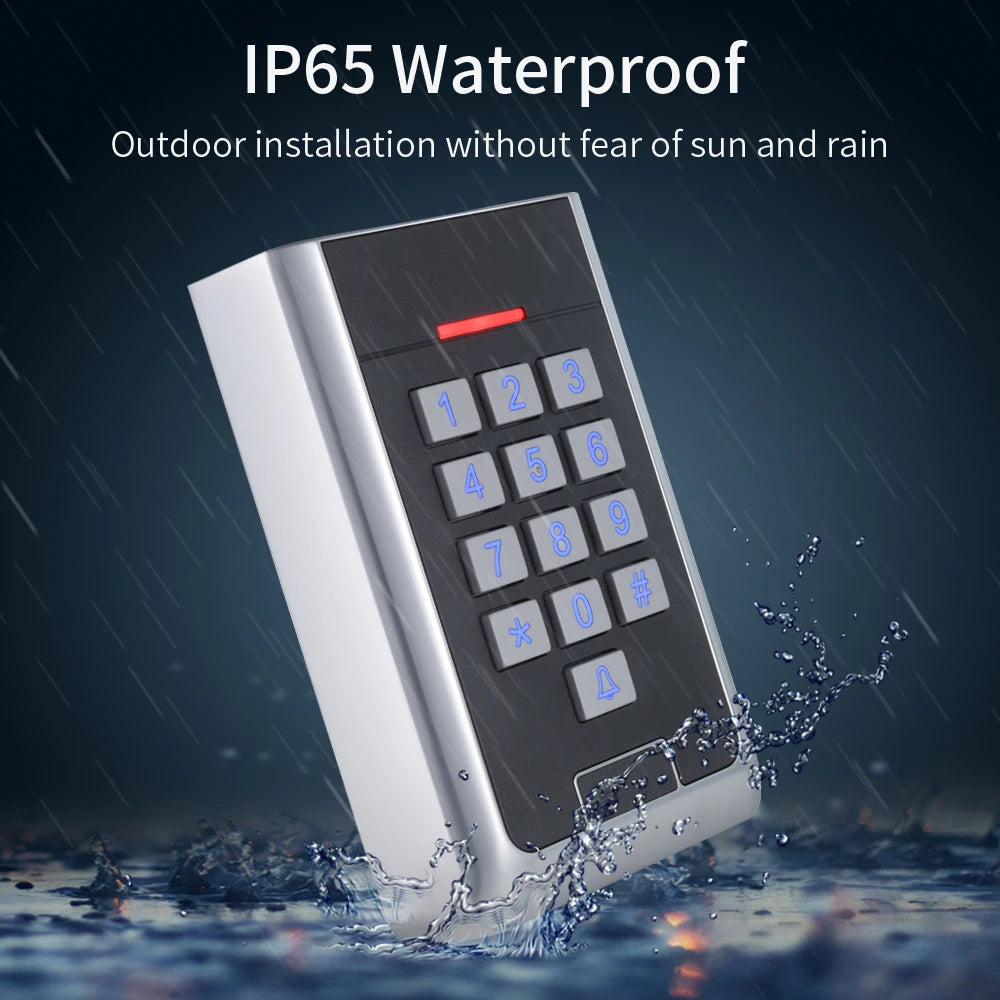

- IP65 Waterproof Rating — The outdoor keypad is fully protected against dust ingress and low-pressure water jets, making it ideal for exterior door installations.
- Durable Zinc-Alloy Housing — Built to withstand everyday wear and harsh weather conditions.
- 433MHz Wireless Communication — No wiring required between keypad and controller; clean, cable-free installation.
- TEA+ Rolling Code Encryption — Advanced encryption algorithm prevents code grabbing and replay attacks for high-level security.

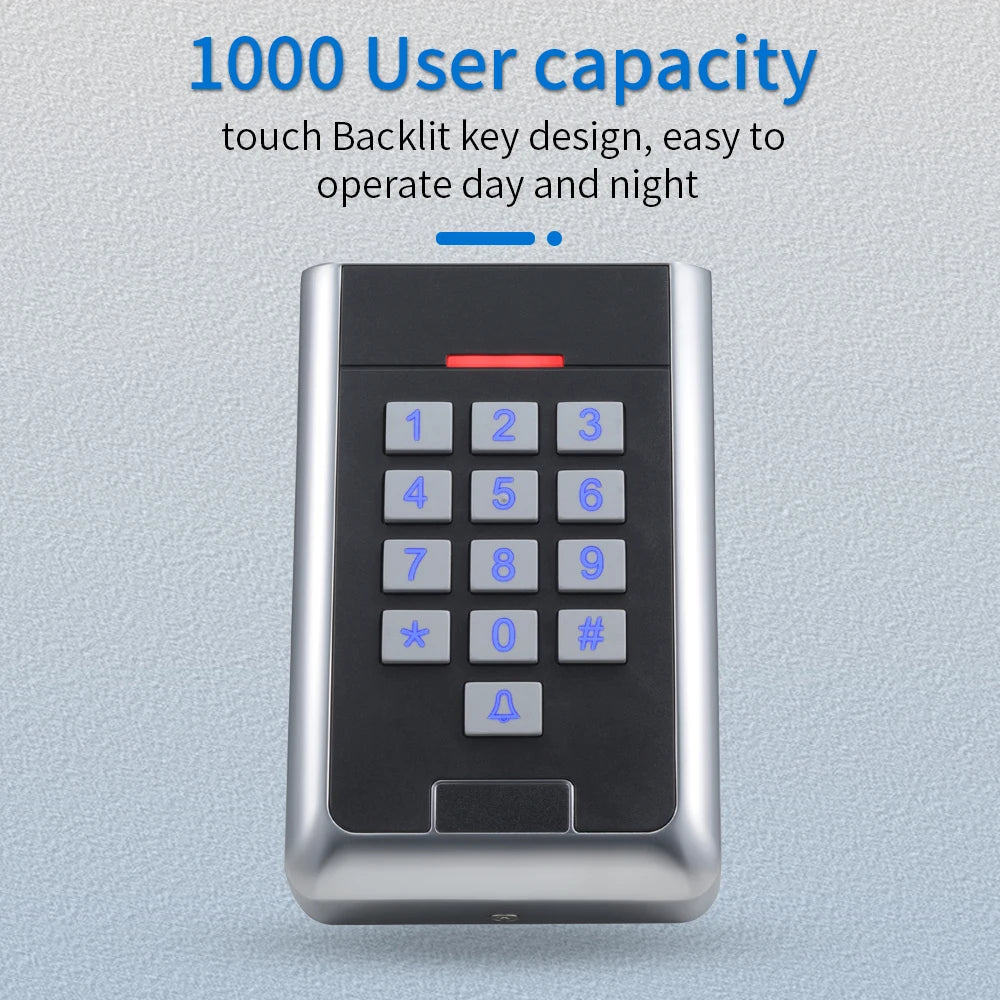

- Large User Capacity — Supports up to 1,000 standard users plus 100 visitor users, making it suitable for homes, offices, and small businesses.
- Admin Card Management — Includes admin cards for fast, convenient user enrollment and deletion — no programming software needed.
- Backlit Keypad — Illuminated keys ensure easy operation in low-light or nighttime conditions.
- Built-In Doorbell Function — The wireless controller features an integrated doorbell, adding convenience without extra hardware.

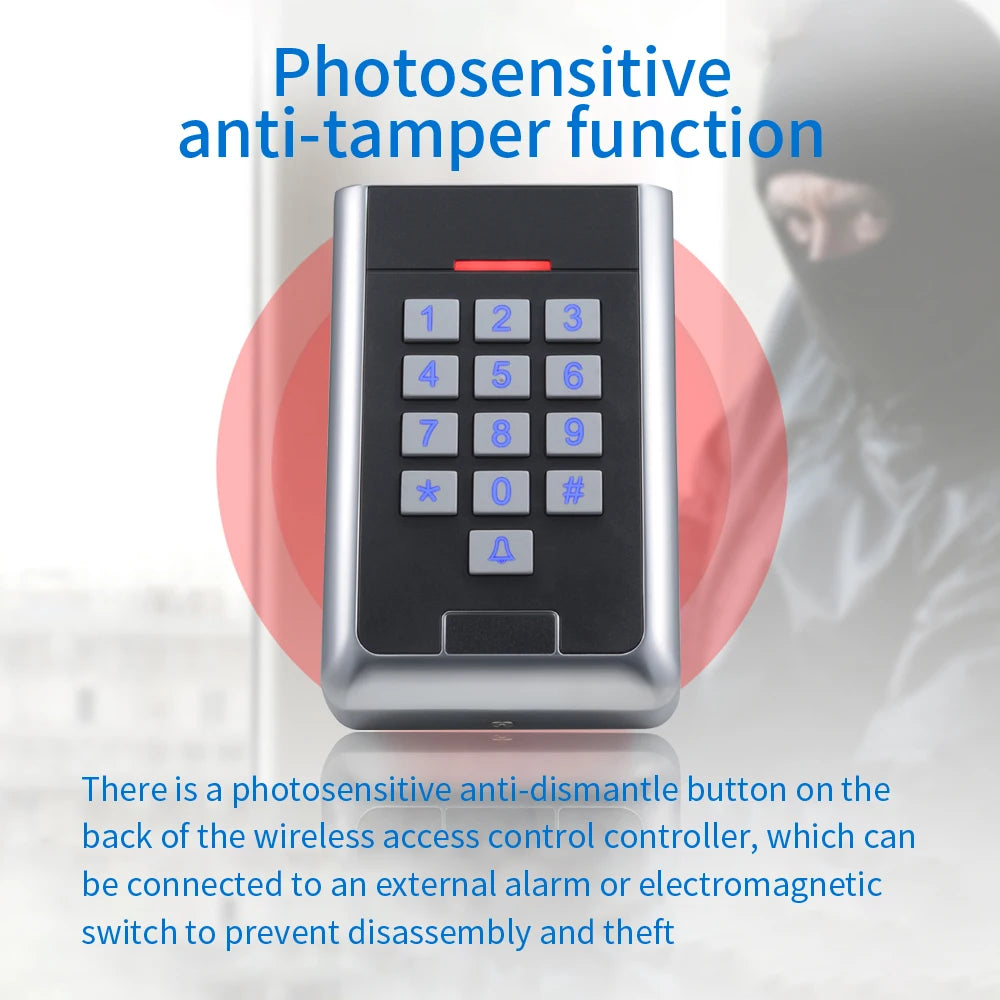

- Anti-Tamper Alarm — If the keypad is forcibly removed, both the external keypad and internal controller trigger simultaneous alerts.
- Pulse Mode & Toggle Mode — Flexible output modes to suit electric strikes, magnetic locks, or other door hardware.
- Expandable & Compatible — Supports Wiegand 26–44 output; connects with door contact sensors, external alarms, external doorbells, and external exit buttons.
System Components
- Wireless Access Control Keypad (install outside the door) — Powered by 3× AAA batteries
- Wireless Controller (install inside the door) — Powered by 12V DC ±20%
- Wireless Exit Button (install inside the door) — Powered by CR2032 lithium battery (3V)
One wireless controller supports up to 5 wireless devices (keypads + exit buttons). One keypad or exit button can be paired with unlimited controllers — perfect for multi-door installations.
Technical Specifications
| Model | AW10EM-K-S |
| Operating Voltage | Controller: 12V DC ±20%; Keypad: 3× AAA batteries; Exit Button: CR2032 3V |
| Active Current | Keypad ≤70mA | Exit Button ≤8mA | Controller ≤50mA |
| Idle Current | Keypad ≤10µA | Exit Button ≤10µA | Controller ≤20mA |
| Wireless Frequency | 433MHz |
| Card Frequency | 125kHz EM (default) / 13.56MHz Mifare (optional, +$5) |
| Wiegand Output | 26–44 bit |
| User Capacity | 1,000 standard + 100 visitor |
| Security Mode | Fail Safe with Signal |
| Waterproof Rating | IP65 |
| Keypad Dimensions | 115 × 76 × 25 mm |
| Controller Dimensions | 85 × 50 × 25 mm |
| Exit Button Dimensions | 80 × 38 × 15 mm |
| Shipping Weight | 585g |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× Wireless RFID Access Control Keypad (Wide)
- 1× Wireless Controller
- 1× Wireless Exit Button
- Admin cards for user management
- Mounting hardware
Helpful Resource
For general guidance on home security and electronic access systems, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer product safety information.
Frequently Asked Questions
Q: Does this wireless access control kit work without drilling holes through the door or wall?
A: Yes! Because the keypad and controller communicate via 433MHz wireless technology, there is no need to run control wires through your door or wall. You only need a 12V DC power supply for the controller — making installation significantly simpler than traditional wired systems.
Q: Can I use existing Mifare (13.56MHz) cards with this kit?
A: The default version operates at 125kHz EM frequency. If you need 13.56MHz IC Mifare compatibility, please contact customer service before ordering to request the customized version (an additional $5 fee applies). Both versions look identical externally.
Q: How many doors can I control with one system?
A: A single wireless controller supports up to 5 wireless devices (any combination of keypads and exit buttons). Conversely, a single keypad or exit button can be paired with an unlimited number of controllers, allowing one keypad to grant access across multiple doors — ideal for offices or gated properties.
Q: What happens if someone tries to forcibly remove the keypad?
A: The kit features a built-in anti-tamper alarm. If the outdoor keypad is removed or tampered with, both the external keypad and the internal wireless controller will sound an alert simultaneously, deterring unauthorized access attempts.
Q: Is the keypad suitable for outdoor installation in rain?
A: Yes. The keypad carries an IP65 waterproof rating, meaning it is fully protected against dust and direct water jets from any angle. It is designed for reliable year-round outdoor use in most weather conditions.
