Wireless Remote DC Motor Speed Controller 12V–30V 30A Forward Reverse
Wireless Remote DC Motor Speed Controller 12V–30V 30A Forward Reverse
Wireless Remote Control DC Motor Speed Controller — DC 12V to 30V
Take precise command of your DC motor projects with this feature-packed Wireless Remote Control Motor Speed Regulator. Designed for DC12V–30V systems, it delivers smooth 0–100% speed regulation, full forward and reverse direction control, and a waterproof build that stands up to demanding environments — all operated conveniently via wireless remote. Whether you're automating a workshop tool, building a robotics system, or controlling a conveyor, this governor gives you reliable, hands-free motor management.
Made in China.
Key Features
- Wide Voltage Range: Compatible with DC 12V to 30V systems for maximum versatility.
- Full Speed Regulation: Continuously adjustable from 0% to 100% of input voltage — no dead zones, no jumps.
- Forward & Reverse Control: Switch motor direction effortlessly with the wireless remote.
- High Current Capacity: Rated and maximum current of 30A — handles up to 200W at 12V and 400W at 24V.
- 21 kHz PWM Frequency: Ultra-smooth motor control with minimal noise and heat generation.

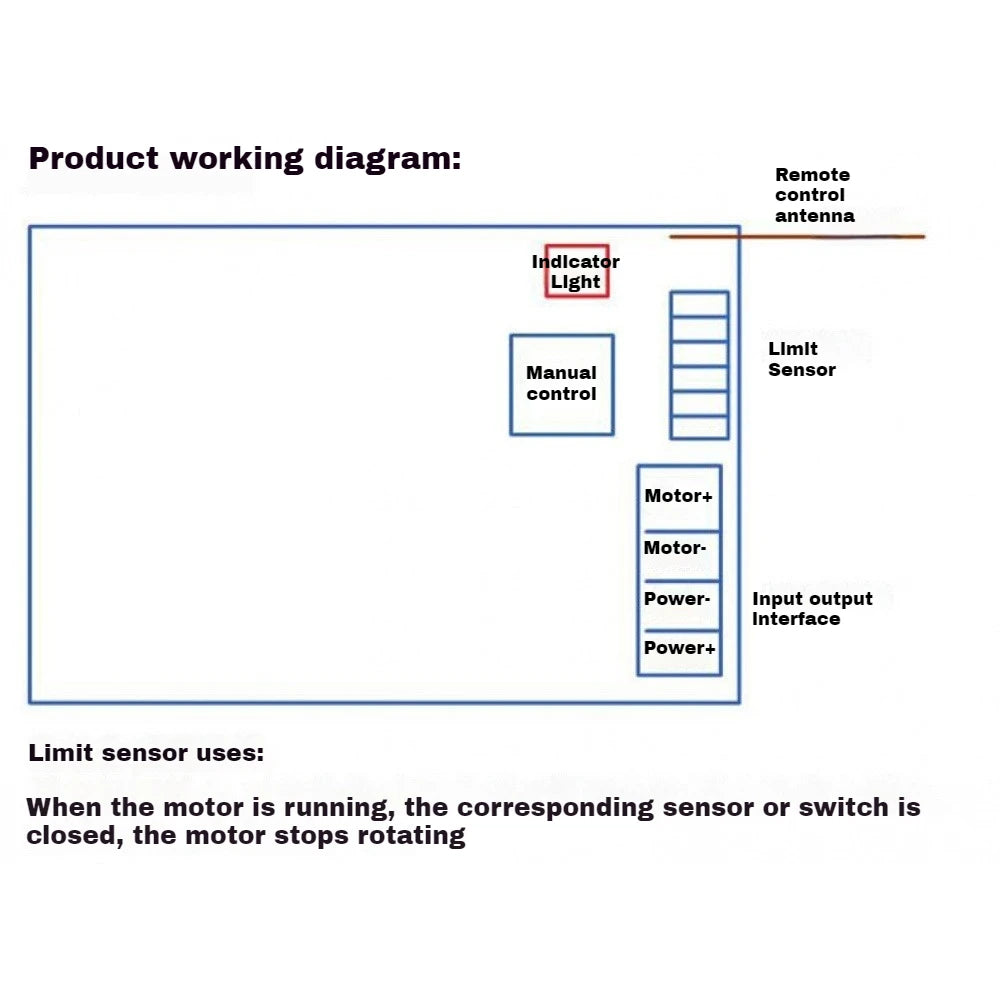

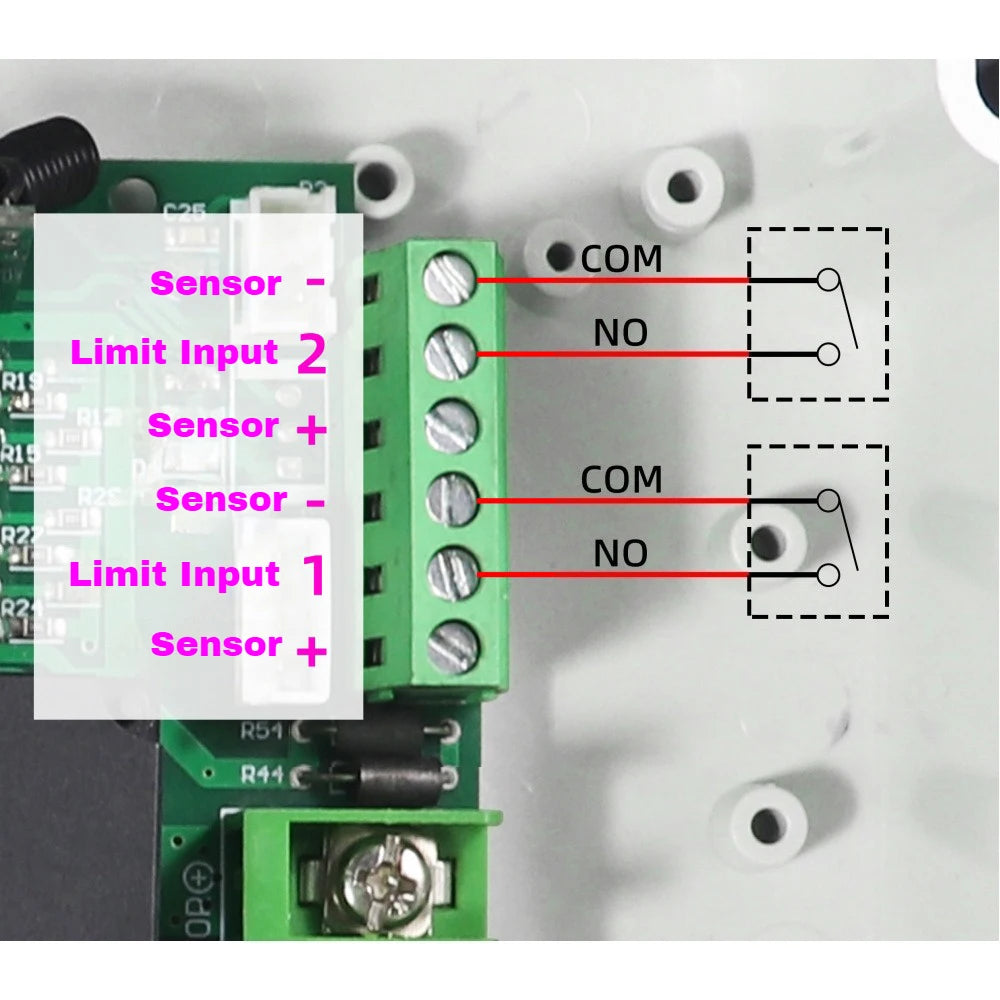

- Limit Switch Ready: Built-in limit switch support for automated stop positioning.

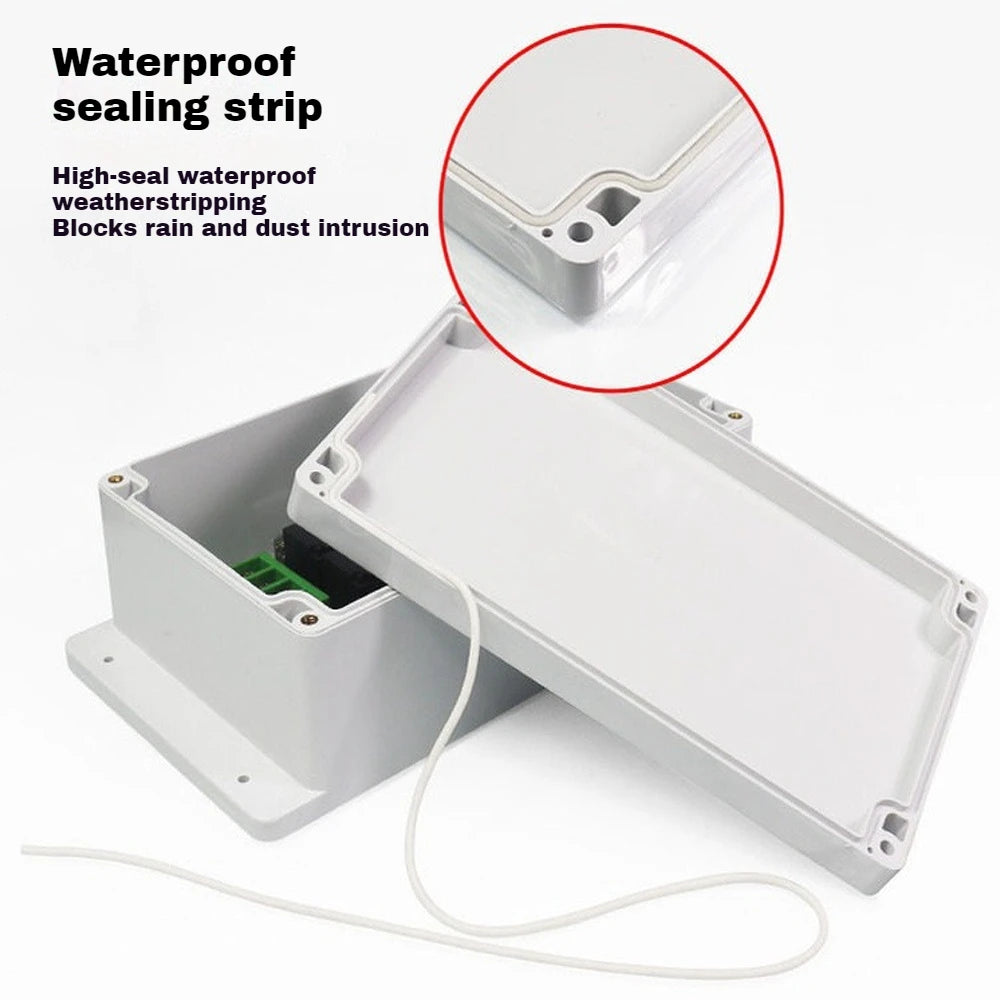

- Waterproof Design: Sealed construction protects against moisture and dust in real-world installations.
- Onboard Potentiometer: B100K resistance value with 8mm opening for fine manual tuning.
Technical Specifications
| Input Voltage | DC 12V – 30V |
| Output Voltage | ~0–100% of Input Voltage |
| Rated / Max Current | 30A |
| Max Control Power | 200W @ 12V | 400W @ 24V |
| Speed Regulation Range | 0% – 100% |
| PWM Frequency | 21 kHz |
| Potentiometer | B100K, 8mm opening |
| Control Type | Wireless Remote + Onboard Potentiometer |
| Waterproof | Yes |
What's in the Box

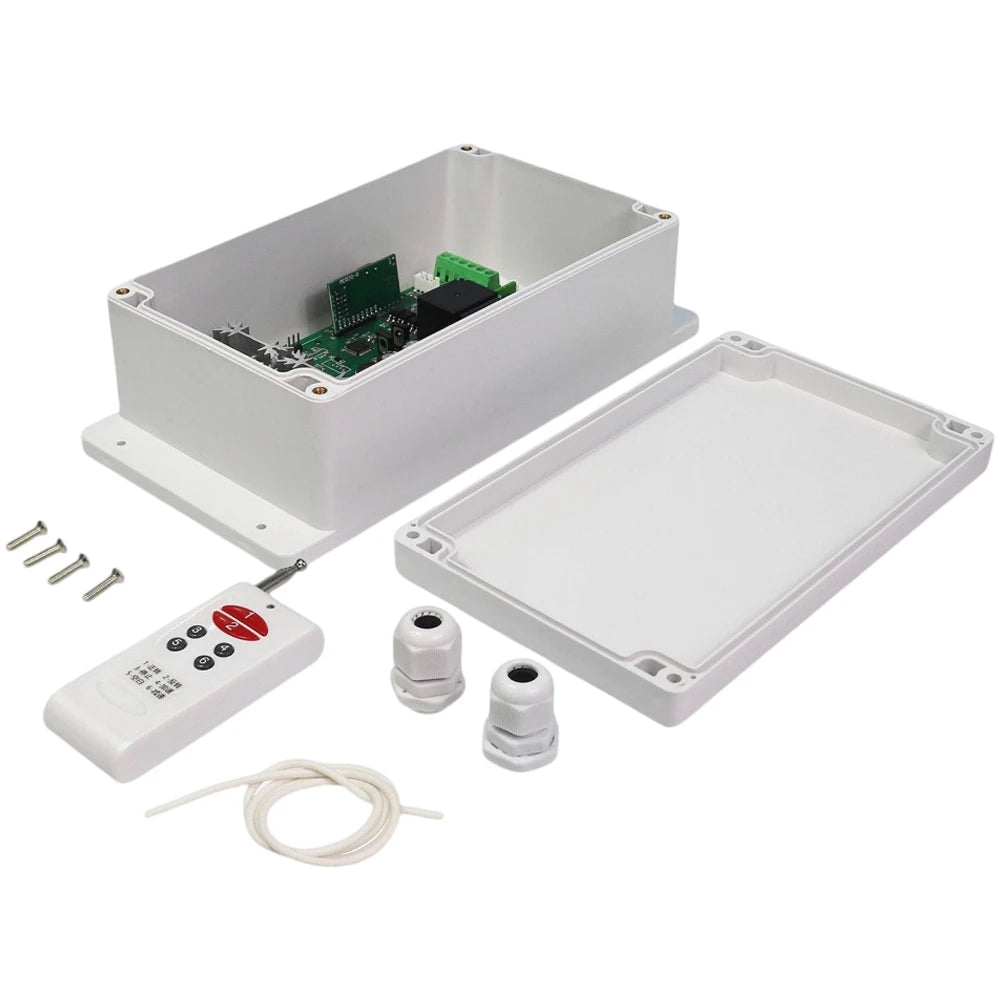

- 1× Motor Speed Regulator with Wireless Remote Control
Safety & Electrical Standards
This controller operates at low voltage (below 75V DC), falling within EU LVD low-voltage safety requirements. For guidance on electrical safety standards for motor control devices, refer to OSHA's Electrical Safety guidelines.
Note: Slight color variation may occur due to monitor settings. Allow ±1 cm measurement tolerance due to manual measurement methods.
Frequently Asked Questions
Q: What DC voltage range is this motor speed controller compatible with?
A: This wireless DC motor speed regulator supports an input voltage range of DC 12V to 30V, making it compatible with a wide variety of 12V and 24V DC motor systems commonly used in DIY projects, automation, and industrial applications.
Q: Can this controller handle both forward and reverse motor direction?
A: Yes. The wireless remote control allows you to switch the DC motor between forward and reverse directions with ease, and built-in limit switch support enables automatic stopping at preset positions.
Q: What is the maximum current and power this speed governor can handle?
A: The controller has a rated and maximum current of 30A. It supports up to 200W for 12V motors and up to 400W for 24V motors, making it suitable for moderate to heavy-duty DC motor control applications.
Q: Is this DC motor controller waterproof?
A: Yes. The unit features a waterproof design, protecting it from moisture and dust — ideal for outdoor installations, workshop environments, or any application where exposure to the elements is a concern.
Q: What PWM frequency does this speed regulator use, and why does it matter?
A: This controller uses a 21 kHz PWM (Pulse Width Modulation) frequency. A higher PWM frequency results in smoother motor operation, reduced audible noise, and lower heat generation compared to lower-frequency controllers.
