Wireless Keyless Access Control System Kit – 433MHz Remote Gate & Door Entry
Take command of who enters your property with the Asia-Teco R01 Smart Wireless Access Control Kit. This fully integrated, keyless entry system operates on the reliable 433.29 MHz frequency, giving you up to 160 feet (approx. 50 m) of open-air range so you can unlock gates, doors, and barriers from a distance — no fumbling for keys required.
Whether you're securing a residential driveway gate, a commercial entry door, or an outbuilding, this versatile kit delivers professional-grade access management in an easy DIY-friendly package. Made in Mainland China.
Key Features
- 433.29 MHz RF frequency — stable, long-range wireless signal up to 160 ft
- Supports up to 40 remote transmitters — ideal for households, offices, or small teams
- Three flexible switching modes: Momentary, Latched, and Toggle — adapt the system to your exact setup
- Adjustable lock delay time — choose 0, 5, or 10 seconds (default: 5 seconds)
- External access keyboard compatible — add a keypad for even more entry options (sold separately)
- 12V DC active buzzer support — audible entry confirmation for added awareness
- Built-in protection diode — safeguards the relay, door lock, and buzzer for a longer service life
- Built-in DC power cable — straightforward wiring for fast installation
- Operating temperature: 32°F – 113°F (0°C – 45°C)
- Working voltage: 12V DC
Specifications
| Spec | Detail |
|---|---|
| Model | R01 Kits |
| Frequency | 433.29 MHz |
| Operating Distance | Up to 160 ft (approx. 50 m) |
| Max Transmitters | 40 pcs |
| Working Voltage | 12V DC |
| Working Modes | Momentary / Latched / Toggle |
| Lock Delay | 0 / 5 / 10 seconds (adjustable) |
| Ambient Temperature | 32°F – 113°F |
| Country of Origin | Mainland China |

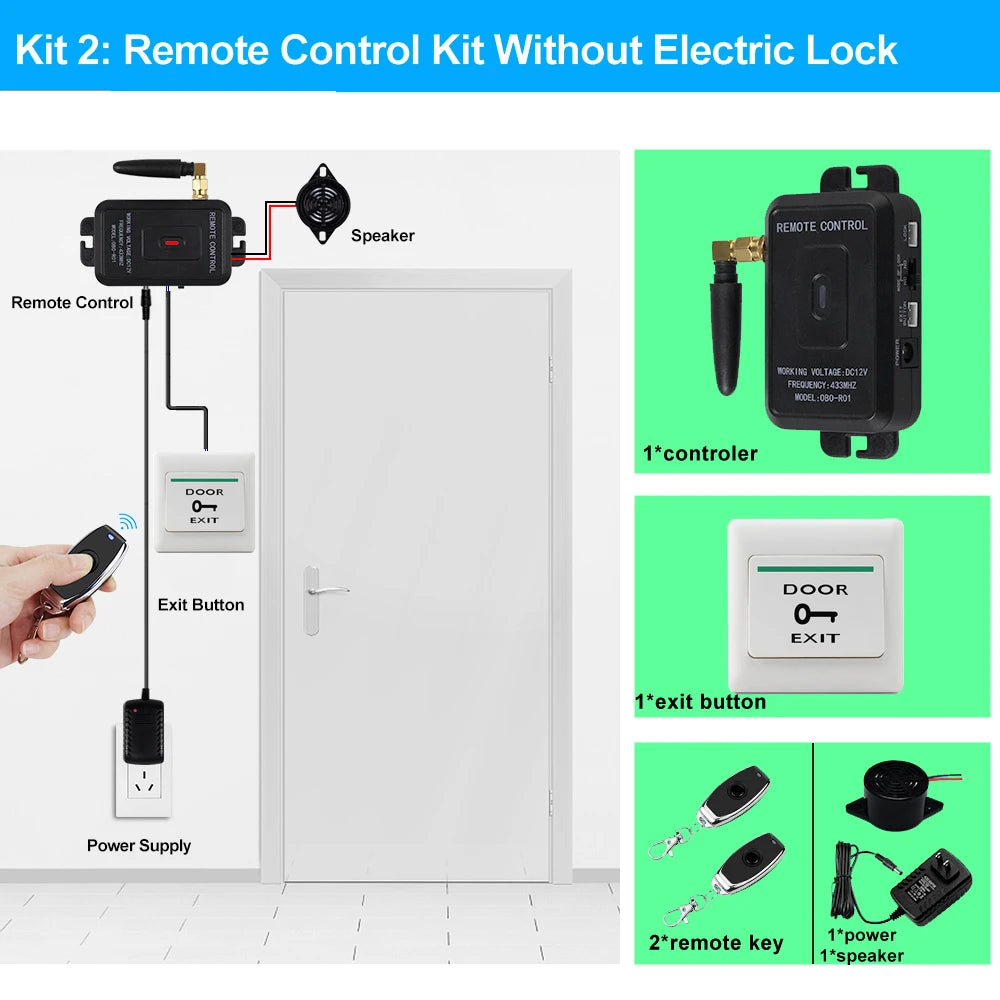

What's Included
- 1 × Wireless receiver/controller unit
- Remote transmitter(s) (quantity per kit selected)
- Built-in DC power cable
Note: External access keyboard is NOT included and must be purchased separately.
Who Is This For?
This system is designed exclusively for access control applications — including driveway gates, pedestrian doors, garage barriers, and building entry systems. It is not intended for use in other electronic or automation contexts.
For guidance on securing your home and evaluating electronic access control systems, visit the U.S. Consumer Product Safety Commission (CPSC) for safety standards and best practices around home security hardware.
Frequently Asked Questions
Q: How many remote controls can I pair with this wireless access control kit?
A: The Asia-Teco R01 receiver supports up to 40 remote transmitters simultaneously, making it suitable for households, small offices, or any property where multiple users need independent access.
Q: What are the three working modes and when should I use each one?
A: Momentary mode activates the lock/gate only while the button is held — great for momentary buzzer-entry systems. Latched mode keeps the relay engaged (locked or unlocked) until another command is sent. Toggle mode switches the relay state with each button press — ideal for gates that need a simple open/close toggle command.
Q: Can I add a keypad to this system?
A: Yes! The receiver supports an external access keyboard for PIN-based entry. The keypad is not included in this kit and must be purchased separately, but wiring it in is straightforward thanks to the built-in terminals.
Q: What power supply does this system require?
A: The system runs on 12V DC. A compatible 12V power adapter or existing gate power supply is required. The unit includes a built-in DC power cable for easy connection.
Q: What is the effective wireless range of this 433MHz remote kit?
A: In open-air conditions the receiver can pick up signals from up to 160 feet (~50 metres). Range may be slightly reduced through walls, metal gates, or in high-interference environments.
