Wireless Fingerprint Access Control Kit – Bolt Lock & Keypad
Wireless Fingerprint Access Control Kit – Bolt Lock & Keypad
Complete Wire-Free Fingerprint Access Control Kit for Home & Office
Upgrade your entryway with the Asia-Teco WS2-HF3-EM All-Wireless Fingerprint Access Control Kit — a fully self-contained, battery-powered security system that requires zero wiring. Designed for homes, offices, and glass-framed doors, this all-in-one kit delivers keypad, fingerprint, card, remote, and exit-button access in one tidy package. Included in the kit are a Wireless Fingerprint Keypad, a Wireless Bolt Lock, a Wireless Exit Button, and 2 Remote Transmitters. Convenient 3M adhesive stickers make installation genuinely DIY-friendly — no drilling required.
Made in Mainland China.
Why Choose This Wireless Access Control Kit?
- ✅ Truly Wire-Free — All components run on standard batteries; no electrician needed
- ✅ Multiple Access Methods — Fingerprint, 4–6 digit PIN, 125KHz EM card, wireless exit button, or remote transmitter
- ✅ 1,000-User Capacity — Supports up to 100 fingerprint users + 900 PIN/card users
- ✅ IP65-Rated Keypad — Zinc-alloy metal housing withstands dust and water splashes
- ✅ Rolling Code Security — 433MHz frequency with rolling-code technology prevents signal cloning
- ✅ Ultra-Low Power Consumption — Idle current under 25µA; battery life exceeds 12 months
- ✅ High Cycle Endurance — 16,000 unlock cycles (lock) / 10,000 cycles (keypad)
- ✅ Up to 20m Communication Range — Reliable wireless connectivity across a typical room or hallway
- ✅ Wide Operating Temperature — Lock: -20°C to +60°C; Keypad: -25°C to +60°C

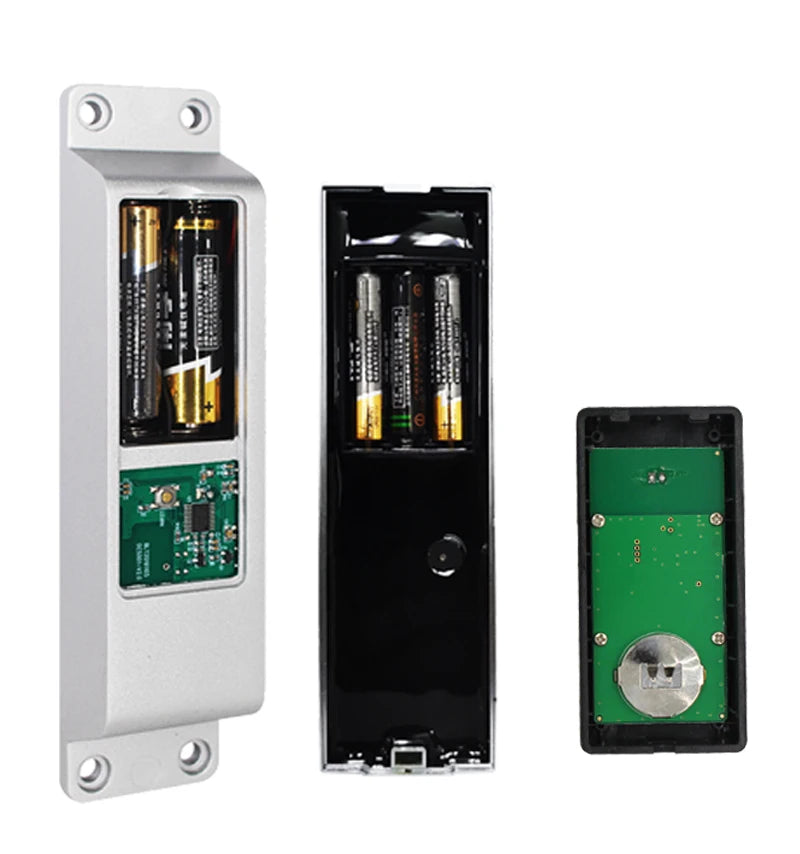

What's in the Box
- Wireless Fingerprint Keypad — Powered by 2× AA batteries; IP65-rated zinc-alloy shell
- Wireless Bolt Lock (148 × 43.5 × 22 mm, 780 g) — Suitable for metal doors, wooden doors, and framed glass doors; powered by 3× AAA batteries
- Wireless Exit Button — Powered by 1× CR2032 lithium battery; 169 × 40 × 25 mm
- 2× Remote Transmitters — Each powered by 1× CR2032 lithium battery; 63 × 24 × 11.5 mm, 30 g
- 3M adhesive mounting hardware
Technical Specifications
| Model | WS2-HF3-EM |
| Communication Frequency | 433MHz (Rolling Code) |
| Card Type | 125KHz EM (default); 13.56MHz IC Mifare available on request (+$5) |
| PIN Length | 4–6 Digits |
| User Capacity | 1,000 (100 fingerprint + 900 PIN/card) |
| Communication Range | Up to 20 m |
| Keypad Housing | IP65 Zinc-Alloy |
| Lock Housing | Zinc-Alloy / ABS |
| Operating Temp | -25°C ~ +60°C (keypad); -20°C ~ +60°C (lock) |
| Idle Current | <25µA (all units) |
| Battery Life | 12+ months typical |
| Origin | Mainland China |
Note: The default card frequency is 125KHz EM. To order the 13.56MHz IC Mifare version, please contact customer service — a $5 customization fee applies.
Helpful Resources
For guidance on home security best practices, visit the U.S. Consumer Product Safety Commission – Home Safety Guide.
Frequently Asked Questions
Q: Does the wireless fingerprint access control kit require any wiring or professional installation?
A: No wiring is required at all. Every component in this kit is battery-powered and communicates wirelessly over 433MHz. The included 3M adhesive stickers allow you to mount the keypad, bolt lock, and exit button yourself in minutes — no electrician or drilling necessary.
Q: What types of doors is the wireless bolt lock compatible with?
A: The wireless bolt lock is designed to work with metal doors, wooden doors, and framed glass doors, making it versatile for a wide range of residential and light commercial applications.
Q: How many users can be stored in the fingerprint keypad access control system?
A: The system supports up to 1,000 users in total — 100 fingerprint users and 900 PIN or 125KHz EM card users. This makes it suitable for both small households and busy office environments.
Q: How long do the batteries last, and what batteries does each component use?
A: Battery life typically exceeds 12 months thanks to ultra-low idle current (<25µA). The wireless bolt lock uses 3× AAA batteries, the keypad uses 2× AA batteries, and both the exit button and each remote transmitter use a single CR2032 lithium coin cell.
Q: Is it possible to upgrade to 13.56MHz Mifare card compatibility?
A: Yes. The default kit uses 125KHz EM cards. If you need 13.56MHz IC Mifare card compatibility, please contact customer service before ordering — a $5 customization fee applies to configure the kit for that frequency.
