Wireless Access Control Kit IP67 Waterproof Swing Door Opener System
Wireless Access Control Kit IP67 Waterproof Swing Door Opener System
Asia-Teco Wireless Access Control Kit – Secure, Smart & Weatherproof
Take full control of who enters your property with the Asia-Teco AW10EM-K-W DIY Wireless Access Control Kit. Designed for residential and commercial swing doors, this all-in-one system combines a rugged IP67-rated outdoor keypad, a powerful wireless controller, and an automatic swing door opener — all in one easy-to-install package. With support for up to 1,000 registered users + 100 temporary visitors, this kit is built to scale with your needs.
The system operates on a wide voltage input of AC 100V–240V (with DC 12V/2A output), making it compatible with virtually any standard power supply worldwide. The 433MHz wireless communication range extends up to 20 meters, ensuring reliable connectivity between the outdoor keypad and the indoor controller.
Key Features
- IP67 Waterproof Outdoor Keypad: Built with a durable zinc-alloy housing, the outdoor unit is anti-vandal, anti-explosion, and fully protected against dust and water immersion — ideal for exposed outdoor installations.
- Multiple Unlock Methods: Supports 4–8 digit PIN, card only, or card + PIN combinations for flexible, layered access control.
- EM (ID) Proximity Card Reading: Contactless 125kHz EM card technology for fast, touchless entry. (Optional 13.56MHz IC Mifare upgrade available — contact customer service for details, additional $5 applies.)
- TEA + Rolling Code Encryption: Military-grade encryption algorithm ensures every wireless signal is uniquely coded, making the system highly resistant to code-grabbing and replay attacks.
- Wiegand 26–44 Input/Output: Compatible with a wide range of third-party access controllers and readers, offering seamless integration into existing security setups.
- Backlit Keypad: Built-in keyboard illumination makes nighttime operation effortless.

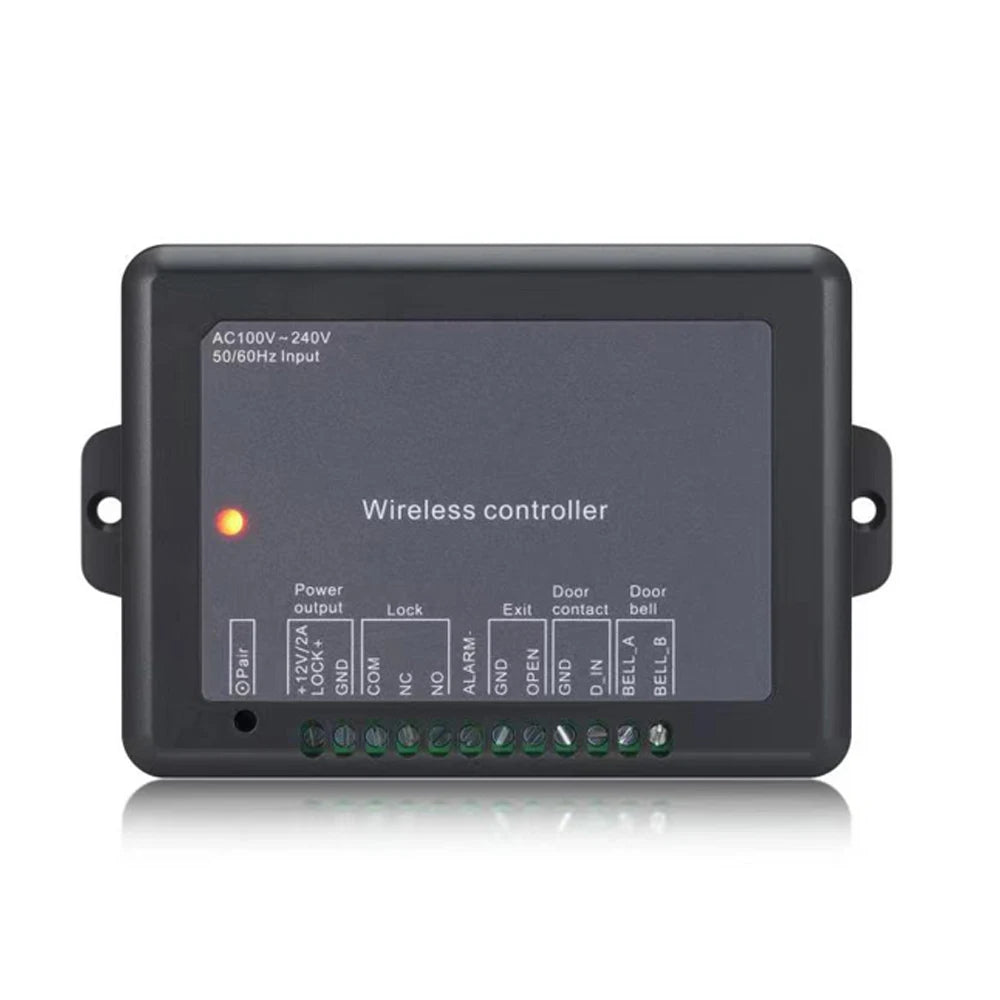

- Built-in & External Doorbell Support: The indoor controller features a built-in doorbell and can also connect to an external doorbell for broader notification coverage.

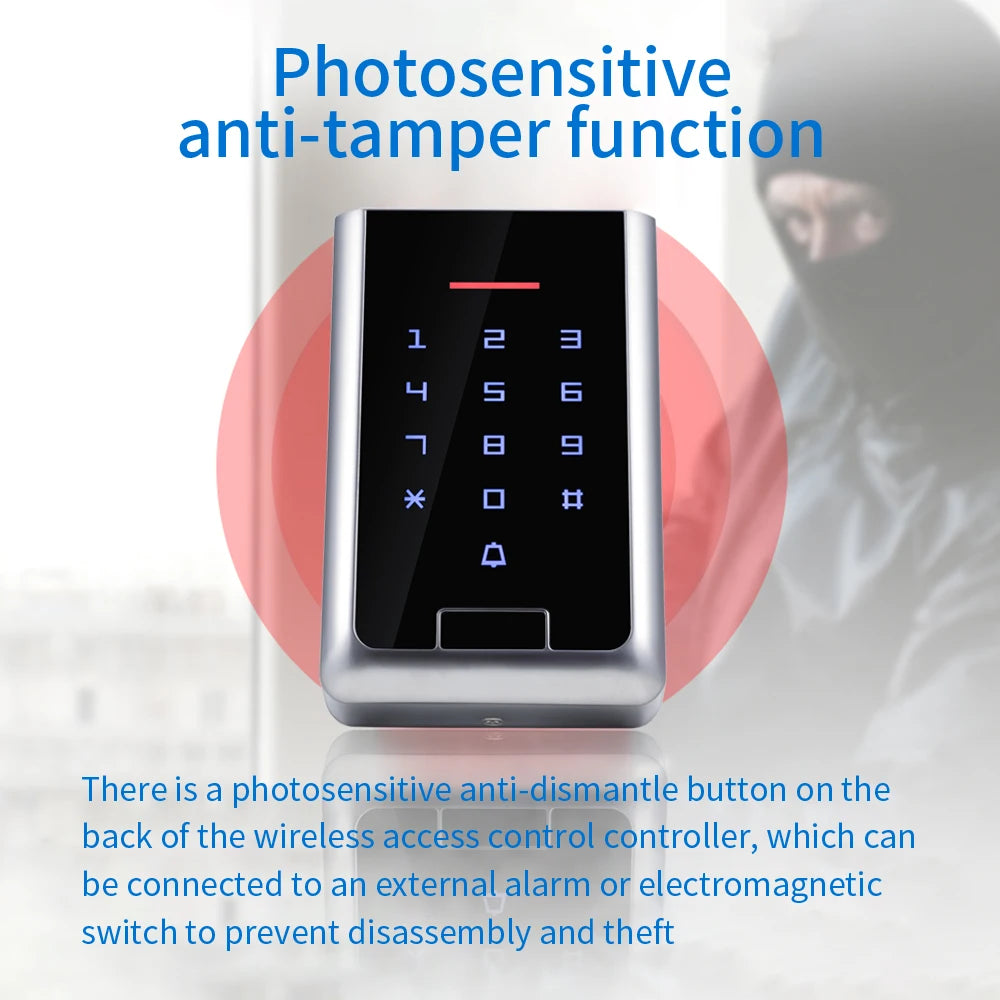

- Anti-Tamper Alarm: If the outdoor keypad is forcibly removed or tampered with, both the keypad and indoor controller trigger simultaneous alerts.
- Flexible Operating Modes: Switch between Pulse Mode and Toggle Mode (swipe to open, swipe again to close) to match your door workflow.
- Temporary Visitor Access: Assign time-limited visitor credentials without compromising your permanent user list.
- Admin Card Management: Admin cards allow rapid bulk addition or deletion of user cards — no need to collect old cards when replacing the system.
- 2-Device Interlock: Link two units together to manage a double-door or airlock entry configuration.
- Long Battery Life: With normal use (30 door opens/day), the battery lasts over a year.
- Wide Operating Temperature: Functions reliably from -30°C to 60°C (-22°F to 140°F).
Technical Specifications
| Model | AW10EM-K-W |
| Brand | Asia-Teco |
| Input Power | AC 100V–240V |
| Output Power | DC 12V / 2A |
| Communication Frequency | 433MHz |
| Communication Range | ≤ 20m |
| Card Type | 125kHz EM (ID) — 13.56MHz IC Mifare optional |
| User Capacity | 1,000 standard users + 100 visitor users |
| Wiegand | 26–44 Input/Output |
| Waterproof Rating | IP67 (keypad) / IP66 (outdoor unit) |
| Unlocking Current | ≤ 2A |
| Working Temperature | -30°C to 60°C |
| Country of Origin | Made in Mainland China |
What's in the Box?
This complete DIY kit includes the IP67-rated outdoor keypad unit, the wireless indoor controller, admin cards, and all hardware needed for installation. The system is designed for straightforward DIY setup — no specialist tools required.
Where to Use It
Perfect for homes, offices, warehouses, garages, schools, apartment buildings, and any property where you need reliable, keyless swing-door access management.
For more information on best practices for electronic access control and physical security, visit the U.S. Consumer Product Safety Commission – Home Security Guide.
Frequently Asked Questions
Q: Can I upgrade this wireless access control kit to use 13.56MHz IC Mifare cards instead of the standard 125kHz EM cards?
A: Yes! The default configuration uses 125kHz EM (ID) proximity cards, but the system can be customized to support 13.56MHz IC Mifare cards for an additional $5. Please contact customer service before placing your order to request this upgrade.
Q: How many users can this access control system support?
A: The Asia-Teco AW10EM-K-W supports up to 1,000 standard registered users plus an additional 100 temporary visitor users — making it well suited for medium-to-large households, offices, or multi-tenant buildings.
Q: Is this access control kit suitable for outdoor installation in harsh weather conditions?
A: Absolutely. The outdoor keypad carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and temporary water immersion. It also withstands operating temperatures from -30°C to 60°C, making it reliable in both freezing winters and hot summers.
Q: Does the system work with existing access control infrastructure using Wiegand readers?
A: Yes. The kit supports Wiegand 26–44 input and output, making it compatible with a wide range of existing access control panels and third-party Wiegand-standard readers for seamless integration.
Q: What happens if someone tries to tamper with or forcibly remove the outdoor keypad?
A: The system features a built-in anti-tamper mechanism. If the outdoor keypad is removed or tampered with, both the keypad itself and the indoor controller will trigger simultaneous alarm alerts, deterring unauthorized interference.
