Wireless 2.4G Infrared Exit Button – NO/COM Access Control Switch

Wireless 2.4G Infrared Exit Button Switch for Auto Door Systems

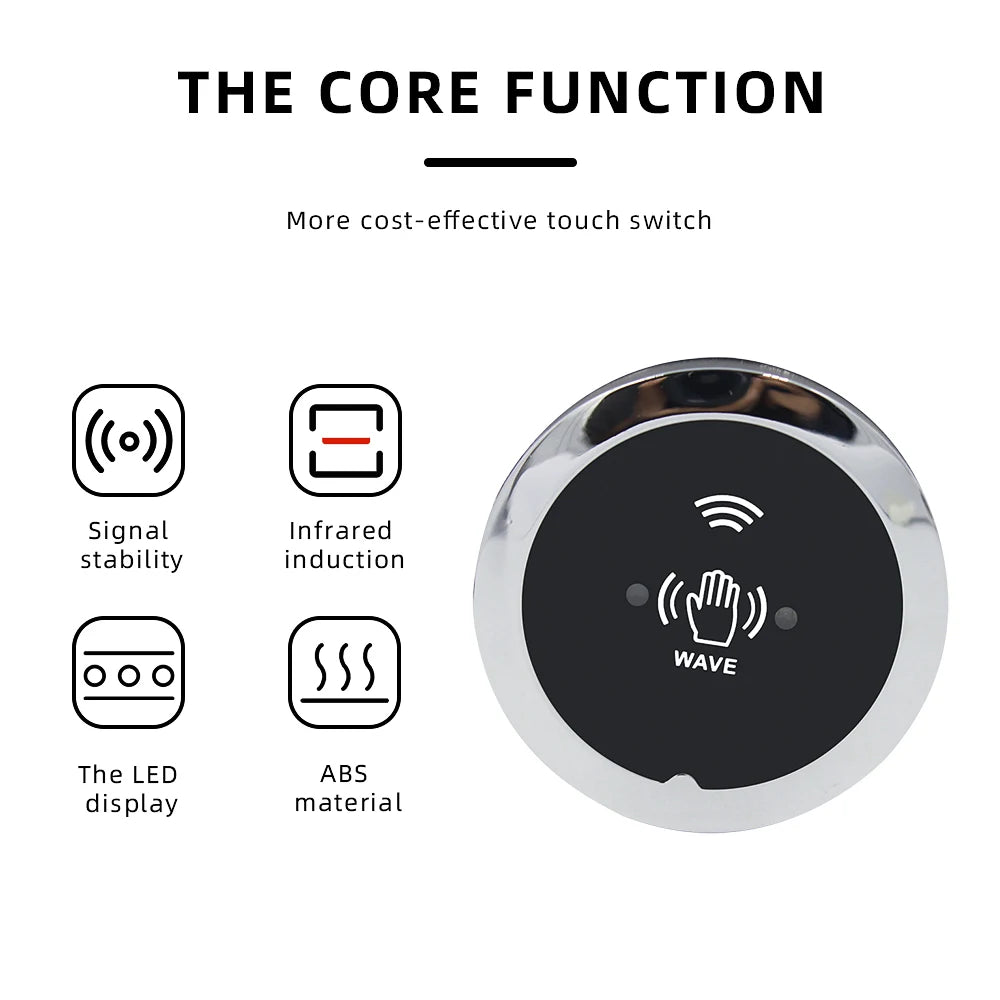

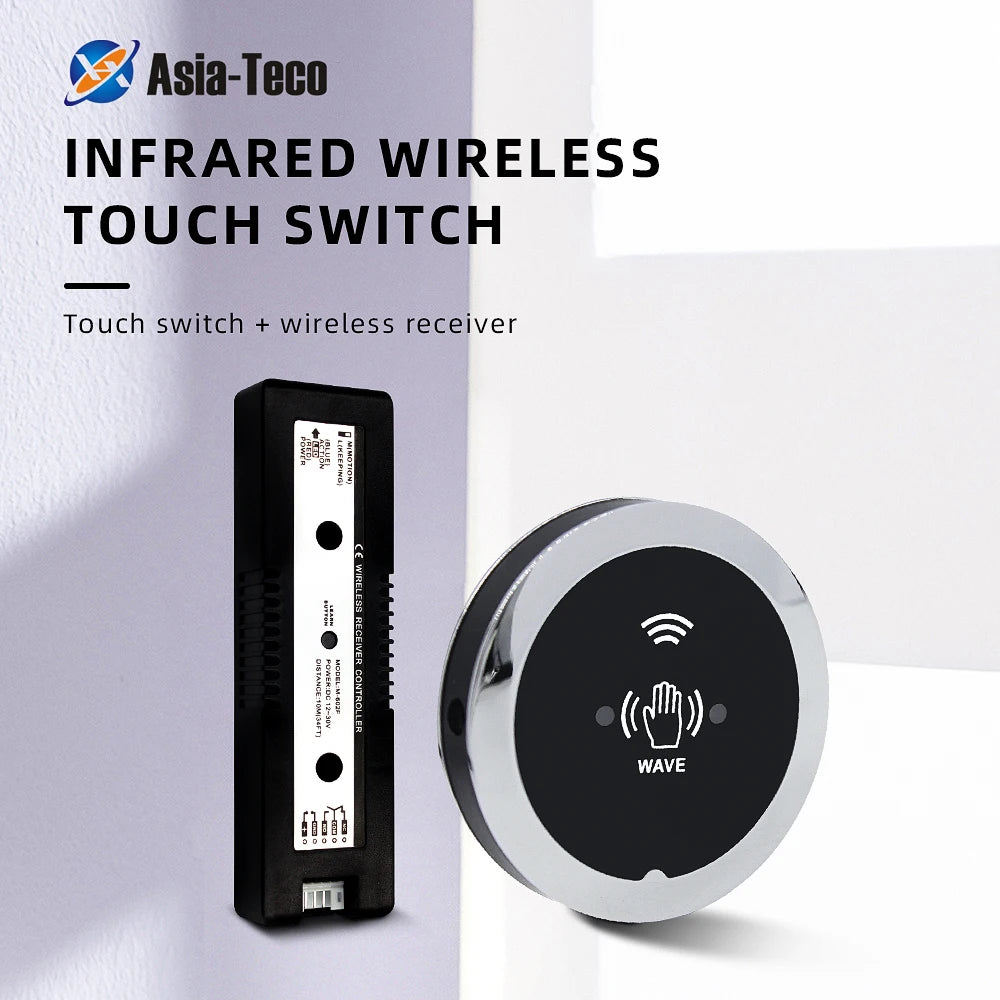

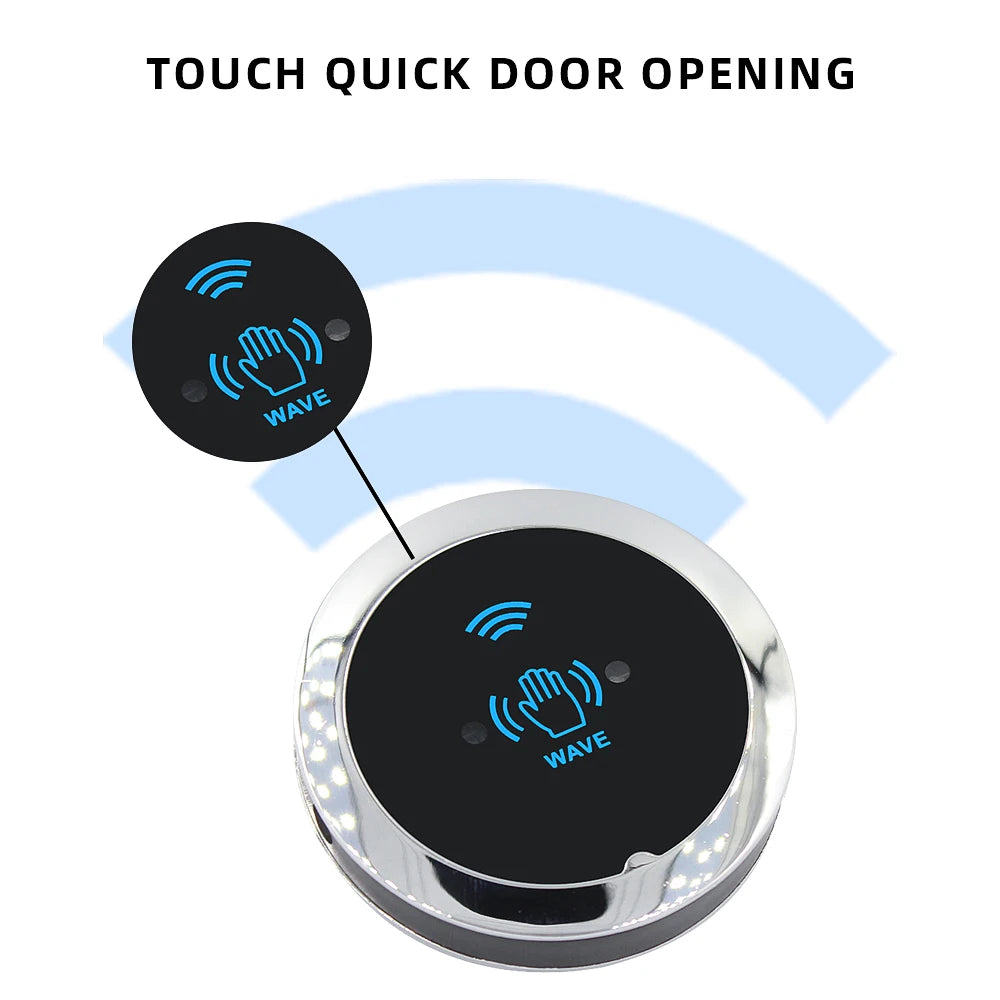

Upgrade your access control setup with the Asia-Teco CNB501H Wireless 2.4G Infrared Exit Button Switch — a fully contactless, no-touch door release solution designed for automatic door systems. Simply wave your hand near the sensor and the infrared detector triggers the relay wirelessly, allowing seamless, hands-free egress without pressing any physical button. Ideal for offices, hospitals, retail environments, warehouses, and any facility that demands hygienic, efficient entry and exit management.

Key Features

• Truly Contactless Operation: Infrared proximity sensing triggers door release without physical contact — keeping high-traffic areas clean and efficient.
• 2.4GHz Wireless Transmission: Reliable, interference-resistant 2.4GHz radio frequency ensures consistent communication between the transmitter and receiver over distances of 25 meters or more.
• NO/COM Relay Interface: Compatible with a wide range of automatic door controllers, electric strikes, and magnetic locks via standard Normally Open (NO) and Common (COM) relay contacts.
• Wide Power Supply Range: Receiver operates on AC/DC 12–36V; transmitter runs on 6V (2 × 3V batteries, not included) for easy, flexible installation.
• Long Battery Life: Rated for more than 20,000 activations on a single set of batteries, minimizing maintenance.
• Durable ABS Construction: Tough, lightweight ABS housing stands up to daily use across a broad operating temperature range of -42°C to +45°C and 10–90% RH humidity.

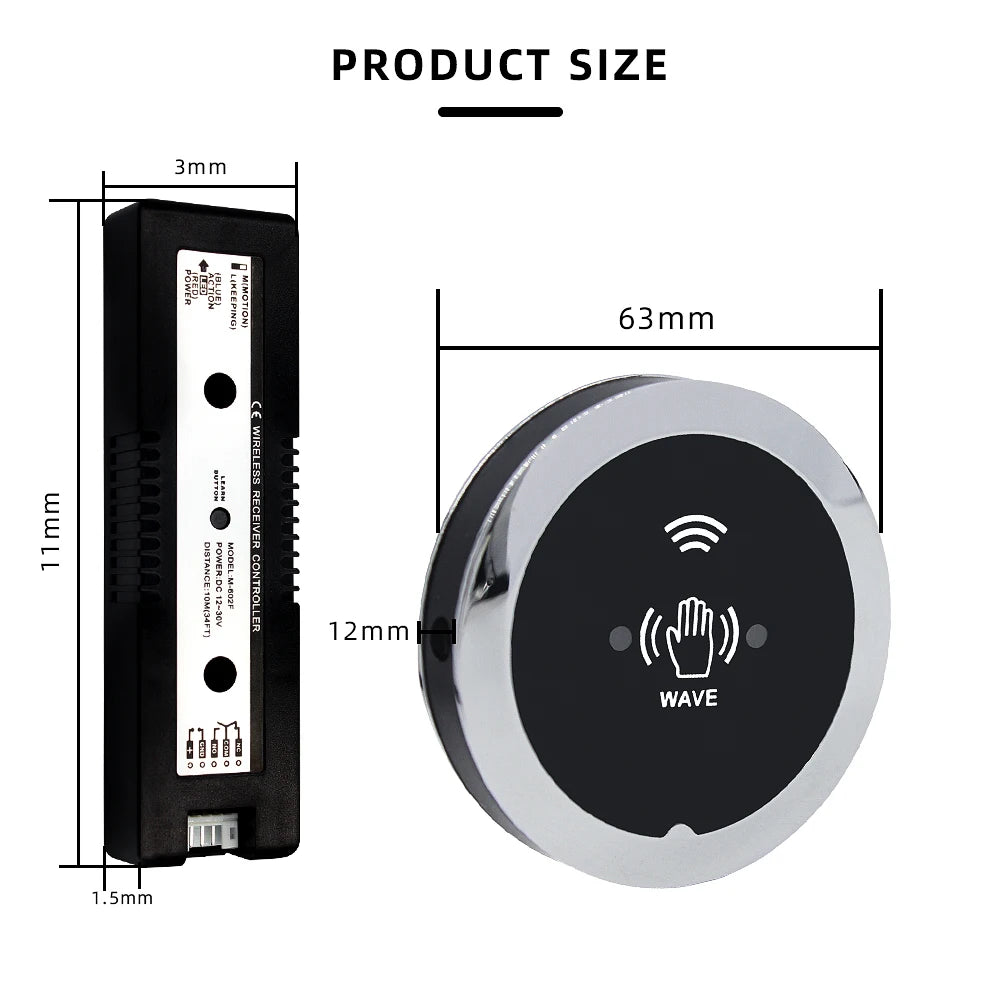

• Compact Footprint: Measures just 5.3 × 2.6 × 5.3 cm — mounts discreetly on door frames, walls, or door panels.

Technical Specifications

What's in the Box

• 1 × Wireless Infrared Exit Button Transmitter (CNB501H)
• 1 × 2.4GHz Wireless Receiver
• Note: 2 × 3V CR batteries for the transmitter are NOT included.

Who Is This For?

This contactless exit button is perfect for:

• Office lobbies and reception areas
• Healthcare facilities and clean rooms
• Retail stores and shopping centers
• Industrial facilities and warehouses
• Schools, libraries, and public buildings
• Any location requiring hygienic, hands-free door control

Safety & Standards

For guidance on best practices in building access control and electrical safety for commercial installations, refer to the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does this wireless exit button work with any access control system?

A: The Asia-Teco CNB501H uses a standard NO/COM relay output, making it compatible with most electric strikes, magnetic locks, and automatic door controllers that accept a dry-contact signal. Always verify your controller's input specifications before installation.

Q: How far away does my hand need to be to trigger the infrared sensor?

A: The infrared proximity sensor is designed to detect a hand gesture at a typical range of a few centimeters up to the rated detection zone, triggering the wireless signal to the 2.4GHz receiver. The receiver can be located up to 25 meters away from the transmitter.

Q: Are batteries included with the exit button?

A: No. The transmitter requires 2 × 3V (CR-type) batteries, which are not included. The wireless receiver is powered by your existing AC/DC 12–36V door system supply.

Q: Can this device be used outdoors?

A: The CNB501H is rated for operating temperatures from -42°C to +45°C and humidity from 10–90% RH, giving it broad environmental suitability. However, it is not rated as fully weatherproof (IP-rated), so if mounting outdoors it should be protected from direct rain and moisture ingress.

Q: How long will the transmitter batteries last?

A: The transmitter is rated for more than 20,000 activations per battery set, providing very long service life under typical usage conditions.
