WiFi Video Intercom & RFID Access Control System with Tuya Smart App
Upgrade your home or apartment's front door with the Asia-Teco WiFi Video Intercom Access Control System — a powerful all-in-one solution combining a 1080P wide-angle camera, full-duplex two-way audio, and a multi-method RFID keypad into a sleek zinc-alloy housing. Manage visitors, unlock doors remotely, and monitor your entryway from anywhere in the world using the Tuya Smart or SmartLife app on iOS or Android. Made in Mainland China.
Why You'll Love It
- See Every Visitor Clearly: A 2MP (1080P) CMOS camera with a 140° wide-angle lens and IR-CUT night vision delivers crisp color footage by day and clear black-and-white imagery at night.
- Talk Back Instantly: Full-duplex two-way voice intercom lets you have a natural, real-time conversation with anyone at your door — no walkie-talkie lag.
- Multiple Entry Methods: Grant access via RFID card (EM or Mifare), 4–6 digit PIN, or remote smartphone unlock — whichever is most convenient.
- Manage Up to 1,000 Users: Support 988 standard users, 10 visitor codes, and 2 emergency users — ideal for apartments, offices, and shared buildings.
- Smart Motion Alerts: Receive instant push notifications when motion is detected, and review captured photos and video clips directly in the app.
- Expandable Local Storage: Insert a TF (microSD) card of any capacity for on-device recording — no monthly cloud subscription required.
- Tuya Smart Home Integration: Works seamlessly with the Tuya and SmartLife ecosystem, so you can automate door access alongside your other smart home devices.

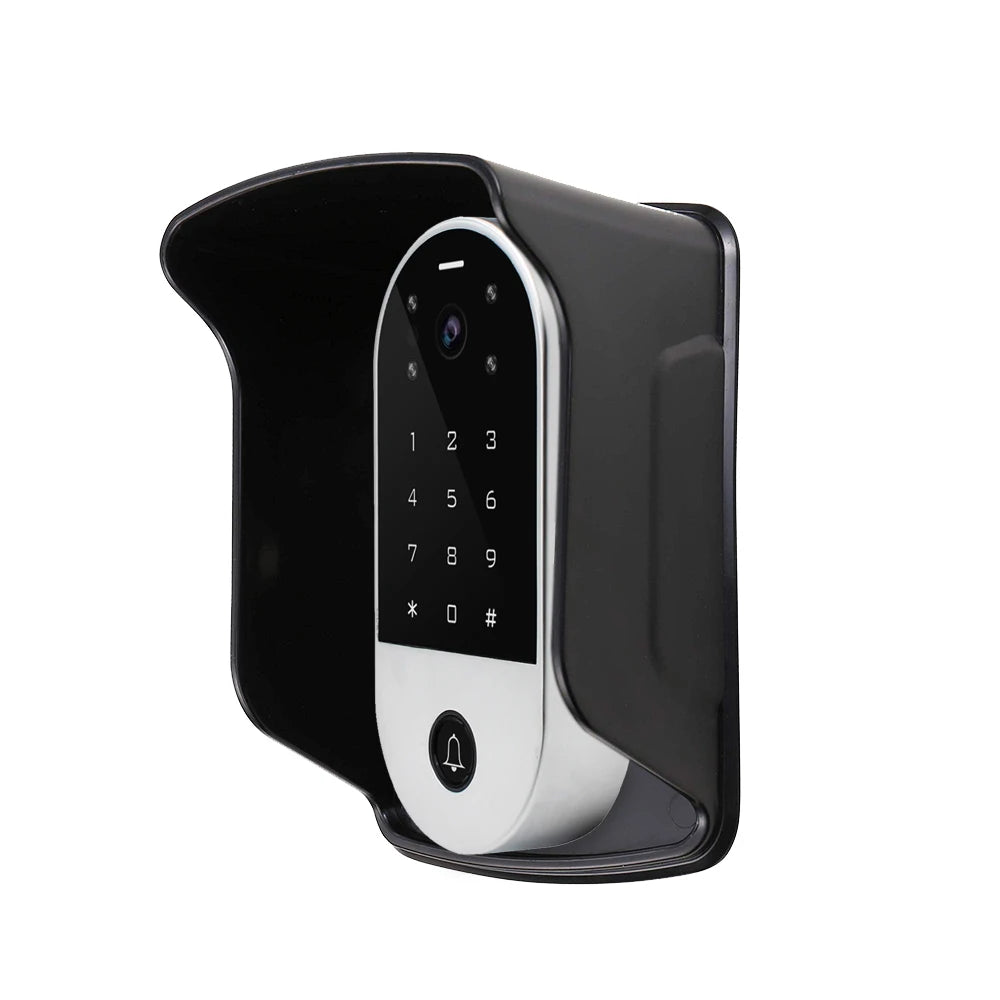

- Robust Zinc-Alloy Build: Durable silver and black housing (149 × 70 × 25 mm) designed for long-lasting wall-mounted installation; includes 1 rainproof cover free of charge.
- Wiegand Compatible: Supports Wiegand 26–44-bit input/output, making it easy to integrate with existing access control infrastructure.
Full Specifications
| Category | Spec | Value |
|---|---|---|
| Video Intercom | Network | 2.4GHz WiFi |
| Resolution | 2.0 MP (1080P) | |
| View Angle | 140° Horizontal Wide Angle | |
| Night Vision | IR-CUT (Color day / B&W night) | |
| Storage | TF Card (any capacity) | |
| Intercom Type | Full Duplex Voice | |
| Smart Features | Motion Detection, Playback, Photo/Video Capture, Remote Unlock | |
| Access Control | Total User Capacity | 1,000 (988 Standard + 10 Visitor + 2 Emergency) |
| PIN Length | 4–6 Digits | |
| Card Types | EM Card / Mifare (customizable) | |
| Radio Frequency | 125kHz (default) / 13.56MHz (optional) | |
| Read Range | 2–6 cm | |
| Relay | 1× (NO / NC / Common); 0–99 s adjustable; 2A max | |
| Wiegand Interface | 26–44 bits input & output (EM default: 26-bit; Mifare default: 34-bit) | |
| Connections | Relay output, Exit button, Alarm, Door contact, Wiegand I/O | |
| Electrical & Physical | Power | DC 12V |
| Idle Current | ≤ 150mA | |
| Active Current | ≤ 250mA | |
| Operating Temp | -20°C to 60°C (-4°F to 140°F) | |
| Humidity | 0% – 86% RH | |
| Material / Color | Zinc-Alloy / Silver & Black | |
| Dimensions / Weight | 149 × 70 × 25 mm / 500g (shipping: 550g) |
What's in the Box
- 1× WiFi Video Intercom Access Control Unit
- 1× Rainproof Cover (free bonus)
- Mounting hardware & installation guide
Learn More About Smart Home Security
For guidance on securing your home with modern access control technology, visit the U.S. Consumer Product Safety Commission's Home Safety resource.
Frequently Asked Questions
Q: Does this WiFi video intercom work with both Android and iOS smartphones?
A: Yes! The system connects via the Tuya Smart or SmartLife app, which is compatible with Android 4.3 and above, and iOS 7.0 and above. Simply download the free app, connect the device to your 2.4GHz WiFi network, and you can view live video, speak with visitors, and unlock the door from anywhere.
Q: What RFID card types does the access control keypad support?
A: The unit supports EM cards (125kHz, factory default) and Mifare cards (13.56MHz, available as a customizable option). The RFID read range is 2–6 cm, and the Wiegand interface (26–44 bits) ensures broad compatibility with third-party access control panels.
Q: How many users can be programmed into the system?
A: The system stores up to 1,000 user credentials — 988 standard users, 10 visitor codes, and 2 emergency codes. PIN codes can be 4–6 digits long, giving you plenty of flexibility for apartments, offices, or residential buildings with many occupants.
Q: Can I record video footage locally without a cloud subscription?
A: Absolutely. The unit supports a TF (microSD) card of any capacity for local on-device storage. You can review recorded clips and captured photos directly in the Tuya/SmartLife app — no recurring cloud storage fees required.
Q: Is the rainproof cover included in the package?
A: Yes, one rainproof/weatherproof cover is included free of charge to help protect the unit when installed near an exterior wall or entryway exposed to the elements.
