Asia-Teco WiFi Tuya Smart RFID Keypad Access Controller

Upgrade your entry points with the Asia-Teco H5 WiFi Tuya Smart RFID Access Controller — a next-generation, flush-mounted metal keypad designed for both residential and commercial doors. Manage access remotely from your smartphone, set temporary PIN codes for guests, and monitor door status in real time, all from the Tuya Smart App.

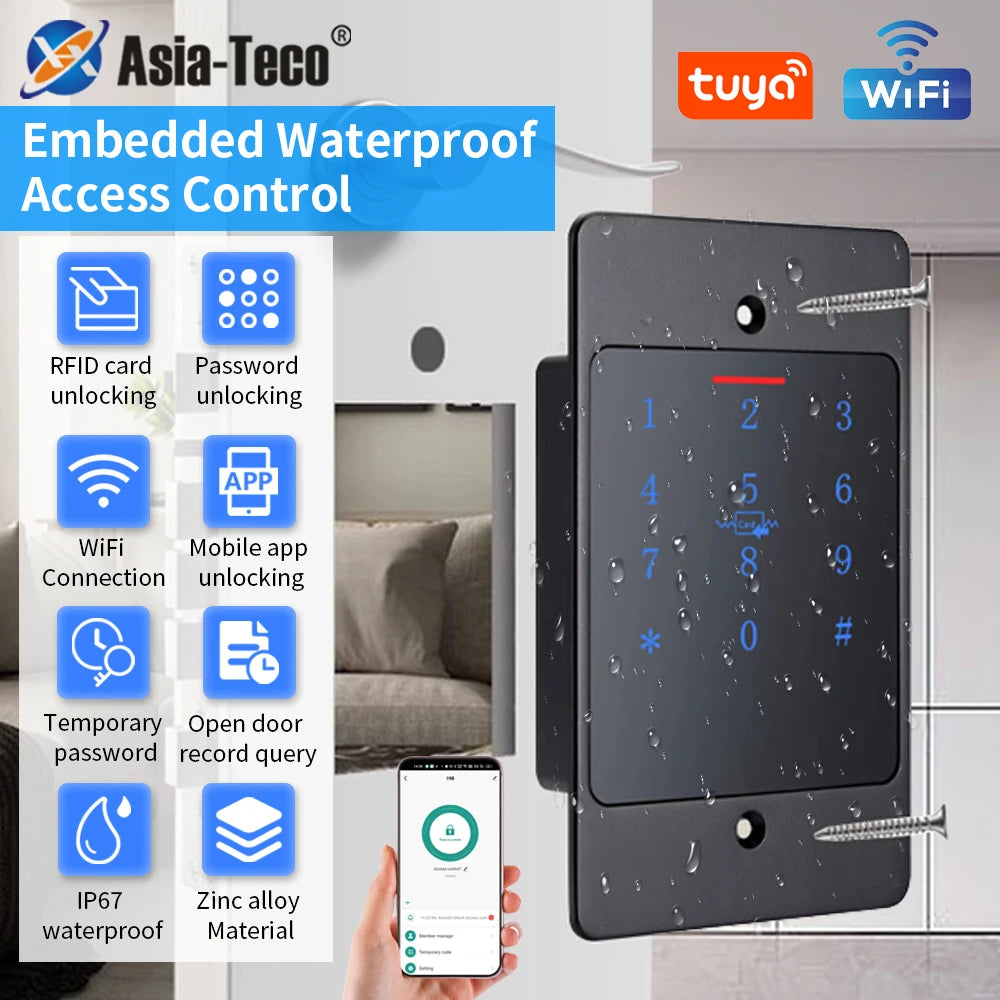

Why Choose the Asia-Teco H5?

• IP67 Waterproof Rating — Built to withstand rain, dust, and extreme outdoor conditions (-20°C to +60°C / -4°F to +140°F).
• Rugged Zinc Alloy Housing — Anti-vandal and impact-resistant construction for long-lasting security.
• Multiple Access Modes — Supports RFID card, PIN code, temporary visitor codes, and multi-user combined unlock (2–9 users).
• Massive User Capacity — Stores up to 10,000 card/PIN users for large offices, apartments, or facilities.

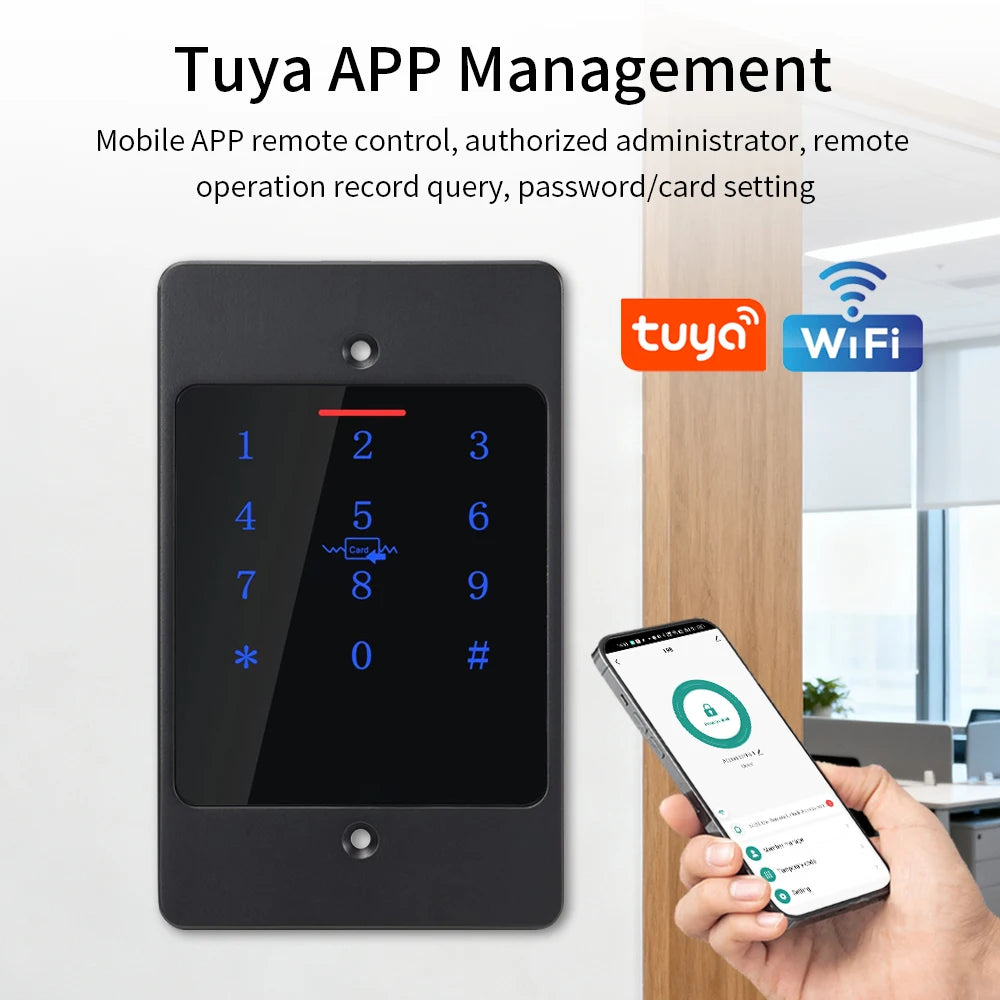

• WiFi + Tuya App Control — Open the door remotely, check door status, and issue temporary access codes directly from your phone.
• Concealed Pit-Mounted Design — Flush wall installation for a sleek, professional aesthetic.
• Wiegand Interface — Supports Wiegand 26–44 bit, 56-bit, and 58-bit input/output for seamless integration with existing access systems.
• Anti-Tamper & Door Contact Detection — Built-in alarm triggers if tampering or forced entry is detected.
• CE & FCC Certified — Meets international safety and compliance standards.

Key Features at a Glance

• Smartphone door management & remote door unlock via Tuya App
• Set & revoke temporary PIN codes anytime from the app
• Administrator password & administrator card programming
• Adjustable door-open relay time: 0–300 seconds (factory default: 5 seconds)
• Dual RFID card frequency: 125 kHz (EM) or 13.56 MHz (MF)
• RFID read range: up to 60 mm
• Data upload/download for card & PIN user management
• Configurable sound & LED indicator settings
• Security alarm mode: deadlock (lockout) or alarm activation
• Multi-user combined unlock: require 2–9 sequential valid credentials before granting access
• PIN Wiegand output: 4-bit, 8-bit (ASCII), or 10-digit virtual card number

Technical Specifications

Ideal Applications

The Asia-Teco H5 is perfect for offices, apartment buildings, warehouses, gated communities, schools, and any location requiring secure, flexible, and remotely managed access control.

For guidance on electronic security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does this WiFi RFID access controller work with the Tuya Smart App?

A: Yes. The Asia-Teco H5 connects to your home or office WiFi and integrates fully with the Tuya Smart App (iOS & Android). You can remotely unlock the door, monitor door status, issue temporary PIN codes, and manage up to 10,000 users — all from your smartphone.

Q: Is this keypad suitable for outdoor installation?

A: Absolutely. The H5 carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand immersion in water. Its operating temperature range of -20°C to +60°C makes it suitable for most outdoor climates year-round.

Q: What RFID card types are compatible with the H5 access controller?

A: The H5 supports two RFID frequencies: 125 kHz (EM cards) and 13.56 MHz (MF cards / Mifare). Both standard proximity cards and key fobs within these formats are compatible, with a read range of up to 60 mm.

Q: Can I grant temporary access to visitors without giving them a permanent card or PIN?

A: Yes. Using the Tuya Smart App, administrators can generate and send temporary PIN codes to visitors. These codes can be set with time limits and revoked remotely at any time, giving you full control over who enters and when.

Q: Does the H5 work with existing Wiegand-based access control systems?

A: Yes. The H5 supports Wiegand 26–44 bit, 56-bit, and 58-bit input and output formats, making it compatible with a wide range of existing access control panels and systems.
