WiFi Tuya RFID Keypad Door Access Controller 12V-24V IP66
WiFi Tuya RFID Keypad Door Access Controller 12V-24V IP66
WiFi Tuya Smart RFID Fingerprint Keypad — Standalone Door Access Controller

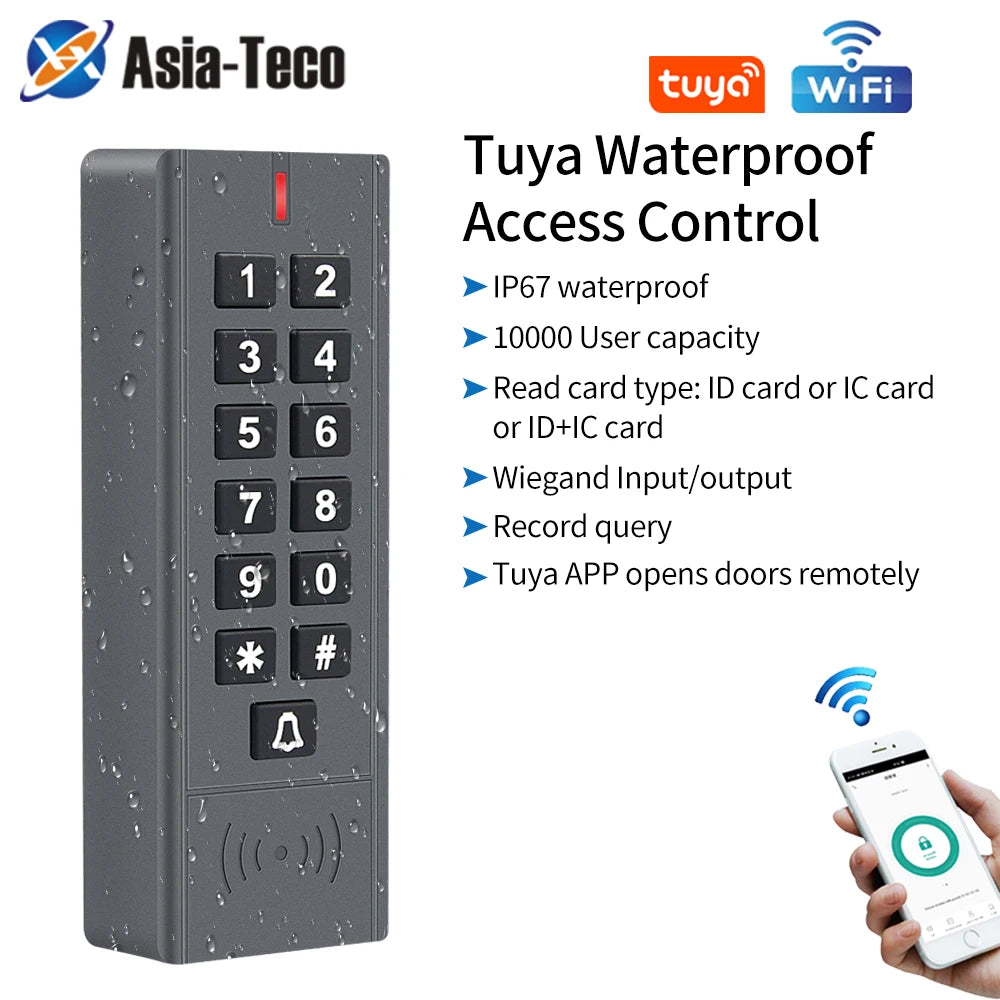

Take full control of who enters your property with the Asia-Teco A9-WiFi Smart Access Controller. This next-generation, metal-grade standalone door access system combines RFID card reading, PIN keypad entry, and full smartphone management via the Tuya Smart Life App — all in a rugged, IP66-rated weatherproof housing built for indoor and outdoor use.
Made in Mainland China.
Why Choose the Asia-Teco A9-WiFi Access Controller?
- Multi-Mode Entry: Unlock your door via RFID proximity card, PIN code, Tuya smartphone app, temporary visitor code, or multi-user authorization — giving you flexible access options for every situation.

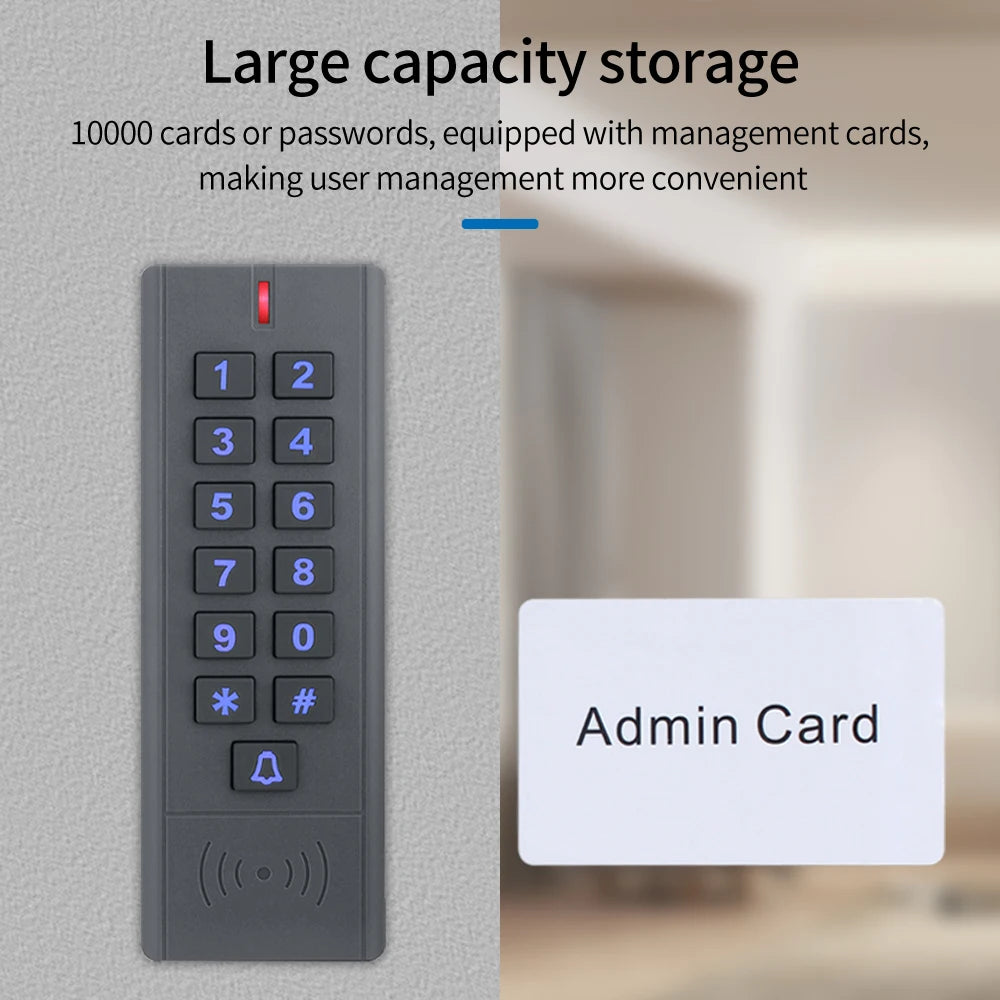

- Massive User Capacity: Store up to 10,000 card and PIN users, making it ideal for homes, offices, apartment buildings, warehouses, and commercial facilities.
- Remote Smartphone Control: Use the free Tuya Smart Life App to remotely unlock your door from anywhere, add or remove users, assign permission levels, check real-time door open/closed status, and review access logs — all from your phone.
- Temporary Visitor Codes: Generate time-limited PIN codes directly from the app for guests, delivery personnel, or service staff — no physical keys or cards required.
- OTA Over-the-Air Updates: Keep your device current with the latest firmware improvements and features without any manual intervention.

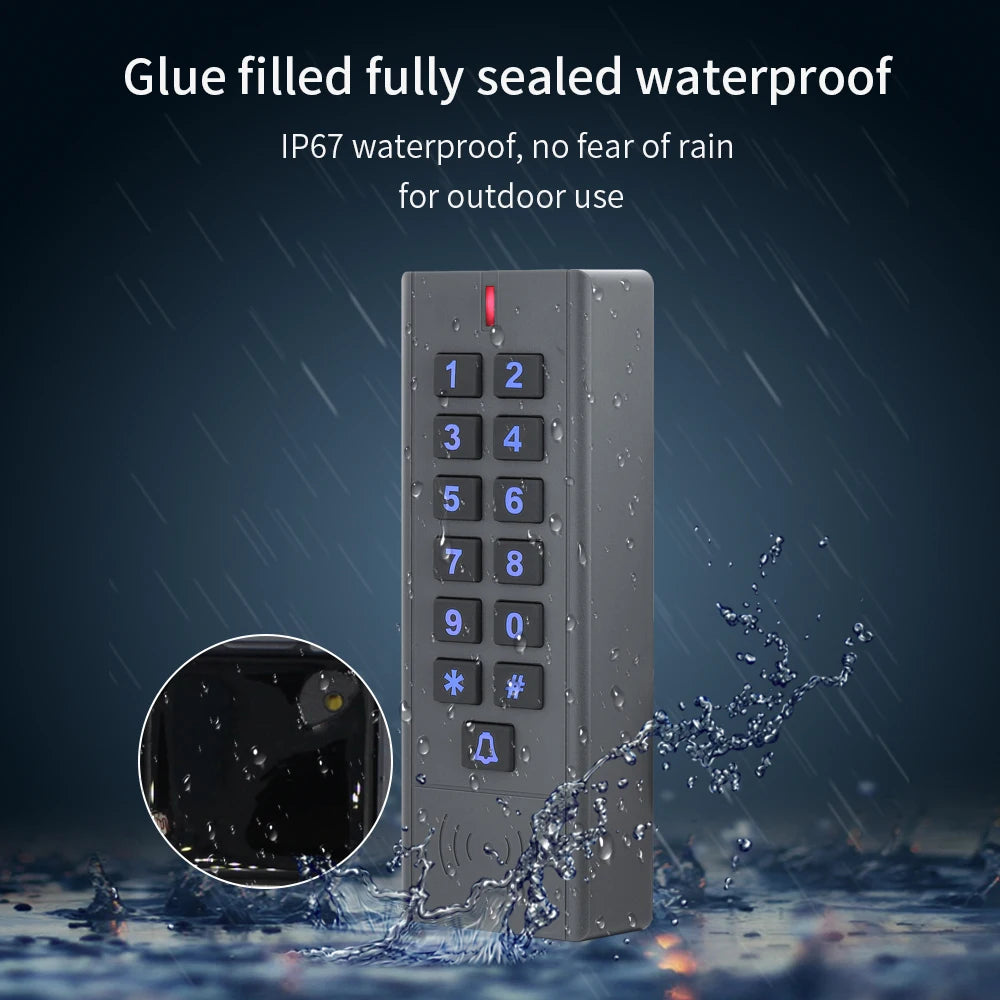

- IP66 Weatherproof & Anti-Tamper: The ABS housing is rated IP66 for dust and water resistance, anti-vandal, anti-pry, and designed to withstand temperatures from -20°C to +60°C — perfect for demanding outdoor environments.
- Wiegand In/Out Support: Compatible with Wiegand 26–44, 56, and 58-bit formats, allowing seamless integration into existing access control systems as a card reader or standalone controller.
- Access Records & Data Sync: Query entry logs on your phone, upload/download card and PIN user data, and copy data between devices with ease.
- Pulse & Toggle Output Modes: Choose the relay output mode that best suits your electric lock or door strike configuration.
Technical Specifications
| Model | A9-WiFi |
| Operating Voltage | DC 10–24V (12V–24V) |
| Active Current | ≤120mA |
| Idle Current | <50mA |
| Card Frequency | 125KHz (EM) / 13.56MHz (Mifare) |
| Card Types | EM Card, Mifare Card |
| Read Range | <60mm |
| User Capacity | 10,000 cards / PIN codes |
| Communication | Built-in WiFi Module |
| Smart Platform | Tuya App (Smart Life) |
| Wiegand Format | 26–44, 56, 58-bit; Input + Output |
| Waterproof Rating | IP66 |
| Operating Temperature | -20°C ~ +60°C |
| Operating Humidity | 10%–99% |
| Dimensions | 134 × 48 × 25mm |
| Country of Origin | Mainland China |
Entry Methods Supported
- RFID Proximity Card (EM 125KHz / Mifare 13.56MHz)
- PIN Keypad Code
- Tuya Smartphone App (remote & local)
- Temporary Visitor PIN Code (app-generated)
- Multi-User Combined Authorization
Ideal Applications
- Home front doors & garages
- Office buildings & co-working spaces
- Apartment complexes & gated communities
- Warehouses, storage units & server rooms
- Gyms, schools & retail facilities
For general consumer guidance on smart home device security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this WiFi Tuya access controller work with both EM and Mifare RFID cards?
A: Yes. The Asia-Teco A9-WiFi supports both 125KHz EM cards and 13.56MHz Mifare cards, giving you flexibility to use the card format that best suits your existing access control setup or preference.
Q: Can I manage users and check door status remotely using my smartphone?
A: Absolutely. With the free Tuya Smart Life App, you can remotely unlock the door, add or remove users, set permission levels, generate temporary visitor codes, and monitor your door's open/closed status in real time — from anywhere with an internet connection.
Q: Is this keypad suitable for outdoor installation?
A: Yes. The device is IP66-rated for weatherproofing, features an anti-vandal and anti-pry ABS housing, and operates in temperatures ranging from -20°C to +60°C, making it fully suitable for outdoor gates, building entrances, and other exposed environments.
Q: What is the maximum number of users this access controller can store?
A: The A9-WiFi can store up to 10,000 card and PIN code users, making it suitable for small homes all the way up to large commercial or multi-tenant facilities.
Q: Does it support integration with existing Wiegand-based access control systems?
A: Yes. The controller supports Wiegand 26–44, 56, and 58-bit formats with both input and output, so it can function as a standalone access controller or as a card reader integrated into a broader access control system.
