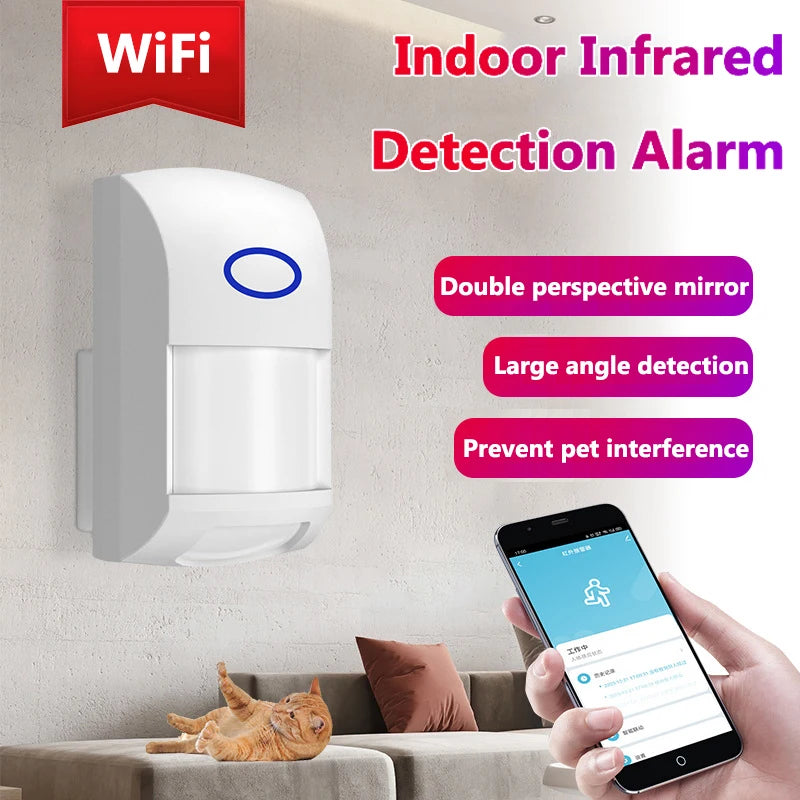

WiFi Tuya PIR Motion Sensor – Smart Indoor Infrared Detector
WiFi Tuya PIR Motion Sensor – Smart Indoor Infrared Detector
WiFi Tuya Smart PIR Motion Sensor – Indoor Infrared Detector
Stay in control of your home or business security from anywhere with this WiFi-enabled Tuya Smart PIR Infrared Motion Detector. Compatible with the Tuya and Smart Life apps, this intelligent indoor sensor delivers instant push notifications and real-time remote monitoring — all from your smartphone. Available in two models: CT60W (battery-powered) and CS62W (USB-powered).
⚠️ Power Note: The CT60W model requires 2 × AAA alkaline batteries (not included). The CS62W model plugs in via USB (DC 5V).
Made in Mainland China.
Key Features
- Ultra-Wide 110° Detection Angle: Covers up to 12 meters in front, ideal for rooms, lobbies, garages, shops, offices, and more.
- Real-Time App Control: Monitor your space live via the Tuya or Smart Life app. Receive instant push notifications the moment motion is detected — even when you're away from home.
- Four Alarm Modes (CS62W): Choose from audible & visual, silent, dark, or stealth mode to suit any environment or situation.
- Pet Immunity: Advanced optical lens detection technology prevents false triggers from small pets weighing under 25 kg, so you won't be woken by your furry friend.
- Crawl Detection: Reflective mirror technology overcomes the limitations of traditional PIR sensors that may miss low or slow-moving movement.
- Strong-Light Immunity: Accurately detects motion even under intense lighting conditions up to 10,000 Lux.
- Wireless WiFi Transmission: Uses IEEE 802.11b 2.4 GHz for reliable, cable-free connectivity.
- Easy Installation: Fixed-mount design with included installation accessories for quick wall or corner setup.
Specifications
CT60W (Battery Model)
| Working Voltage | 3V (2 × AAA, not included) |
| Quiescent Current | 30 µA |
| Working Current | 35 mA |
| Wi-Fi | IEEE 802.11b 2.4 GHz |
| Detection Distance | 12 m @ 25°C |
| Detection Angle | 110° |
| White Light Immunity | 10,000 Lux |
| Pet Immunity | ≤ 25 kg |
| Operating Temp. | -10°C to 50°C (14°F – 122°F) |
| Dimensions | 105 × 57.8 × 42.8 mm |
| Color | White |
CS62W (USB Model)
| Operating Voltage | DC 5V (USB) |
| Standby Current | < 20 mA |
| Alarm Current | < 60 mA |
| Alarm Sound | > 100 dB |
| Wi-Fi | IEEE 802.11b 2.4 GHz |
| Detection Distance | 12 m @ 25°C |
| Detection Angle | 110° |
| White Light Immunity | 10,000 Lux |
| Pet Immunity | ≤ 25 kg |
| Material | ABS |
| Dimensions | 105 × 55 × 43 mm |
| Color | White |
What's in the Box
- 1 × WiFi Infrared PIR Motion Detector
- 1 × Set of Installation Accessories
Learn More About Home Security
For guidance on best practices for home security systems and connected devices, visit the U.S. Consumer Product Safety Commission – Home Safety Resource.
Frequently Asked Questions
Q: Does the WiFi Tuya PIR motion sensor work with the Smart Life app?
A: Yes! This smart infrared motion detector is fully compatible with both the Tuya and Smart Life apps on iOS and Android. Simply connect the sensor to your 2.4 GHz WiFi network and follow the in-app setup instructions to start receiving real-time push notifications and remote control capabilities.
Q: What is the difference between the CT60W and CS62W models?
A: The main difference is the power source. The CT60W is battery-powered, requiring 2 × AAA alkaline batteries (not included), making it completely wireless and flexible for placement anywhere. The CS62W is USB-powered (DC 5V), ideal for locations near a power outlet — it also features an audible alarm of over 100 dB and four selectable alarm modes.
Q: Will this PIR sensor trigger false alarms from my pet?
A: This sensor is designed with pet immunity technology that prevents false triggers from animals weighing up to 25 kg (approximately 55 lbs). Advanced optical lens detection and reflective mirror technology work together to accurately distinguish between human movement and small pets — even when they're moving low to the ground in dark conditions.
Q: What WiFi frequency does this motion detector require?
A: This device operates on a 2.4 GHz WiFi network (IEEE 802.11b standard). It is not compatible with 5 GHz WiFi networks. Please ensure your router is set to broadcast a 2.4 GHz band before pairing the device.
Q: Can I use this sensor outdoors?
A: This PIR motion detector is designed for indoor use only. It performs optimally within a temperature range of -10°C to 50°C and covers a detection range of up to 12 meters with a 110° wide-angle field of view indoors.
