WiFi Tuya Fingerprint RFID Door Access Control Keypad IP66
WiFi Tuya Fingerprint RFID Door Access Control Keypad IP66
LUCKING DOOR WiFi Tuya Smart Fingerprint RFID Access Control Keypad
Take full command of who enters your space with the LUCKING DOOR HD1-TUYA — a professional-grade, stand-alone door access control system featuring fingerprint recognition, RFID card reading, PIN code entry, and full WiFi / Tuya Smart App control. Built with a rugged metal body and an IP66-rated waterproof design, this unit is engineered for both indoor and outdoor installations. The vivid OLED/LCD display makes setup and daily operation intuitive and straightforward. Made in China.

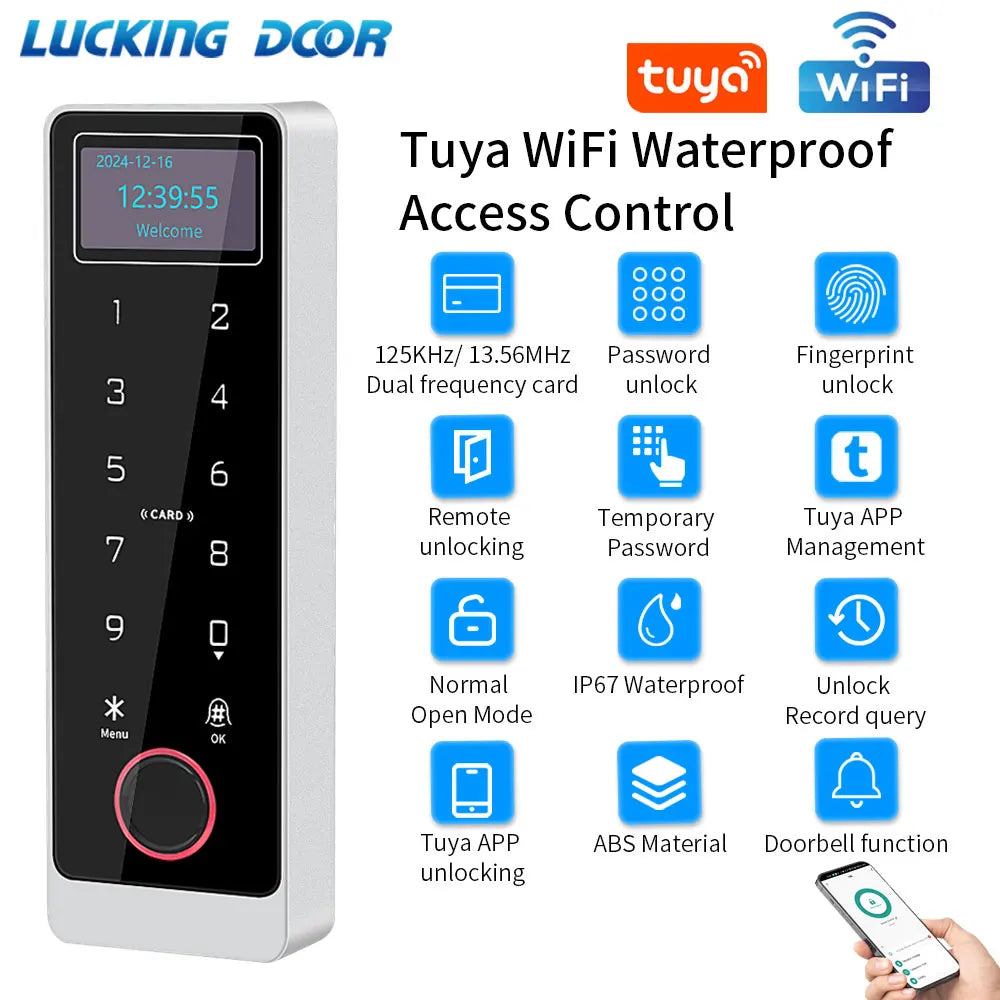

Key Features & Benefits

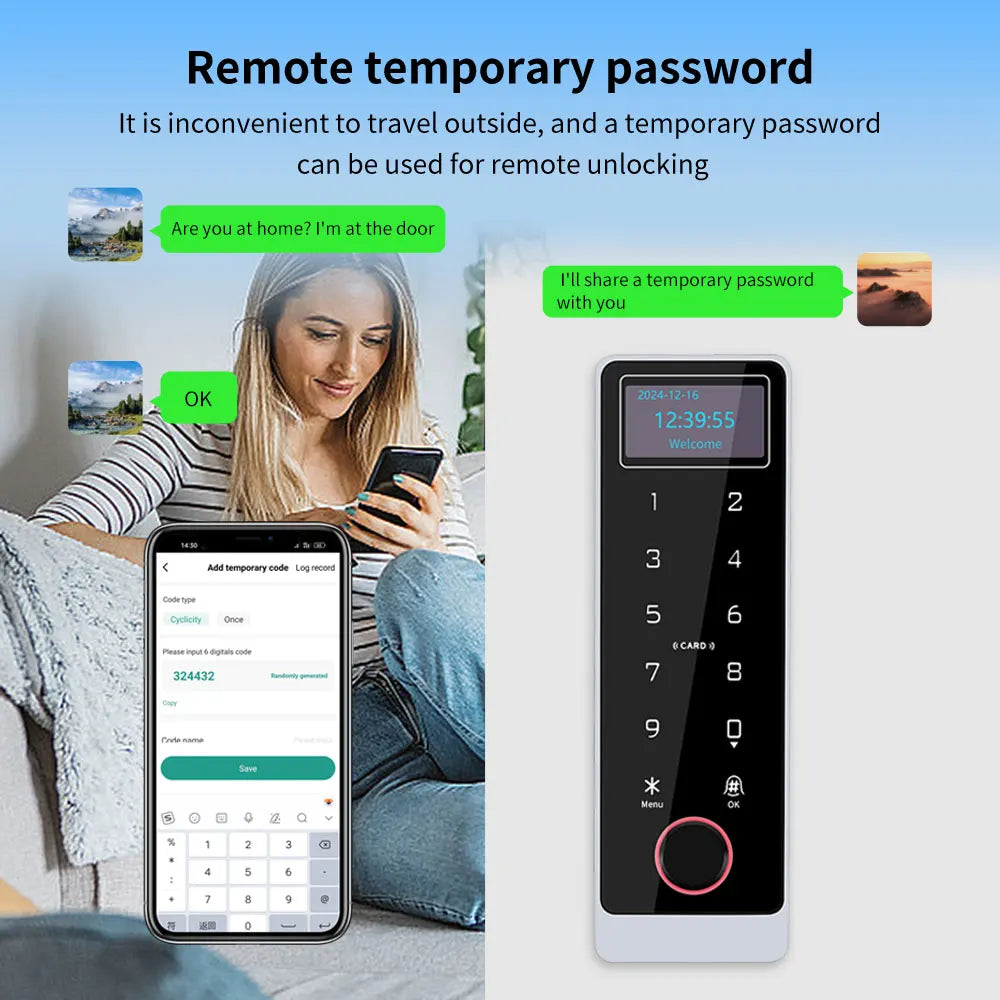

- Tuya Smart App Control: Manage users, unlock doors, check door status, and set temporary PIN codes remotely from your smartphone — iOS or Android.

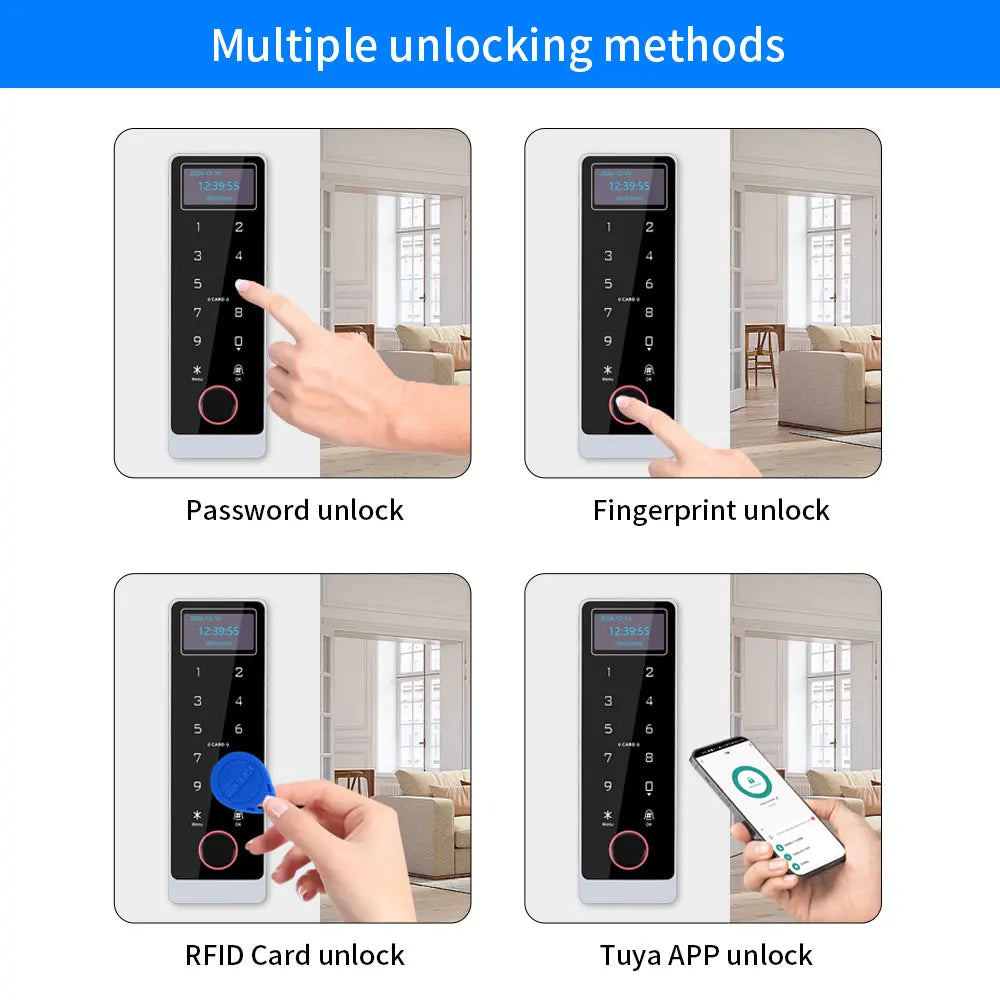

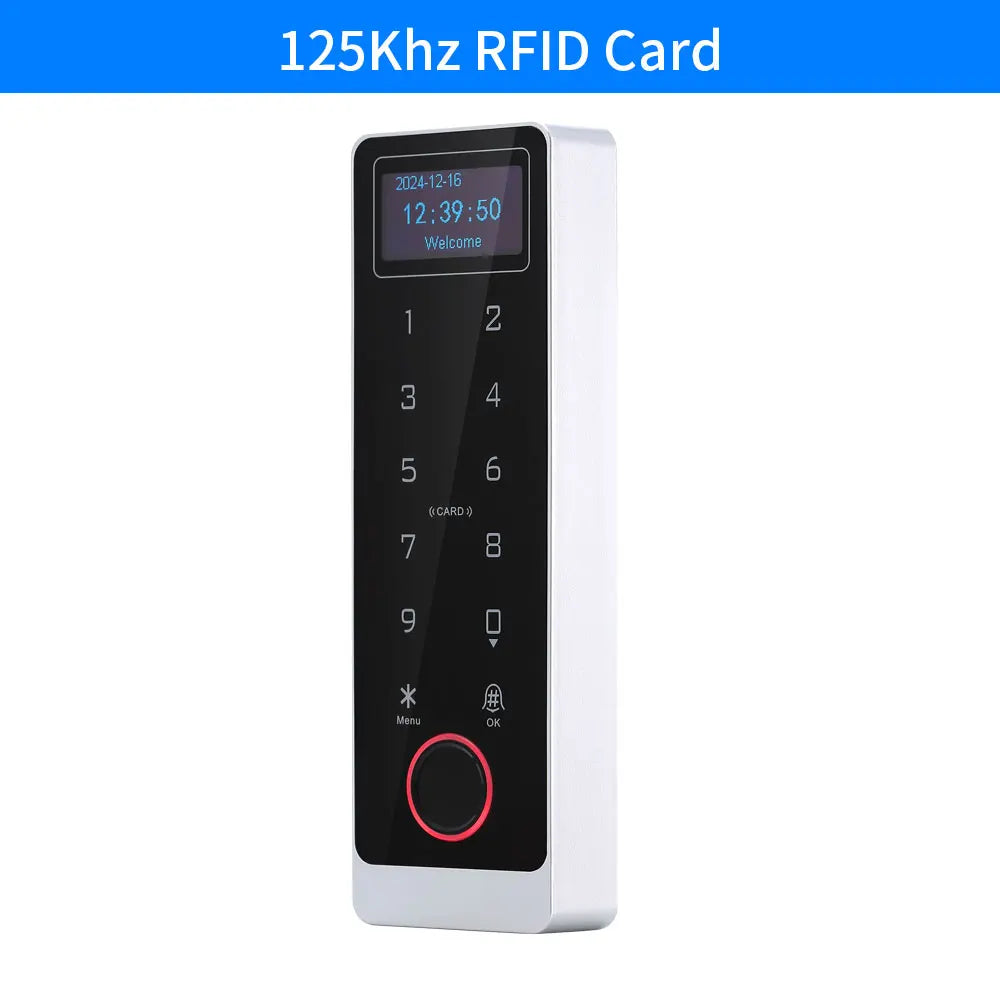

- Multiple Access Modes: Unlock via fingerprint, RFID card (125kHz EM or 13.56MHz M1), or PIN code. Multi-user unlock combinations also supported.
- Large User Capacity: Stores up to 5,000 card/PIN users and 100 fingerprint users (expandable to 500 with OEM option).
- IP66 Waterproof Rating: Fully weatherproof — ideal for exterior gates, office entrances, warehouses, and more.
- OTA Online Upgrade: Keep the firmware current automatically over WiFi — no manual intervention needed.
- Wiegand Input/Output: Supports Wiegand 26–58 bit formats, making it compatible with existing security infrastructure as both a standalone controller or external card reader.
- Flexible Output Modes: Switch between Pulse Mode and Toggle Mode to suit your electric lock wiring configuration.

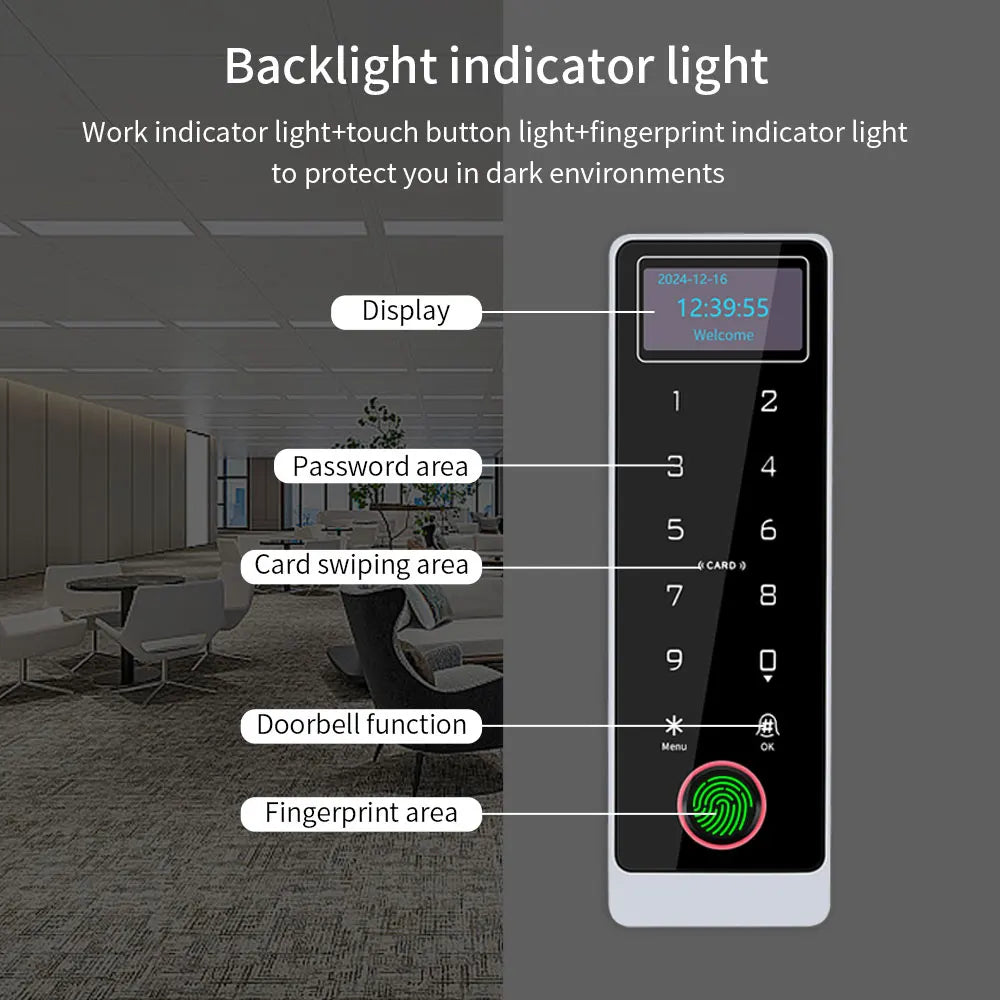

- Visual Operation Menu: Clear OLED display with on-screen menus for easy programming without a separate laptop or controller.
- CE & FCC Certified: Meets international compliance standards for reliability and safety.
Technical Specifications
| Model | HD1-TUYA |
| Operating Voltage | DC 10–24V |
| Active Current | <120mA |
| Idle Current | <60mA |
| Card Frequency | 125kHz / 13.56MHz |
| Card Type | EM, M1, or EM & M1 |
| Card / PIN Users | 5,000 |
| Fingerprint Users | 100 (up to 500 OEM) |
| Read Range | <60mm |
| Wiegand Support | 26–58 bits input/output |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10%–99% |
| Waterproof Rating | IP66 |
| Smart Platform | Tuya |
| Certification | CE, FCC |
| Country of Origin | Made in China |
Ideal Applications
- Home front doors, garages, and gates
- Small business offices and retail stores
- Warehouses, server rooms, and storage facilities
- Apartment buildings and co-working spaces
Learn More About Access Control & Security Standards
For guidance on physical security and access control best practices, the U.S. Consumer Product Safety Commission offers helpful resources: CPSC.gov.
Frequently Asked Questions
Q: Does this WiFi Tuya fingerprint access control keypad work with Alexa or Google Home?
A: The HD1-TUYA runs on the Tuya Smart platform, which supports integration with Amazon Alexa and Google Home via the Tuya/Smart Life app ecosystem, allowing you to use voice commands for door control where your smart home setup is compatible.
Q: What type of electric lock does this RFID access control system support?
A: The system supports a wide range of electric locks including electric strikes, magnetic locks (maglocks), and electric bolt locks. It offers both Pulse Mode and Toggle Mode output, giving you flexibility to match your specific lock wiring requirements.
Q: Is the fingerprint reader reliable in wet or outdoor conditions?
A: Yes. The unit carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and heavy rain, making it well-suited for outdoor gates, building entrances, and other exposed locations across an operating temperature range of -20°C to +60°C.
Q: Can I add or remove users remotely through the Tuya app?
A: Absolutely. The Tuya Smart App allows you to add or delete card, PIN, and temporary passcode users remotely from your smartphone. Fingerprint enrollment typically requires physical presence at the device for biometric capture.
