WiFi Tuya Fingerprint Door Lock Keypad – Dual Frequency Card Reader
WiFi Tuya Fingerprint Door Lock Keypad – Dual Frequency Card Reader
Asia-Teco WiFi Tuya Fingerprint Access Control Keypad – Dual Frequency Card Reader

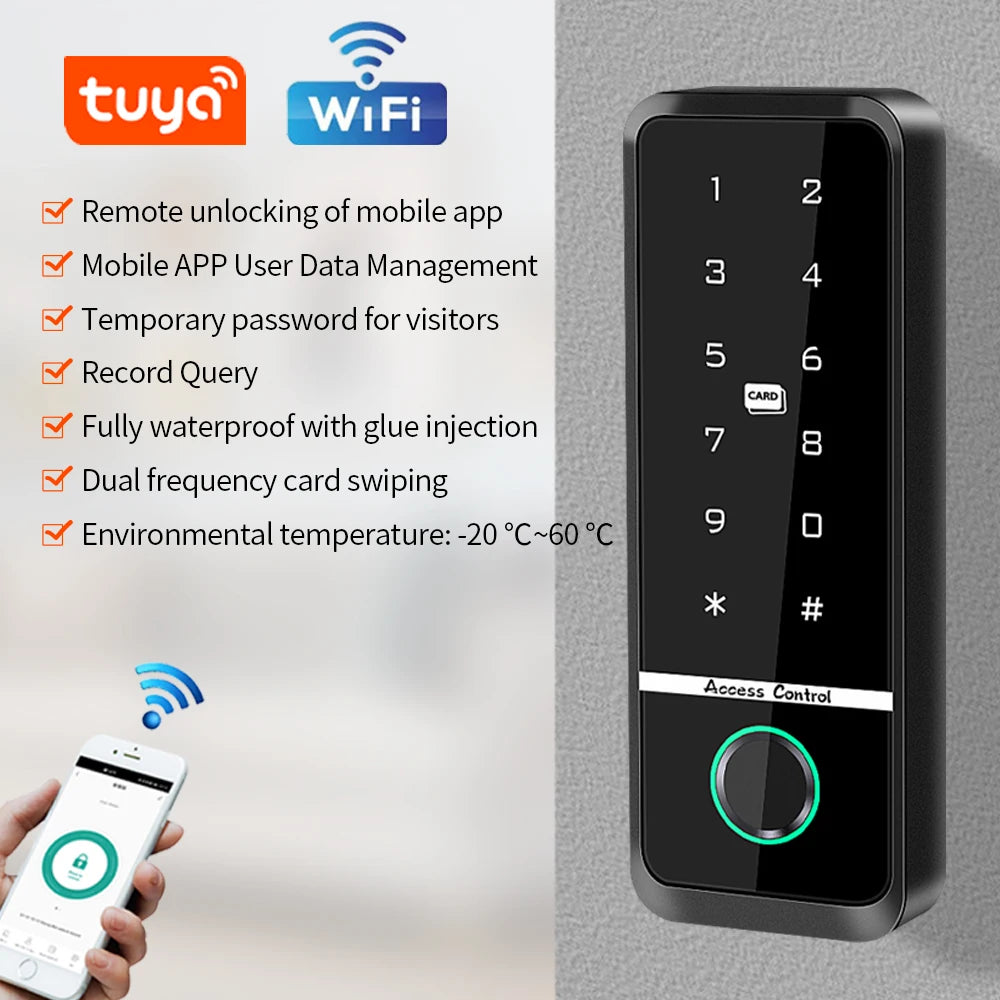

Upgrade your entryway security with the Asia-Teco TF108EM/MF-W-WIFI — a next-generation, all-in-one smart access control keypad that combines fingerprint recognition, dual-frequency card reading (125 KHz EM & 13.56 MHz MIFARE), PIN code entry, and full WiFi connectivity via the Tuya Smart App. Designed for outdoor durability with an IP66 waterproof rating and rugged ABS+PC housing, this standalone unit is built to perform in virtually any environment. Made in China.
Key Features
- Multiple Access Methods: Unlock via fingerprint, proximity card (EM or MIFARE), PIN code, Tuya app remote command, or multi-user combination — full flexibility for every scenario.

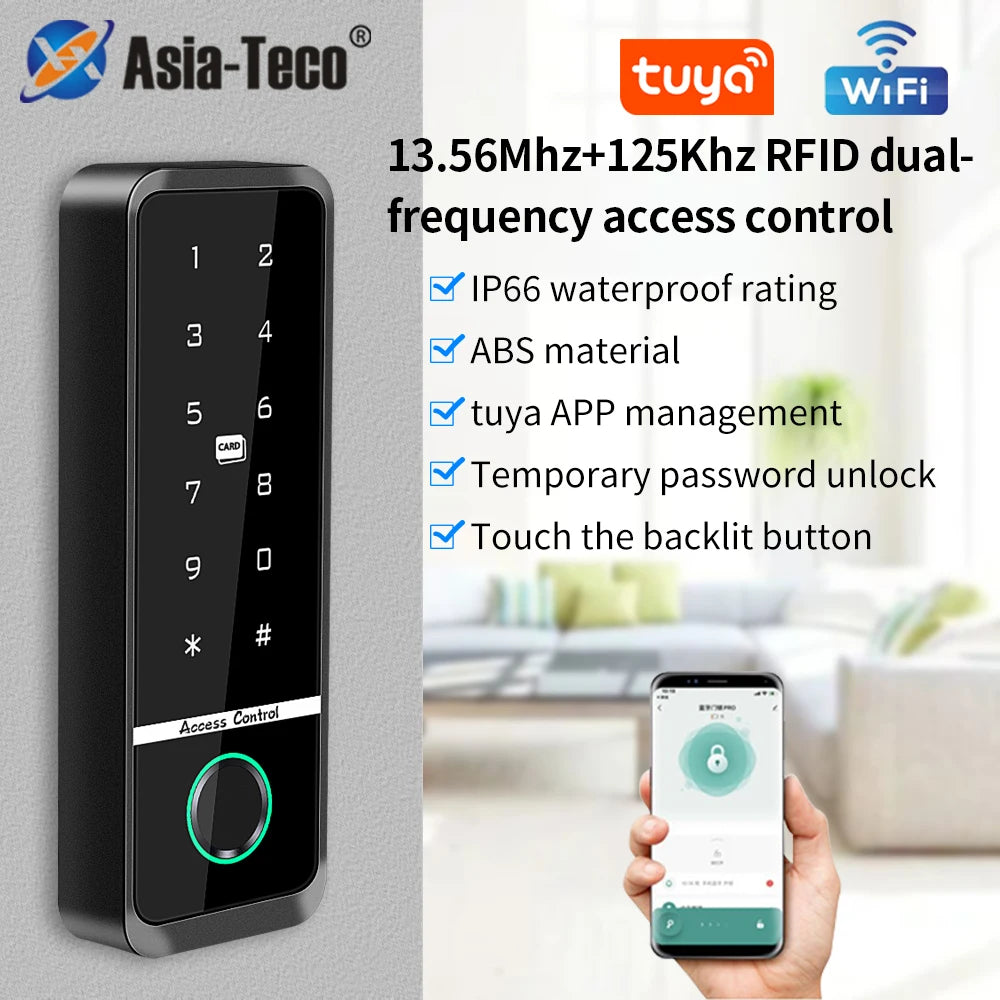

- Dual Frequency Card Support: Reads both 125 KHz (EM) and 13.56 MHz (MIFARE) cards simultaneously — no need for separate readers.

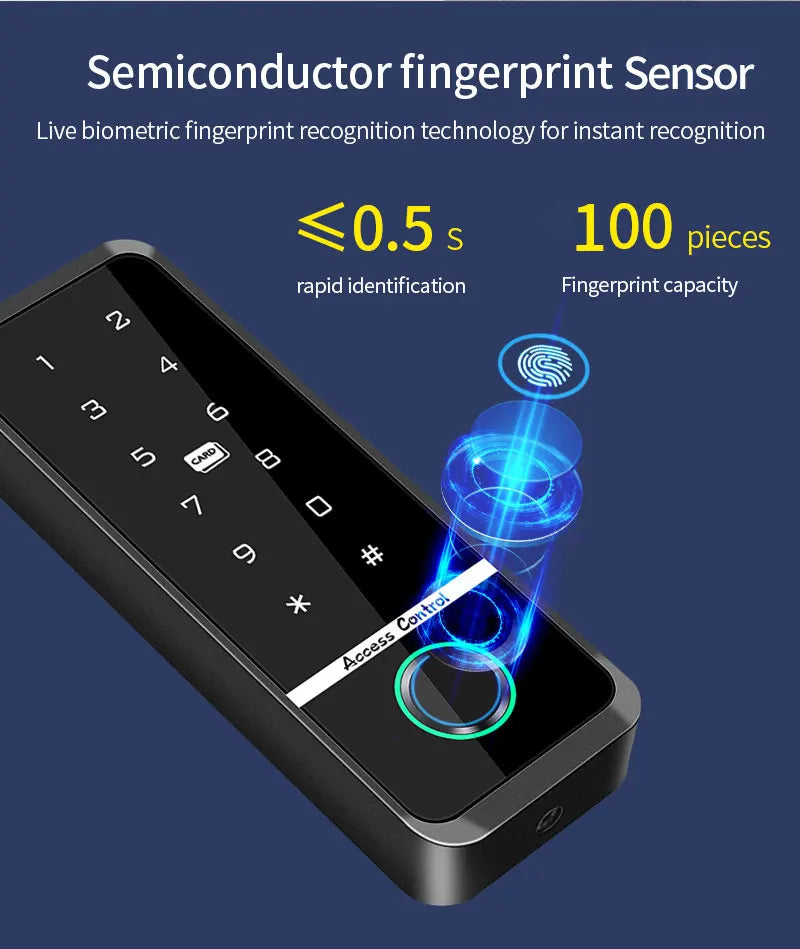

- High User Capacity: Stores up to 100 fingerprints locally, 2,800 cards locally (400 cards + 100 fingerprints via app), and supports 10 visitor user slots.

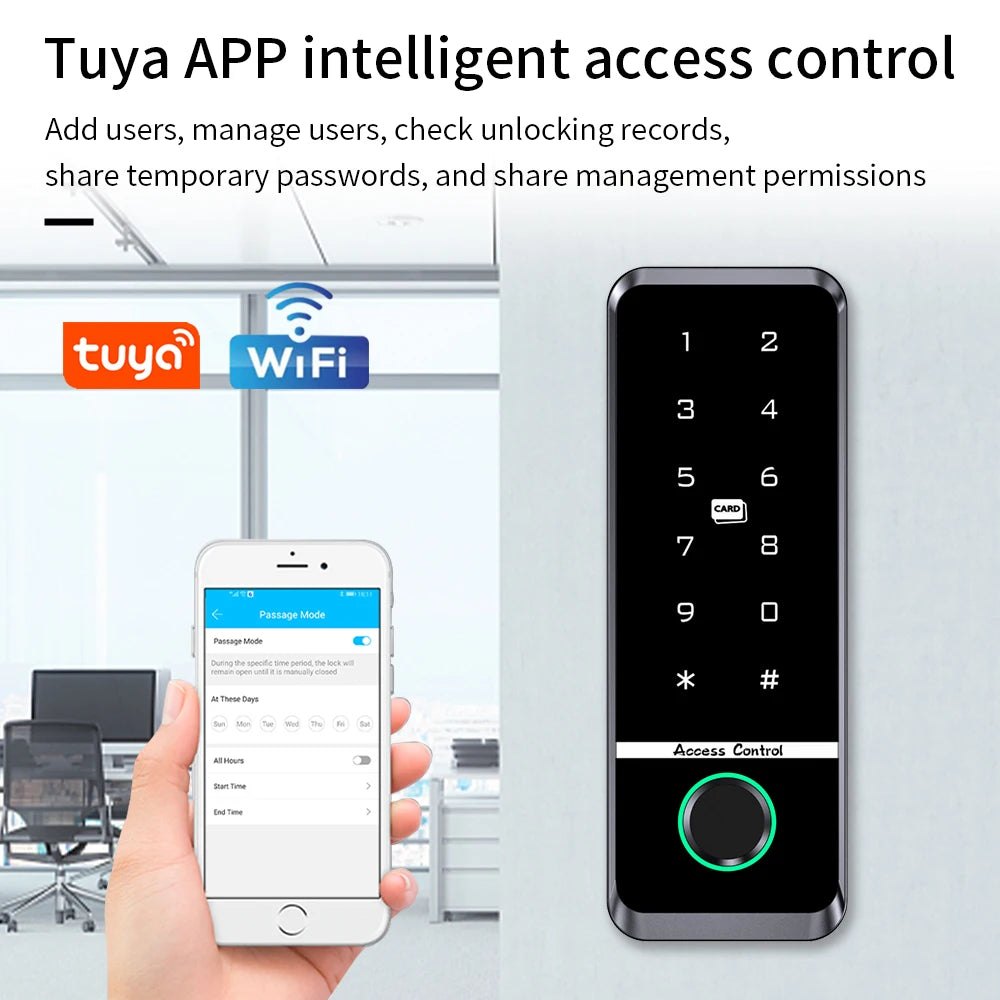

- Tuya WiFi Smart Home Integration: Control and monitor access remotely via the Tuya Smart App. Generate temporary one-time passwords for guests directly from your phone.
- IP66 Waterproof & Vandal-Resistant: ABS+PC shell rated IP66 — fully protected against dust ingress and powerful water jets. Anti-prying and anti-explosion construction for physical security.
- Wiegand Compatible: Configurable as a professional Wiegand card reader. MIFARE Wiegand: 26–44 bit, 56 bit, 58 bit input/output. EM Wiegand: 26-bit. PIN Wiegand output: 4-bit, 8-bit (ASCII), 10-digit virtual card number.
- Pulse & Toggle Mode: Supports both Pulse Mode and Toggle Mode for versatile relay control configurations.
- Wide Operating Range: Operates from -20°C to +60°C (-4°F to 140°F) and 10%–99% humidity — ideal for harsh outdoor environments.
- CE Certified: Meets European safety and electromagnetic compatibility standards.
Technical Specifications
| Model | TF108EM/MF-W-WIFI |
| Operating Voltage | DC 12V ±25% |
| Active Current | ≤150 mA |
| Idle Current | ≤45 mA |
| Card Frequency | 125 KHz & 13.56 MHz |
| Card Type | EM & MIFARE |
| Fingerprint Capacity | 100 (local & app) |
| Card Capacity | 2,800 local / 400 via app |
| PIN / Card Users | 1,000 |
| Read Distance | ≤30 mm |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10%–99% |
| Waterproof Rating | IP66 |
| Smart Platform | Tuya / Tuya App |
| Certification | CE |
| Country of Origin | Made in China |
What's in the Box?
- 1 × Asia-Teco WiFi Tuya Fingerprint Access Control Keypad (TF108EM/MF-W-WIFI)
- Mounting hardware & installation guide
Why Choose This Smart Access Control Keypad?
Whether you're securing a home entrance, office door, apartment gate, or commercial facility, this keypad delivers professional-grade security in a weather-hardened, connected package. Remote access management, temporary password generation, and Tuya ecosystem integration make it one of the most versatile standalone access control solutions available. For general guidance on electronic security devices and consumer safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this WiFi Tuya fingerprint keypad work with both EM and MIFARE cards?
A: Yes — the Asia-Teco TF108EM/MF-W-WIFI is a true dual-frequency reader supporting both 125 KHz EM cards and 13.56 MHz MIFARE cards, so you can use whichever card type you already have without replacing your existing cards.
Q: How many users can be added to this access control keypad?
A: The keypad supports up to 100 fingerprints and 2,800 card users locally, plus 400 cards and 100 fingerprints managed through the Tuya Smart App. An additional 10 visitor user slots are also available for temporary access.
Q: Can I grant temporary access to guests remotely?
A: Absolutely. Through the Tuya Smart App, you can generate temporary one-time passwords and share them with guests from anywhere — no physical key or card required. You can also open the door remotely directly from the app.
Q: Is this keypad suitable for outdoor installation?
A: Yes. The unit carries an IP66 waterproof rating, meaning it is fully protected against dust and powerful water jets. Combined with its ABS+PC anti-vandal housing and operating range of -20°C to +60°C, it is well-suited for exposed outdoor environments.
Q: Can this device be used as a Wiegand card reader for an existing access control system?
A: Yes. The keypad can be configured as a professional Wiegand input/output device, supporting MIFARE Wiegand formats (26–44 bit, 56 bit, 58 bit) and EM Wiegand 26-bit, making it compatible with most standard access control panels.
