WiFi Smart Voltage Protector & kWh Energy Meter 85-300V
WiFi Smart Voltage Protector & kWh Energy Meter 85-300V
WiFi Smart Voltage Protector, Leakage Guard & Energy Meter (85–300V)
Take full control of your home or business electrical system with this all-in-one WiFi Smart Voltage Protector and Energy Meter. Compatible with the Smart Life app, this intelligent relay switch monitors and safeguards your circuits against over-voltage, under-voltage, earth leakage, and over-current — all in real time, from anywhere in the world.
Whether you're protecting expensive appliances, monitoring your monthly energy consumption, or automating your electrical setup, this smart breaker device delivers professional-grade protection in a compact, DIN-rail-ready form factor. Made in Mainland China.
Key Features
- Wide Input Range: Operates across 80–300V to suit a broad range of electrical systems worldwide.
- Over-Voltage Protection: Adjustable from 120–300V (default: 275V) — automatically disconnects to guard your appliances.
- Under-Voltage Protection: Adjustable from 85–200V (default: 160V) — prevents low-voltage damage to connected devices.
- Earth Leakage Protection: Configurable from 10–99mA (default: 30mA) — detects ground faults within milliseconds for added safety.
- Over-Current Protection: Adjustable from 1–63A (default: 63A) — shields circuits from excessive current draw.
- Fast Action Time: Trips in under 1 second (<1s) to minimize risk the moment an anomaly is detected.

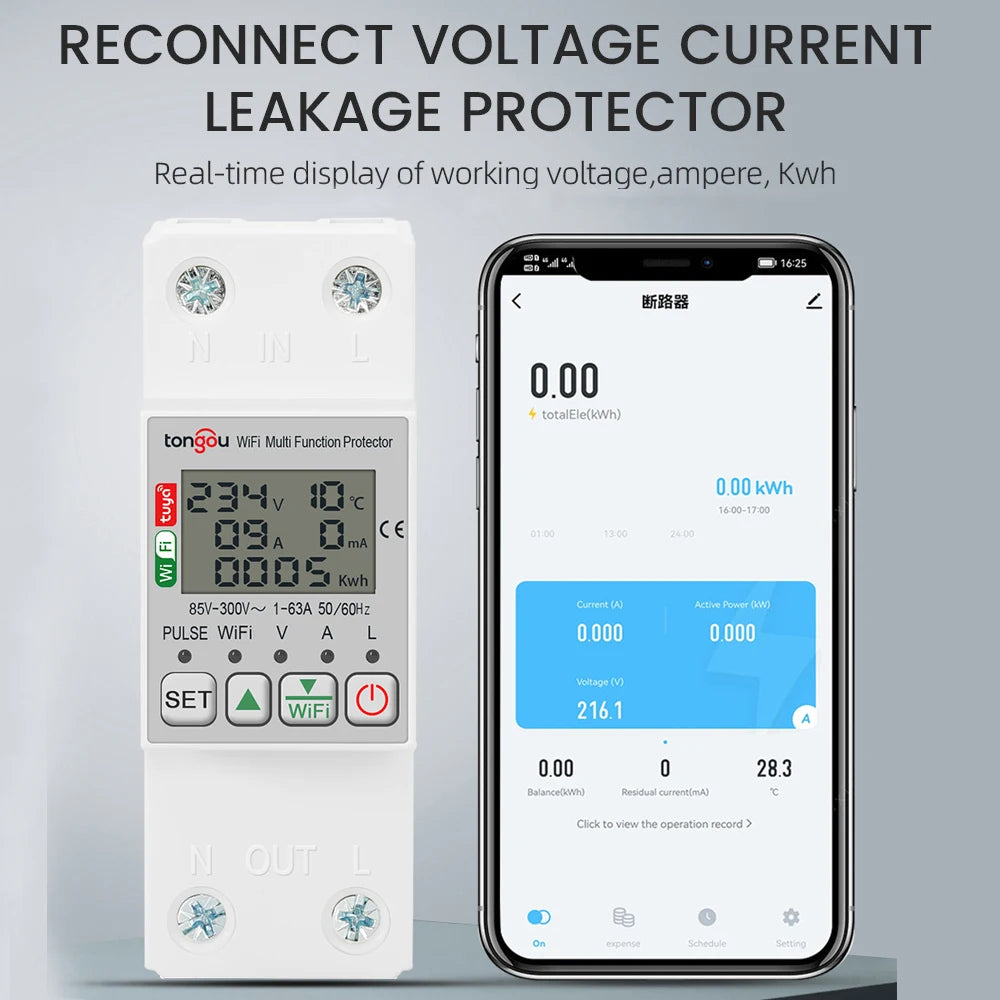

- Energy Monitoring (kWh Meter): Tracks real-time power consumption so you can optimize energy usage and reduce bills.

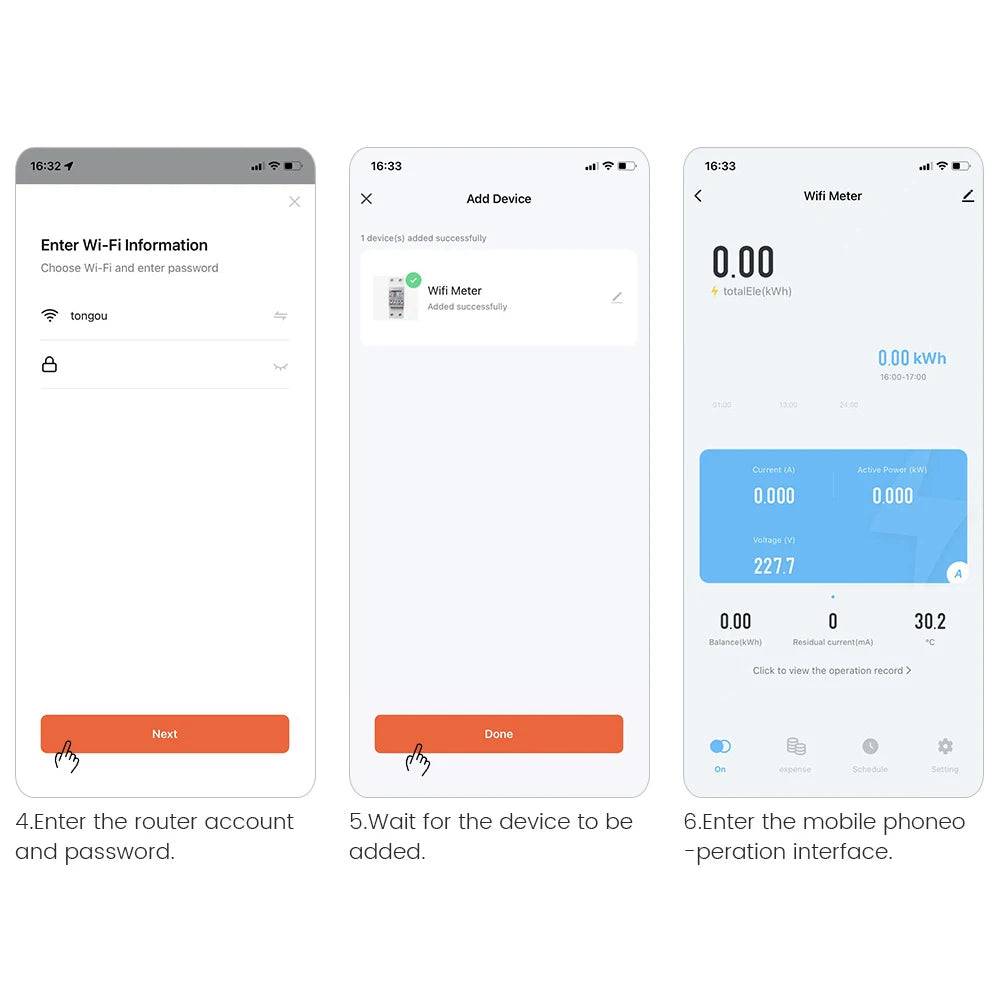

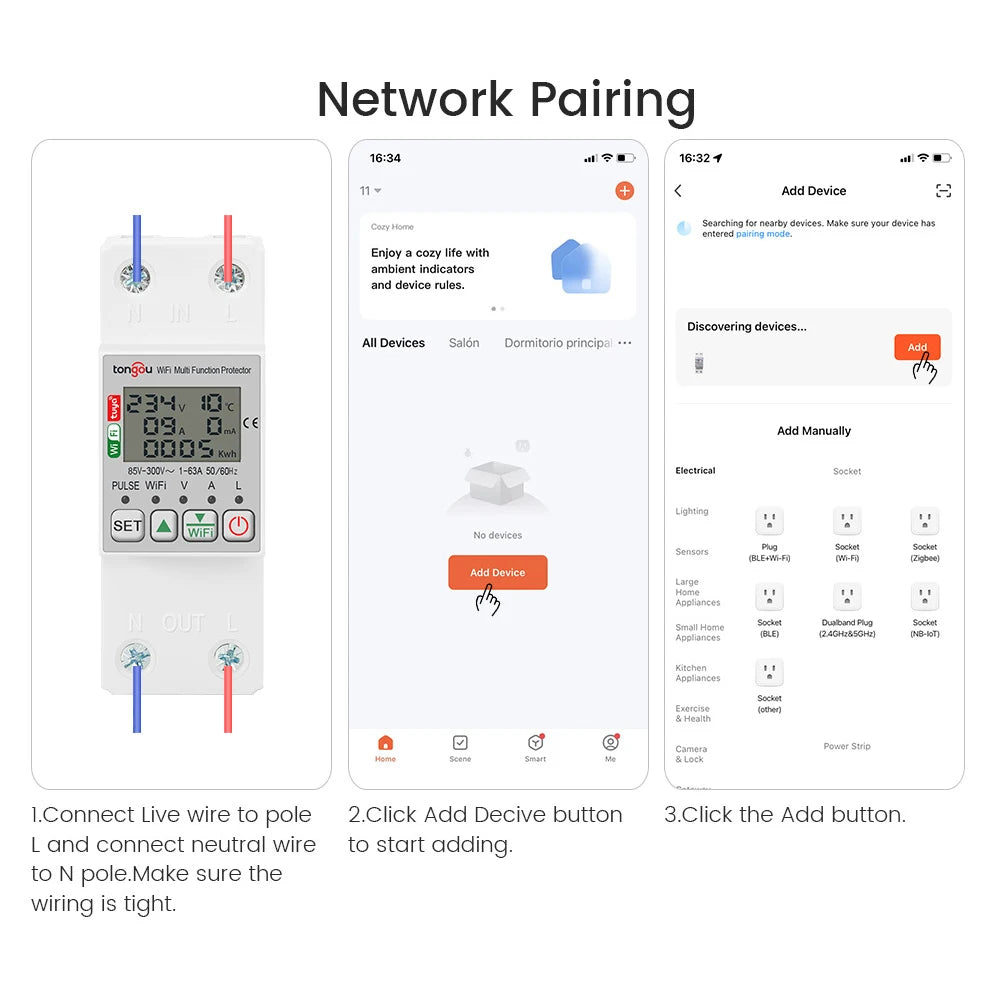

- WiFi & Smart Life App Control: Set thresholds, receive instant alerts, and remotely switch your circuit on or off — all from your smartphone.
- Low Standby Consumption: Device self-consumption is ≤2W, so it works hard without wasting energy.

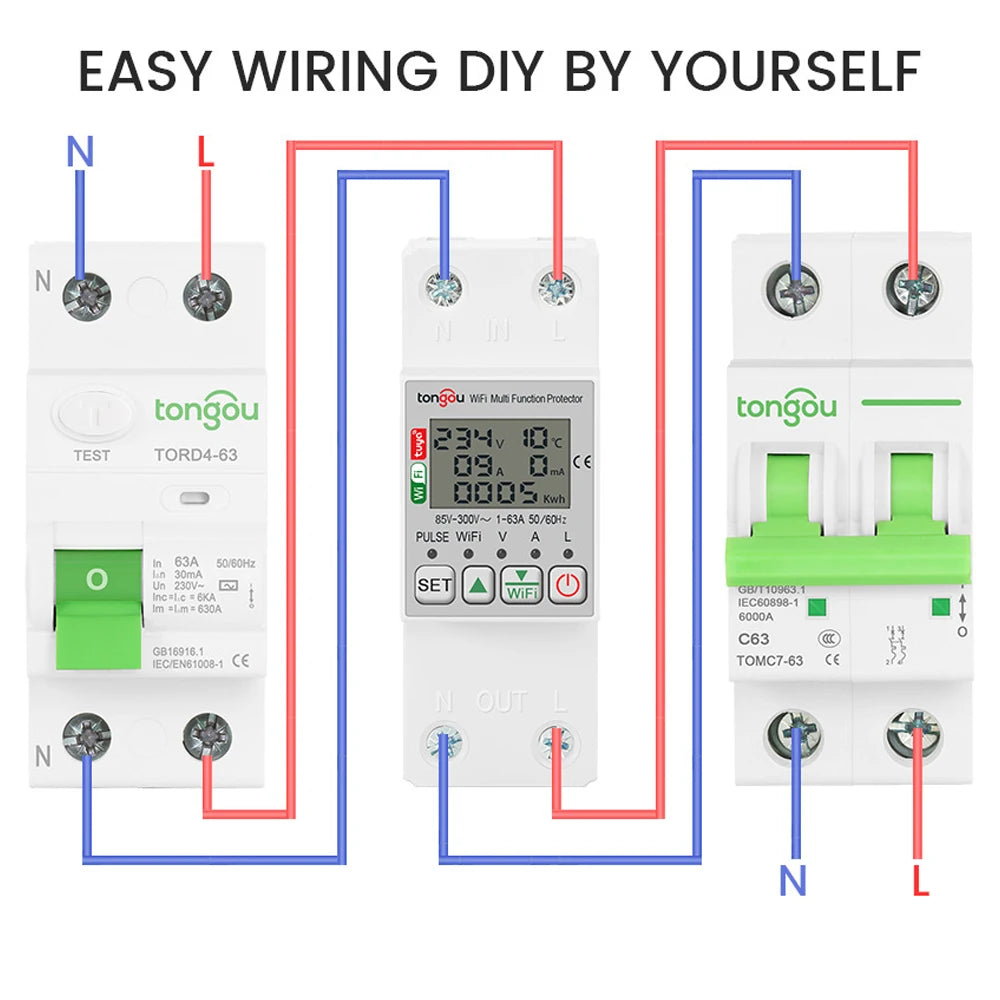

- DIY-Friendly Electrical Install: Designed for straightforward installation in standard electrical panels or DIN-rail enclosures.
Technical Specifications
| Input Voltage | 80–300V |
| Over-Voltage Protection | 120–300V (default 275V) |
| Under-Voltage Protection | 85–200V (default 160V) |
| Leakage Protection | 10–99mA (default 30mA) |
| Over-Current Protection | 1–63A (default 63A) |
| Action Time | <1 second |
| Device Power Consumption | ≤2W |
| Connectivity | WiFi (Smart Life / Tuya compatible) |
| Battery Required | No |
| Country of Origin | Mainland China |
What's in the Box
- 1× WiFi Smart Energy Meter & Voltage Protector
Important Notes
- Due to lighting and display differences, the item's color may appear slightly different from product images.
- Please allow 1–3cm variance due to manual measurement.
- Electrical installation should be carried out by a qualified electrician in accordance with local codes and regulations.
For guidance on electrical safety standards and safe wiring practices, refer to the U.S. Consumer Product Safety Commission – Electrical Safety and OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: What app is compatible with this WiFi smart voltage protector?
A: This device is compatible with the Smart Life and Tuya apps, available for free on both iOS and Android. Once connected to your home WiFi, you can monitor energy usage, adjust voltage thresholds, receive real-time alerts, and remotely control the breaker switch directly from your smartphone.
Q: Can I adjust the over-voltage and under-voltage trip thresholds myself?
A: Yes. The over-voltage protection is adjustable between 120V and 300V (factory default: 275V), and the under-voltage protection is adjustable between 85V and 200V (factory default: 160V). You can customize these values through the Smart Life app to match your specific electrical requirements.
Q: Is this device suitable for both residential and commercial electrical panels?
A: This smart protector is designed for standard single-phase electrical systems operating between 80–300V, making it suitable for a wide range of residential and light commercial applications. Always ensure installation is performed by a qualified electrician in compliance with local electrical codes.
Q: Does the kWh energy meter record historical power consumption data?
A: Yes. The integrated kWh energy meter tracks real-time and cumulative power consumption, which can be viewed through the Smart Life app. This helps you monitor energy usage trends and manage electricity costs more effectively.
