WiFi Smart Lock Biometric Fingerprint RFID Tuya App – Glass & Wood
WiFi Smart Lock Biometric Fingerprint RFID Tuya App – Glass & Wood
Asia-Teco WiFi Smart Lock – Keyless Entry for Glass & Wooden Doors
Upgrade your home or office security with the Asia-Teco JD-S1 WiFi Smart Lock. This drilling-free, multi-access electronic door lock works seamlessly with the Tuya Smart App over 2.4 GHz WiFi — no hub or gateway required. Unlock your door in under 0.3 seconds using your fingerprint, RFID card, custom PIN code, mechanical key, or remotely via the app from anywhere in the world.
Constructed from durable ABS and aluminium alloy with an oil-rubbed finish, this smart lock fits a wide range of door types — from frameless glass doors (10–12 mm thick) to wooden, steel, and framed glass doors (40–75 mm thick). The reversible handle accommodates both left- and right-handed door configurations.
Made in Mainland China.
Key Features
- 🔒 7 Unlock Methods: Tuya App, Fingerprint, RFID Card, PIN Code, Mechanical Key, Remote Control & WiFi

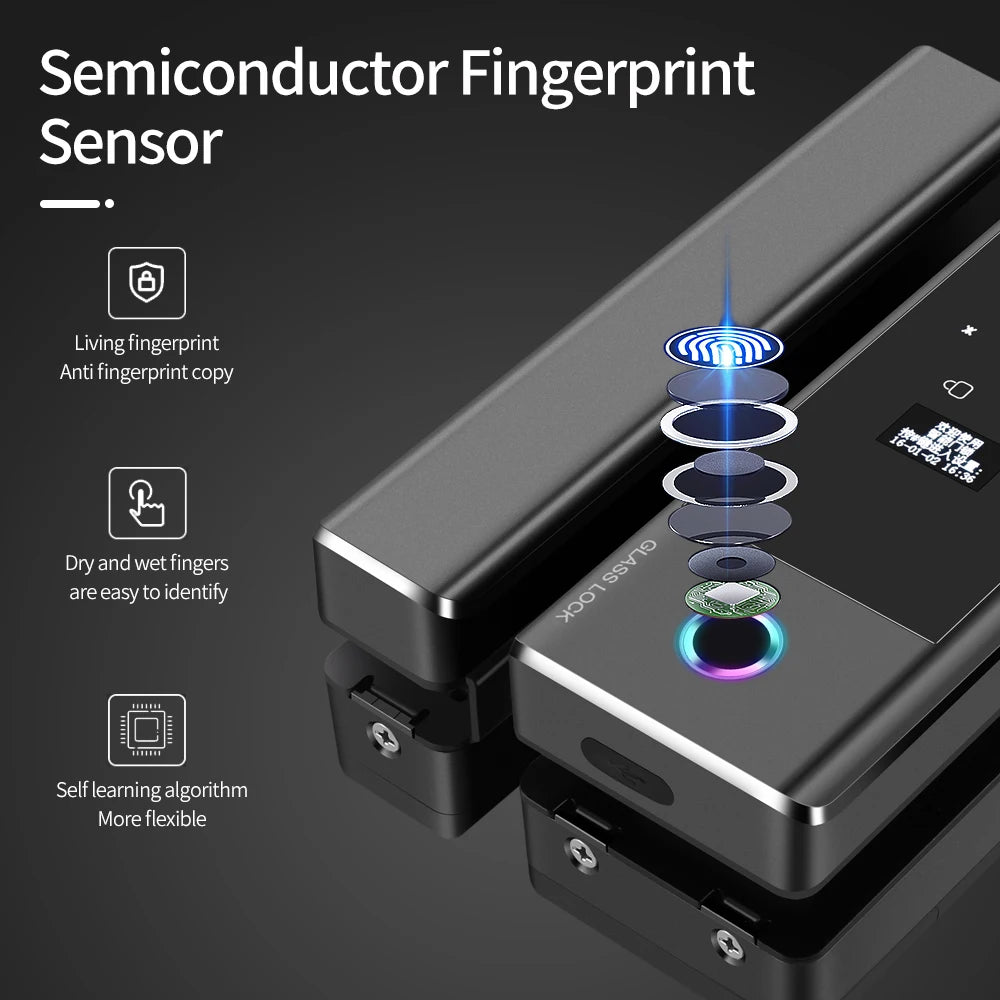

- ⚡ Instant Recognition: Sub-0.3-second fingerprint identification via semiconductor sensor

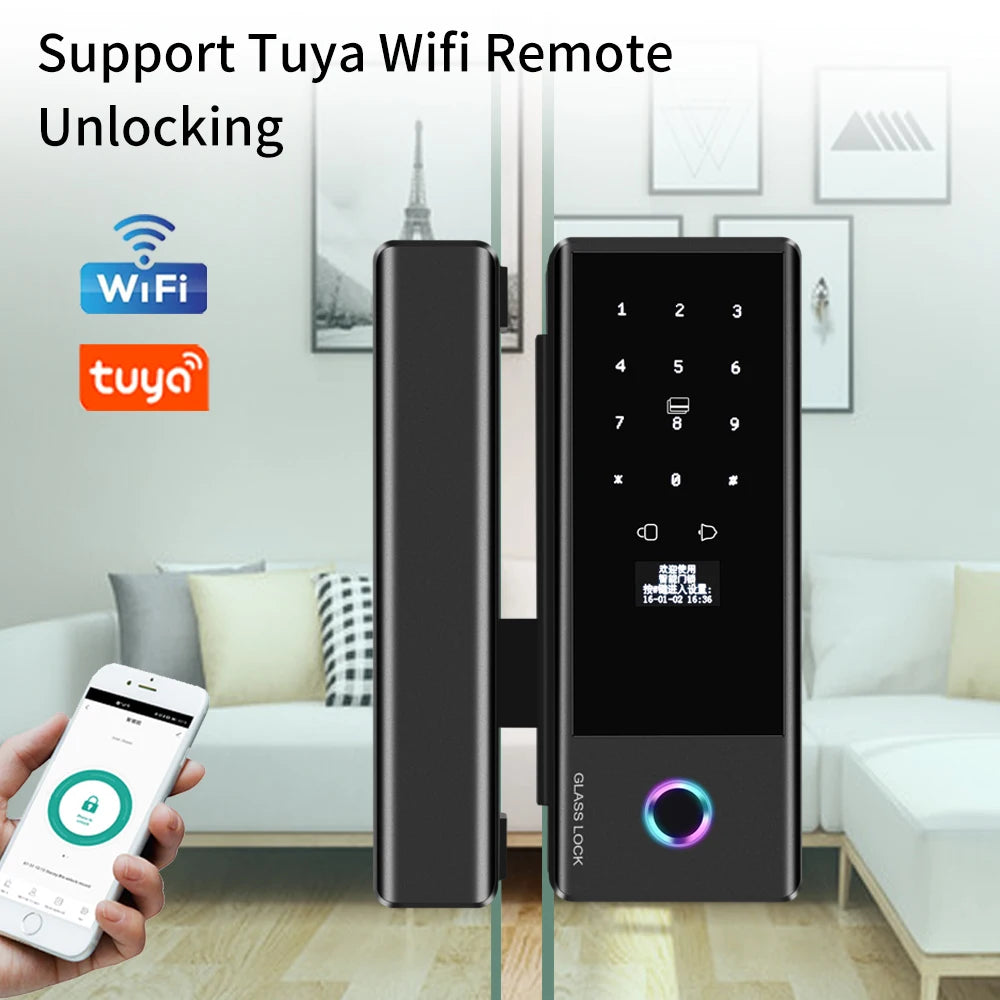

- 📱 Tuya Smart App: Connects directly to 2.4 GHz WiFi — no hub needed. Remote access & guest code sharing anytime
- 🚪 Versatile Door Compatibility: Frameless glass (10–12 mm), wood, steel, brass, stainless steel & framed glass (40–75 mm)
- 🔢 Custom PIN Codes: User-defined 4–8 digit codes + temporary access codes for guests
- 💡 Backlit Keypad: Easy visibility in low light conditions
- 🔋 Battery Powered: 4 × 1.5V AA batteries; USB DC 5V emergency backup power

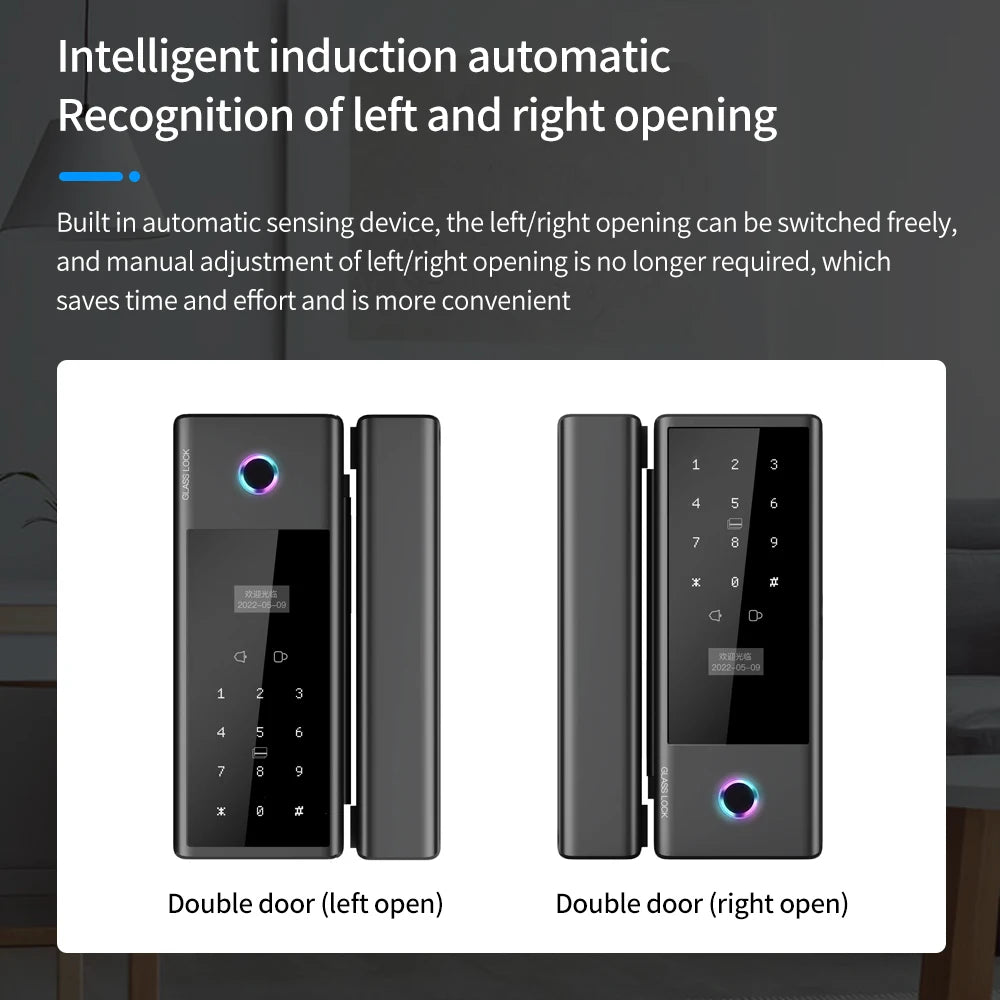

- ↔️ Reversible Handle: Fits left- or right-handed door configurations
- 📲 Smartphone Compatible: iOS 7.0+ and Android 4.4+
- 🌡️ Wide Temperature Range: -25°C to 65°C (-4°F to 149°F)
- 🔩 Drilling-Free Installation: Clamps onto frameless glass doors — no drilling required
Technical Specifications
| Model | JD-S1 |
| Brand | Asia-Teco |
| Material | ABS & Aluminium Alloy |
| Finish | Oil Rubbed |
| Connectivity | 2.4 GHz WiFi (Tuya Smart Platform) |
| Power Supply | 4 × 1.5V AA batteries; USB DC 5V emergency |
| Working Current | Dynamic <200 mA; Static <130 µA |
| Working Temperature | -25°C to 65°C |
| Working Humidity | 5–95% |
| Door Thickness | Frameless Glass: 10–12 mm | Framed/Wood/Metal: 40–75 mm |
| Handle Direction | Reversible (Left & Right) |
| Smart Platform | Tuya Smart App (iOS 7.0+ / Android 4.4+) |
| Waterproofing | Indoor Use (Not Waterproof) |
| Origin | Mainland China |
How to Set Up the Tuya App
- Search for "Tuya Smart" in the Apple App Store or Google Play Store and install the app.
- Create a new account using your email address or mobile phone number and log in.
- In the app, tap "Add Device" and follow the on-screen instructions to connect the lock to your 2.4 GHz WiFi network.
- Once connected, manage access codes, monitor lock history, and share temporary codes — all from your smartphone, anywhere.
Note: The Tuya Smart platform currently supports 2.4 GHz WiFi only. Please ensure your router broadcasts a 2.4 GHz network before setup.
Door Type Installation Guide

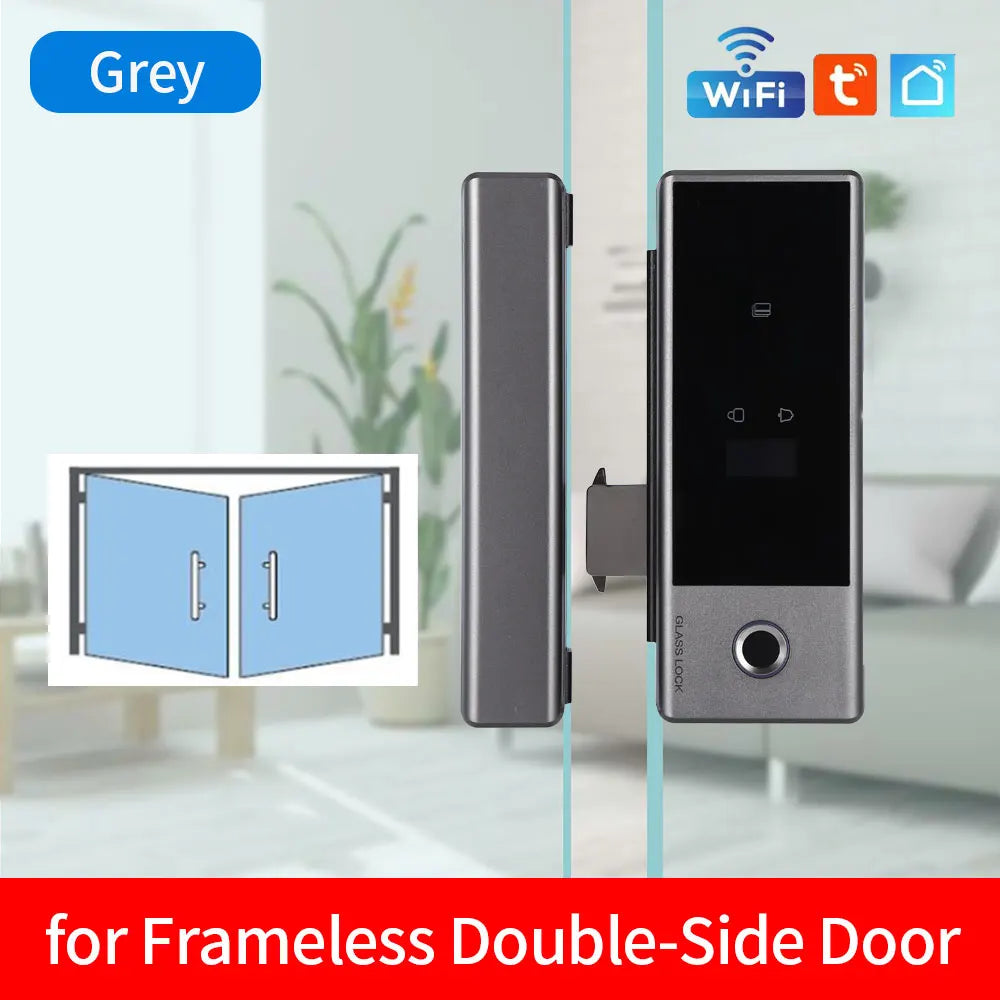

- Frameless Glass Doors: Thickness 10–12 mm, door gap 5–10 mm. Drilling-free clamp installation.
- Wooden / Metal / Framed Glass Doors: Thickness 40–75 mm, door frame width ≥ 60 mm. A punch hole is required for this door type — select "Frame Door" when ordering.
For more information on smart home security best practices, visit the FTC Internet of Things Security Resources.
Frequently Asked Questions
Q: Does the Asia-Teco WiFi Smart Lock require a separate hub or gateway to connect to WiFi?
A: No — the JD-S1 smart lock connects directly to your home's 2.4 GHz WiFi network via the Tuya Smart App without any additional hub or gateway. Simply download the Tuya Smart app, create an account, and pair the lock to your network in minutes.
Q: What door types is this smart lock compatible with?
A: This lock is compatible with frameless glass doors (10–12 mm thick), as well as wooden, steel, brass, stainless steel, and framed glass doors (40–75 mm thick). The frameless glass version installs without drilling, while the framed/wooden door version requires a hole to be punched.

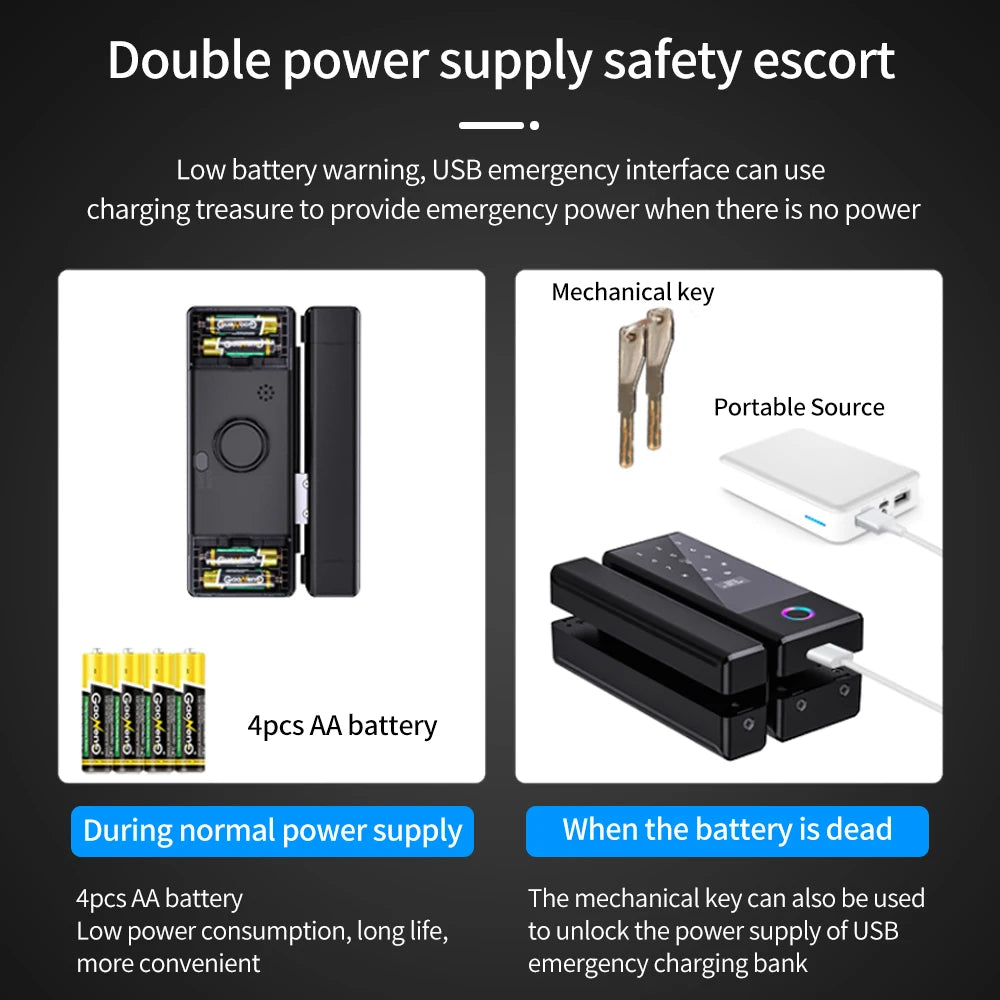

Q: What happens if the batteries run out — can I still get in?
A: Yes. The lock features a USB DC 5V emergency power input. Simply connect a USB power bank to the emergency port on the lock to supply temporary power, then enter your PIN or use your mechanical key to unlock the door and replace the batteries.
Q: Can I give temporary access to guests or service providers?
A: Absolutely. Through the Tuya Smart App, you can generate time-limited temporary access codes and share them remotely with guests, cleaners, or delivery personnel — without needing to hand over a physical key.
Q: Is this smart lock suitable for outdoor use?
A: The JD-S1 is rated for indoor use and does not have a waterproof certification. It is best suited for interior doors or covered entryways where it will not be directly exposed to rain or moisture.
