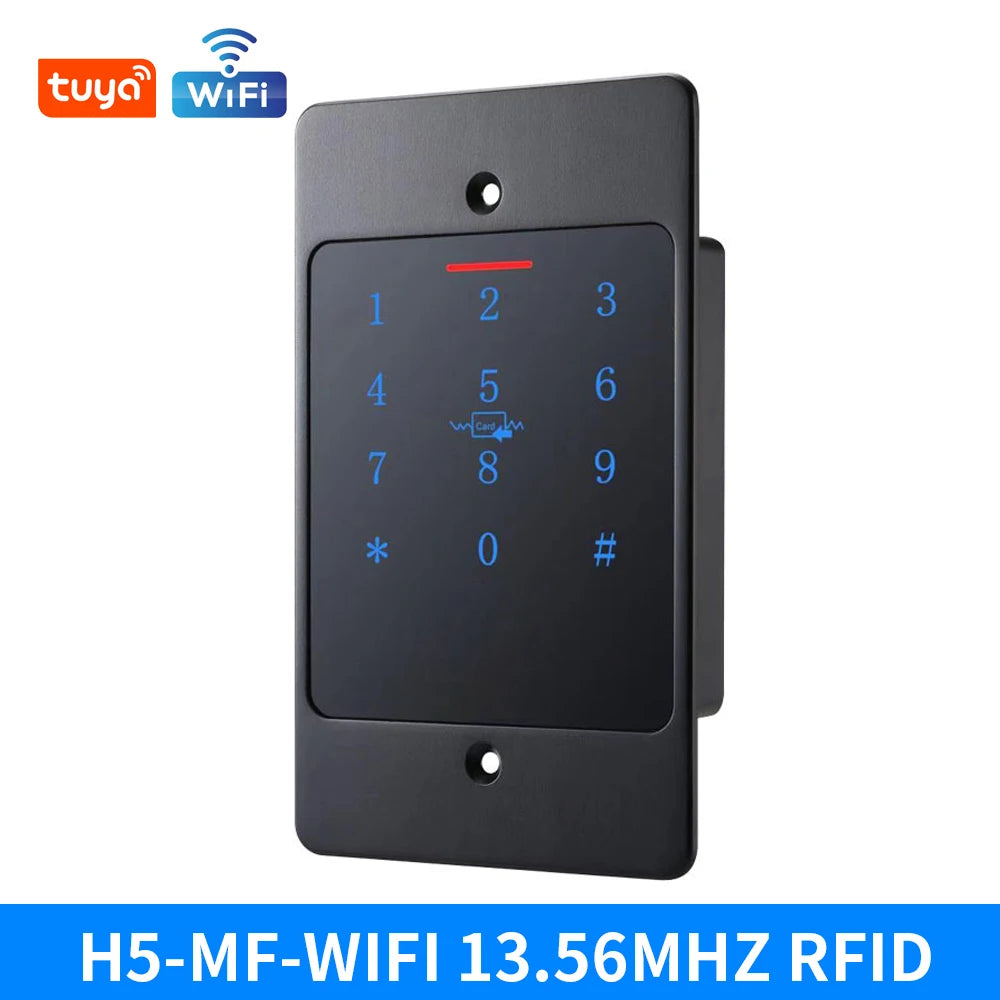

Asia-Teco Embedded Waterproof Metal Keypad – WiFi Smart Access Control with RFID & PIN
Take full control of who enters your property with the Asia-Teco H5-WiFi Smart Access Control Keypad. This embedded, wall-mounted metal keypad combines RFID card reading, PIN code entry, and Tuya App smartphone management into one sleek, tamper-resistant unit — perfect for homes, offices, gates, and commercial entryways. Made in Mainland China.

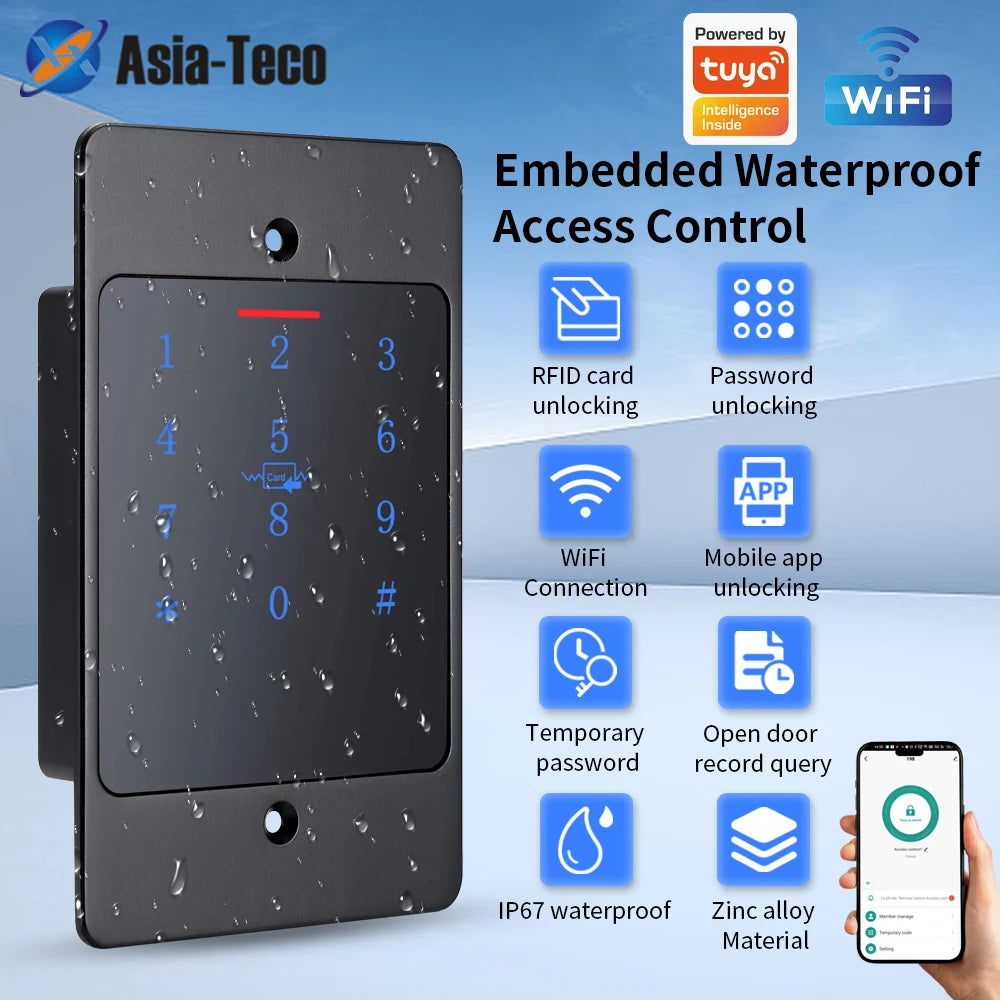

Why Choose This Smart Keypad?
- IP67 Waterproof Rating — Fully sealed against dust and water ingress, making it ideal for outdoor and exposed installations in all weather conditions.
- Zinc Alloy Housing — Anti-vandal, anti-explosion construction built to withstand harsh environments and unauthorized tampering.
- Tuya WiFi App Control — Manage access, check door status, unlock remotely, and issue temporary PIN codes directly from your smartphone via the Tuya Smart app.
- Up to 10,000 Users — Store up to 10,000 card or PIN code users, supporting multi-mode access for card, PIN, multi-user combinations, and temporary visitor codes.

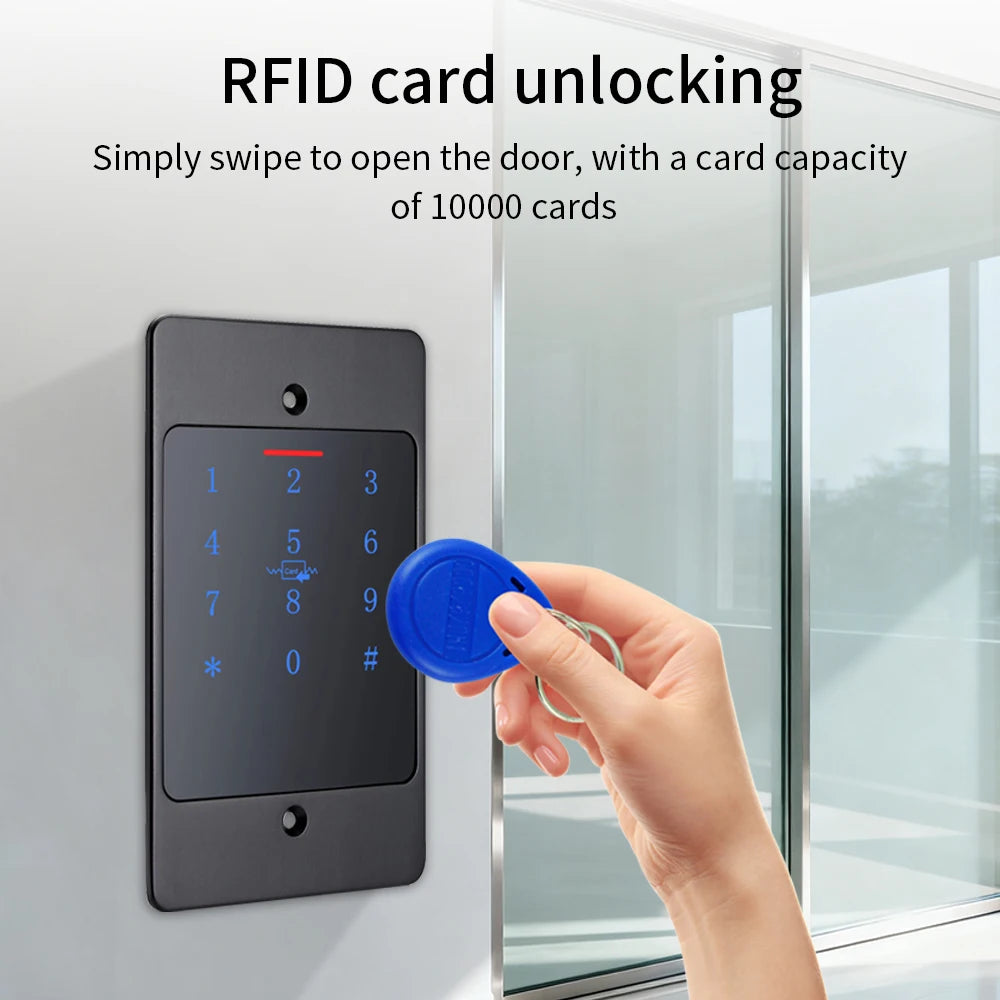

- Flexible Access Modes — Supports RFID card (125KHz EM or 13.56MHz MF), PIN code, temporary codes, and multi-user combined unlock (2–9 users required simultaneously).
- Wiegand Input & Output — Compatible with Wiegand 26–44, 56, and 58-bit formats, plus PIN Wiegand output in 4-bit, 8-bit (ASCII), and 10-digit virtual card number formats.
- Anti-Tamper & Door Contact Detection — Built-in alarm functions trigger on unauthorized removal or door-open detection, adding an extra layer of security.
- Adjustable Door Open Time — Set the door relay trigger duration from 0–300 seconds (factory default: 5 seconds) to suit any lock or gate configuration.

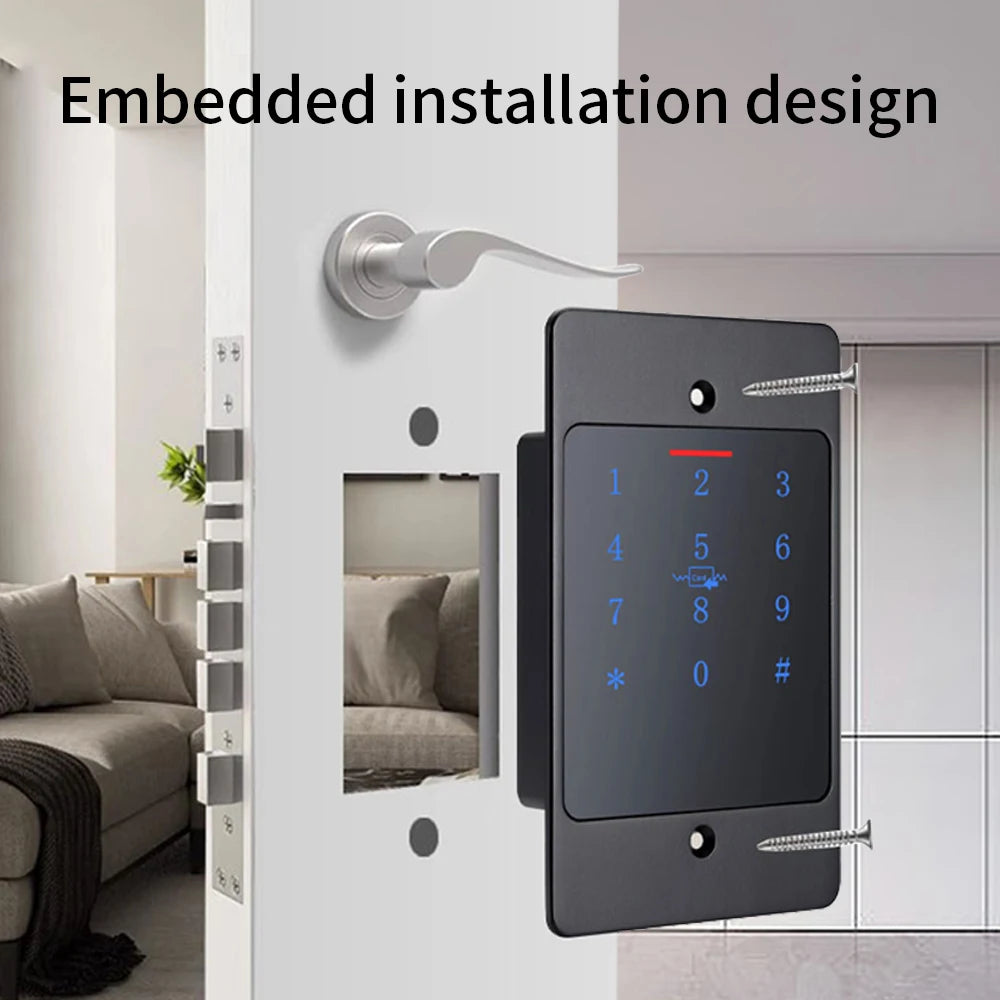

- Concealed Embedded Design — Flush-mount installation keeps wiring hidden and delivers a clean, professional aesthetic on any wall surface.
- Wide Operating Range — Functions reliably from -20°C to +60°C (-4°F to 140°F) and across 10%–99% humidity.
Key Specifications
| Specification | Detail |
|---|---|
| Model | H5-WiFi |
| Operating Voltage | DC 12V |
| Active Current | <100mA |
| Idle Current | <35mA |
| Card Frequency | 125KHz (EM) or 13.56MHz (MF) |
| Card / PIN Users | Up to 10,000 |
| Read Range | <60mm |
| Door Opening Time | 0–300 seconds (adjustable) |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10%–99% |
| Waterproof Rating | IP67 |
| Security Mode | Fail Secure |
| Smart Platform | Tuya |
| Certification | CE, FCC |
| Origin | Mainland China |
Advanced Security Functions
- Administrator Password & Card — Set a dedicated admin credential for full system configuration control.
- Door Open Delay — Program relay hold time from 1–99 seconds; factory default is 5 seconds.
- Multi-User Combined Unlock — Require 2–9 consecutive valid credentials before the door releases, ideal for high-security areas.
- Door Contact & Magnetic Detection — Configure door-open alarm and external alarm relay output independently.
- Security Alarm Modes — Choose from off, deadlock (lockout), or active alarm mode based on your security requirements.
- Data Transfer — Upload and download card and PIN user databases between compatible Asia-Teco devices for fast multi-unit deployment.
- Sound & Light Control — Independently toggle beeper and indicator LED on/off to suit quiet or low-visibility environments.
Learn More About Access Control Security
For guidance on physical access control best practices for homes and businesses, visit the U.S. Cybersecurity & Infrastructure Security Agency or review facility security guidelines at OSHA's Workplace Safety Resources.
Frequently Asked Questions
Q: Does this smart keypad work without a smartphone?
A: Yes. The Asia-Teco H5-WiFi keypad works as a fully standalone RFID and PIN access controller. The Tuya WiFi app connection is optional and adds remote management, temporary code issuance, and door status monitoring — but is not required for basic card or PIN entry.
Q: What types of RFID cards are compatible with this keypad?
A: The keypad supports both 125KHz EM-format cards (such as EM4100) and 13.56MHz MF-format cards (such as Mifare Classic). Read range is up to 60mm. Always verify your existing card type before purchasing to ensure compatibility.
Q: Is this keypad suitable for outdoor installation?
A: Absolutely. The H5-WiFi carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary water submersion. Its zinc alloy housing is also rated anti-vandal and anti-explosion, making it an excellent choice for outdoor gates, building entrances, and exposed wall surfaces.
Q: How do I add or remove users with the Tuya App?
A: Once the device is connected to your WiFi network and paired with the Tuya Smart app, you can add or delete card users and PIN codes, generate time-limited temporary visitor codes, and view door access history directly from your smartphone — anytime, anywhere.
Q: What is "Fail Secure" mode?
A: Fail Secure means that if power is lost, the lock/relay remains in the locked (closed circuit) state, keeping the door secured. This is the preferred security mode for most access-controlled entry points where security must be maintained even during a power outage.
