Standalone WiFi RFID Keypad & Proximity Card Reader with Tuya App Control

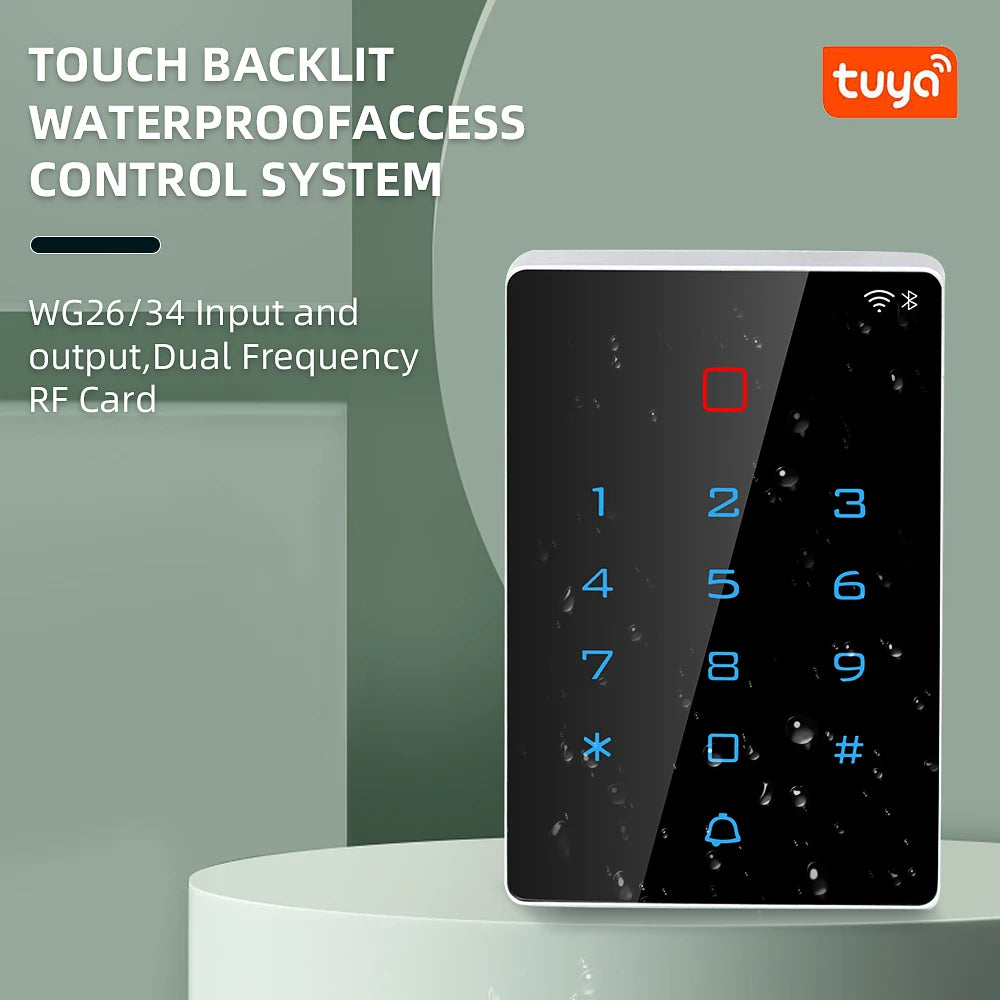

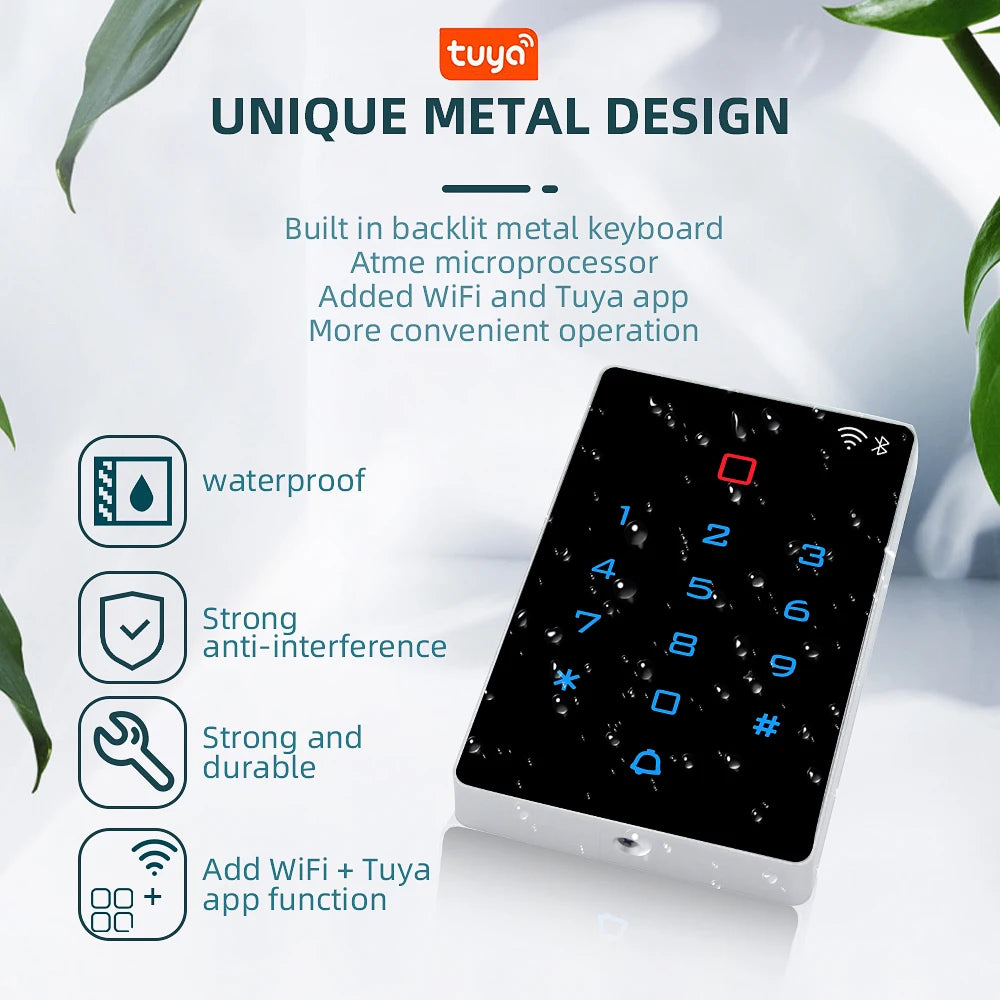

Meet the Asia-Teco T12 — a powerful, standalone access control keypad and RFID proximity card reader designed for homes, offices, hotels, apartments, and other high-security environments. Managed effortlessly via the Tuya Smart App over WiFi, this device combines three flexible entry methods with a robust, weatherproof build for reliable performance indoors and out.
Made in Mainland China.
Key Features

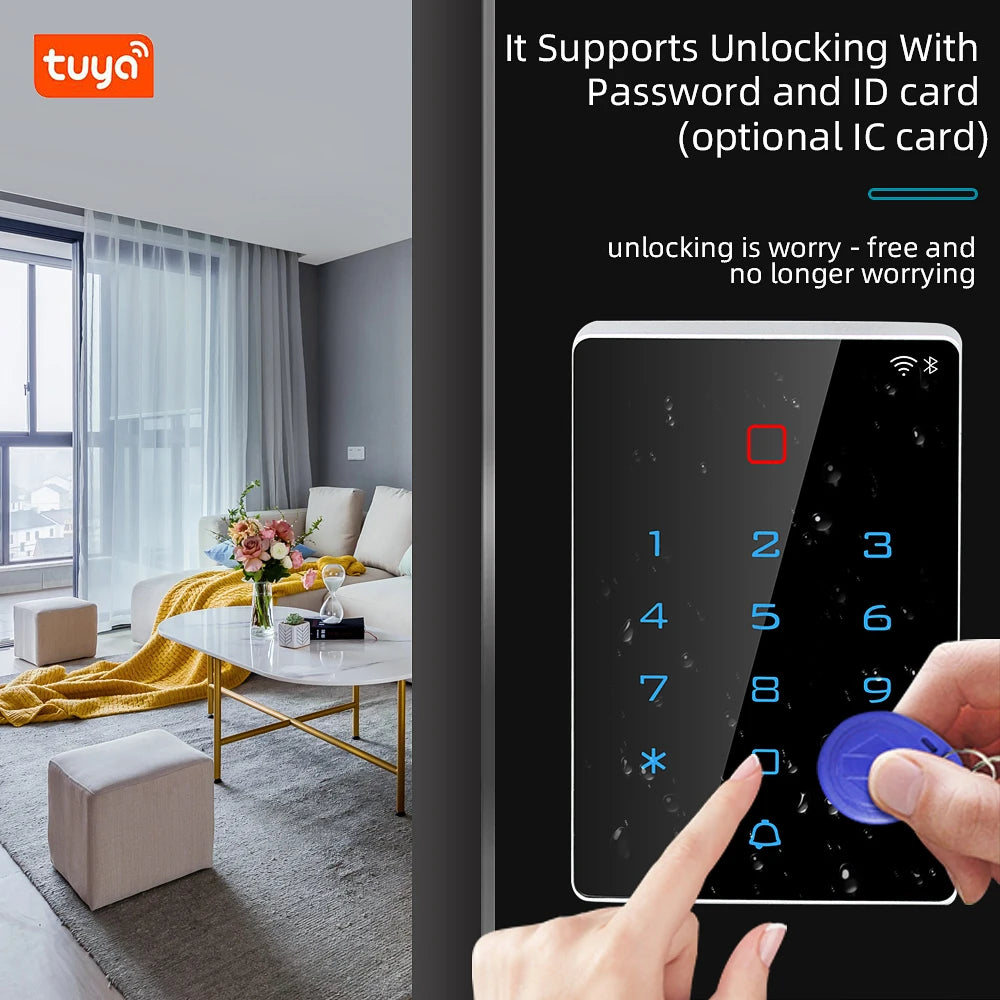

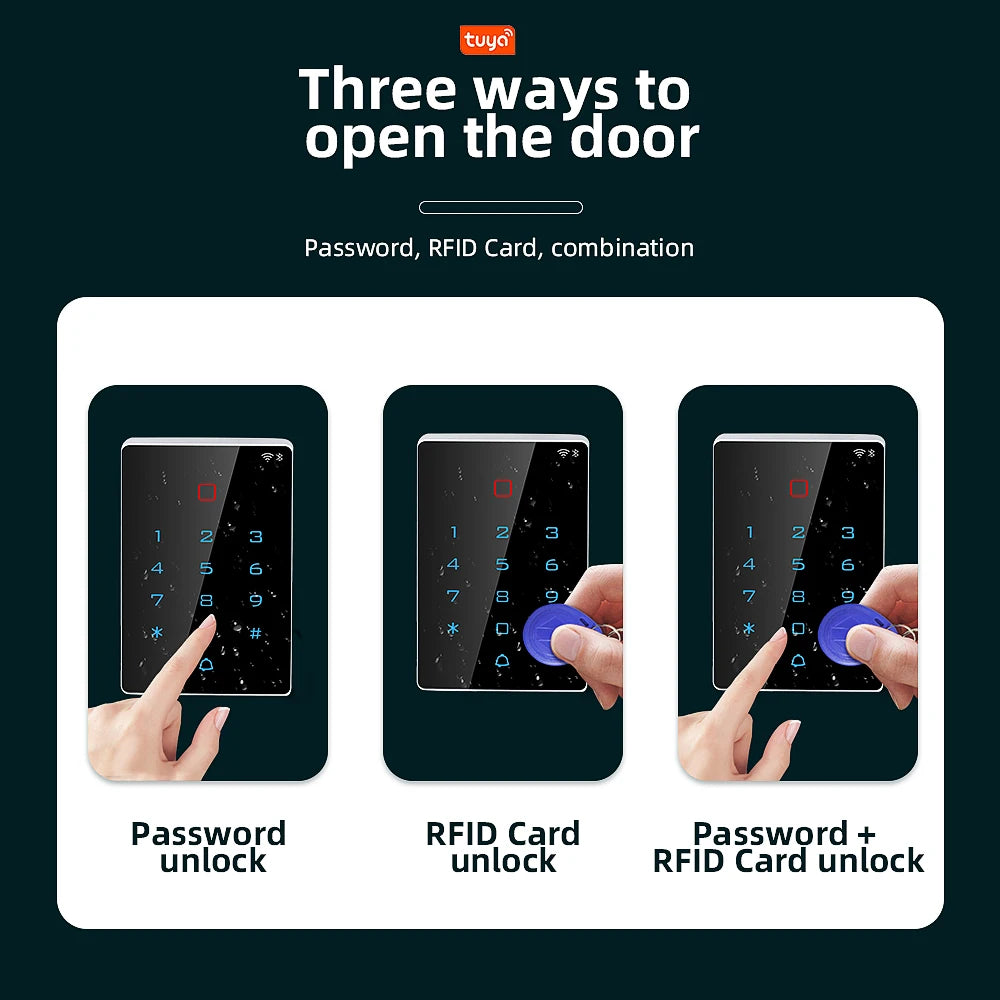

- Triple Unlock Modes: Open the door using RFID card, PIN keypad, or a combination of card + PIN for added security.
- Tuya App WiFi Control: Remotely manage access, monitor entry logs, and configure settings from your smartphone.
- Supports EM & MF Card Types: Compatible with both 125KHz EM cards and MF (Mifare) cards — flexible for a wide range of existing card systems.
- Wiegand 26 & 34 Input/Output: Connects to an external access slave reader OR to an access control board panel as a slave reader — maximum system flexibility.
- 2,000 User Capacity: Store up to 2,000 individual users directly on the device — no PC required for standalone operation.
- LED Backlit Touch Screen: Clear, responsive illuminated keypad for easy use day or night.
- Anti-Tamper Alarm: Built-in anti-disassembly alarm triggers instantly if the device is forcibly removed or tampered with.
- Waterproof Cover Included: IP-rated protective cover shields the keypad from rain, dust, and moisture for reliable outdoor installation.
- Doorbell Button: Integrated doorbell functionality for complete entryway management in one unit.
- Wide Temperature Range: Operates from -40°C to 60°C, making it suitable for extreme climate conditions.
- Adjustable Door Relay Time: Set the door unlock duration from 0–99 seconds to match your door hardware needs.
- Built-in STC Microprocessor: Delivers strong anti-interference capability, high security, and fast, accurate card reads.
Specifications
| Model | T12 |
| Brand | Asia-Teco |
| User Capacity | 2,000 users |
| Card Reading Distance | 0–10 cm |
| Working Frequency | 125 KHz |
| Working Voltage | DC 12V |
| Working Current | <100mA |
| Lock Output Load | ≤3A |
| Standby Current | ≤30mA |
| Door Relay Time | 0–99 seconds (adjustable) |
| Working Temperature | -40°C to 60°C |
| Working Humidity | 10%–90% |
| Dimensions | 73 × 115 × 16 mm |
| Wiegand Protocol | 26 & 34 (input & output) |
| Country of Origin | Made in Mainland China |
Ideal Applications
The T12 is purpose-built for a wide range of access control scenarios including:
- Residential homes & apartment buildings
- Office buildings & co-working spaces
- Hotels & hospitality venues
- Factories & warehouses
- Residential communities & gated entries
For more information on access control security standards and best practices, visit the National Institute of Standards and Technology (NIST) – Cybersecurity.
Frequently Asked Questions
Q: Does this RFID keypad work as a standalone unit without a computer or server?
A: Yes. The Asia-Teco T12 operates fully as a standalone access control keypad. It stores up to 2,000 users on-device and requires no connection to a PC or server for day-to-day operation. You can also manage it remotely via the Tuya Smart App over WiFi.
Q: What card types are compatible with the T12 RFID reader?
A: The T12 supports both EM (125KHz) and MF (Mifare) proximity card types. This gives you flexibility to integrate it with a wide range of existing card systems found in offices, apartment buildings, and other facilities.
Q: Can the T12 be connected to an existing access control panel?
A: Absolutely. Thanks to its Wiegand 26 & 34 input and output support, the T12 can either function as a master standalone controller or be used as a slave reader connected to a separate access control board panel — giving you maximum system integration flexibility.
Q: Is the T12 suitable for outdoor installation?
A: Yes. The device comes with a waterproof protective cover and is rated to operate in temperatures from -40°C to 60°C with humidity levels up to 90%, making it well-suited for outdoor entryways exposed to rain, heat, or cold conditions.
