WiFi RFID Fingerprint Keypad Door Access Controller with Tuya App Support
Meet the Asia-Teco TF108/TF109 Series — a next-generation smart access control system that combines fingerprint recognition, RFID card reading, PIN keypad entry, and full Wi-Fi remote management via the Tuya Smart App. Designed for both residential and commercial use, this sleek, waterproof unit gives you complete control over who enters your space — from anywhere in the world.
Made in Mainland China.
Why Choose This Smart Access Controller?

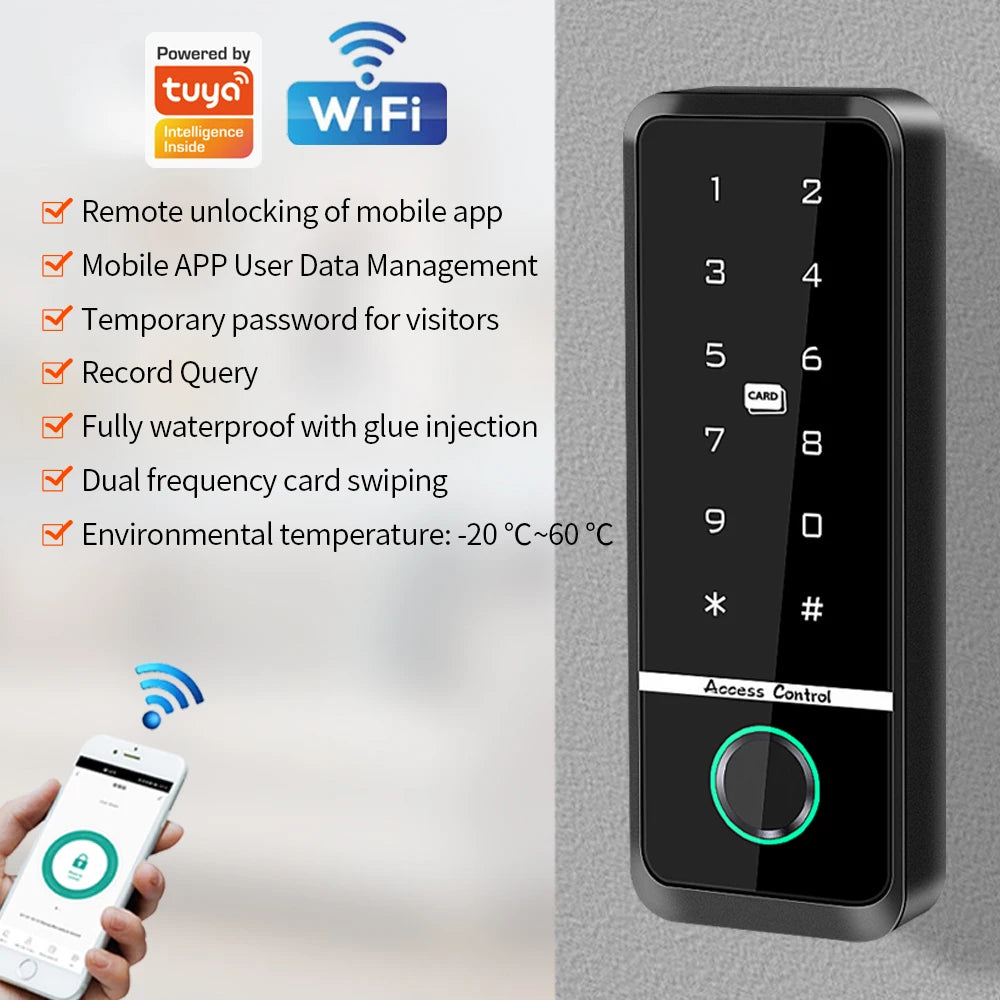

- 4-in-1 Access Methods: Unlock via fingerprint, RFID card, PIN code, or the Tuya smartphone app — including temporary app-generated guest passwords.

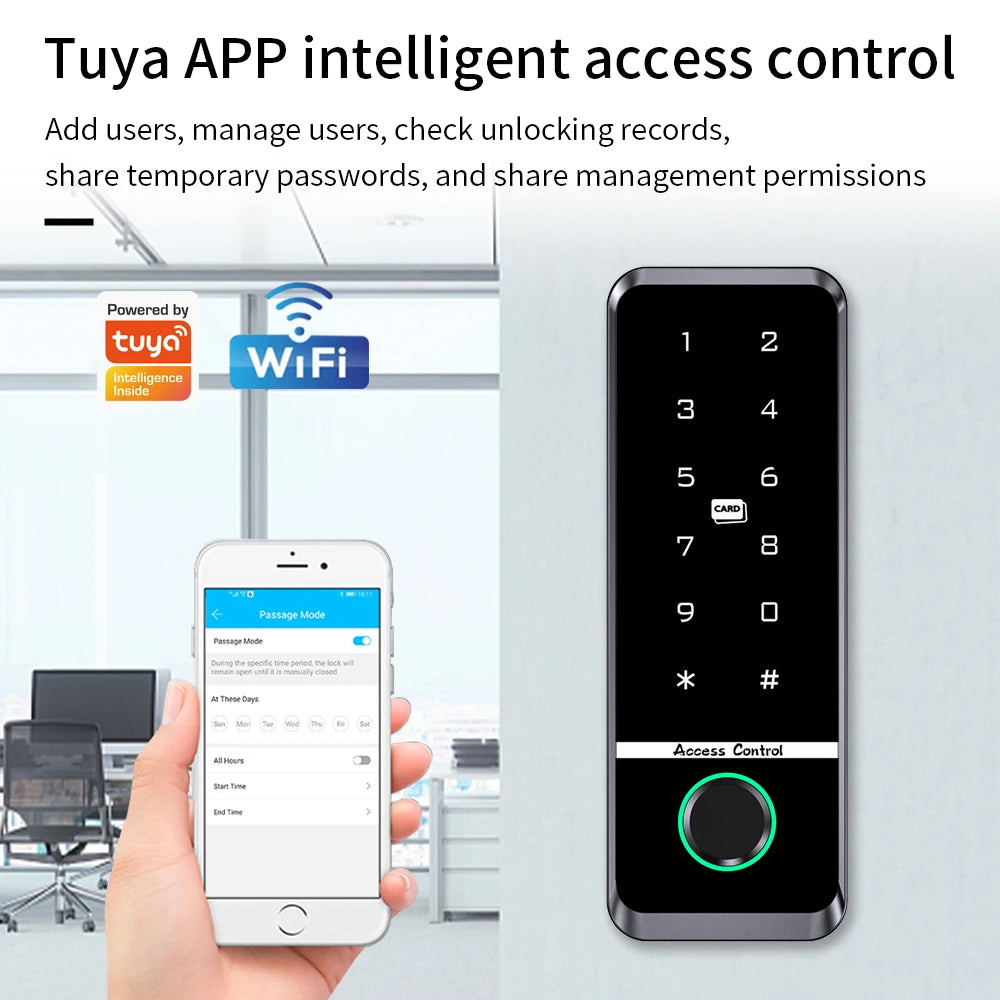

- Tuya Wi-Fi Smart Home Integration: Manage users, monitor entry logs, and grant or revoke access remotely through the Tuya App on iOS or Android.

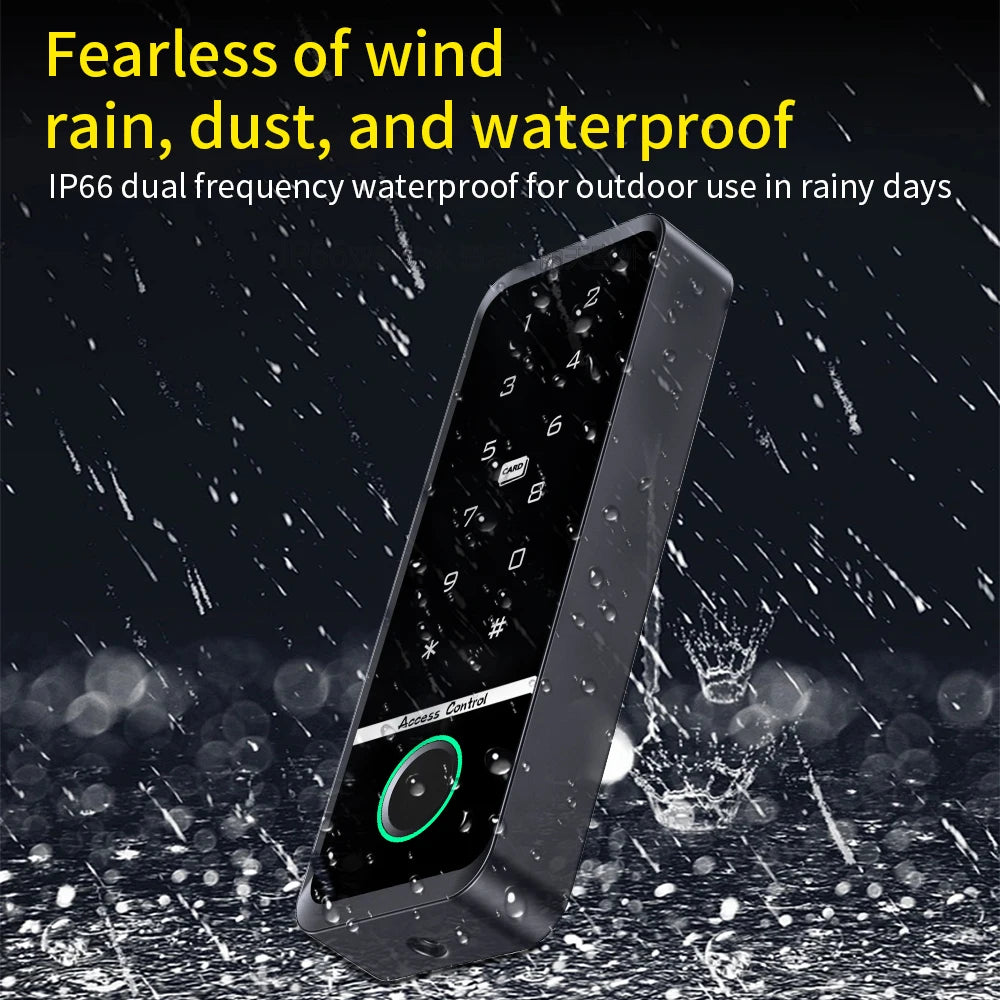

- IP66 Waterproof Rating: Built to withstand rain, dust, and outdoor elements — ideal for gates, garages, offices, and building entrances.
- Anti-Vandal ABS + PC Shell: Rugged, anti-explosion, anti-prying construction for reliable security in high-traffic areas.
- High-Capacity User Storage: Stores up to 100 fingerprints and 2,800 RFID cards locally; 100 fingerprints and 400 cards via app. Supports 10 visitor/temporary users.
- Dual RFID Frequency: Compatible with both 125 kHz EM cards and 13.56 MHz Mi-fare cards depending on model variant selected.
- Wiegand In/Out Support: Configurable as a professional Wiegand card reader (26–58-bit formats) for integration with existing access control panels.
- Pulse & Toggle Relay Modes: Flexible relay output options to suit a wide range of electric locks and door hardware.
- Multi-User Combination Unlock: Set up two-person authentication requirements for high-security zones.
- Card/Password Data Upload & Download: Easily back up or migrate user data between units for seamless system management.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Asia-Teco |
| Model | TF108EM/MF-W-WIFI / TF109EM/MF-W-WIFI |
| Smart Platform | Tuya (Wi-Fi) |
| RFID Frequency | 125 kHz (EM) and/or 13.56 MHz (Mi-fare) — model dependent |
| Waterproof Rating | IP66 |
| Shell Material | ABS + PC (Anti-vandal, Anti-explosion) |
| Local Capacity | 100 fingerprints, 2,800 cards |
| App Capacity | 100 fingerprints, 400 cards |
| Visitor Users | 10 |
| Access Methods | Fingerprint, RFID Card, PIN, App, Multi-user combination |
| Wiegand Output | Mi-fare: 26–44 bit, 56 bit, 58 bit; EM: 26 bit |
| PIN Wiegand Output | 4-bit, 8-bit (ASCII), 10-digit virtual card number |
| Relay Modes | Pulse Mode, Toggle Mode |
| Origin | Mainland China |
Ideal Applications
- Residential front doors and gates
- Office and commercial building entrances
- Apartment complexes and communal access points
- Garages, warehouses, and storage facilities
- Schools, gyms, and co-working spaces
For guidance on smart home security best practices, visit the U.S. Consumer Product Safety Commission (CPSC) Home Safety Resource.
Frequently Asked Questions
Q: What RFID card types does this WiFi fingerprint access controller support?
A: Depending on the model variant you choose, this controller supports 125 kHz EM cards, 13.56 MHz Mi-fare cards, or both. The TF108EM/MF-W-WIFI and TF109EM/MF-W-WIFI variants support both frequencies simultaneously, offering broad compatibility with most common access cards and key fobs.
Q: Can I control this access controller remotely without being on-site?
A: Yes. The device connects to your Wi-Fi network and integrates with the Tuya Smart App (available for iOS and Android). You can unlock the door, add or remove users, generate temporary visitor passwords, and review access logs from anywhere with an internet connection.
Q: Is this controller suitable for outdoor installation?
A: Absolutely. The unit carries an IP66 waterproof rating, meaning it is fully protected against powerful water jets and dust ingress. Its ABS + PC anti-vandal, anti-explosion shell makes it robust enough for gates, building exteriors, and other exposed outdoor environments.
Q: How many users can be stored on this access control system?
A: Locally, the device can store up to 100 fingerprints and 2,800 RFID card users. Via the Tuya App, you can manage up to 100 fingerprints and 400 card users. Additionally, 10 visitor/temporary user slots are available for short-term access.
Q: Can this device work with an existing Wiegand-based access control panel?
A: Yes. The controller can be configured as a professional Wiegand card reader and supports multiple Wiegand output formats — Mi-fare (13.56 MHz): 26–44 bit, 56 bit, and 58 bit; EM (125 kHz): 26 bit. PIN Wiegand outputs are also configurable in 4-bit, 8-bit (ASCII), or 10-digit virtual card number formats, making it highly compatible with third-party access control systems.
