WiFi RFID Access Control Keypad IP67 | Tuya App | EM & IC
WiFi RFID Access Control Keypad IP67 | Tuya App | EM & IC

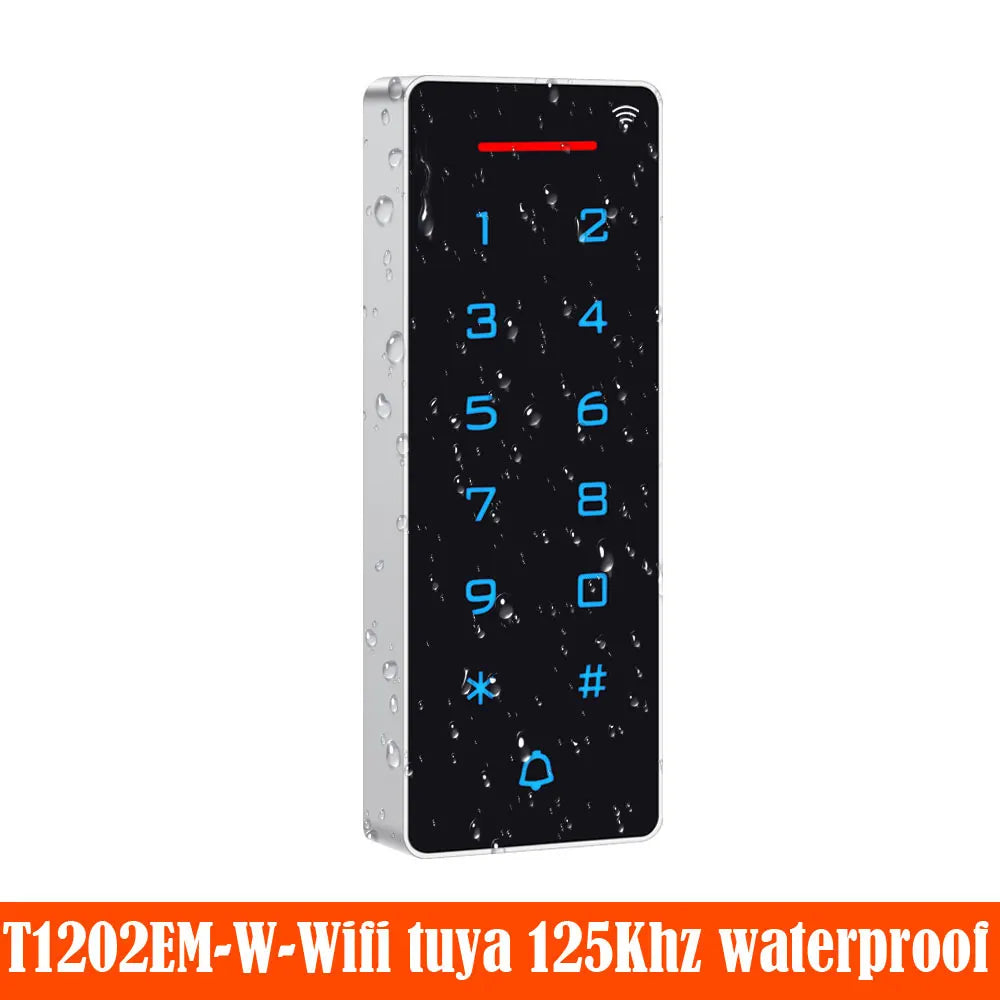

WiFi Smart Door Access Control Keypad – RFID, PIN & Tuya App Compatible
Take full control of your entryway with this advanced WiFi-enabled standalone access control keypad from Asia-Teco. Supporting both ID (EM) and IC (Mifare/MF) proximity card types alongside PIN code entry, this all-in-one unit delivers versatile, contactless access management for homes, offices, and commercial properties. Manage access remotely via the Tuya Smart App — anytime, anywhere.
⚠️ WiFi Pairing Note: Enter * 999999 # 73 # on the keypad to activate WiFi pairing mode.

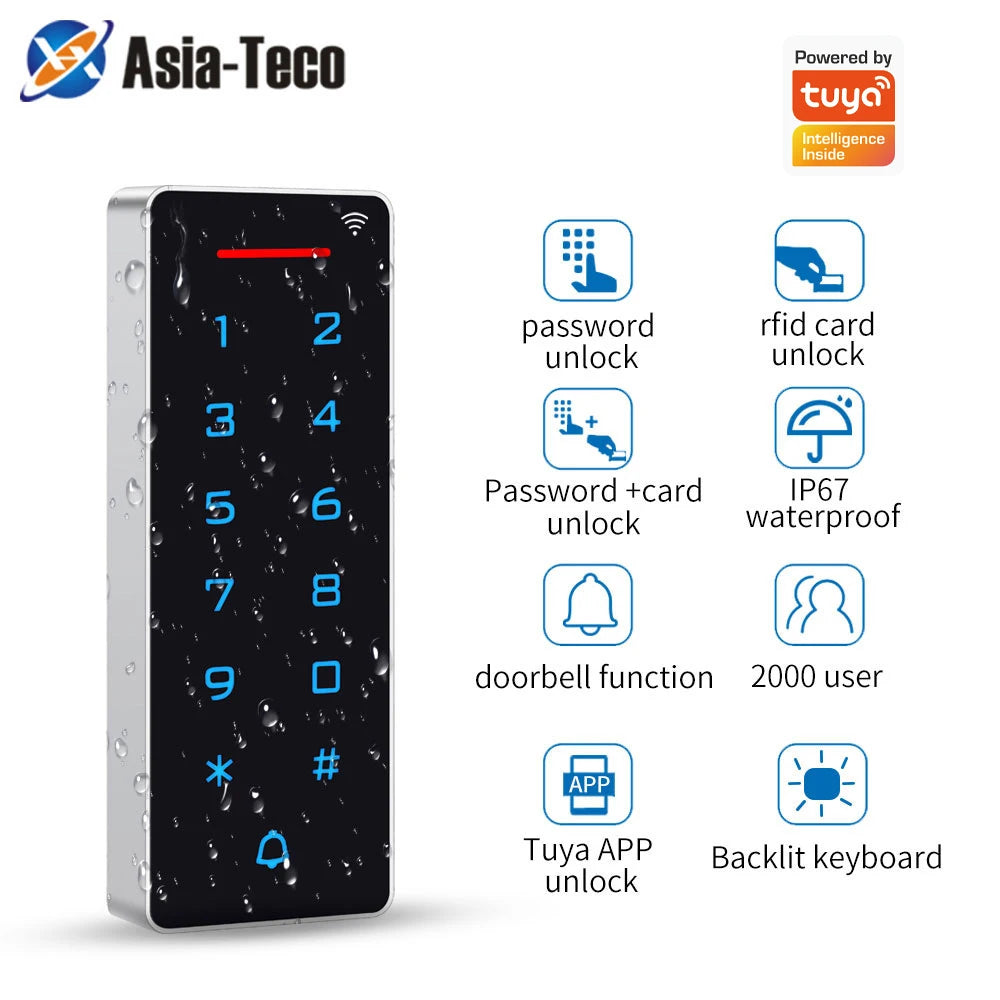

Why Choose This Access Control Keypad?
- Dual Card Compatibility: Reads both EM (ID) and Mifare (IC) proximity cards for maximum flexibility.
- 3 Access Modes: Enter via card only, PIN code only, or card + PIN for two-factor security.
- Tuya Smart App Integration: Monitor and control access remotely from your smartphone over WiFi.

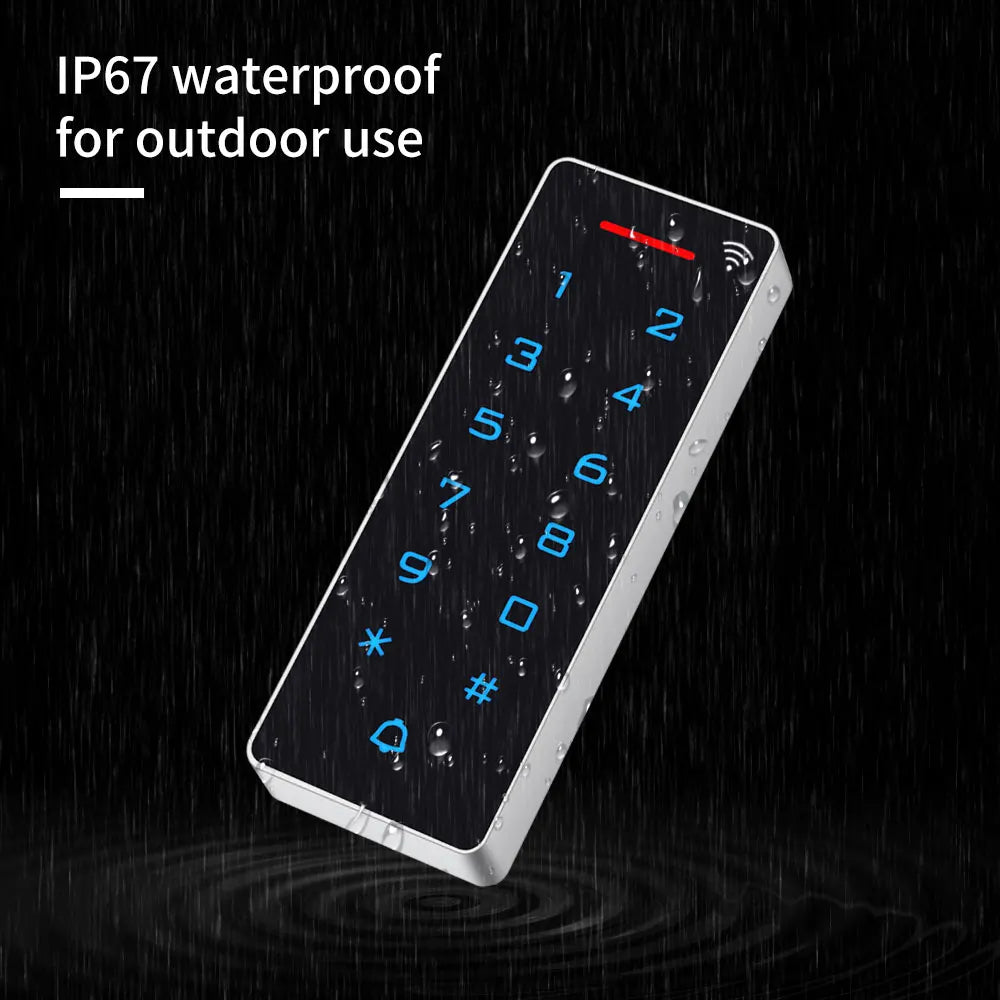

- IP67 Waterproof Rated: Fully sealed against dust and water ingress — built for reliable outdoor or indoor installation.
- Ultra-Fast Card Reading: Identifies cards in under 0.1 seconds for smooth, uninterrupted entry.
- Ultra-Low Power Consumption: Standby current under 30mA keeps operating costs minimal.
- Backlit Keypad: Easy-to-use illuminated keys for convenient access day or night.
- Wiegand Interface (WG26): Supports both WG26 input and output for integration with existing access systems.
- Doorbell Interface: Compatible with external wired doorbells for added convenience.
- Independent PIN Codes: Assign codes independently without linking to a card.
- User-Changeable Codes: Authorized users can update their own access codes easily.

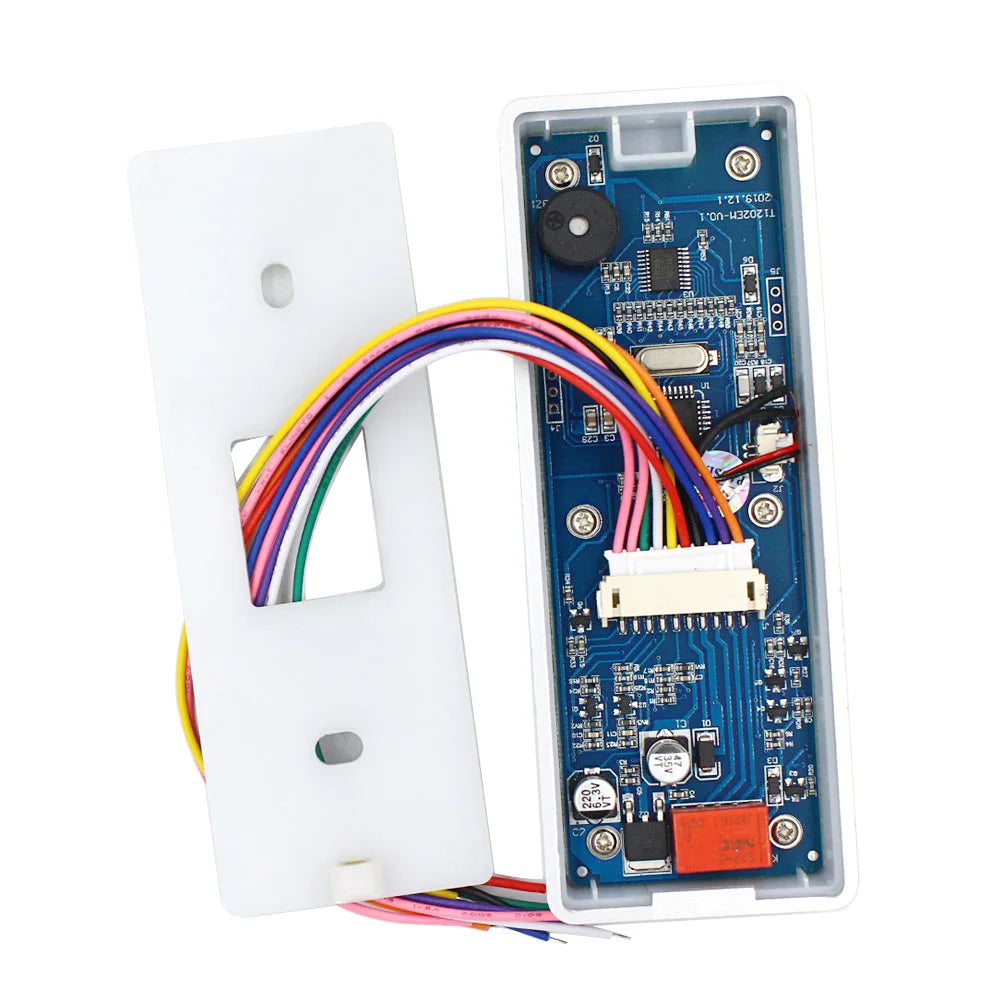

- STC Microprocessor: Built-in high-performance processor ensures strong anti-interference capability, high security, and reliable operation.
Key Specifications
| Model | T1202EM-W-WIFI |
| Card Types Supported | EM (ID) & Mifare (IC) |
| Connectivity | WiFi (Tuya Smart Platform) |
| Waterproof Rating | IP67 |
| Wiegand Interface | WG26 Input & Output |
| Standby Current | < 30mA |
| Card Read Speed | < 0.1 seconds |
| Access Methods | Card / PIN / Card + PIN |
| Smart Platform | Tuya |
| Country of Origin | Made in Mainland China |
Ideal Applications
This controller is well-suited for a wide range of environments including high-end office buildings, residential communities, apartment complexes, warehouses, retail spaces, and other public or private access points requiring a reliable single-door solution.
For general guidance on electronic security systems and best practices for access control, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How do I connect this WiFi RFID access control keypad to the Tuya app?
A: To enter WiFi pairing mode, press * 999999 # 73 # on the keypad. Then open the Tuya Smart App on your smartphone, follow the device-pairing steps, and connect the keypad to your WiFi network. Once paired, you can manage access remotely from anywhere.
Q: What card types does the Asia-Teco T1202EM-W-WIFI access control reader support?
A: This keypad supports both EM (125kHz ID cards) and Mifare (13.56MHz IC cards), making it one of the most versatile standalone access controllers available for single-door applications.
Q: Is this access control keypad suitable for outdoor installation?
A: Yes. The unit carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water — making it highly reliable for outdoor gate, door, or entrance installations in all weather conditions.
Q: Can I use a PIN code without a card on this keypad?
A: Absolutely. The keypad supports independent PIN codes that function without a linked proximity card. Users can also update their own codes directly on the device without administrator intervention.
