WiFi Metal RFID Keypad Access Controller with Tuya App Support

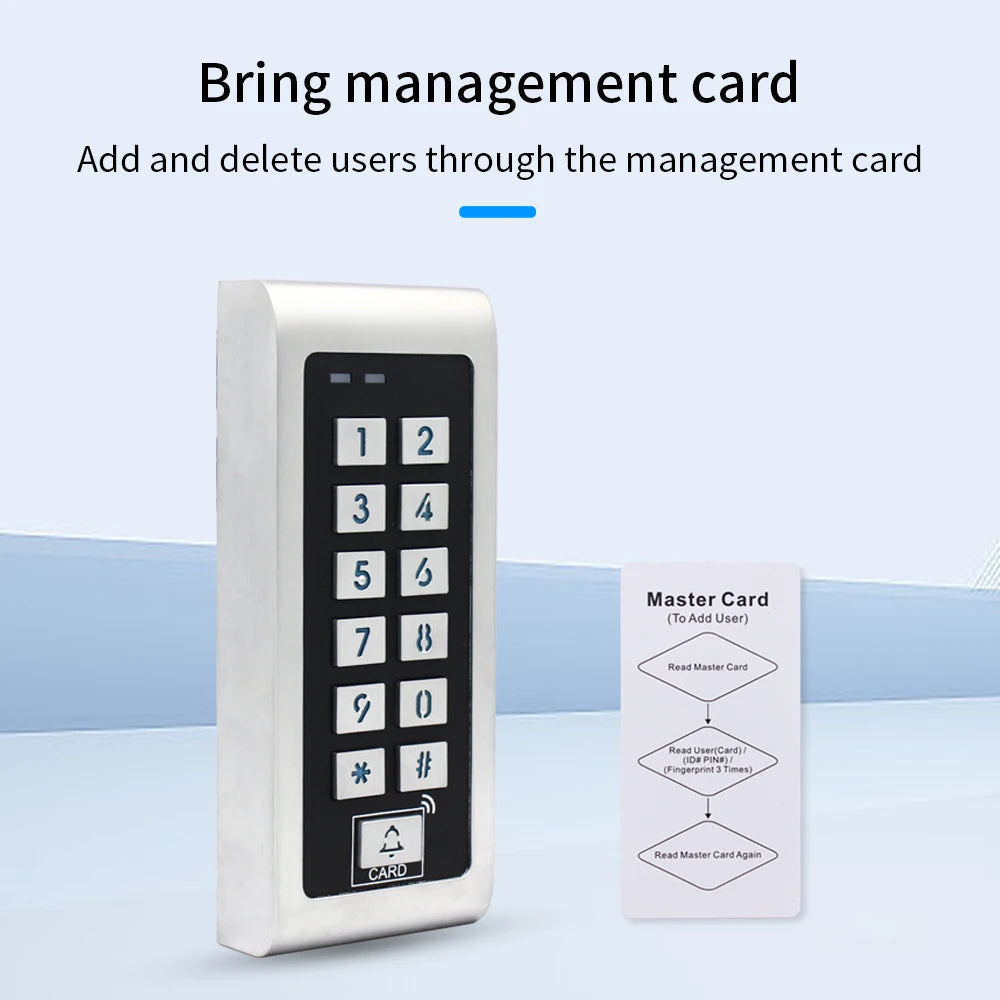

Take full control of who enters your property with the Asia-Teco WiFi Metal Access Control Keypad. Built for both residential and commercial use, this robust single-door access controller combines RFID card reading, PIN entry, and remote smartphone unlocking into one sleek, tamper-resistant metal housing. Seamlessly integrated with the Tuya Smart platform, you can manage access from anywhere in the world using your phone.
Made in Mainland China.
Why Choose This Access Control Keypad?
- Triple Access Modes: Unlock via smartphone app, 125KHz RFID/EM card, or 4–6 digit PIN for maximum flexibility.
- Remote Unlock via Tuya App: Grant or revoke access from anywhere with a 3G/4G/5G connection — no need to be on-site.
- Up to 10,000 Users: Ideal for offices, apartment buildings, warehouses, and gated communities.
- Temporary & Time-Restricted Passwords: Issue one-time or period-based codes for guests, delivery personnel, or contractors.
- Anti-Tamper Protection: Triggers an alert if someone attempts to forcibly remove the device from the wall.
- IP66 Waterproof Rating: Engineered to withstand rain, dust, and harsh outdoor environments.
- Metal Anti-Vandal Housing: Heavy-duty construction deters unauthorized tampering and physical attacks.
- Backlit Keypad: Easy to use in low-light or nighttime conditions.
- Door Keep Open Mode: Useful for high-traffic periods when you need continuous access.
- Access Log / Opening Records: Review a complete history of who entered and when, directly in the app.
- Doorbell Call Notice: Integrated doorbell function sends alerts to your smartphone.
- Wiegand Output: Compatible with existing access control systems as a reader.
- Low Power Design: Operating at 12V DC with idle current ≤60mA for long-lasting, energy-efficient performance.
Technical Specifications
| Brand | Asia-Teco |

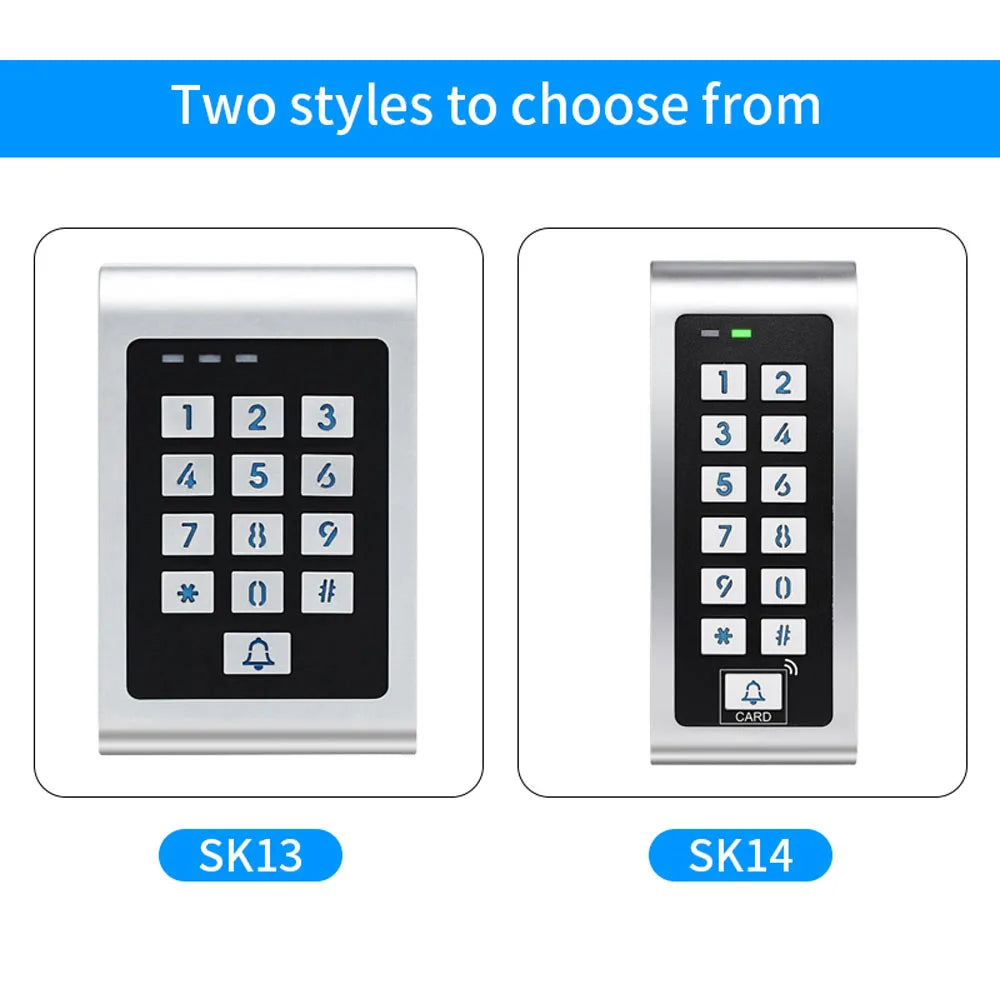

| Model | S13K / S14K |
| Operating Voltage | 12V DC |
| Working Current | <150mA |
| Idle Current | ≤60mA |
| RFID Frequency | 125KHz (EM Card) |
| User Capacity | 10,000 |
| PIN Length | 4–6 Digits |
| Connectivity | WiFi (Bluetooth version customizable) |
| Smart Platform | Tuya |
| Waterproof Rating | IP66 |
| Housing | Metal, Anti-Vandal |
| Country of Origin | Mainland China |
Ideal Use Cases
This WiFi RFID access controller is perfectly suited for:
- Home front doors and garages
- Office buildings and co-working spaces
- Apartment complexes and gated communities
- Warehouses and storage facilities
- Schools and institutional buildings
For best practices on physical access security for buildings, visit the Cybersecurity and Infrastructure Security Agency. For guidance on smart home device security standards, see NIST's Internet of Things (IoT) resources.
Frequently Asked Questions
Q: Does this WiFi RFID access control keypad work with the Tuya Smart app?
A: Yes — this keypad is fully integrated with the Tuya Smart platform. You can add or delete users, set time restrictions, issue temporary passwords, remotely unlock the door, and review access logs all from within the Tuya app on iOS or Android.
Q: Is this access control keypad suitable for outdoor installation?
A: Absolutely. The Asia-Teco keypad carries an IP66 waterproof rating, making it resistant to heavy rain and dust ingress. Its rugged metal, anti-vandal housing also makes it an excellent choice for exposed outdoor entrances.
Q: What RFID card frequency does this access controller support?
A: This device supports 125KHz EM-format RFID cards — a widely used standard for access control. It can store credentials for up to 10,000 users, making it scalable for both small and large installations.
Q: Can I grant temporary access to visitors without giving them a permanent code?
A: Yes. The Tuya app allows you to generate temporary passwords that are valid for a single use or for a defined time period, so you can give guests, contractors, or delivery personnel time-limited access without compromising your permanent credentials.
Q: What happens if someone tries to remove the keypad from the wall?
A: The built-in anti-tamper feature detects any attempt to forcibly remove the device and triggers an alert, helping you respond quickly to any unauthorized interference.
