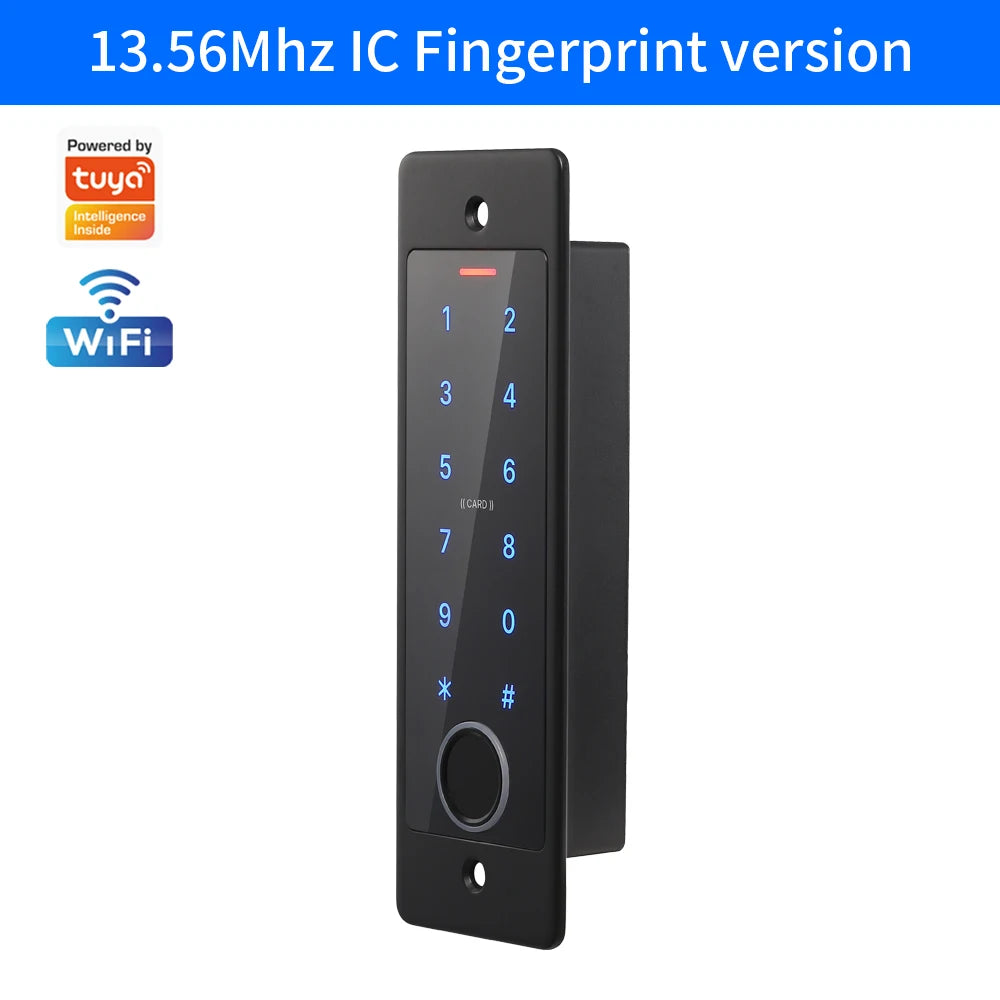

WiFi Fingerprint RFID Door Access Control Keypad – Wiegand Metal Controller
Take full control of who enters your property with this advanced WiFi-enabled, waterproof fingerprint and RFID door access controller. Featuring a backlit embedded metal keypad, Wiegand output, and support for multiple authentication methods — fingerprint, RFID card, and PIN — this unit is engineered for both residential and commercial door security applications.
Key Features

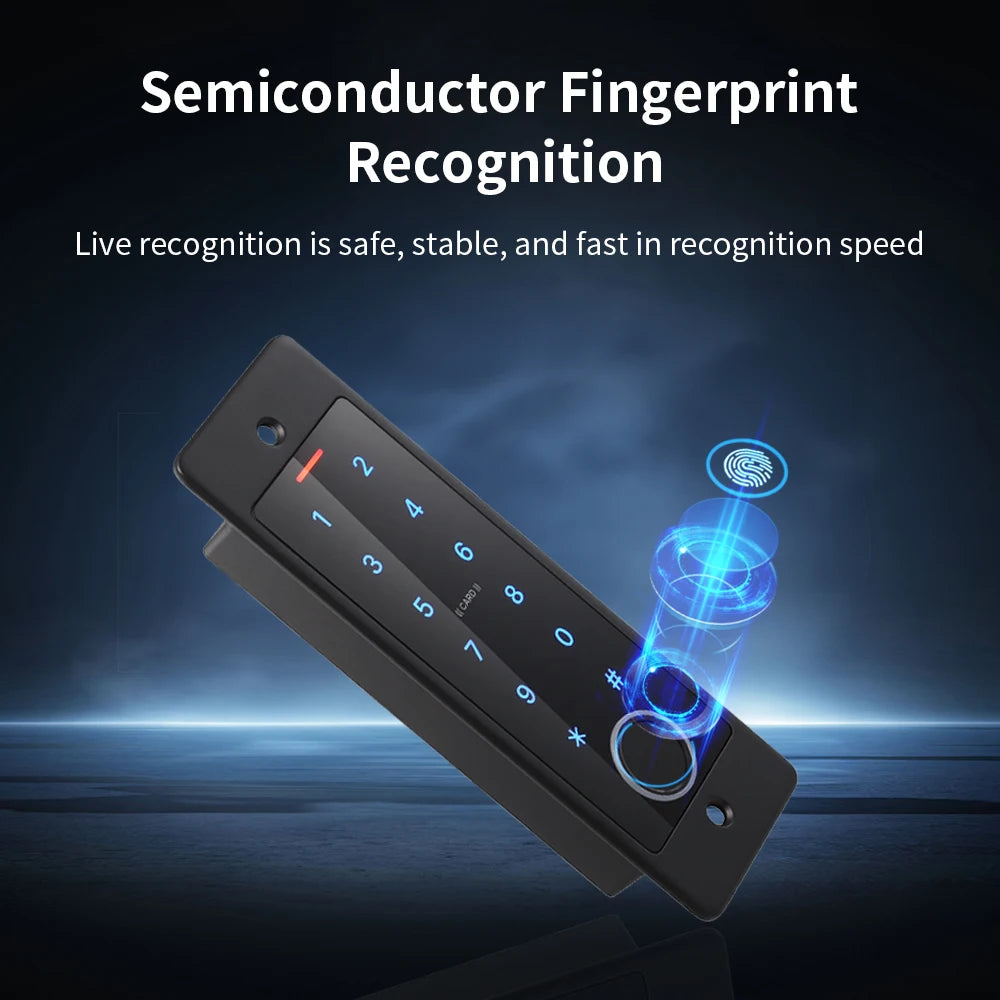

- Multi-Mode Access: Authenticate via fingerprint, RFID card (EM / Mifare / EM & Mifare), or PIN code for flexible entry management.
- Large User Capacity: Supports up to 100 or 500 fingerprint users (selectable) and up to 10,000 card/PIN users.
- WiFi Connectivity: Manage access remotely and monitor entry events through a wireless network connection.
- Dual Card Frequency: Compatible with both 125KHz and 13.56MHz card frequencies for broad card compatibility.

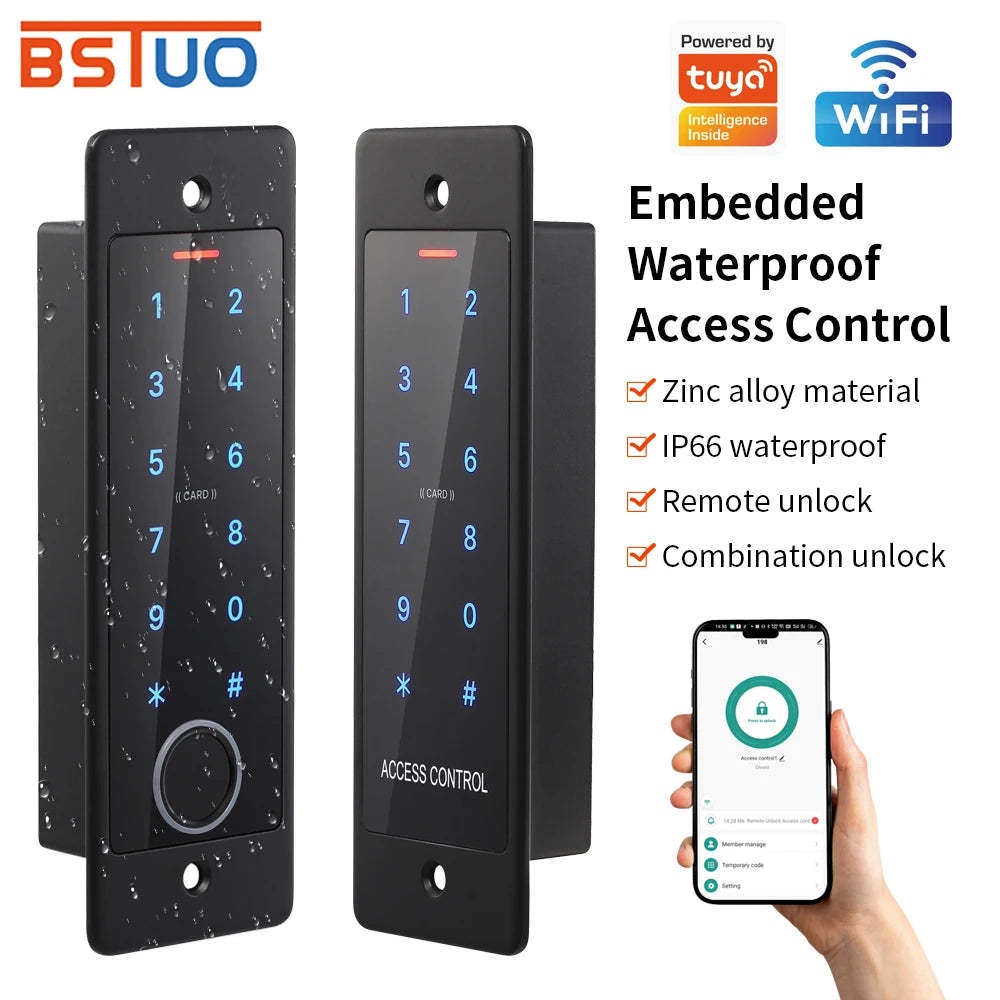

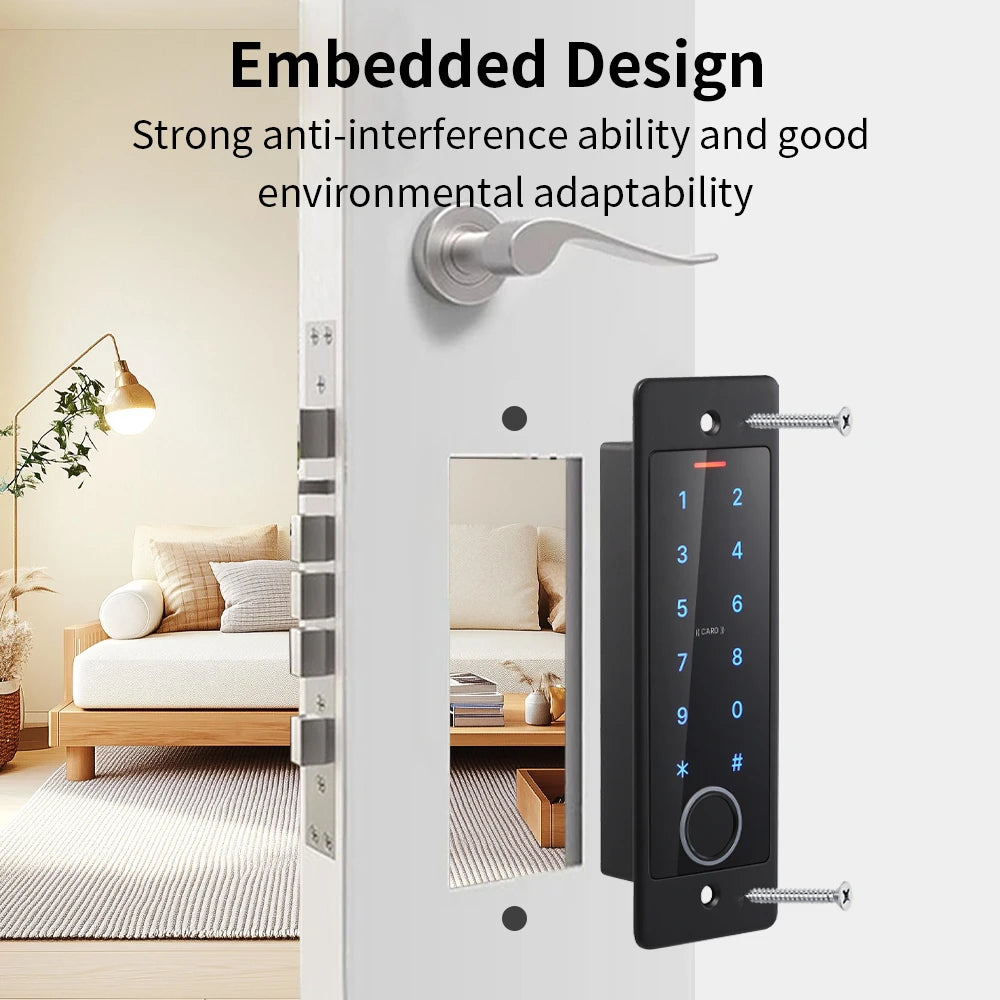

- Backlit Metal Keypad: Embedded, vandal-resistant metal keypad with backlight for easy nighttime use.
- Waterproof Design: Rated for outdoor and indoor installation, operating in humidity from 10% to 99%.
- Wide Temperature Range: Reliable performance from -20°C to +60°C (-4°F to +140°F).
- Wiegand Output: Standard Wiegand interface for seamless integration with existing access control panels and systems.
- Low Power Consumption: Idle current ≤50mA; active current ≤120mA — energy efficient for 24/7 operation.
- Wide Voltage Input: Operates on DC 10–24V for flexible power supply options.
Technical Specifications
| Model | H9 / HF9 |
| Fingerprint Users | 100 or 500 (selectable) |
| Card / PIN Users | 10,000 |
| Operating Voltage | DC 10–24V |
| Idle Current | ≤50mA |
| Active Current | ≤120mA |
| Card Type | EM / Mifare / EM & Mifare |
| Card Frequency | 125KHz / 13.56MHz |
| Read Range | ≤60mm |
| Operating Temperature | -20°C ~ +60°C |
| Operating Humidity | 10% ~ 99% |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
Ideal Applications
This access controller is perfect for offices, warehouses, apartments, gated communities, server rooms, and any secured entrance where multi-factor authentication and remote management are required. The Wiegand interface makes it straightforward to integrate with most existing access control infrastructure.
Safety & Standards
For guidance on physical security and access control best practices for your facility, refer to the Cybersecurity and Infrastructure Security Agency (CISA). For consumer product safety information, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What RFID card types are compatible with this fingerprint access control keypad?
A: This controller supports EM cards (125KHz), Mifare cards (13.56MHz), and combined EM & Mifare cards, making it compatible with a wide range of standard access control cards commonly used in offices and residential buildings.
Q: Can this WiFi access control keypad be installed outdoors?
A: Yes. The unit features a waterproof, weather-resistant design with an operating humidity range of 10%–99% and a temperature tolerance from -20°C to +60°C, making it suitable for outdoor doors, gates, and entryways.
Q: How does the Wiegand output work with existing access control systems?
A: The Wiegand interface is a standard protocol used by most access control panels. Simply connect the Wiegand data lines (D0/D1) from this reader to your compatible controller panel to integrate fingerprint, card, and PIN authentication with your existing system.
Q: How many users can be stored on this access controller?
A: The device supports up to 100 or 500 fingerprint users (depending on the selected option) and up to 10,000 card or PIN users, making it scalable for both small offices and larger commercial environments.
