WiFi Fingerprint RFID Access Control Keypad – IP66 Waterproof Metal
WiFi Fingerprint RFID Access Control Keypad – IP66 Waterproof Metal
Asia-Teco H5/HF5-WiFi Metal Waterproof Access Control System with Fingerprint, RFID Card & Keypad
Upgrade your entry security with the Asia-Teco H5/HF5-WiFi Access Control Reader — a heavy-duty, IP66-rated zinc alloy device that combines fingerprint recognition, RFID card reading, and PIN keypad entry into one sleek, weatherproof unit. Managed via the Tuya Smart App, this embedded door controller is ideal for homes, offices, warehouses, and outdoor gates. Made in Mainland China.
Why Choose the H5/HF5-WiFi Access Control System?
- Multiple Unlock Methods: Fingerprint, RFID card, password, combined unlock, and multi-user combined unlock (2–9 users).
- IP66 Waterproof Rating: Zinc alloy explosion-proof and slip-resistant shell withstands rain, dust, and outdoor conditions.
- Two Models Available: H5-WiFi (keypad + card, no fingerprint) and HF5-WiFi (full fingerprint version supporting up to 880 fingerprints + 2,120 card users).
- Tuya Smart App Control: Remotely manage users, monitor door status, and configure settings from your smartphone.
- Visitor User Support: Assign temporary access credentials for guests without compromising permanent user data.
- Anti-Tamper Protection: Built-in anti-disassembly alarm alerts you to unauthorized removal attempts.
- Wired Doorbell Support: Integrated doorbell button for seamless front-door management.
- Blue Backlit Keypad: Easy to use day or night with the illuminated keypad.
Product Specifications
| Brand | Asia-Teco |
| Model | H5-WiFi / HF5-WiFi |
| Smart Platform | Tuya App (iOS & Android) |
| Material | Metal Zinc Alloy |
| Waterproof Rating | IP66 |
| Card Reading Distance | 0–5 cm |
| User Capacity (H5) | 200 fingerprints (HF5: 880 fingerprints + 2,120 card users) |
| Backlight | Blue Backlit Keypad |
| Working Voltage | DC 12V |
| Working Current | ≤ 30mA |
| Door Opening Time | 0–255 seconds (factory default: 5 seconds) |
| Operating Temperature | -20°C ~ 60°C |
| Operating Humidity | 20% ~ 90% |
| Country of Origin | Mainland China |
Key Features & Functions
- Administrator Management: Set administrator passwords and administrator cards for full system control.
- Adjustable Door Opening Delay: Configure door open time from 1–99 seconds (default: 5 seconds).
- Pause & Toggle Mode: Keep the door unlocked until the next valid credential is presented — perfect for high-traffic entry points.
- Multi-User Combined Unlock: Require 2–9 simultaneous valid users to open the door, adding an extra layer of security for sensitive areas.
- Door Magnetic Detection: Enable door status monitoring with optional external alarm for unauthorized access.
- Security Alarm Mode: Choose between standard mode, deadlock (lockout) mode, or active alarm mode.
- Data Transmission: Upload/download card and password user data between compatible Asia-Teco units.
- Sound & Light Customization: Toggle beep alerts and indicator lights to suit your environment.
What's in the Box
- 1 × H5-WiFi or HF5-WiFi Access Control Reader

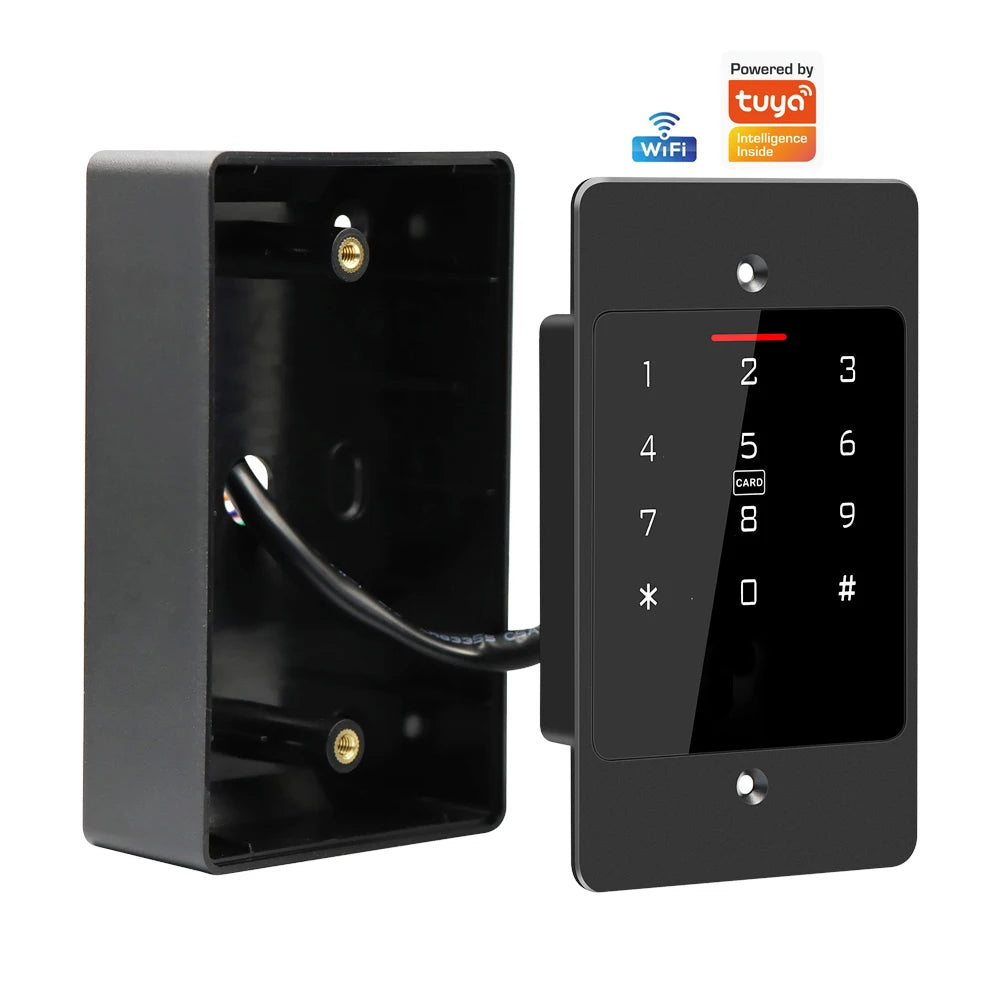

- 1 × M70 Installation Box
- Mounting hardware & documentation
For general consumer product safety guidance, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the difference between the H5-WiFi and HF5-WiFi access control models?
A: The H5-WiFi supports RFID card and keypad (PIN) entry without fingerprint recognition, while the HF5-WiFi is the full-featured version that adds fingerprint authentication and supports up to 880 fingerprints plus 2,120 RFID card users.
Q: Is the H5/HF5-WiFi access control reader suitable for outdoor installation?
A: Yes. The device is rated IP66 waterproof, meaning it is protected against powerful water jets and heavy rain, making it fully suitable for outdoor gates, doors, and entry points in all weather conditions.
Q: How do I manage users and access permissions remotely?
A: The H5/HF5-WiFi integrates with the Tuya Smart App (available for iOS and Android). Through the app, you can add or remove users, assign visitor access, monitor door status, and configure device settings from anywhere with an internet connection.
Q: Can I use this device as a standalone card reader rather than a full access controller?
A: Yes. The H5/HF5-WiFi can be configured to operate as a professional RFID card reader, making it compatible with existing access control panels or security systems that accept Wiegand or relay output signals.
Q: What happens if someone tries to tamper with or remove the device?
A: The unit features a built-in anti-tamper/anti-disassembly alarm that triggers when unauthorized removal is detected, alerting administrators immediately.
