Narrow Waterproof Embedded WiFi Access Control System
Take full control of your apartment gate, office door, or building entrance with the Asia-Teco WiFi Access Control System (Model H9/HF9). This slim, waterproof embedded reader supports fingerprint, PIN code, and RFID card authentication — all manageable remotely through the Tuya Smart App. Whether you're at home or across the city, granting or revoking access has never been simpler.
Key Features

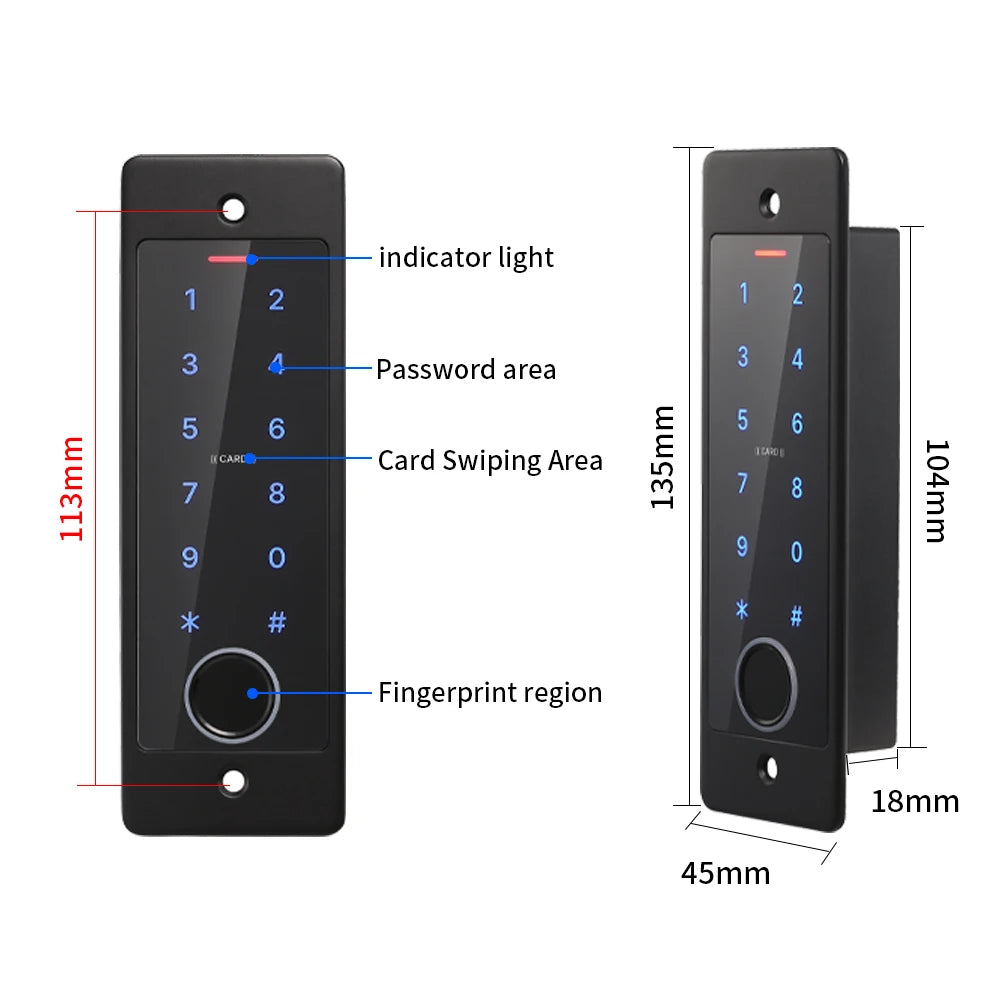

- Multi-Method Entry: Fingerprint (up to 100 or 500 users), RFID card (EM / Mifare / EM & Mifare), and PIN code — accommodating up to 10,000 card/PIN users

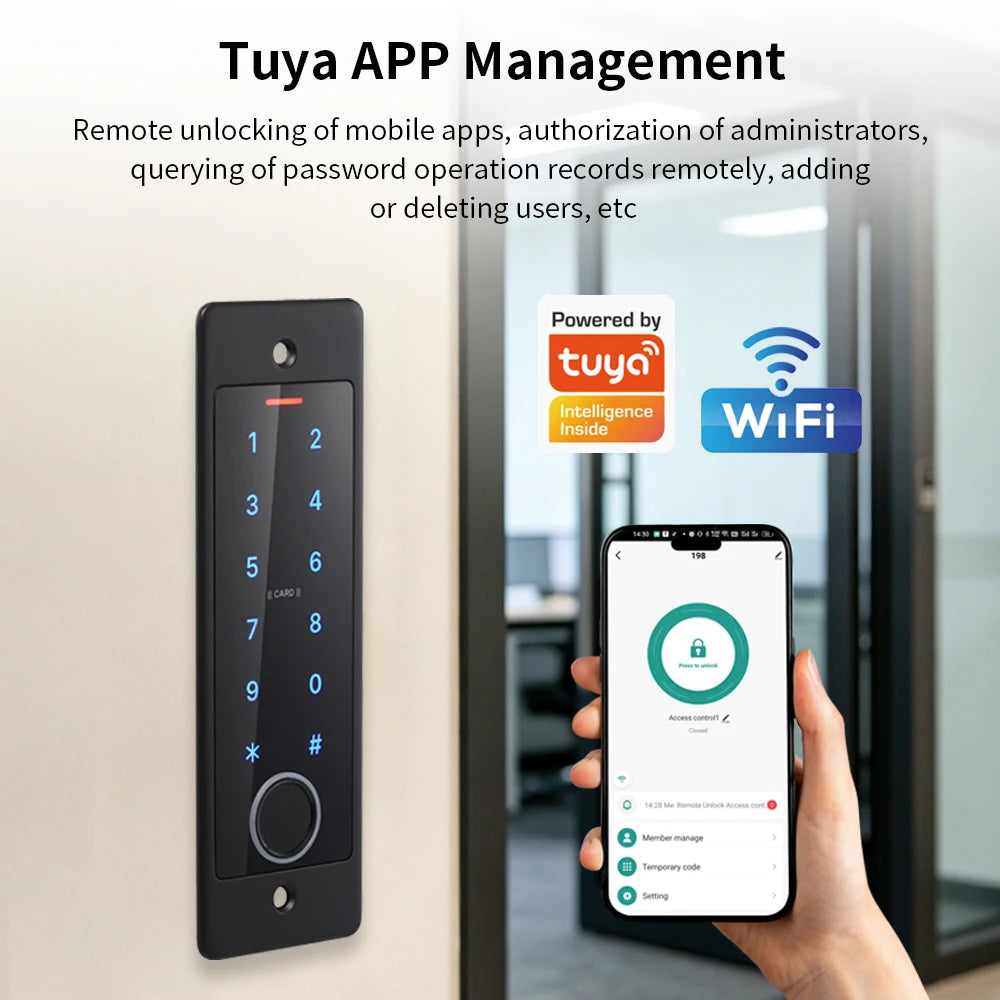

- WiFi + Tuya App Integration: Remotely unlock, manage users, and monitor access logs from your smartphone via the Tuya Smart platform

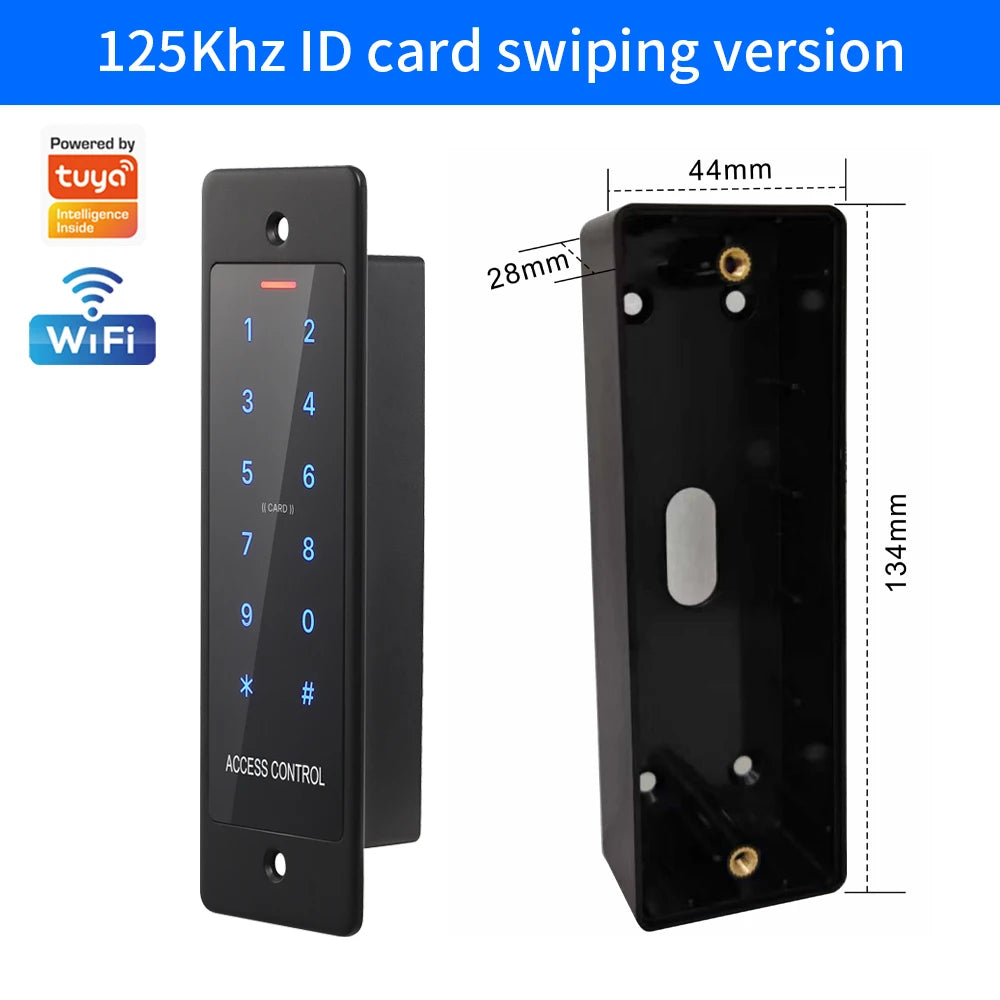

- Narrow & Embedded Design: Slim-profile housing fits neatly into standard door frames, gates, and narrow mounting spaces

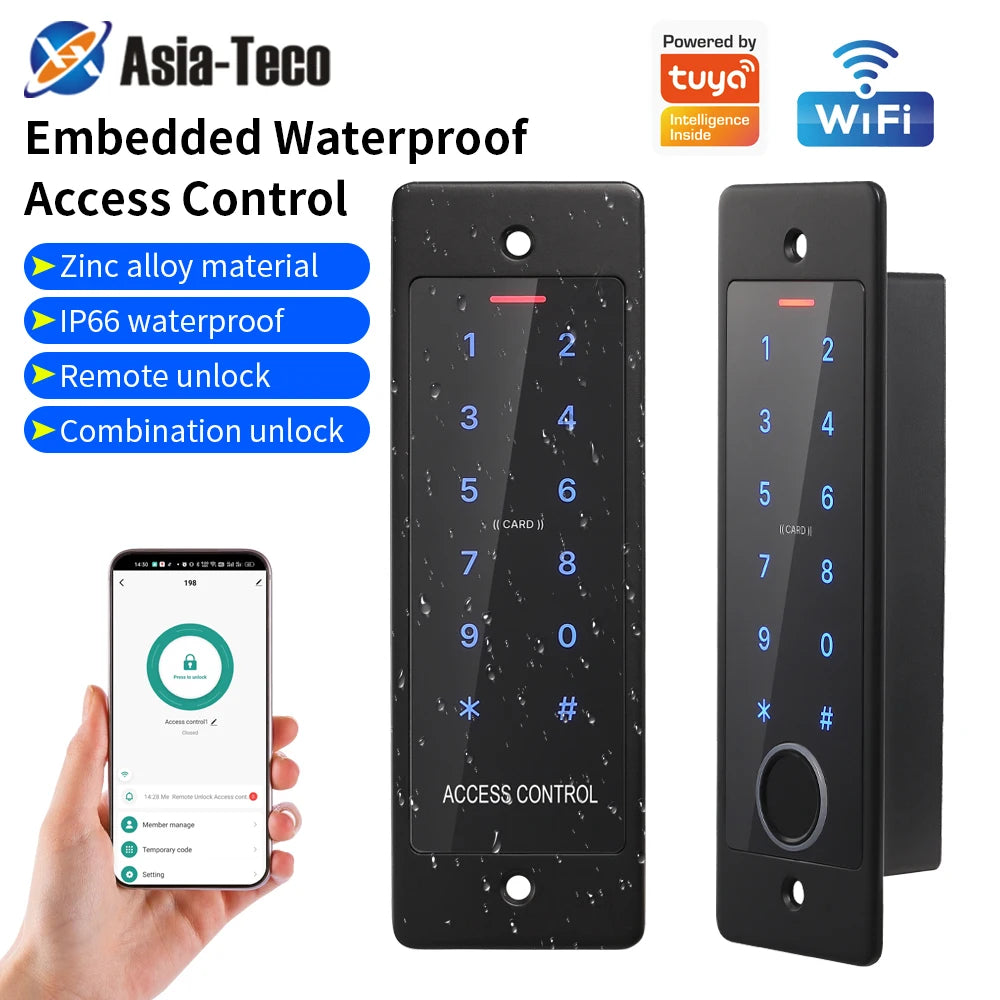

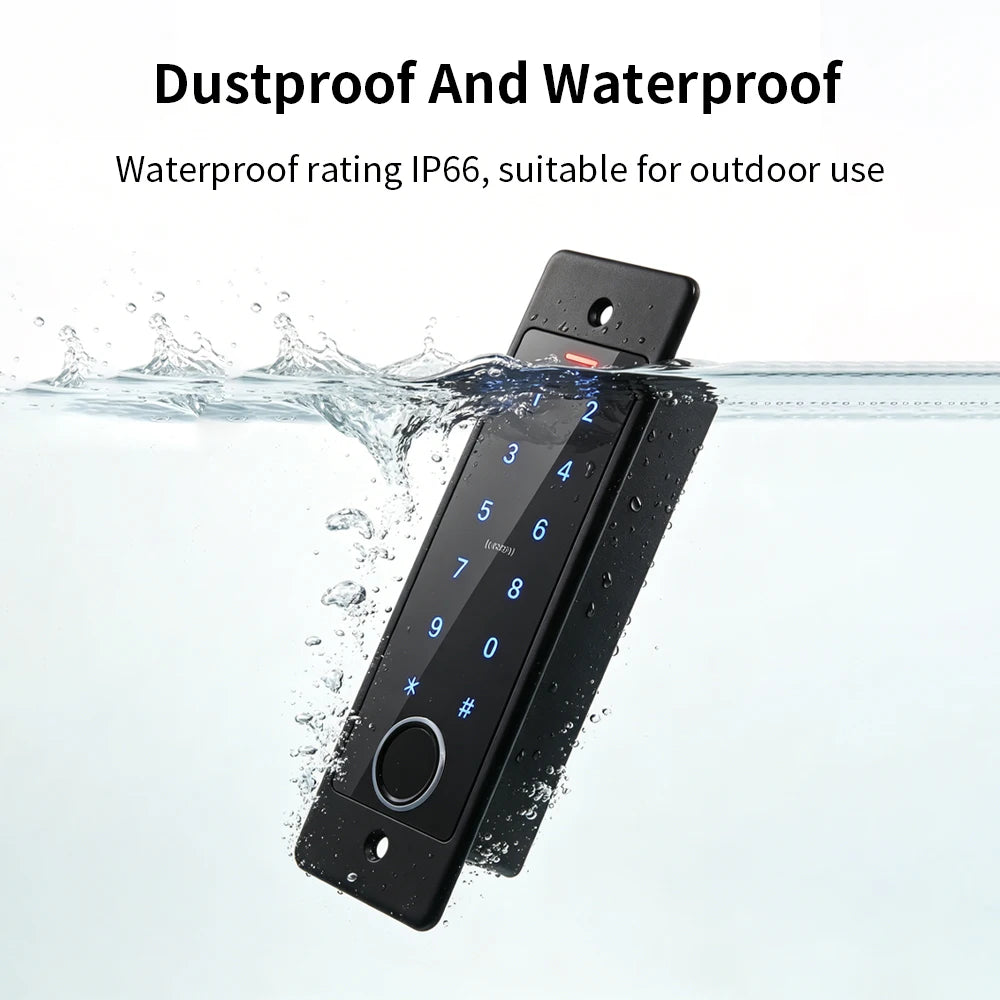

- Weatherproof & Durable: Fully waterproof construction rated for operating temperatures from -20°C to +60°C and humidity from 10% to 99% — ideal for outdoor and exposed installations
- Dual Card Frequency: Compatible with 125 KHz and 13.56 MHz cards for broad compatibility with existing systems
- Low Power Consumption: Idle current ≤50 mA / Active current ≤120 mA operating at DC 10–24 V
- Fast Card Read Range: Contactless card reading up to 60 mm
Technical Specifications
| Model | H9 / HF9 |
| Operating Voltage | DC 10–24 V |
| Idle Current | ≤50 mA |
| Active Current | ≤120 mA |
| Card Type | EM / Mifare / EM & Mifare |
| Card Frequency | 125 KHz / 13.56 MHz |
| Card / PIN Users | 10,000 |
| Fingerprint Users | 100 or 500 (options) |
| Read Range | ≤60 mm |
| Operating Temperature | -20°C ~ +60°C |
| Operating Humidity | 10% ~ 99% |
| Country of Origin | Made in China |
Who Is This For?
This access control system is perfect for apartment buildings, rental properties, small offices, warehouses, garage gates, and community entrances. Property managers can assign individual codes or cards to tenants and revoke access instantly — all without being on-site.
Learn More About Smart Access & Building Security
For guidance on electronic access control standards and best practices, visit the National Institute of Standards and Technology (NIST) – Cybersecurity Resources.
Frequently Asked Questions
Q: Does this WiFi access control system work with the Tuya Smart App?
A: Yes. The Asia-Teco H9/HF9 is fully compatible with the Tuya Smart App, allowing you to remotely unlock the door, add or remove users, and view access logs from your iOS or Android smartphone from anywhere with an internet connection.
Q: How many users can be registered on this fingerprint access control system?
A: The system supports up to 10,000 card and PIN users, and either 100 or 500 fingerprint users depending on the model option selected — making it suitable for small offices up to large residential buildings.
Q: Is this access control reader waterproof for outdoor installation?
A: Yes. The unit features a fully waterproof construction rated for operating temperatures from -20°C to +60°C and humidity up to 99%, making it well-suited for outdoor gates, building entrances, and exposed environments.
Q: What card types are compatible with this reader?
A: The reader supports EM cards (125 KHz), Mifare cards (13.56 MHz), and dual-frequency EM & Mifare cards, giving you broad compatibility with most standard access control cards and key fobs.
Q: What power supply does this system require?
A: The system operates on DC 10–24 V, drawing ≤50 mA at idle and ≤120 mA when active. A standard access control power supply is suitable — consult your installer for appropriate wiring requirements.
