WiFi Fingerprint Access Control Keypad – Tuya Smart Door Lock
WiFi Fingerprint Access Control Keypad – Tuya Smart Door Lock

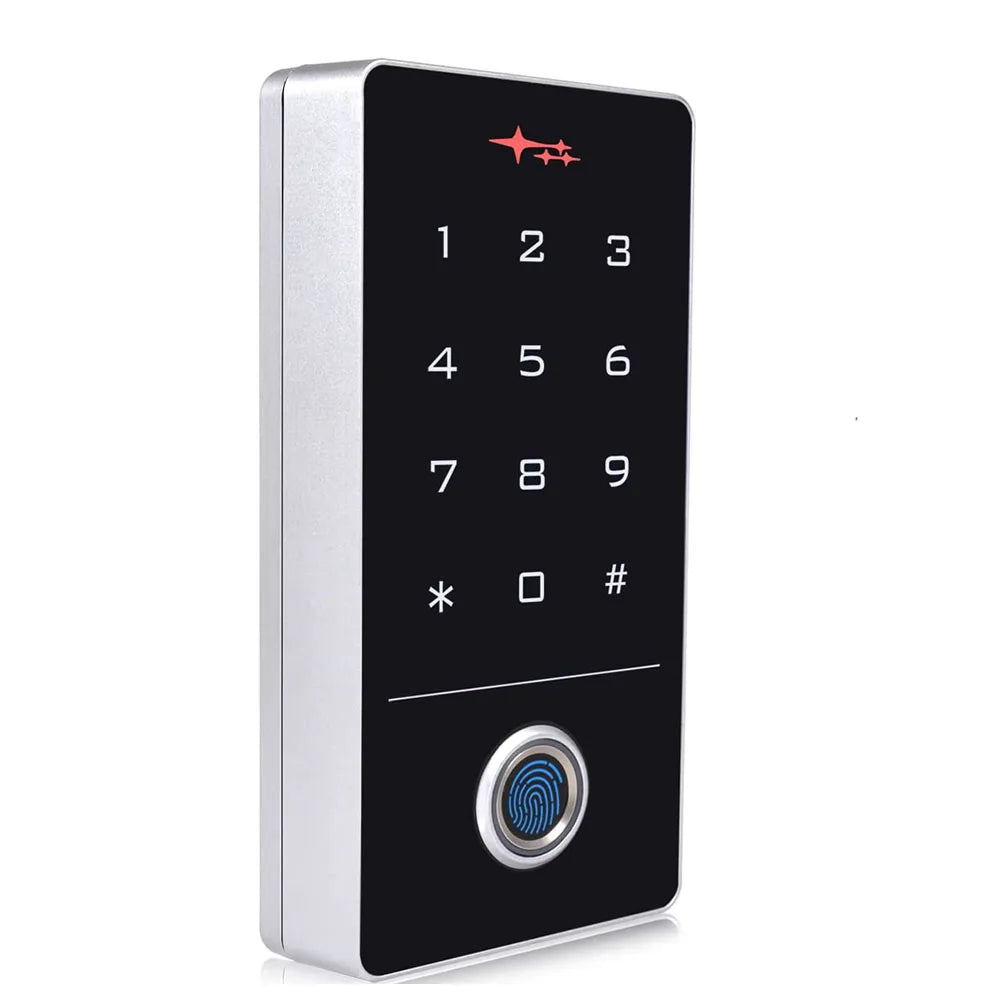

Asia-Teco Tuya WiFi Biometric Fingerprint Access Control Keypad
Take control of who enters your home, office, or gate with the Asia-Teco TF1AS-EM-W WiFi Smart Access Control Keypad. Powered by a 32-bit ARM core microprocessor and fully integrated with the Tuya / Smart Life App, this next-generation standalone keypad delivers seven flexible access methods, remote management, and rock-solid reliability — all in an IP68-rated, weather-resistant housing built to handle temperatures from -40°C to 60°C.
Key Features
- 7 Access Methods: Fingerprint, 125 KHz EM card, PIN code, and combination modes — giving every user the flexibility they need.
- High User Capacity: Stores up to 10,000 card/PIN users and 300 fingerprint users — ideal for offices, residential communities, villas, banks, and more.

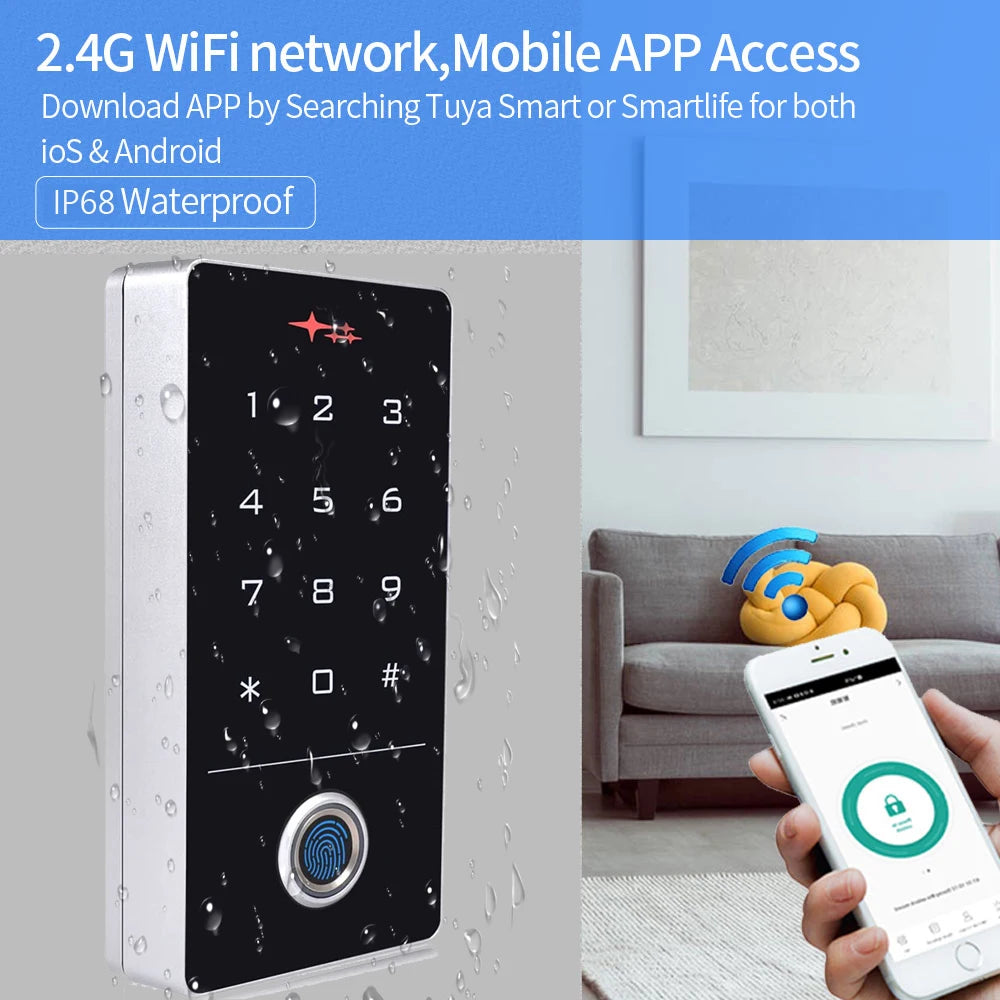

- Tuya & Smart Life App Integration: Manage users, monitor entry events, and unlock doors remotely via WiFi from anywhere in the world.
- Backlit Touch Keypad: Plastic backlit keypad with auto-off timer (2–99 seconds) and enable/disable control for energy efficiency.
- Flexible PIN Lengths: Set PINs of 4–6 digits for added security customization.
- Adjustable Relay Timer: Relay unlock time is fully configurable from 0–300 seconds to suit any door or gate setup.
- Wiegand I/O Support: Wiegand 26-bit output and automatic Wiegand 26/34-bit input identification — compatible with most third-party access control systems.
- Admin Card Management: Master card support for easy user enrollment and deletion without any software.

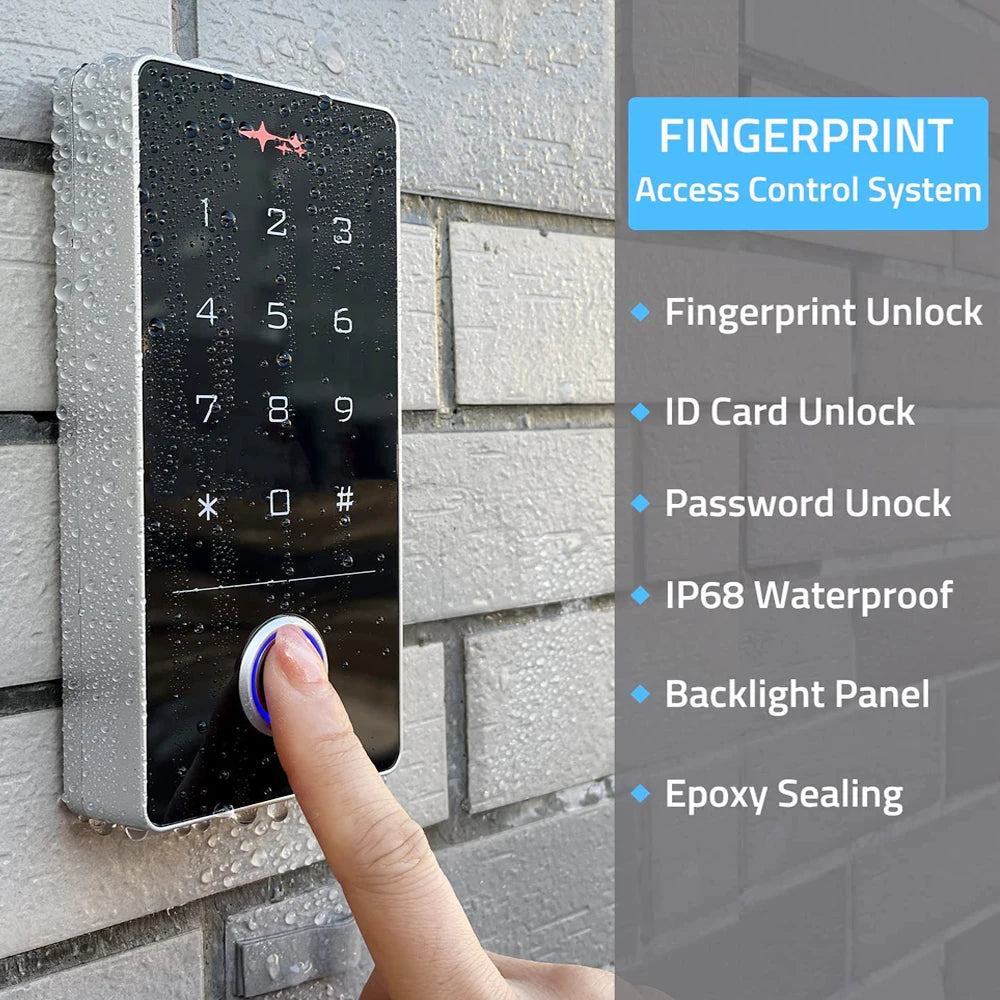

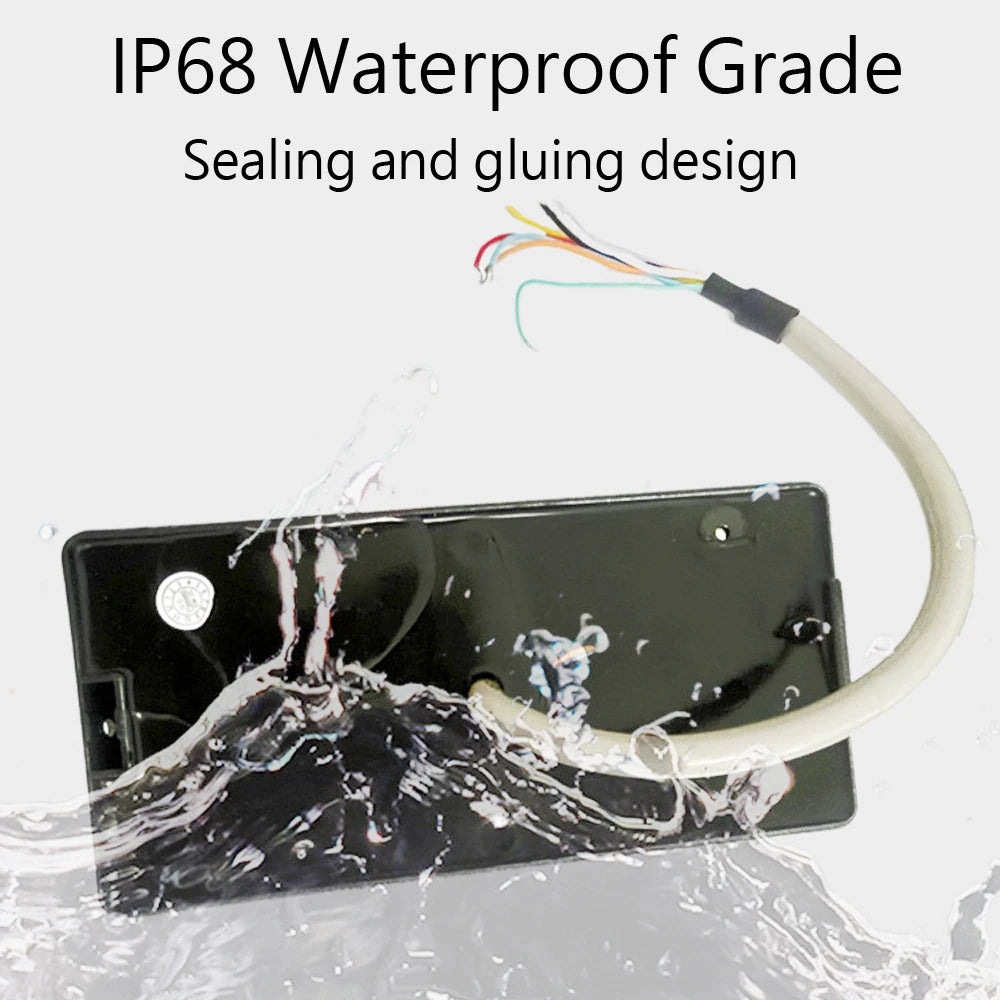

- IP68 Waterproof Rating: Built for indoor and outdoor installation in demanding environments.
- CE & FCC Certified: Meets international safety and electromagnetic compliance standards.
- Operating Voltage: DC 12V | Standby Current: ~35mA | Humidity: 0–95% RH
Wiring Reference
| Wire Color | Function |
|---|---|
| Red (+12V) | Positive power supply / AC power supply end |
| Black (GND) | Negative power supply |
| Blue (NO) | Relay Normally Open end |
| Orange (NC) | Relay Normally Closed end |
| Purple (COM) | Relay COM end |
| Green (D0) | Wiegand input / output (reader mode) |
| White (D1) | Wiegand input / output (reader mode) |
| Yellow (OPEN/BEEP) | Exit button input / Beeper input (reader mode) |
Ideal Applications
This smart keypad is perfectly suited for offices, apartment complexes, residential villas, warehouses, banks, and gate access points. Its dual standalone and reader modes allow seamless integration into new or existing access control infrastructure.
Technical Specifications

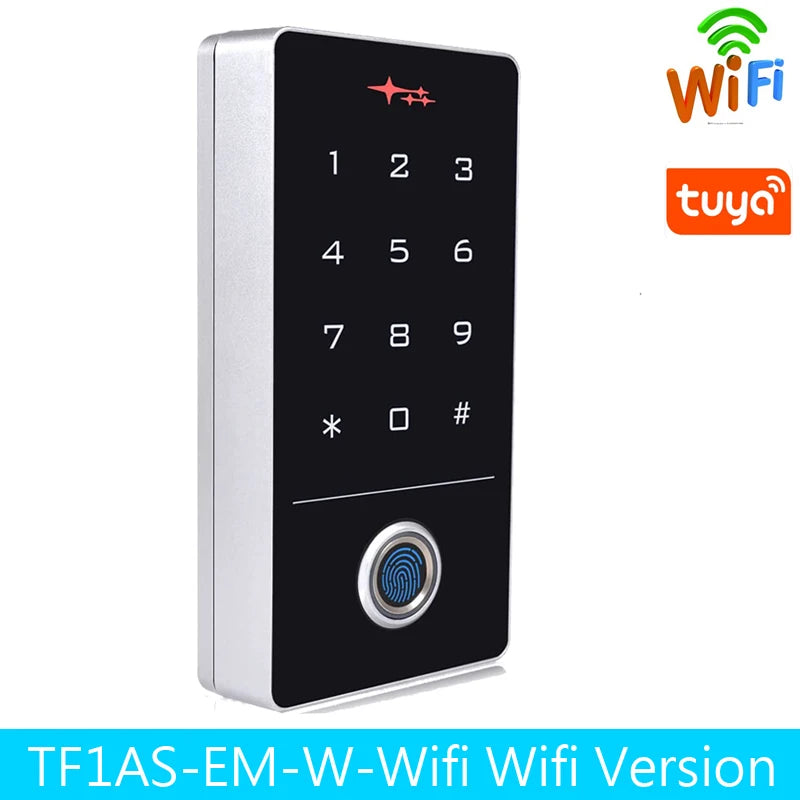

- Model: TF1AS-EM-W-wifi
- Card Type: 125 KHz EM ID Card
- Operating Voltage: DC 12V
- Standby Current: ~35mA
- Operating Temperature: -40°C to 60°C
- Operating Humidity: 0%–95% RH
- Certifications: CE, FCC
- Country of Origin: Made in China
For guidance on physical security best practices for homes and businesses, visit the Cybersecurity & Infrastructure Security Agency. You can also explore smart home device security standards at NIST Cybersecurity Resources.
Frequently Asked Questions
Q: How many users can the Asia-Teco WiFi fingerprint access control keypad support?
A: The keypad supports up to 10,000 card/PIN users and 300 fingerprint users, making it an excellent choice for both small offices and larger residential or commercial facilities.
Q: Does this access control keypad work without a smartphone or WiFi connection?
A: Yes! The keypad operates as a fully standalone access control unit and can be used with fingerprints, EM cards, or PIN codes even without a WiFi connection. WiFi and the Tuya/Smart Life App add remote management capabilities as an added convenience.
Q: Is this keypad suitable for outdoor installation?
A: Absolutely. The TF1AS-EM-W is rated IP68 waterproof and operates across a wide temperature range of -40°C to 60°C, making it suitable for outdoor gates, entryways, and other exposed locations.
Q: What access methods does this smart keypad support?
A: It supports seven access methods including fingerprint recognition, 125KHz EM card, PIN code, and various combination modes (e.g., card + PIN, fingerprint + card), giving administrators full flexibility over security requirements.
Q: Can I add or delete users using a card without the app?
A: Yes. The keypad supports an Admin/Master Card function that allows an administrator to enroll new cards and delete existing cards directly at the device — no app or computer required.
