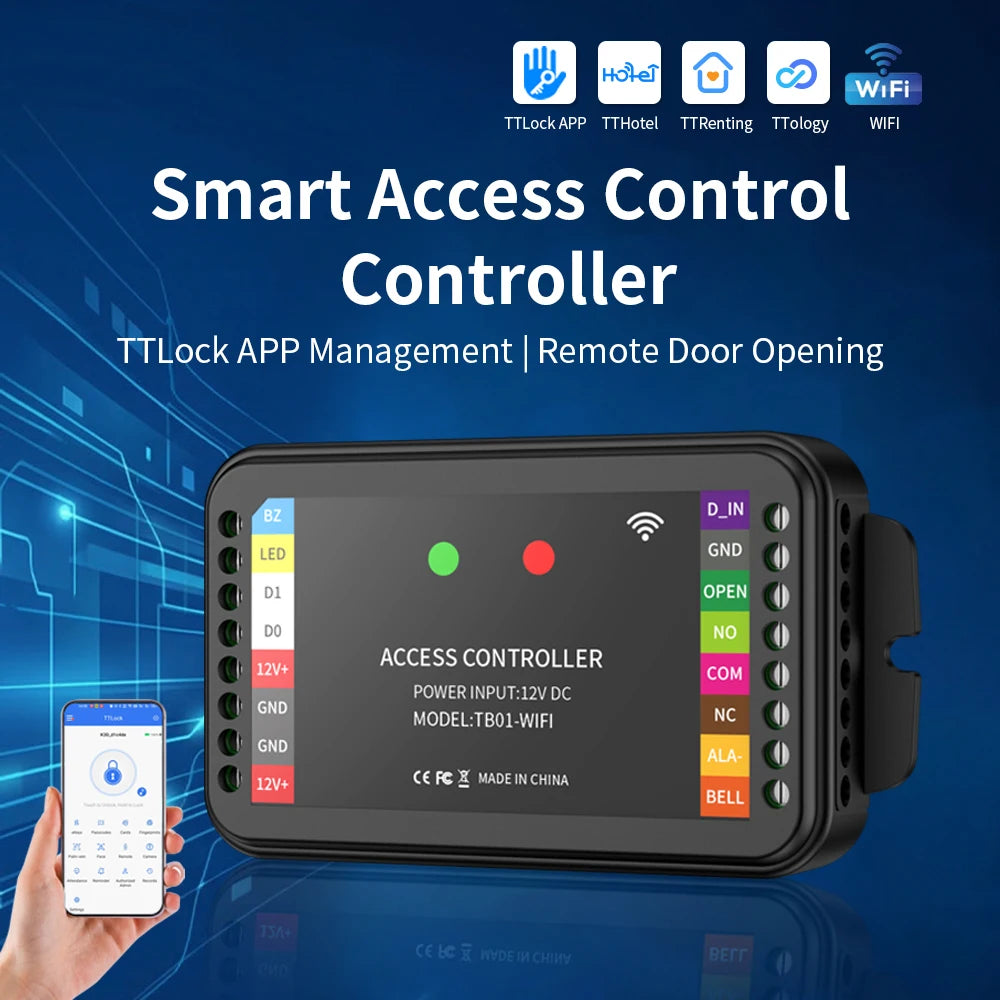

WiFi Door Access Controller – Wiegand WG26-44 Tuya & TTLock App

WiFi Smart Door Access Controller with Wiegand Input & App Remote Management

Take full command of your entry points with the Asia-Teco WiFi App Door Access Controller — a feature-packed smart access control board compatible with the Tuya and TTLock mobile apps. Whether you're securing an office, warehouse, or residential building, this controller gives you seamless remote management from anywhere in the world via your smartphone.

Key Features

• Multiple Access Modes: Card only, Card or PIN, Card with PIN, and multi-card/multi-PIN configurations for flexible security setups.
• Broad Wiegand Compatibility: Connects to any reader with Wiegand 26–44, 56, or 58-bit input, including keypad readers with 4-bit, 8-bit (ASCII), or 10-bit Virtual PIN formats.
• 1,000 Local Users + 500 App Users: Store up to 1,000 credentials locally and manage up to 500 users directly from the iOS or Android app.
• Master Card & Principal Card Support: Quickly enroll or remove users on-site using a designated master card for streamlined administration.
• Remote Access via 3G/4G/5G: Unlock, monitor, and manage your door from anywhere using a mobile data connection — no VPN required.
• Door Opening Record Log: View a full history of access events directly in the app for accountability and auditing.
• Temporary Password Codes: Issue one-time or time-period passwords for visitors, contractors, or delivery personnel — automatically expiring when no longer needed.
• Time Restriction Scheduling: Set access windows per user so credentials are only valid during authorized hours.
• External Alarm & Door Contact Input: Integrates with external alarm systems and door contact sensors for enhanced perimeter security.
• Doorbell Call Notification: Supports an external doorbell connection with in-app push notifications so you never miss a visitor.
• 12V DC Power Input: Standard low-voltage power for easy integration into new or existing access control systems.
• iOS & Android Compatible: Supports Tuya Smart and TTLock apps, available on both major mobile platforms.

Specifications

• Brand: Asia-Teco
• Models: Sboard-III-WiFi / HB1-WiFi / TTB01-TTLock
• App Support: Tuya Smart App (Sboard-III-WiFi / HB1-WiFi) & TTLock App (TTB01-TTLock)
• Wiegand Input: WG26–44, 56, 58 bits
• Power: 12V DC
• Relay Output: 1 relay
• Local User Capacity: 1,000
• App User Capacity: 500

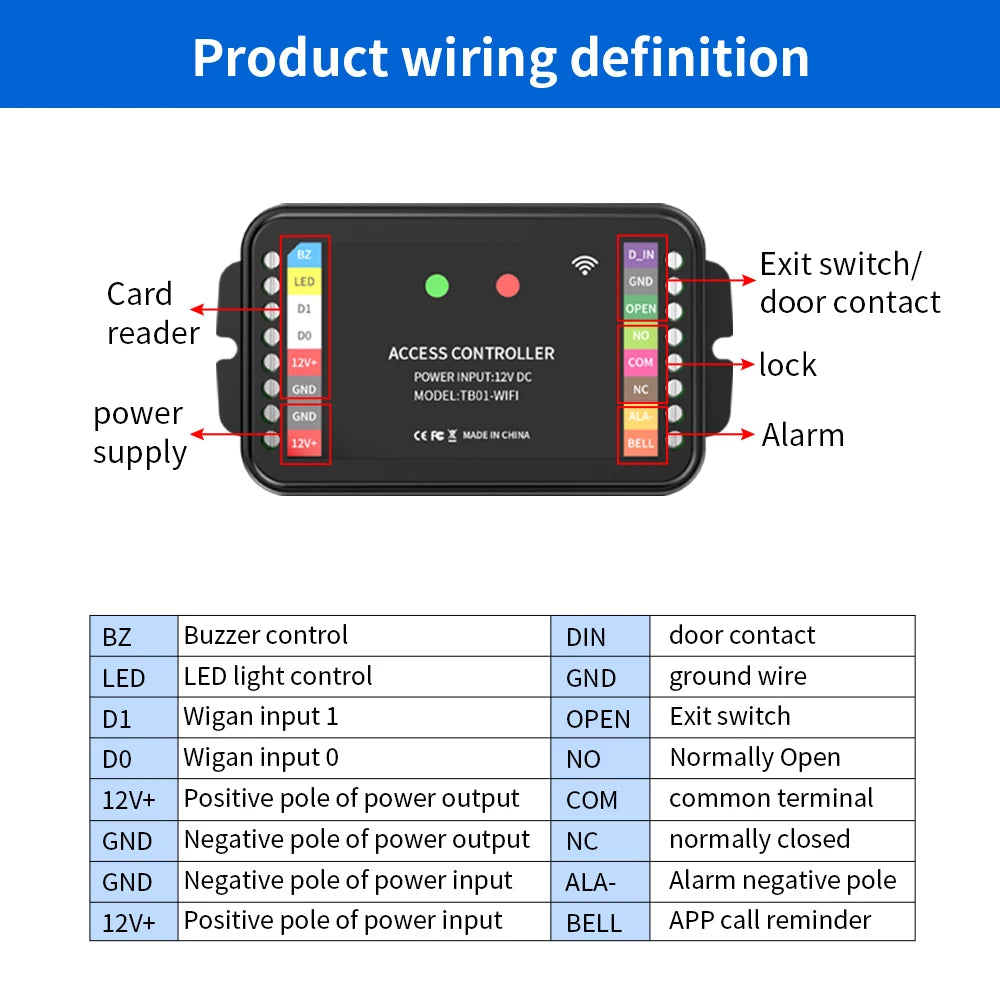

• Interfaces: Lock Control, Exit Button, Door Contact Input, Alarm Input, Wiegand
• Remote Access: 3G / 4G / 5G supported
• High-Concern Chemicals: None
• Made in Mainland China

Who Is This For?

This controller is an excellent fit for small businesses, apartment complexes, server rooms, co-working spaces, and any environment where multi-user access management and remote monitoring are essential. Its compatibility with popular smart home ecosystems (Tuya) and dedicated access control platforms (TTLock) makes it a versatile choice for integrators and DIY installers alike.

For guidance on best practices in electronic security systems, refer to the U.S. Consumer Product Safety Commission (CPSC) for product safety standards.

Frequently Asked Questions

Q: Which apps are compatible with this WiFi door access controller?

A: This controller supports two app platforms depending on the model you choose: the Tuya Smart app (for Sboard-III-WiFi and HB1-WiFi models) and the TTLock app (for the TTB01-TTLock model). Both apps are available free on iOS and Android.

Q: What Wiegand formats does this access controller support?

A: The controller is compatible with Wiegand 26 through 44 bits, as well as 56-bit and 58-bit formats. It also works with keypad readers using 4-bit, 8-bit (ASCII), and 10-bit Virtual PIN inputs, making it compatible with a wide range of existing readers.

Q: Can I grant temporary access to visitors or contractors?

A: Yes. The app allows you to generate temporary passwords that can be set as one-time-use codes or valid only within a specific date and time range — perfect for delivery personnel, service providers, or short-term guests.

Q: Does this controller work with an existing alarm system?

A: Yes. The controller includes dedicated inputs for an external alarm and a door contact sensor, allowing it to integrate with most standard security and alarm systems already in place.

Q: How many users can be stored on this access control system?

A: The controller supports up to 1,000 local card users stored directly on the device, plus up to 500 users managed via the smartphone app — suitable for small-to-medium commercial or residential deployments.
