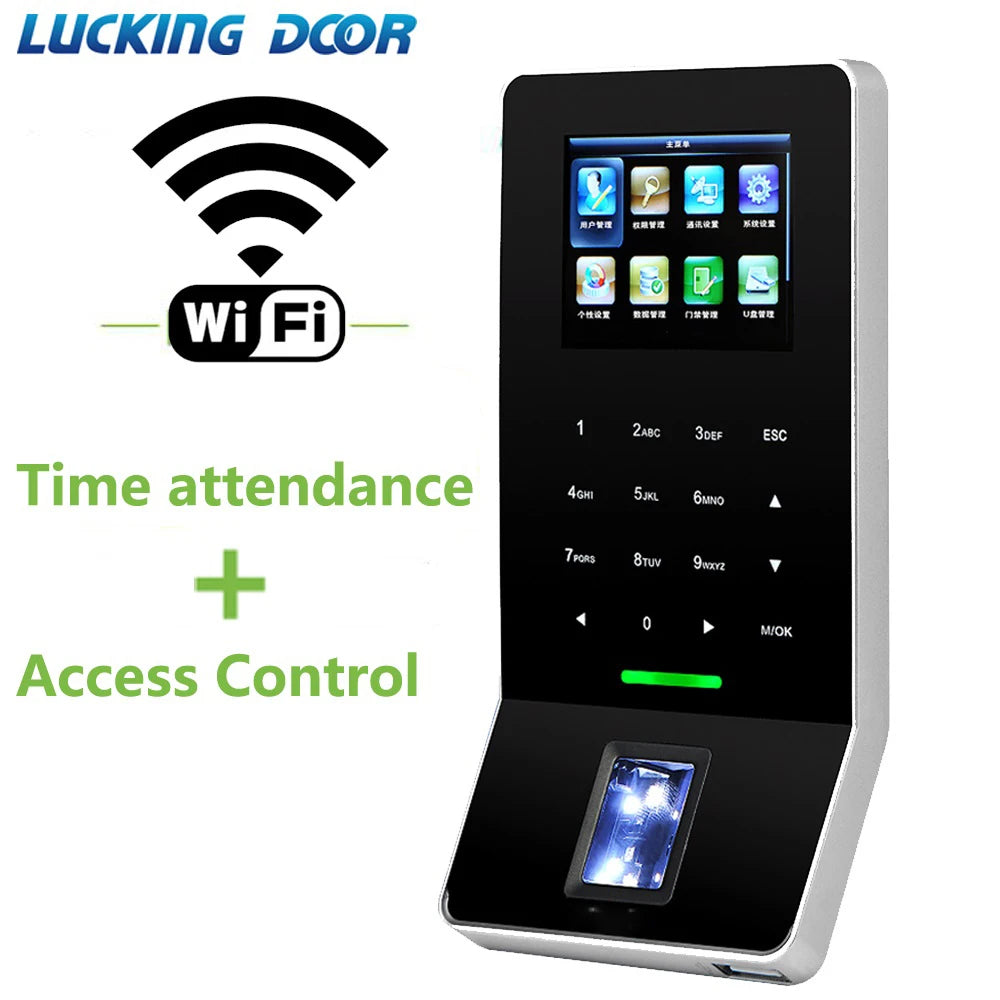

Asia-Teco F-28 WiFi Biometric Fingerprint Access Control & Time Attendance Terminal
Upgrade your workplace security and employee management with the Asia-Teco F-28 — an ultra-thin, feature-rich biometric fingerprint terminal combining access control and time attendance in one sleek device. Equipped with a 2.4-inch TFT LCD color touchscreen and advanced optical fingerprint sensor, this system delivers fast, accurate identification for businesses of all sizes.
Key Features
- Advanced Fingerprint Algorithm (Finger VX10.0): High-speed, high-accuracy biometric matching with capacity for up to 3,000 fingerprints and 30,000 transaction records.
- Multi-Network Connectivity: Supports TCP/IP (RJ45), RS485, USB Host, and built-in Wi-Fi — deploy it on virtually any network infrastructure.
- 2.4" TFT Color Touchscreen: Intuitive touch keypad interface for effortless enrollment, management, and daily use.
- Full Access Control Suite: Compatible with third-party electric locks, door sensors, exit buttons, and alarm systems right out of the box.
- Anti-Passback & Wiegand Support: Built-in anti-passback feature plus standard Wiegand input/output for seamless integration with third-party access control panels.
- Optional MIFARE Card Reader: Supports up to 5,000 MIFARE card users for flexible multi-verification modes (fingerprint + card).
- Fail-Safe Security Mode: Operates with signal-based fail-safe to maintain door security even during network interruptions.
- Ultra-Thin Elegant Design: Available in black or white to complement any modern office or facility environment.
- Standalone or Networked: Flexible installation — use as a standalone unit or integrate with any third-party access control system.
Technical Specifications
| Model | F-28 |
| Display | 2.4-inch TFT LCD Color Touchscreen |
| Algorithm | Finger VX10.0 (Optical) |
| Fingerprint Capacity | 3,000 |
| ID Card Capacity | 5,000 (Optional MIFARE Card) |
| Transaction Records | 30,000 |
| Communication | TCP/IP (RJ45), RS485, USB Host, Wi-Fi |
| Wiegand | Input & Output |

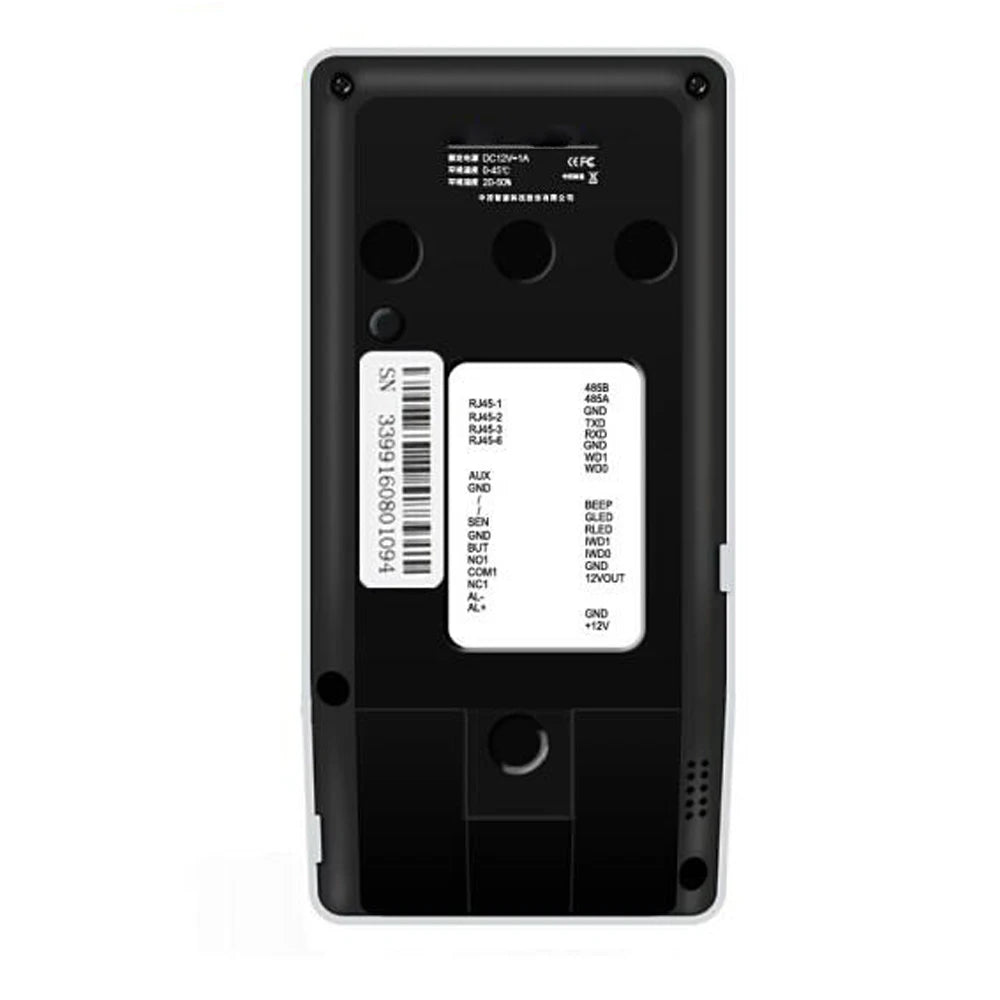

| Access Control Interface | Electric Lock, Door Sensor, Exit Button |
| Security Mode | Fail Safe with Signal |
| Color Options | Black / White |
| Country of Origin | Made in Mainland China |
Who Is This For?
The Asia-Teco F-28 is ideal for offices, warehouses, schools, gyms, retail stores, and manufacturing facilities that need a reliable, easy-to-manage employee attendance tracking and access control solution. Its Wi-Fi and TCP/IP connectivity make it a perfect fit for both small businesses and multi-location enterprise deployments.
Learn More About Workplace Access Control
For guidance on implementing physical security systems in the workplace, visit the OSHA Worker Safety & Security resource page.
Frequently Asked Questions
Q: Can the Asia-Teco F-28 fingerprint attendance system connect to my existing network?
A: Yes. The F-28 supports multiple connectivity options including TCP/IP via RJ45 Ethernet, RS485, USB Host, and built-in Wi-Fi, making it compatible with virtually any existing office or facility network setup.
Q: How many employees can the biometric fingerprint time attendance system store?
A: The F-28 can store up to 3,000 fingerprint templates and up to 5,000 optional MIFARE card users, with a transaction log capacity of 30,000 records — suitable for small to mid-sized organizations.
Q: Is this fingerprint access control device compatible with third-party electric locks and panels?
A: Absolutely. The F-28 features standard Wiegand input/output and a full access control interface (electric lock, door sensor, exit button, alarm), making it compatible with most third-party access control panels and hardware.
Q: Can the system operate in standalone mode without a network connection?
A: Yes. The F-28 can be configured as a standalone access control and time attendance terminal, or integrated into a larger networked system — giving you maximum deployment flexibility.
