Wiegand 26-Bit IP Door Access Control Panel & KR300 Reader

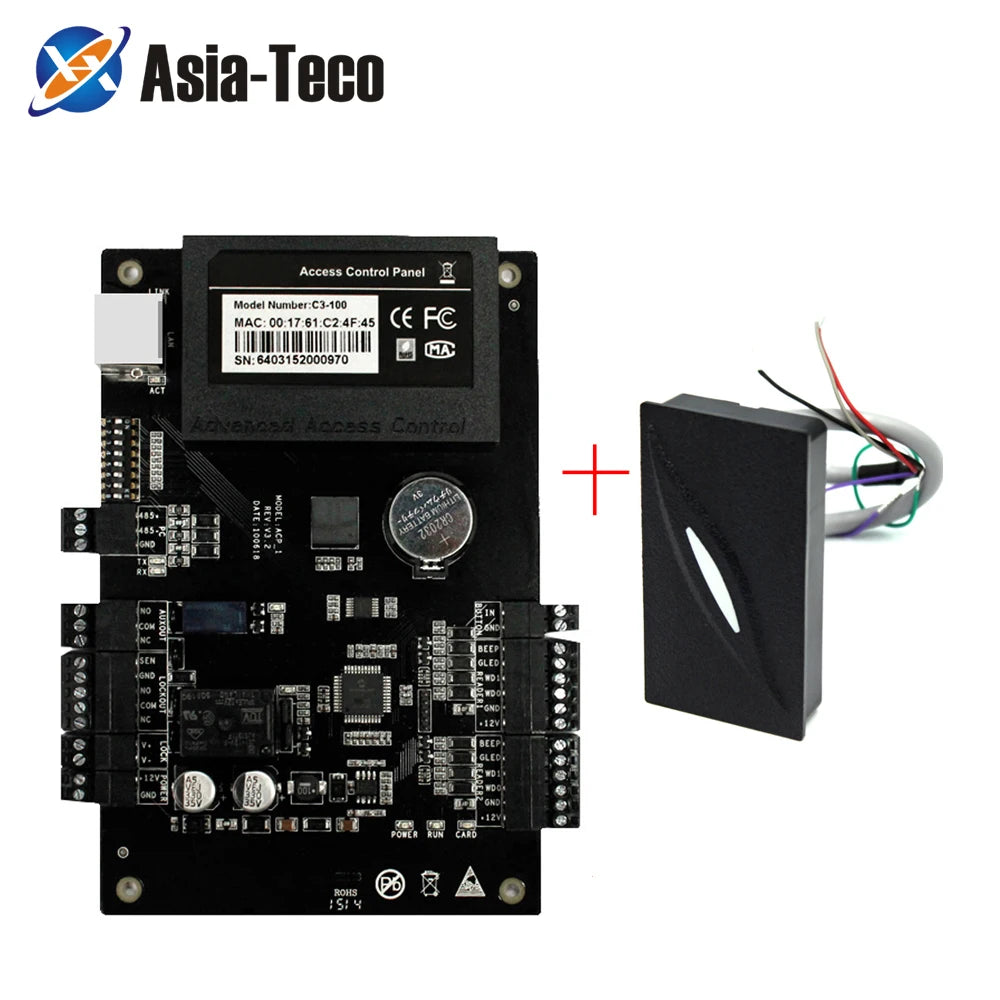

Asia-Teco C3-100 IP-Based Door Access Control Panel with KR300 Dual-Band Reader

Upgrade your facility's entry management with the Asia-Teco C3-100 Wiegand 26-bit IP Door Access Control Panel. Bundled with one IP65-rated KR300 dual-band card reader, this system delivers seamless TCP/IP and RS485 communication for reliable, network-based access management in offices, warehouses, apartment buildings, and more.

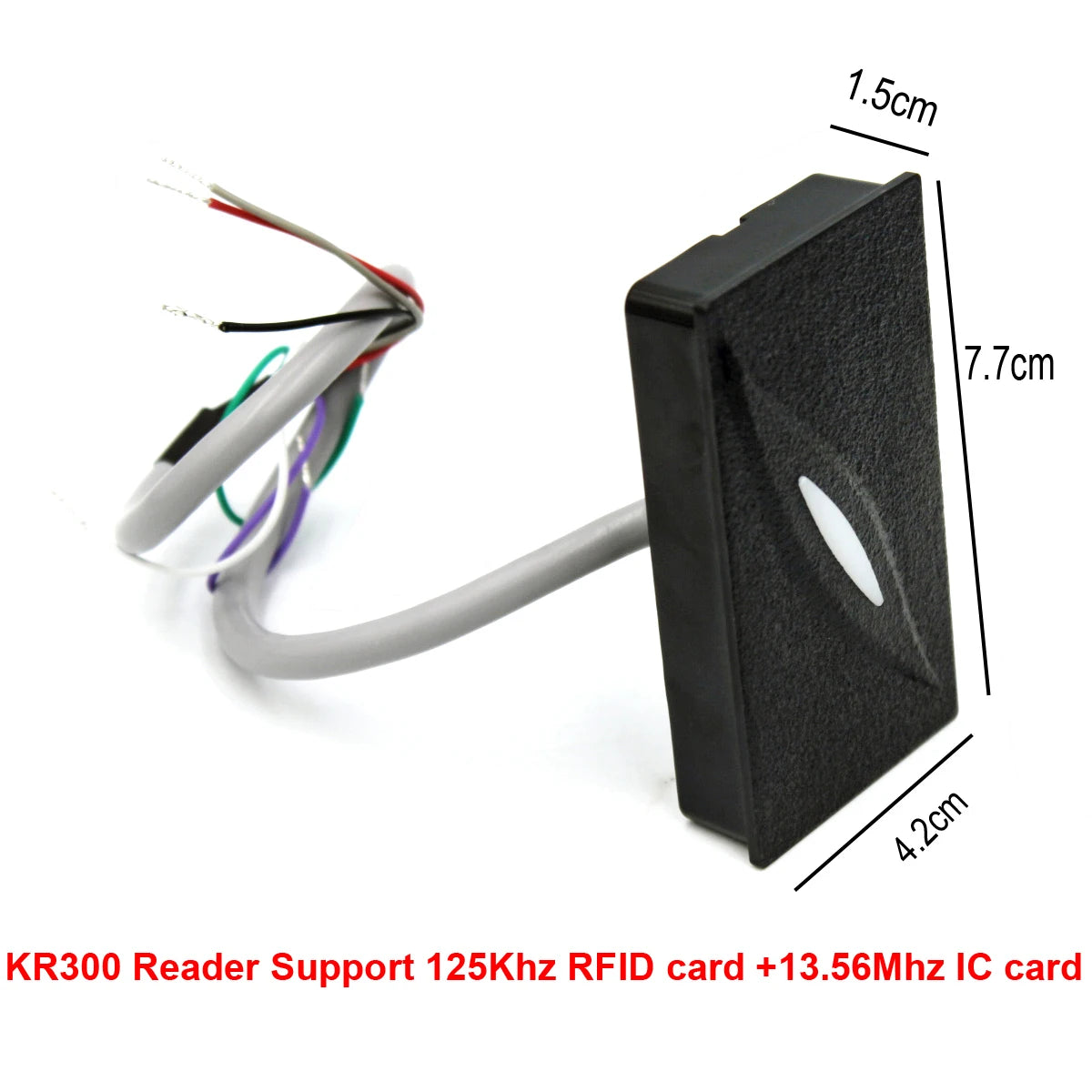

The KR300 reader supports both 125 kHz (EM/HID) and 13.56 MHz (Mifare/ISO 14443A) card frequencies, making it compatible with a wide range of existing credential cards. With Fail-Safe security mode and Wiegand 26-bit output, this panel integrates smoothly into most existing security ecosystems.

Note: CR2032 backup battery is not included.

Made in Mainland China.

Key Features

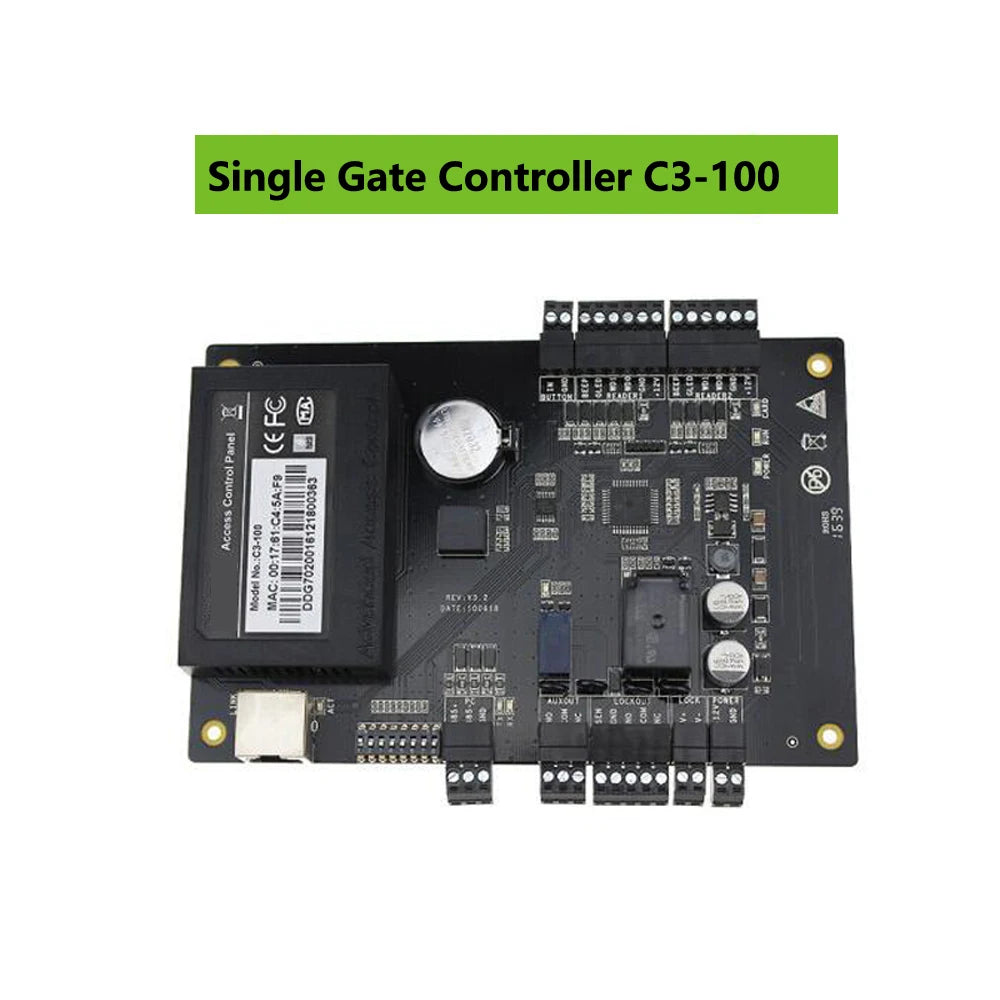

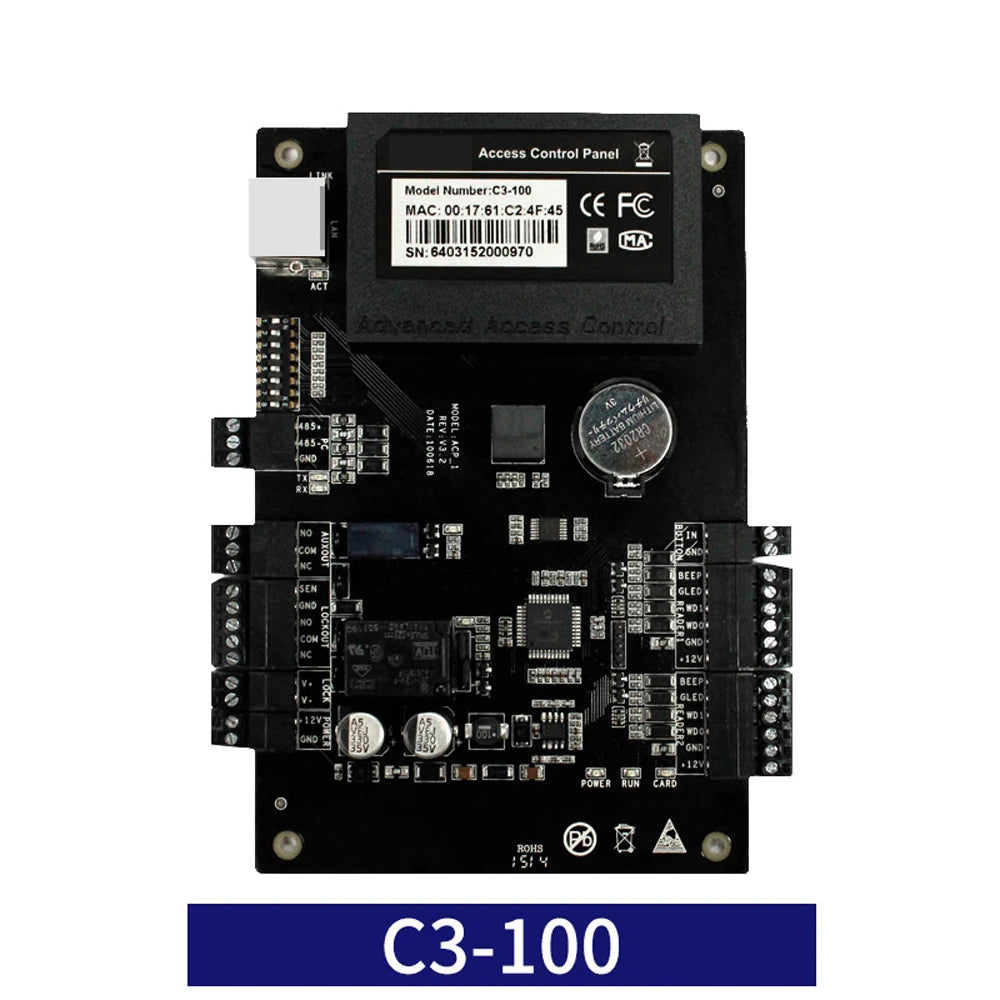

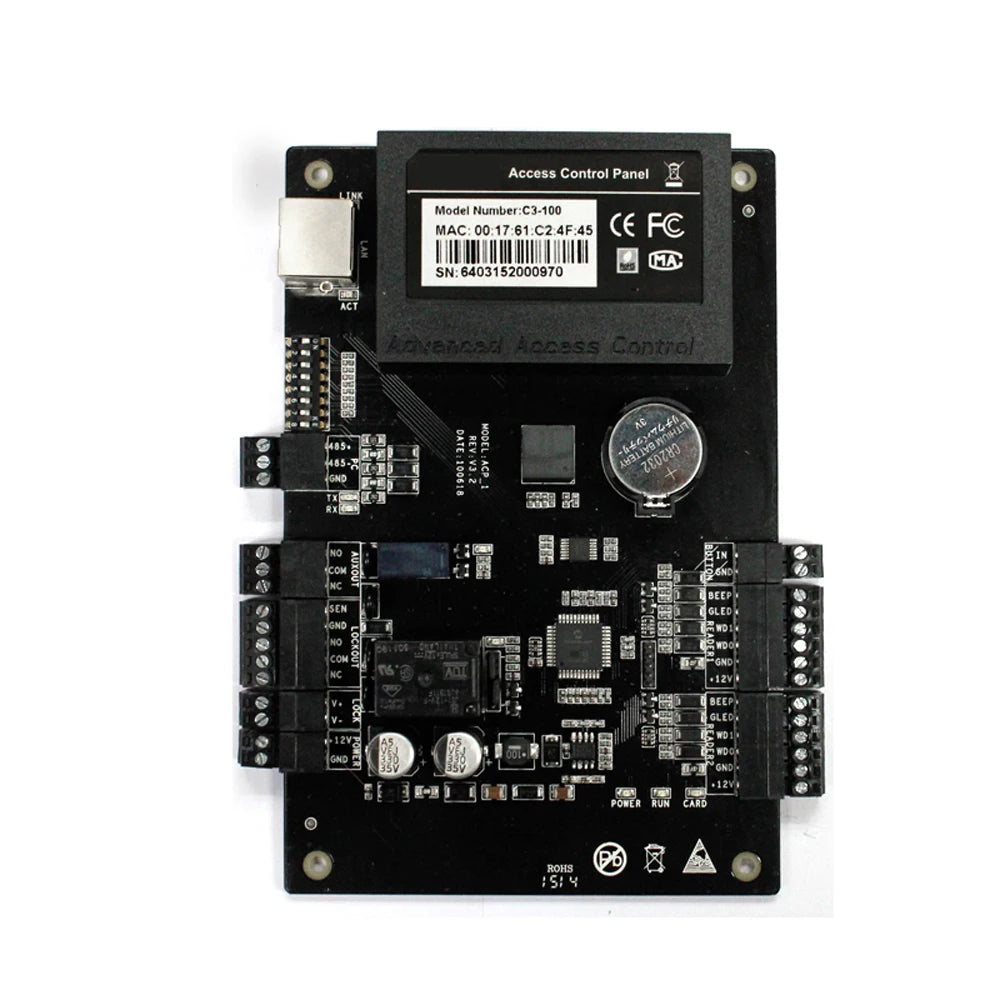

• Model: C3-100 single-door access controller
• Communication: TCP/IP & RS485 dual interface for flexible network integration
• Wiegand Interface: 26-bit standard for broad compatibility

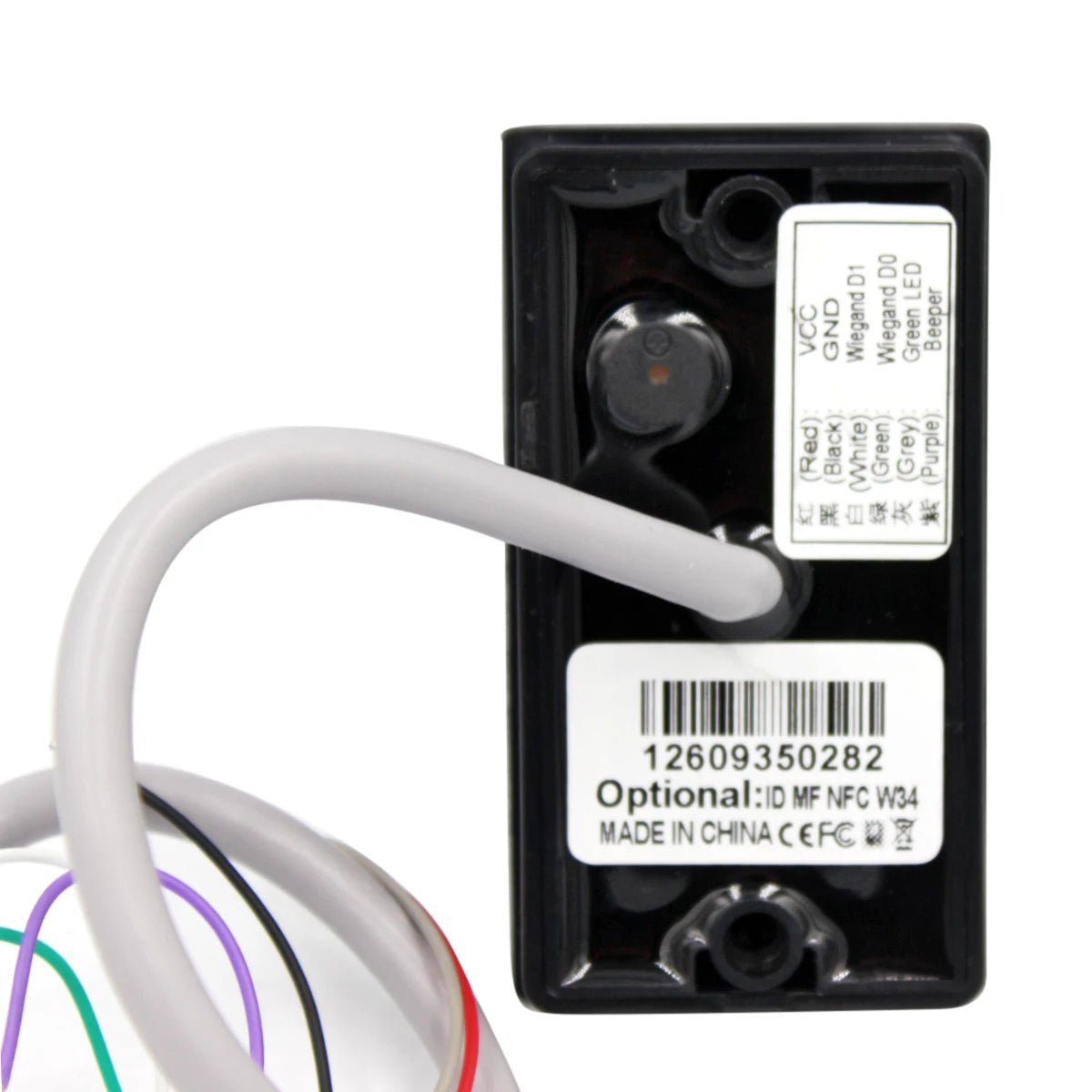

• Included Reader: KR300 — IP65 waterproof, dual-band (125 kHz & 13.56 MHz)
• Card Compatibility: EM4100, HID, Mifare 1K/4K, ISO 14443A, and more
• Security Mode: Fail Safe with signal output
• Color: Black
• Brand: Asia-Teco

What's in the Box?

• 1 × C3-100 Door Access Control Panel
• 1 × KR300 IP65 Dual-Band Card Reader
• CR2032 battery NOT included

Ideal Applications

• Office and corporate entry management
• Apartment and residential complex access
• Warehouses, server rooms, and restricted areas
• Schools, healthcare facilities, and government buildings

Technical Specifications

For general information on building security standards and electronic access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does the Asia-Teco C3-100 access control panel support multiple doors?

A: The C3-100 is a single-door access control panel. It is designed to control one door at a time. For multi-door installations, multiple C3-100 units can be networked together via TCP/IP or RS485 communication.

Q: What card types are compatible with the KR300 reader?

A: The KR300 dual-band reader supports both 125 kHz cards (such as EM4100 and standard HID proximity cards) and 13.56 MHz cards (such as Mifare 1K/4K and ISO 14443A smart cards), offering broad compatibility with most common access credentials.

Q: Is the KR300 reader suitable for outdoor installation?

A: Yes. The KR300 reader is rated IP65, meaning it is protected against dust ingress and low-pressure water jets from any direction, making it suitable for covered outdoor or semi-exposed installations.

Q: Does the panel require a CR2032 battery?

A: The C3-100 uses a CR2032 battery for memory backup, but this battery is not included in the package. Please purchase one separately before installation.

Q: What communication options does the C3-100 support?

A: The C3-100 supports both TCP/IP (Ethernet network) and RS485 serial communication, giving installers flexibility to integrate the panel into existing network infrastructure or wired RS485 bus systems.
