Waterproof Touchless IR Sensor Exit Button DC 12V–36V

Asia-Teco Waterproof Touchless Infrared Sensor Exit Button – DC 12V–36V

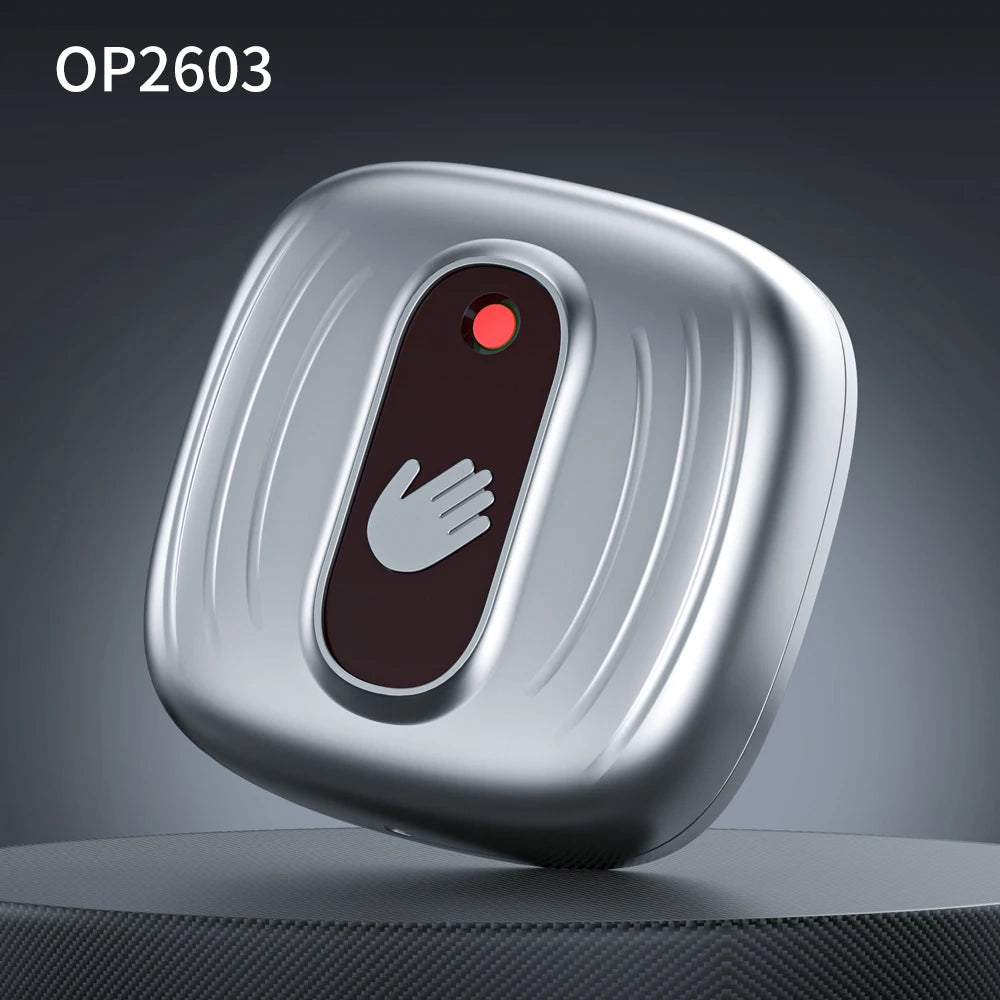

Upgrade your access control system with the Asia-Teco Touchless IR Sensor Exit Button (Model OP2602 / OP2603). Using advanced infrared modulation-demodulation technology, this no-touch door release switch lets you open doors hygienically and effortlessly — simply wave your hand in range. Ideal for offices, hospitals, clean rooms, restrooms, and any environment where hands-free convenience matters. Made in Mainland China.

Key Features

• Contactless IR Technology: High-sensitivity infrared sensor triggers door release without physical contact, keeping entry points clean and germ-free.
• Adjustable Sensing Distance: Transmit range is adjustable from 1 cm to 15 cm, so you can fine-tune sensitivity to suit your exact installation environment.
• Wide Voltage Compatibility: Operates on AC/DC 12V–36V, making it compatible with the vast majority of commercial and residential access control setups.
• Waterproof Construction: Sealed housing protects internal components, making it suitable for indoor and semi-outdoor installations where moisture may be present.
• Low Power, Long Life: Energy-efficient design draws only 55 mA at DC 12V (action) and 22 mA static — reducing operating costs and extending service life.
• Dry Contact Signal Output: Easy integration with electric locks, magnetic locks, access controllers, and other gate equipment via universal dry contact wiring.
• LED Status Indicator: Built-in light indicator provides instant visual feedback on activation and system status.
• Discreet Hidden-Screw Mounting: Clean, professional appearance with hidden screw holes for a sleek, modern aesthetic on any wall surface.
• Anti-Interference: IR modulation-demodulation eliminates false triggers from ambient light or nearby electronic equipment.

Specifications

Where to Use It

This touchless exit button is perfectly suited for a wide range of applications:

• Office lobbies and conference rooms
• Medical facilities and clean rooms
• Public restrooms and washrooms
• Retail entrances and storage areas
• Residential security doors
• Any access-controlled area requiring hands-free entry/exit

For guidance on best practices in building access control and door security, visit the U.S. Consumer Product Safety Commission (CPSC) for general product safety information.

Frequently Asked Questions

Q: What power supply does the touchless IR exit button require?

A: The Asia-Teco IR sensor exit button operates on a wide AC/DC 12V–36V power supply range, making it compatible with most standard access control systems and power adapters used in commercial and residential installations.

Q: How do I adjust the sensing distance on this no-touch exit button?

A: The transmit (sensing) distance is adjustable from 1 cm to 15 cm via the built-in adjustment mechanism. You can set it to the optimal range for your specific door frame, wall position, or traffic flow to minimise accidental triggers.

Q: Can this infrared sensor exit button be used outdoors?

A: The waterproof construction makes it suitable for semi-outdoor or covered installations where it may be exposed to moisture or humidity. It is rated for operating temperatures from -20°C to 45°C. For fully exposed outdoor environments, additional weatherproofing measures are recommended.

Q: Is this touchless door switch compatible with my existing electric lock or magnetic lock?

A: Yes. The unit features a dry contact signal output, which is a universal standard. It can integrate directly with electric strikes, magnetic locks, access control boards, and other gate or door-release equipment without requiring additional relays in most setups.

Q: How is the IR sensor exit button mounted?

A: It uses a hidden screw mounting design, allowing for a clean, seamless appearance on the wall. The hidden screw holes keep the exterior surface smooth and professional-looking once installed.
