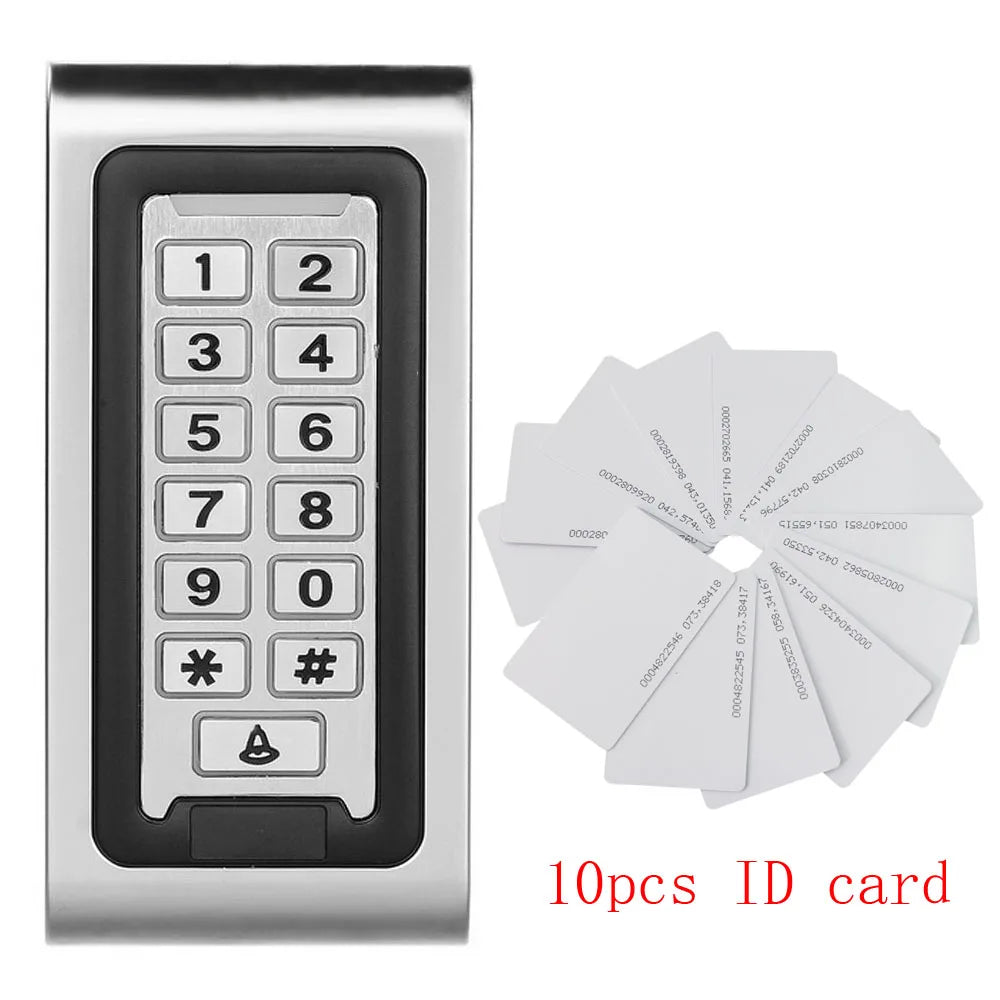

Asia-Teco Waterproof Metal RFID Access Control Keypad – 8000 Users + 10 Key Fobs
Secure any single door with professional-grade access control. The Asia-Teco S601EM-W is a standalone RFID keypad controller built from heavy-duty zinc alloy, rated IP68 waterproof, and designed for indoor or outdoor installations in shops, homes, offices, warehouses, factories, laboratories, banks, and more. The package includes 10 key fobs so you can start granting access right out of the box.
Made in Mainland China.
Key Features
- IP68 Waterproof Rating – fully sealed for outdoor and harsh-environment use
- 8,000-User Capacity – stores up to 8,000 RFID cards and/or 8,000 PIN codes
- 3-in-1 Access Modes – card only, PIN code only, or card + PIN for dual-layer entry
- 125 kHz EM / Compatible RFID – reads proximity cards and fobs at 3–6 cm
- Anti-Vandal Zinc Alloy Case – electroplated silver finish, built to resist physical attack
- Built-In Anti-Tamper (LDR) – triggers alarm if the unit is forcibly removed or covered
- Anti-Theft Alarm Output – connects to an external alarm device (max 20 A output)
- Short-Circuit Protection – relay and alarm outputs shut off in under 0.1 ms to protect your lock hardware
- Fast Processing – card identification in under 20 ms with up to 2,000 users loaded
- Wiegand W26 / W34 Output – compatible as a standalone reader with any WG26 access panel
- Backlit Keys + LED Status Display – Red, Yellow, and Green LEDs show real-time operating status
- Adjustable Timings – customise door output time, alarm time, and door-open time from the keypad
- Easy Keypad Programming – enroll cards continuously, delete lost cards, reset PINs — all without a PC
- Low Power Consumption – static current under 30 mA
- Wide Temperature Range – operates from -45 °C to +60 °C
Full Specifications
| Model | S601EM-W |
| Power Supply | 12 VDC ±10% |
| Unlock Relay | 12 VDC / 2 A |
| Electric Lock Output | Max 3 A |
| Alarm Output | Max 20 A |
| User Capacity | 8,000 cards / 8,000 PIN codes |
| PIN Code Length | 4-digit |
| RFID Frequency | 125 kHz (EM or compatible) |
| Read Range | 3–6 cm |
| Wiegand Interface | WG26 / W26 (cards), W34 (codes) |
| Waterproof Rating | IP68 |
| Operating Temperature | -45 °C to +60 °C |
| Relative Humidity | 10%–90% RH |
| Dimensions | 118 × 56 × 20 mm |
| Static Current | <30 mA |

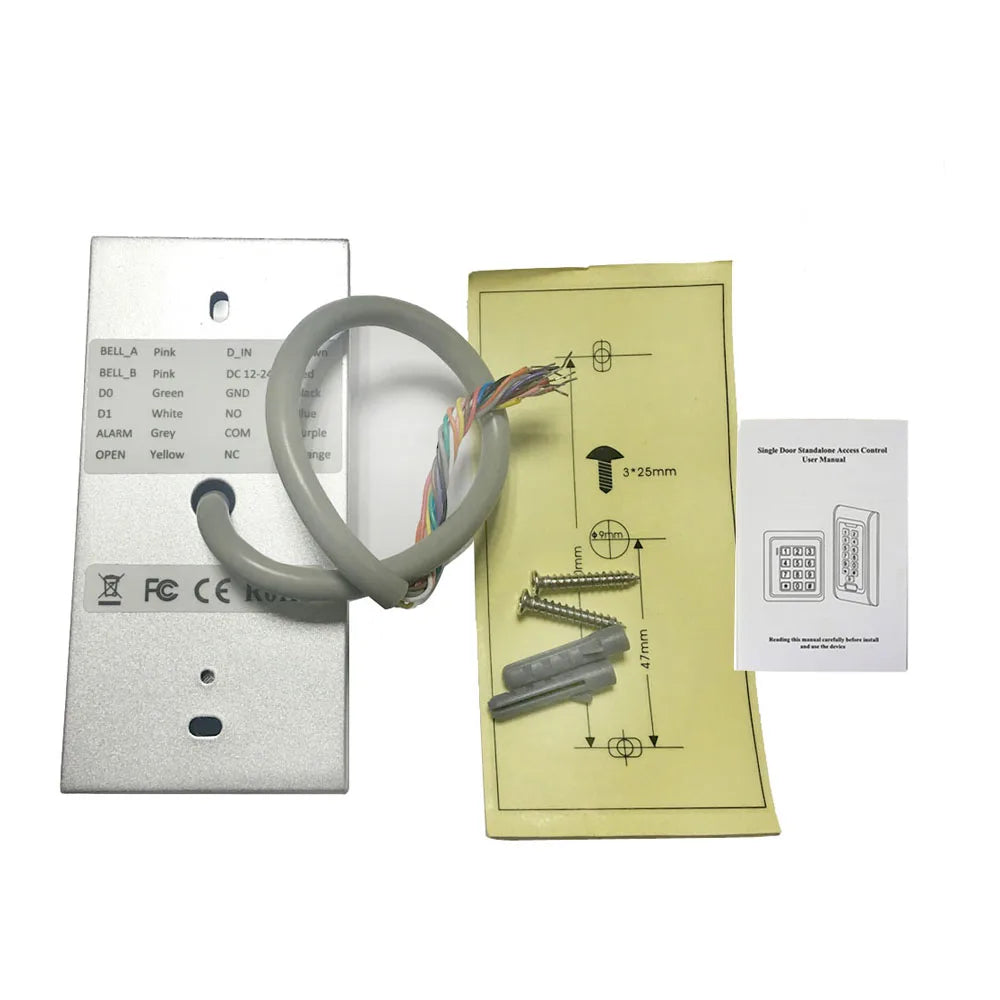

What's in the Box
- 1 × Asia-Teco S601EM-W RFID Access Control Keypad
- 10 × 125 kHz RFID Key Fobs
- Mounting hardware & installation guide
Where to Install
This controller is an excellent fit for a wide variety of entry points: residential front doors, office entrances, server rooms, warehouses, garages, laboratories, retail stockrooms, gym facilities, and anywhere else that requires controlled, logged, keypad-free entry.
For more information on best practices for electronic access control systems, visit the U.S. Consumer Product Safety Commission (CPSC) for guidance on home and commercial security hardware standards.
Frequently Asked Questions
Q: Does this RFID keypad work with standard 125 kHz key cards and fobs I already own?
A: Yes. The Asia-Teco S601EM-W operates at 125 kHz and is compatible with EM-type cards and any compatible 125 kHz proximity cards or fobs. The 10 included key fobs are ready to enroll immediately, and you can add any compatible cards up to the 8,000-user limit.
Q: Can I use this keypad outdoors in rain or extreme temperatures?
A: Absolutely. The unit carries an IP68 waterproof rating — the highest level of ingress protection for solid particles and continuous water submersion — and operates reliably from -45 °C to +60 °C, making it suitable for virtually any outdoor climate.
Q: Does the keypad require a computer or software to program?
A: No. The S601EM-W is a fully standalone controller. All programming — including enrolling and deleting cards, setting PINs, adjusting door output time, alarm time, and door-open time — is done directly from the keypad without any PC or proprietary software.
Q: What type of electric lock does it support?
A: The keypad supports relay output with a maximum electric lock current of 3 A and an unlock relay of 12 VDC / 2 A. It is compatible with both fail-safe and standard electric locks. The security mode is Fail Safe with Signal. Always match your lock's voltage and current requirements to the controller's output specs before installation.
Q: Can it be integrated into a larger access control system?
A: Yes. The unit features a WG26 Wiegand interface, so it can function as a standalone reader connected to a compatible access control panel. It outputs W26 format for card reads and W34 format for PIN code reads.
