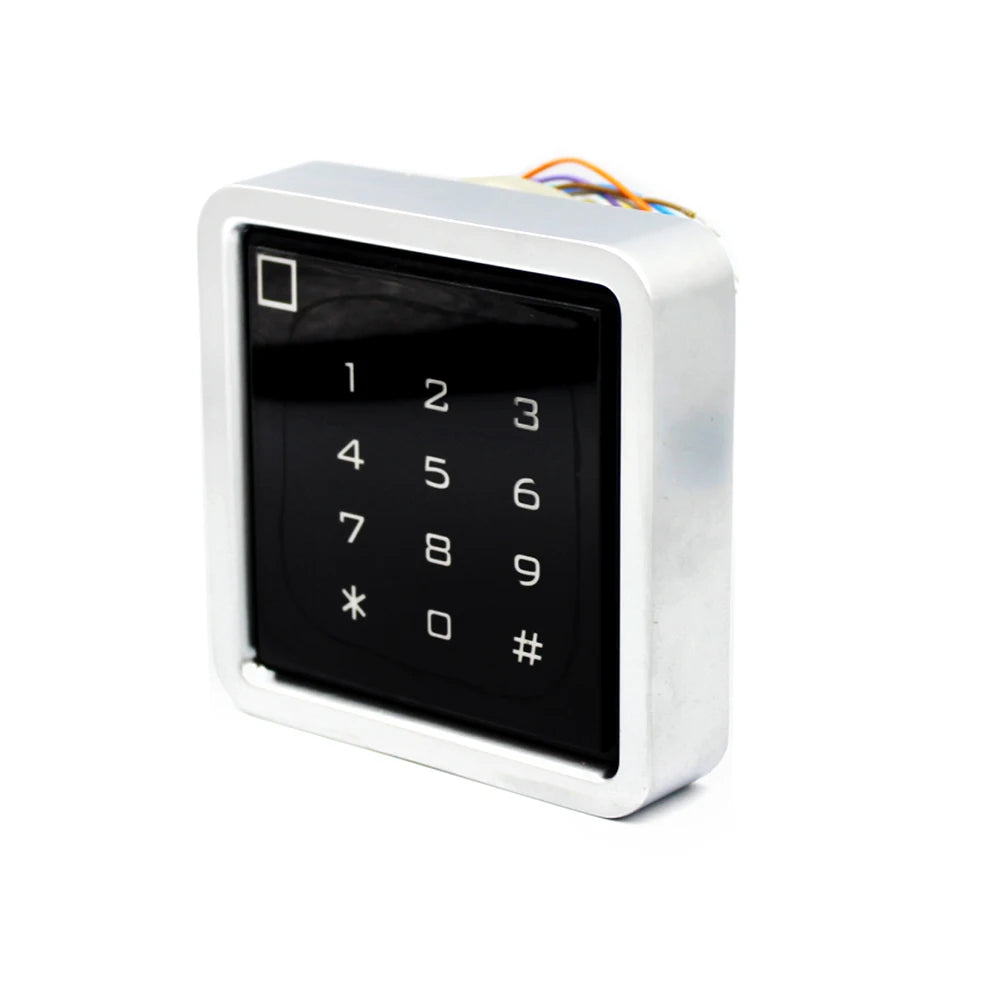

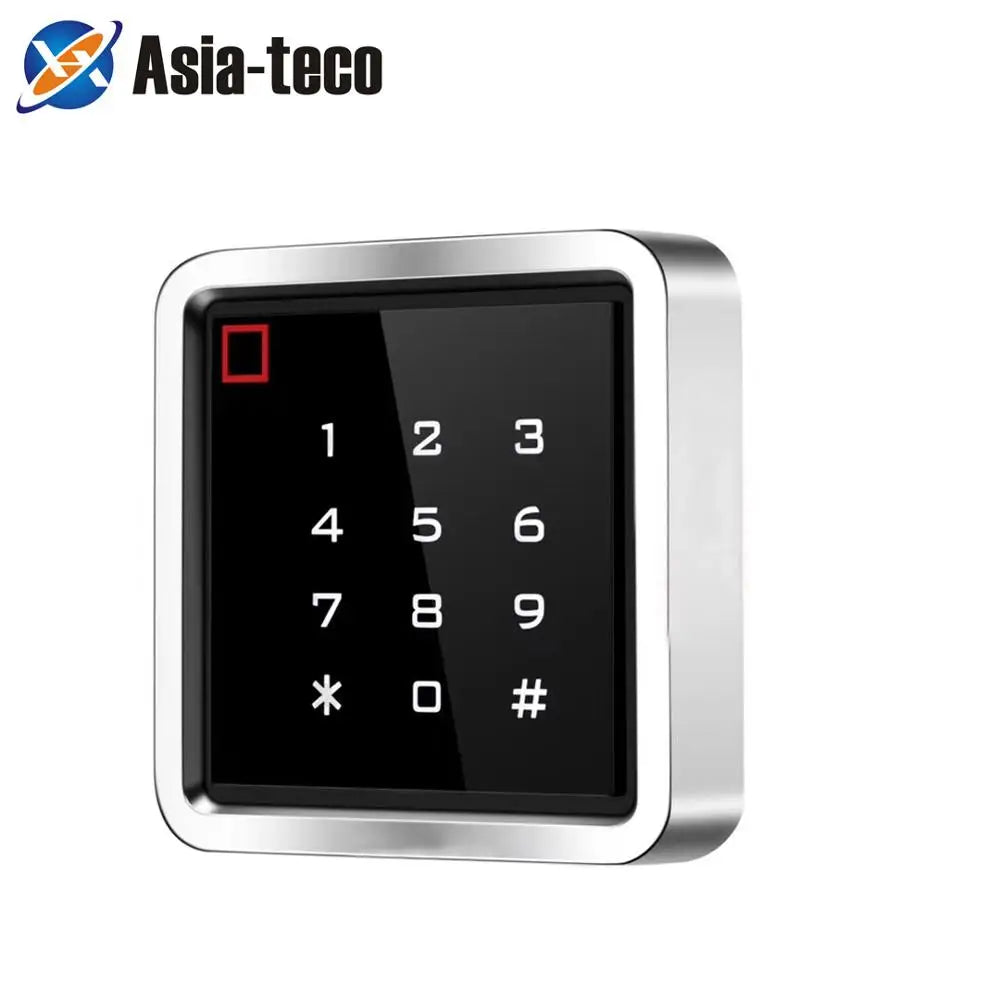

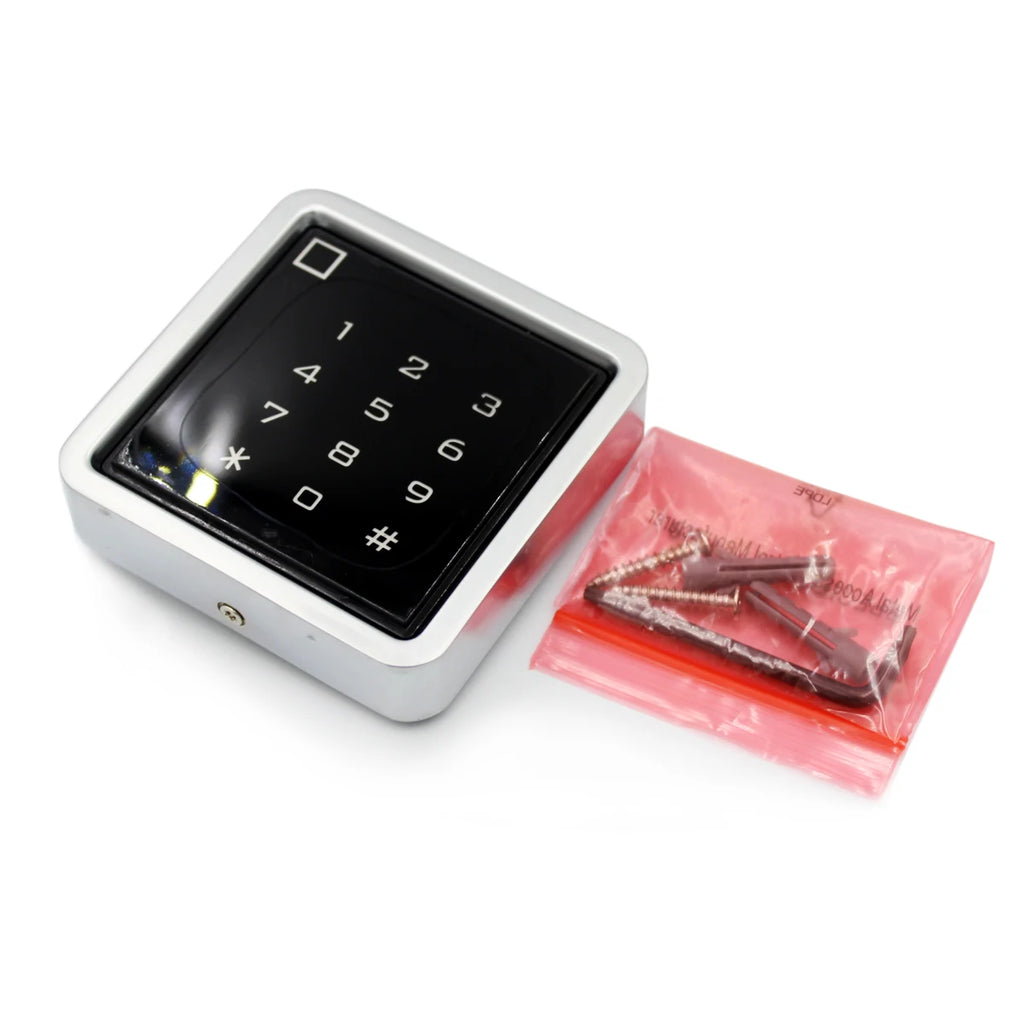

Asia-Teco T8 Waterproof RFID Access Control Keypad — 2000 Users
Take control of who enters your property with the Asia-Teco T8 RFID Door Access Control System. Designed for offices, warehouses, apartment buildings, and residential gates, this rugged metal keypad combines RFID card reading, PIN code entry, and flexible standalone operation — all in a sleek, IP65-rated zinc alloy enclosure that stands up to rain, dust, and attempted tampering.
Key Features
- Triple Access Modes: Use RFID card only, 4-digit PIN code only, or card + PIN for two-factor entry — your choice.
- 2,000-User Capacity: Store up to 2,000 RFID cards and 2,000 individual PIN codes simultaneously.
- IP65 Waterproof & Anti-Vandal: Heavy-duty zinc alloy electroplated housing resists weather, dust, and physical attack — rated for outdoor installation.
- Built-in Anti-Tamper LDR: An integrated light-dependent resistor (LDR) detects cover removal and triggers the alarm output.
- Anti-Theft Alarm Output: Connects to an external alarm device (up to 20 A output) for immediate notification of unauthorized access attempts.
- Short-Circuit Protection: Relay and alarm outputs shut down within 0.1 ms in the event of a short circuit, protecting connected hardware.
- Wiegand WG26 Reader Output: Can operate standalone or function as a WG26 reader in a larger access control network.
- Backlit Touch Keypad: Responsive backlit touch keys with a stylish silver finish ensure easy use day or night.
- RGB LED Status Display: Red, Yellow, and Green LEDs provide clear at-a-glance status indication.
- Ultra-Fast Response: Card identification in under 20 ms keeps entry lines moving.
- Low Power Consumption: Static current under 30 mA — energy-efficient 24/7 operation.
- Full Keypad Programming: Enroll cards, set PINs, adjust door relay timing, alarm timing, and door-open time — all without a PC.
- Card Management: Enroll cards continuously; delete lost or revoked cards directly from the keypad for immediate security updates.
- Wide Operating Range: Functions reliably from −40 °C to 50 °C and 10 %–90 % RH.
Technical Specifications
| Model | T8 |
| Power Supply | 12–24 V DC |
| Unlock Relay | 12 V DC / 2 A |
| Electric Lock Output | Max 3 A |
| Alarm Output | Max 20 A |
| Short-Circuit Protection | Max 0.1 ms |
| User Capacity | 2,000 cards / 2,000 codes |
| Card Frequency | 125 KHz (EM / compatible) |
| Read Range | 5–8 cm |
| PIN Code | 4-digit |
| Reader Interface | 1 × WG26 |
| Door Sensor Interface | 1 |
| Alarm Interface | 1 |
| Operating Temperature | −40 °C to 50 °C |
| Humidity | 10 %–90 % RH |
| IP Rating | IP65 |
| Dimensions | 155 × 45 × 20 mm |
| Security Mode | Fail Safe |
| Country of Origin | Made in Mainland China |
Ideal Applications
The T8 is perfectly suited for office building entrances, apartment or condo common areas, warehouse and factory gates, parking access points, school campuses, and any other location requiring controlled entry with a durable, weather-resistant solution.
Security Best Practices
For guidance on physical security standards and access control best practices in commercial environments, refer to the U.S. Consumer Product Safety Commission (CPSC) and OSHA's facility security resources.
Frequently Asked Questions
Q: Does the Asia-Teco T8 RFID keypad work outdoors?
A: Yes. The T8 carries an IP65 waterproof rating, meaning it is fully protected against dust ingress and low-pressure water jets from any direction. Its zinc alloy anti-vandal housing makes it an excellent choice for outdoor gate or door installations exposed to rain and temperature extremes (−40 °C to 50 °C).
Q: What types of RFID cards are compatible with this access control system?
A: The T8 reads 125 KHz EM-type cards and compatible equivalents. It does not natively support 13.56 MHz MIFARE/HF cards. Always verify your existing card frequency before purchase.
Q: Can I use the T8 as part of a larger access control network?
A: Yes. The keypad features a WG26 (Wiegand 26-bit) output interface, allowing it to be used as a standalone controller or connected to a compatible third-party access control panel as an external reader.
Q: How do I remove a lost or stolen card from the system?
A: Lost or revoked cards can be deleted directly from the keypad without any PC or software. Simply use the administrator programming sequence on the keypad to remove the specific card, immediately revoking its access privileges.
Q: What happens if the relay or alarm output is short-circuited?
A: The T8 includes built-in short-circuit protection that shuts off the affected output within 0.1 milliseconds, preventing damage to the controller, connected locks, or alarm devices.
